| Place of Origin: | China |
| Brand Name: | Longdai |
| Model Number: | LW |
| Document: | Long Dai Water Treatment Eq...ue.pdf |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000USD-25000USD |
| Packaging Details: | Wooden or customized |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100Set Per Month |
| Features: | Continuous Operation, High Efficiency, Low Maintenance | Material: | SS304 |
|---|---|---|---|
| Machinery: | Separation Centrifuge | Collocation: | Double Motor With Double Transduce |
| Weight: | 1400 | Discharge Type: | Spiral Screw Discharge |
| Use: | Solids Control Centrifuge | Core Components: | PLC，Motor, Pressure Vessel, Bearing |
| Item: | Industrial Separator Centrifuge Machine | Description: | Solid-liquid Separation Machine |
| Highlight: | Decanter Centrifuge low chemical consumption,Decanter Centrifuge cost per ton reduction,Decanter Centrifuge no downtime operation |
||

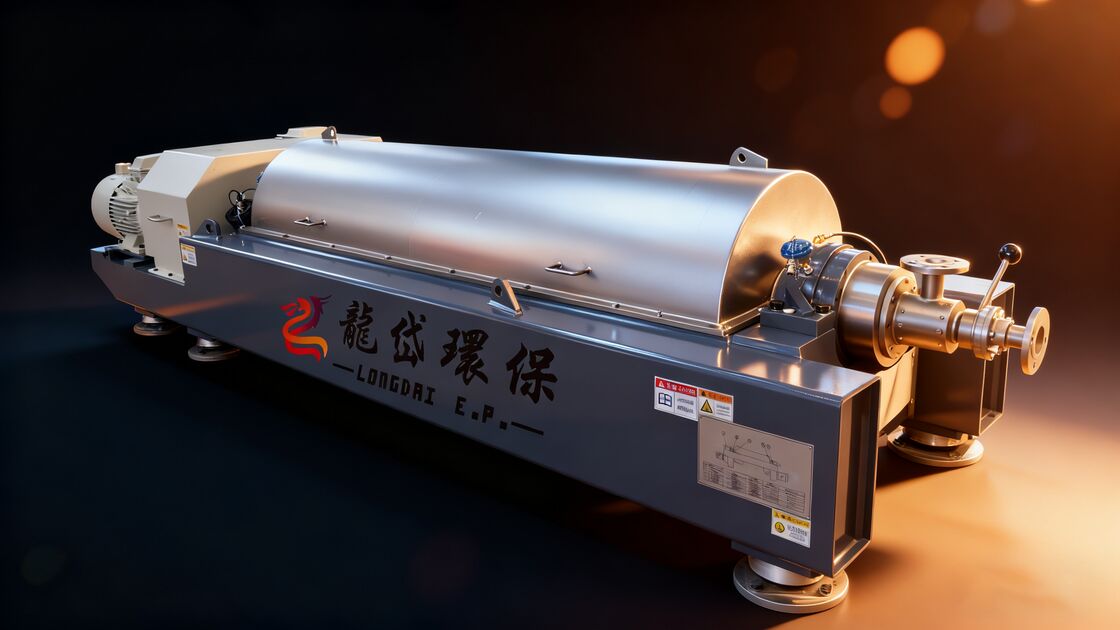

A decanter centrifuge is a continuous sedimentation-type separation device that uses centrifugal force to separate solids and liquids. The name breaks down as follows:
Unlike filter presses that rely on cloth or mesh to trap solids, decanter centrifuges exploit density differences: heavier solids are flung outward, while lighter liquid remains near the center—no filter media required, and thus no frequent consumable replacements.
Feed slurry enters the center of a rapidly spinning bowl. Under high centrifugal force:
The scroll conveyor, rotating at a slightly different speed than the bowl, continuously pushes the accumulated solids toward the conical discharge end. Clarified liquid overflows automatically from the opposite cylindrical end.
The entire process—from feeding to solids discharge and liquid clarification—is fully continuous and automatic, requiring zero manual intervention.
| Component | Function |
|---|---|
| Bowl | Conical-cylindrical rotating chamber—main zone for separation |
| Scroll Conveyor | Core component that “scrapes” and transports settled solids |
| Differential Gearbox | Creates controlled speed difference between bowl and scroll |
| Drive System | Dual-motor VFD setup for precise control of bowl speed and differential speed |
| Control System | PLC + industrial touchscreen; monitors vibration, temperature, current, etc. |
| Base Frame & Vibration Isolation | Monolithic cast base with rubber dampers—no anchor bolts needed |
| Advantage Dimension | Explanation |
|---|---|
| No Downtime | 24/7 continuous feed and discharge—ideal for large-scale industrial operations |
| Feed Flexibility | Handles inlet solids from 0.5% to 40%; works with fine or coarse particles |
| No Filter Media | Eliminates recurring costs of filter cloths, plates, or screens |
| Zero Leakage | Fully enclosed design—no splashing, no odor emissions |
| Space Efficient | Occupies only ~1/3 the footprint of a belt press at equivalent capacity |
| Low Labor Demand | Fully automated—one operator can manage multiple units |
(General range for standard applications; fully customizable based on feed characteristics)
| Parameter | Specification Range |
|---|---|
| Bowl Diameter | 350 / 450 / 550 / 650 / 750 / 850 / 950 mm |
| Length-to-Diameter Ratio (L/D) | 3.0 : 1 – 5.0 : 1 |
| Bowl Speed | 1,800 – 5,000 rpm (smaller diameter = higher speed) |
| Separation Factor (G) | 1,500 – 4,500 G |
| Differential Speed | 0.2 – 25 rpm (VFD infinitely adjustable) |
| Throughput Capacity | 2 – 150 m³/h (water-equivalent; varies by material) |
| Solids Recovery Rate | 93% – 99% (depends on flocculant and feed properties) |
| Cake Dry Solids | 22% – 45% |
| Centrate Suspended Solids | 300 – 5,000 mg/L (can be reduced to <100 mg/L with flocculant) |
| Main Motor Power | 7.5 – 185 kW |
| Auxiliary Motor Power | 2.2 – 75 kW |
| Noise Level | ≤85 dB(A) (with acoustic hood) |
| Vibration Severity | ≤4.5 mm/s |
| Operating Temperature | 0°C – 90°C (high-temp models up to 120°C) |
| Bowl Material | Duplex 2205 / 316L stainless steel / Carbon steel + wear liner |
| Scroll Material | 316L base + tungsten carbide coating / Hard alloy tiles |
| Casing Material | 304 / 316L stainless steel / Rubber-lined carbon steel |
| Sealing Type | Mechanical seal (standard) / Packing seal (optional) |
| Control System | PLC + industrial HMI; supports data logging and export |
| Communication Protocols | Modbus RTU/TCP, Profibus DP, Profinet |
| Motor Protection | IP55 (standard), IP65 (optional) |
| Explosion Protection | Ex d IIB T4 / ATEX Zone 1 & 2 (optional) |
| Unit Weight | 1,000 – 16,000 kg |
| Installation Method | Anti-vibration rubber pads—simply place on level floor |
| Option | Benefit |
|---|---|
| Centripetal Pump | Enables real-time adjustment of centrate clarity |
| Back Pressure Plate | Increases cake dryness via extended compression zone |
| Bearing Temperature Monitoring (PT100) | Early warning for overheating |
| Vibration Monitoring (Accelerometer) | Predictive maintenance per ISO standards |
| CIP (Clean-in-Place) System | Automatic internal washing during low-speed or shutdown |
| Integrated Acoustic Hood | Ensures compliance with noise regulations |
| Nitrogen Purging System | For explosive or oxidation-sensitive environments |
| Extended Conical Section | Enhances dewatering pressure and solids compaction |
| Application | What It Does | Why Use a Decanter Centrifuge? |
|---|---|---|
| 1. Municipal Sludge Dewatering | Reduces moisture in waste activated sludge from >98% to <75% | Continuous, enclosed, odor-free, highly automated |
| 2. Oily Sludge Treatment (Oil & Gas) | Separates oil, water, and solids from tank bottoms or refinery sludge | Explosion-proof options; handles viscous feeds; achieves <1% residual oil in solids |
| 3. Chemical Mother Liquor Separation | Recovers products or treats high-salt/high-COD waste streams | Corrosion-resistant materials; mechanical seals; handles high temps |
| 4. Food Byproduct Recovery | Separates pomace, yeast, starch, or protein from processing streams | Hygienic design; high-value recovery turns waste into revenue |
| 5. Mining Tailings Dewatering | Recovers water from tailings; enables dry stack disposal | High throughput; extreme wear resistance; stable under fluctuating feed |
| 6. Livestock Digester Slurry Separation | Splits anaerobic digestate into solid fertilizer and reusable liquid | Handles fibrous, sticky biomass; high cake dryness reduces downstream load |
The success of a solid-liquid separation project doesn’t depend on buying the most expensive machine—but on selecting the right model for your specific material.
While decanter centrifuges are proven across municipal, oil & gas, food, chemical, mining, and agricultural sectors, the optimal configuration varies dramatically:
We don’t claim centrifuges solve every problem—but we do guarantee that every sizing recommendation we provide is backed by real test data.
If you’re evaluating a separation solution for an overseas project—or struggling with underperforming equipment—we invite you to reach out. Even if we don’t win your order, you’ll receive a professional material analysis report at no cost.
Simpler separation. Smarter selection.
That’s our promise to every client.
