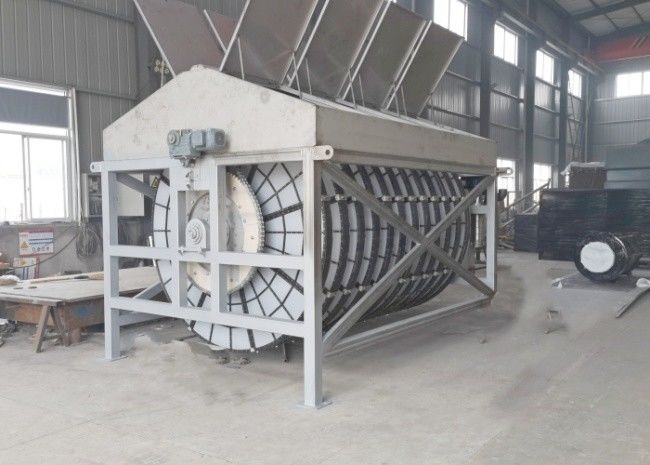

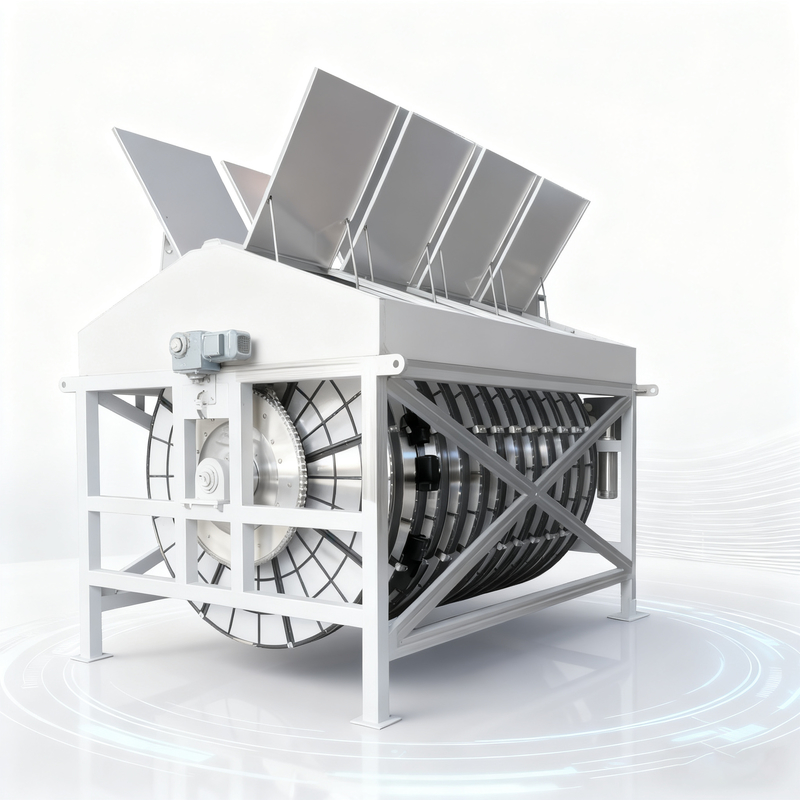

Filtration System with Rotary Disc Filter for Wastewater Treatment
Discription
rotary disc filter is a type of filtration equipment commonly used in industrial applications, particularly for liquid-solid separation processes.
Design
Rotary disc filters consist of multiple discs, each of which is partially submerged in a slurry. The discs rotate slowly, allowing the solid particles to adhere to the surface of the discs while the liquid passes through.
parameters
| Model/parameter | Diameter of filter disc | B | H | H1 | H2 | Number of backflush pumps |
| CQ9-II-2 | 2200 | 2800 | 2300 | 2360 | 3180 | 1 |
| CQ9-II-4 | 2200 | 2800 | 2300 | 2840 | 3660 | 1 |
| CQ9-II-8 | 2200 | 2800 | 2300 | 3800 | 4620 | 1 |
| CQ9-II-10 | 2200 | 2800 | 2300 | 4280 | 5100 | 1 |
| CQ9-II-12 | 2200 | 2800 | 2300 | 4880 | 5580 | 1 |
| CQ9-II-14 | 2200 | 2800 | 2300 | 5360 | 6060 | 2 |
| CQ9-II-16 | 2200 | 2800 | 2300 | 5840 | 6540 | 2 |
| CQ9-II-18 | 2200 | 2800 | 2300 | 6320 | 7020 | 2 |
| CQ9-II-20 | 2200 | 2800 | 2300 | 6800 | 7500 | 2 |
Main Features
(1) The effluent water quality is good and stable.
(2) Novel design and impact load resistance.
(3) Simple and compact structure, with few auxiliary equipment, and low investment in the entire filtration system.
(4) The idle rate of equipment is low, and the total installed power is low.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
