The rotary disc filter is an advanced filtration system designed for efficient liquid-solid separation in industrial and municipal wastewater treatment applications. It operates on a continuous basis, providing high throughput and consistent performance in removing suspended solids from various process streams.
Design and Operation:

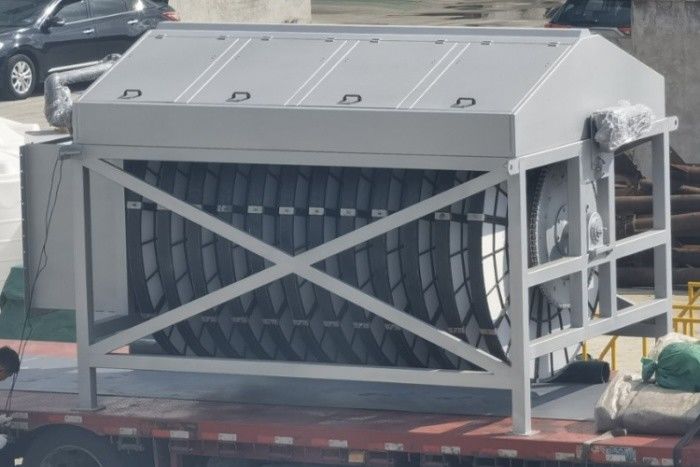

The system features multiple vertical discs mounted on a central rotating shaft. Each disc is constructed from sector-shaped panels covered with a precise filter media, typically a woven fabric or mesh suitable for the specific solid particle size.
During operation, the discs rotate slowly while partially submerged in the wastewater slurry. A liquid level is maintained in the filter tank, ensuring continuous immersion of a portion of the filter area. A pressure differential—often created by a pump-induced vacuum inside the central shaft—draws the liquid (filtrate) through the filter media, thereby trapping solid particles on the outer surface of the discs and forming a cake layer.
As the discs rotate out of the slurry, the captured solids are transported to the discharge zone. Here, the filter cake is efficiently removed, typically by applying reverse air pressure or using mechanical scrapers. The cleaned filter media then re-enters the slurry tank, ready to begin the next filtration cycle. This automated and continuous process ensures optimal efficiency with minimal operator intervention.
parameters
| Model/parameter | Diameter of filter disc | B | H | H1 | H2 | Number of backflush pumps |
| CQ9-II-2 | 2200 | 2800 | 2300 | 2360 | 3180 | 1 |
| CQ9-II-4 | 2200 | 2800 | 2300 | 2840 | 3660 | 1 |
| CQ9-II-8 | 2200 | 2800 | 2300 | 3800 | 4620 | 1 |
| CQ9-II-10 | 2200 | 2800 | 2300 | 4280 | 5100 | 1 |
| CQ9-II-12 | 2200 | 2800 | 2300 | 4880 | 5580 | 1 |
| CQ9-II-14 | 2200 | 2800 | 2300 | 5360 | 6060 | 2 |
| CQ9-II-16 | 2200 | 2800 | 2300 | 5840 | 6540 | 2 |
| CQ9-II-18 | 2200 | 2800 | 2300 | 6320 | 7020 | 2 |
| CQ9-II-20 | 2200 | 2800 | 2300 | 6800 | 7500 | 2 |
Main Features
(1) The effluent water quality is good and stable.
(2) Novel design and impact load resistance.
(3) Simple and compact structure, with few auxiliary equipment, and low investment in the entire filtration system.
(4) The idle rate of equipment is low, and the total installed power is low.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
