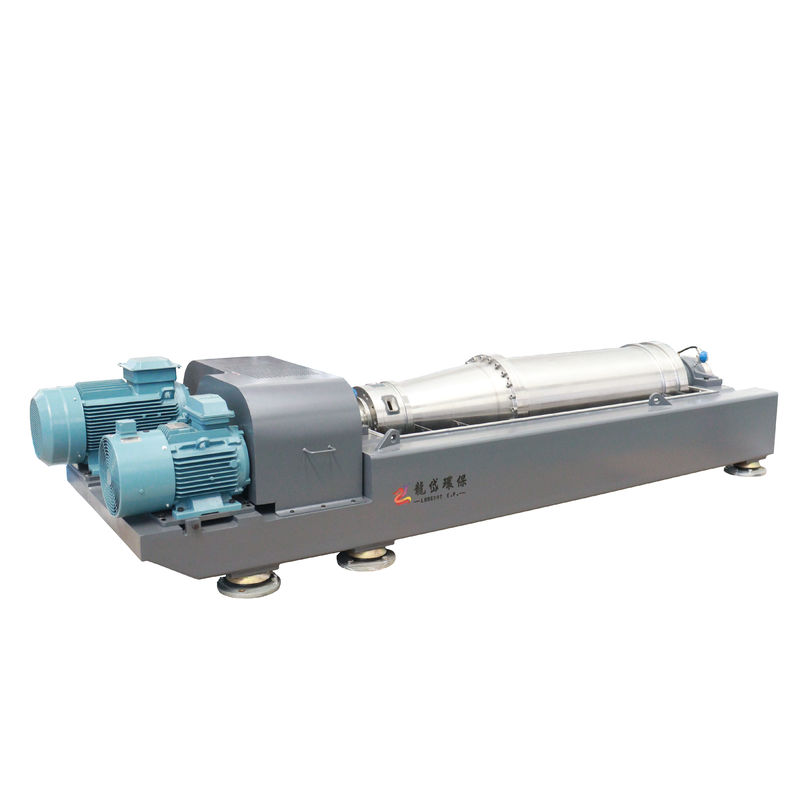

Efficient Stainless Steel Decanter Centrifuge for Oil Separation
Advanced Separation Technology
Our three-phase tricanter decanter centrifuge is engineered for continuous, high-performance liquid-solid separation in the food, chemical, and industrial sectors. Designed for durability and efficiency, this machine offers a broad processing capacity ranging from 1 to 120 m³/h, making it ideal for diverse industrial applications.
Working Principle
The decanter centrifuge operates with a rotating drum and an internal scroll conveyor, both turning at high speeds with a controlled differential rotation. The suspension is fed continuously through a stationary inlet tube into the rotating bowl. Under high centrifugal force, solids—being heavier—are deposited against the drum wall, forming a sediment layer. The scroll conveyor continuously moves these settled solids toward the conical end of the drum, where they are discharged.
Meanwhile, the lighter liquid phases form distinct inner layers, with the clarified liquid overflowing through outlets located at the larger end of the drum. This process allows full-speed continuous operation, including feeding, separation, washing (if applicable), and discharge.
Key Features
Compact and robust construction
Fully continuous operation with stable performance
Wide adaptability and high throughput
Easy maintenance and operation
Suitable for suspensions with solid particles larger than 0.005 mm and concentrations between 2–40%
Industries Served
Widely used in chemical, pharmaceutical, food processing, environmental protection, light industry, and oil separation applications.
| Model | Drum diameter(mm) | Processing capacity(m³/h) | Weight(kg) | Dimension(max)(mm) |
| LW250 | 250 | 1~4 | 1300 | 2750*720*900 |
| LW350 | 350 | 5~18 | 2200 | 3412*1090*950 |
| LW450 | 450 | 5~28 | 3000 | 4380*1080*1360 |
| LW520 | 520 | 10~35 | 5000 | 4840*1160*1465 |
| LW550 | 550 | 10~45 | 6500 | 5038*1388*1578 |
| LW580 | 580 | 15~20 | 7000 | 4800*1580*1280 |
| LW620 | 620 | 18~30 | 10000 | 5450*1770*1300 |
| LW650 | 650 | 20~60 | 8500 | 5100*1800*1560 |
| LW760 | 760 | 50~100 | 16000 | 5800*2200*1650 |
