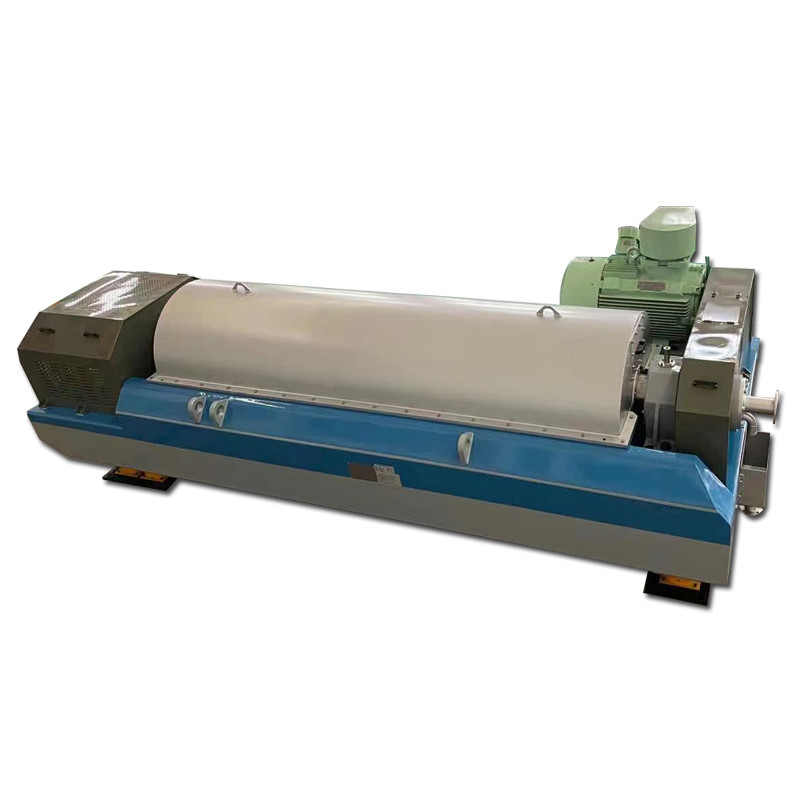

Horizontal Bowl Decanter Centrifuge for Large-Scale Continuous Solid-Liquid Separation
A horizontal solid-bowl decanter centrifuge is engineered for high-efficiency continuous separation of solids and liquids through centrifugal force. Designed for demanding industrial environments, it delivers reliable performance in large-scale processing applications.
Overview
This type of centrifuge is optimized for continuous solid-liquid separation across industries such as wastewater treatment, mining, chemical processing, and food production. Its horizontal configuration ensures stable operation and high throughput while maintaining consistent output quality.
Key Features
Horizontal Bowl Design:
The horizontal orientation provides a large sedimentation area, improving separation efficiency and process stability.
Robust Solid Bowl Construction:
Fabricated from high-strength, wear-resistant materials (e.g., stainless steel or duplex steel), the bowl withstands high rotational speeds and abrasive slurries.
Helical Scroll Conveyor:
An internally mounted screw conveyor, rotating at a differential speed, continuously moves settled solids toward the discharge end with minimal disturbance to the liquid phase.
High-Centrifugal-Force Operation:
Rapid rotation generates high G-forces, enabling effective settling of fine solids and efficient clarification of liquids.
Continuous Feed and Discharge:
Allows uninterrupted processing―ideal for high-volume industrial applications requiring minimal operational downtime.
| Model | Drum diameter(mm) | Processing capacity(m³/h) | Weight(kg) | Dimension(max)(mm) |
| LW250 | 250 | 1~4 | 1300 | 2750*720*900 |
| LW350 | 350 | 5~18 | 2200 | 3412*1090*950 |
| LW450 | 450 | 5~28 | 3000 | 4380*1080*1360 |
| LW520 | 520 | 10~35 | 5000 | 4840*1160*1465 |
| LW550 | 550 | 10~45 | 6500 | 5038*1388*1578 |
| LW580 | 580 | 15~20 | 7000 | 4800*1580*1280 |
| LW620 | 620 | 18~30 | 10000 | 5450*1770*1300 |
| LW650 | 650 | 20~60 | 8500 | 5100*1800*1560 |
| LW760 | 760 | 50~100 | 16000 | 5800*2200*1650 |
