304SS Air Source Ozone Generator Water Cooled Ozone Equipment Industrial 10g 100g

304 Stainless Steel Industrial 10g 20g 50g 100g Air Source Ozone Generator Water Cooled Ozone Equipment Manufacturer

This product adopts double ball bearing violent fan, with high speed and large air volume to ensure good heat dissipation of the internal heating elements of the machine, low ozone concentration attenuation rate, and long-term use can still ensure sufficient ozone production and up to standard concentration.Ozone belongs to broad-spectrum sterilization and has a strong killing effect on all kinds of bacteria and viruses. The ozone gas produced has strong oxidation, catalysis and other functions. Viruses and bacteria are affected by a variety of free radicals in the ozone gas, which makes proteins dissociate and denature, and the activities of nucleic acids and enzymes decrease, so as to disinfect and purify the air; Ozone and formaldehyde, carbon dioxide, xylene and other toxic and harmful gases have complex
physical and chemical reactions such as degradation and oxidation, and the by-products are non-toxic and harmless, which can avoid secondary pollution.

working principle

When the gas containing oxygen passes through the discharge gap between the two electrodes, some oxygen molecules (O2) will be converted into ozone (O3) to realize ozone preparation. When there is a changing high voltage on the high-voltage electrode, a micro discharge will be generated at the discharge gap between the electrodes, and the oxygen molecules will be decomposed into free state oxygen atom o, and some free state oxygen atoms will recombine with the undissolved oxygen molecules to generate ozone(O3), that is, O + O2 = O3, which is called "corona discharge" or "silent discharge".
In fact, only a part of the electric energy applied to the electrode is used to prepare ozone, and heat will be generated during the preparation process. It is necessary to effectively cool the ozone generation module through cooling water. The ozone preparation process is significantly affected by the quality of feed gas and the temperature of cooling water. The lower the temperature, the higher the ozone preparation efficiency.

Parameters

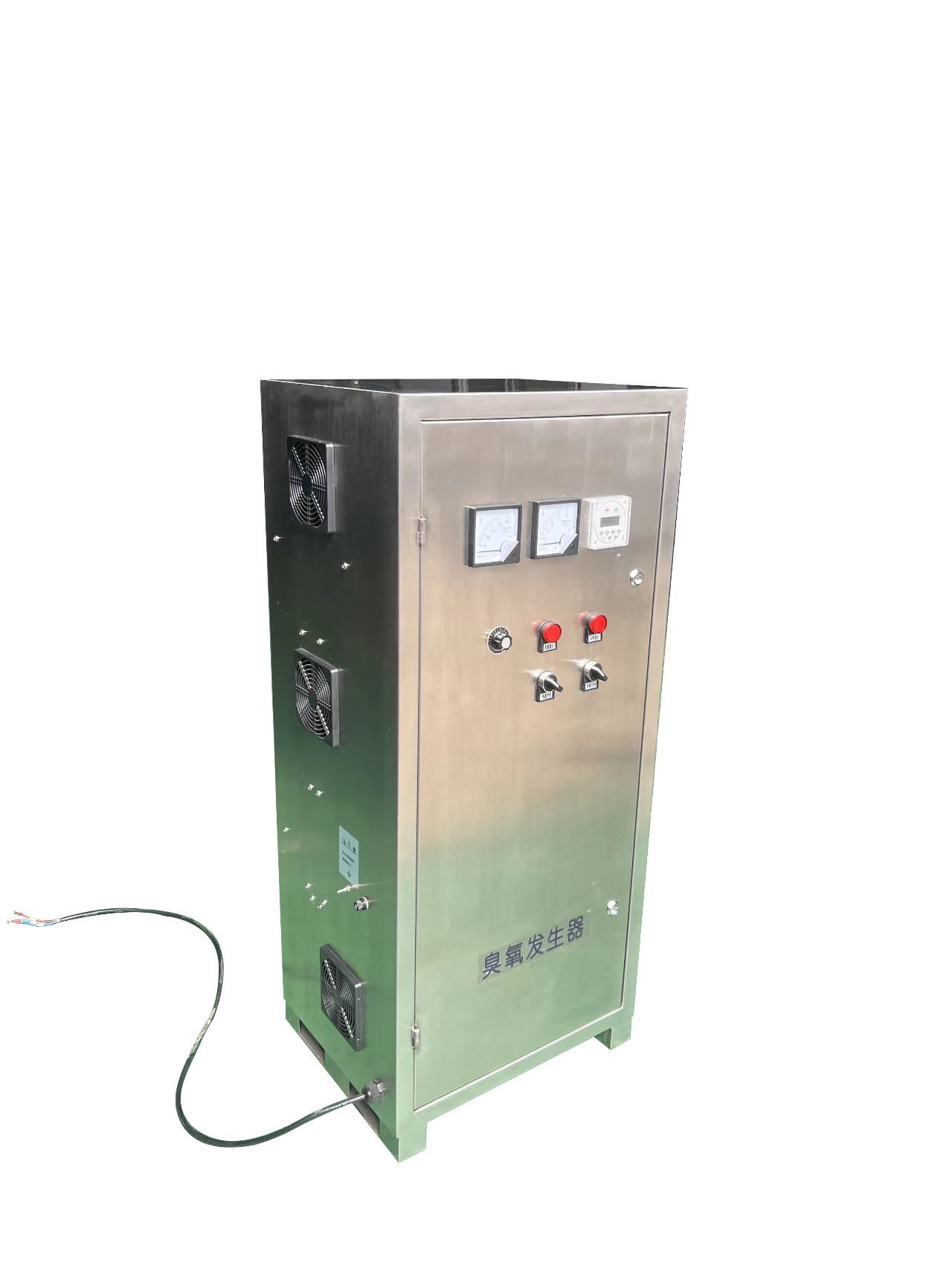

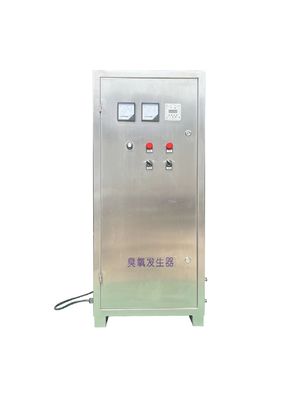

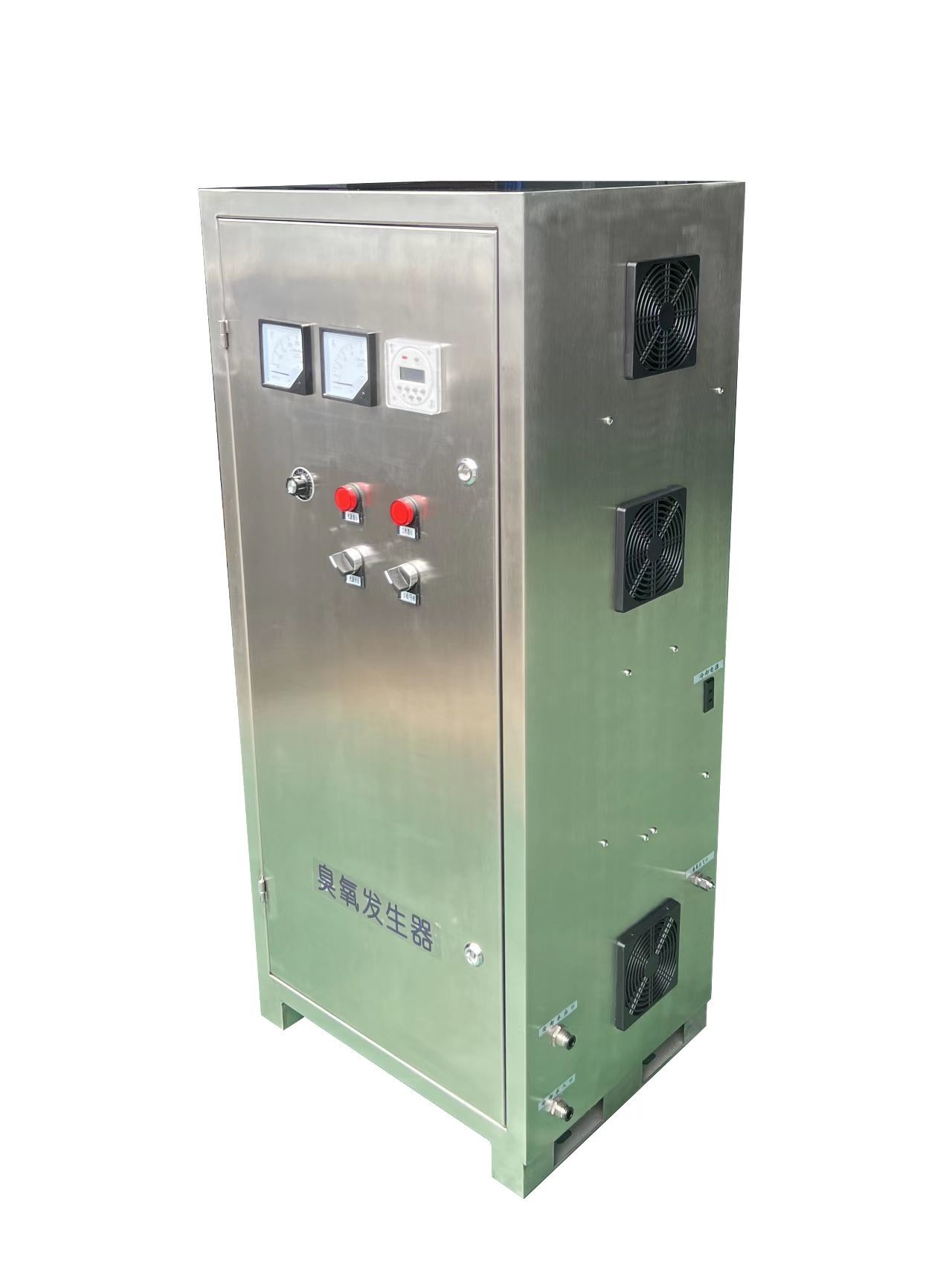

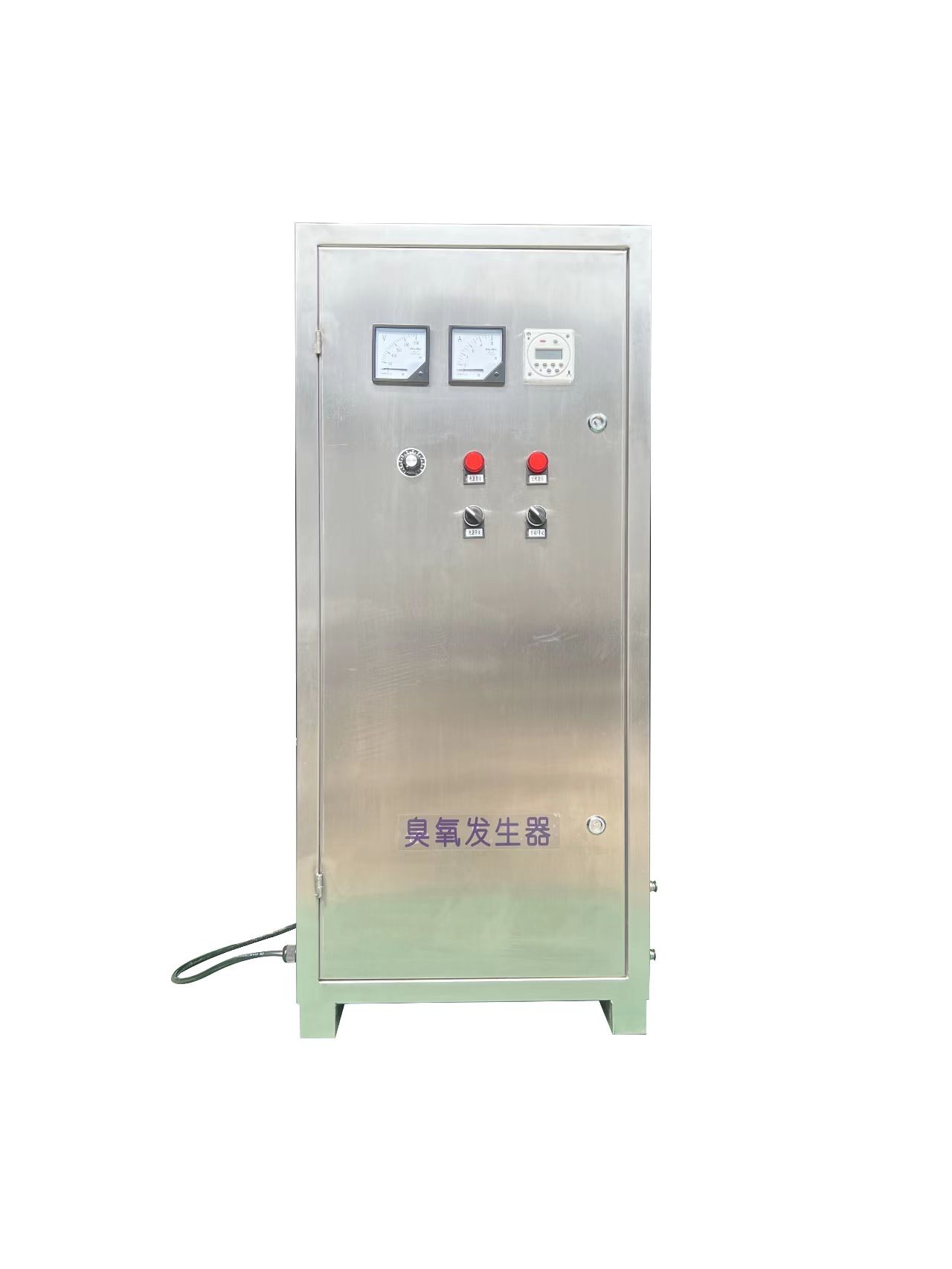

Real picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."

The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.

The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.

The company has passed ISO9001-2008 international standard quality system certification.

We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?



A: CE/ISO/SGS



Q: Do you offer after-sales service?



A: Yes. Engineers available.



Q: How long is your warranty?



A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.



Q: What about your delivery Time?



A: Normally within 45 days against down payment.



Q: What about the package of your export product?



A: We use anticorrosion wooden case with foam inside.



Q: What kind of payment do you accept?



A:T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
