Name: High Performance Ozone Water Generator For Air And Water Treatment System
Brand: Jiangsu Longdai Environmental Protection Co., Ltd.
SKU: LD-10G
Price: 200 USD
Availability: InStock

Home Products Ozone Water Generator

High Performance Ozone Water Generator For Air And Water Treatment System

Product Details:

Place of Origin:	Jiangsu China
Brand Name:	longdai
Certification:	ISO9001
Model Number:	LD-10G

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	200USD
Packaging Details:	Export polywood
Delivery Time:	10 days
Payment Terms:	L/C,T/T
Supply Ability:	2000 sets per Years

Contact Now

Detailed Product Description

Voltage:	220v 380V 50HZ 60HZ(Or Customized	Ozone Output:	10-1000 Mg/h
Weight:	3KGS	Cooling Method:	Air Cooling
Application:	Water Treatment	Capacity:	15 G/h
Power Supply:	110V/220V	Size:	30x20x10 Cm
Highlight:	High Performance ozone water generator , Air Cooling ozone water generator , High Performance ozone water machine

High-Performance Ozone Water Generator for Air and Water Treatment System

Ozone Generator
Ozone generator is an appliance designed to produce ozone (O₃), a molecule made up of three oxygen atoms. This powerful oxidizing agent is widely used for various applications due to its ability to purify and disinfect air and water effectively.

working principle

When the gas containing oxygen passes through the discharge gap between the two electrodes, some oxygen molecules (O2) will be converted into ozone (O3) to realize ozone preparation. When there is a changing high voltage on the high-voltage electrode, a micro discharge will be generated at the discharge gap between the electrodes, and the oxygen molecules will be decomposed into free state oxygen atom o, and some free state oxygen atoms will recombine with the undissolved oxygen molecules to generate ozone(O3), that is, O + O2 = O3, which is called "corona discharge" or "silent discharge".
In fact, only a part of the electric energy applied to the electrode is used to prepare ozone, and heat will be generated during the preparation process. It is necessary to effectively cool the ozone generation module through cooling water. The ozone preparation process is significantly affected by the quality of feed gas and the temperature of cooling water. The lower the temperature, the higher the ozone preparation efficiency.

Parameters

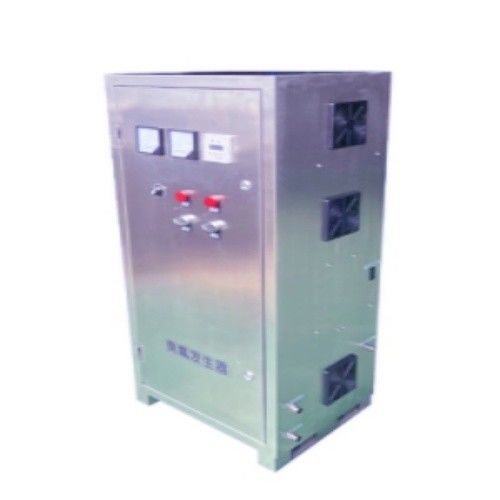

Real picture
