Optimized Product Overview
Product Title:
Fully Automatic Chemical Dosing System with Integrated Dry Powder Mixing & Filtration
Brief Introduction
This fully automatic dosing system features a mechatronic design and is available in both fixed and mobile (trolley-type) configurations. Each unit integrates a mixing system, dosing system, and automatic control system. Operation involves loading a specified amount of chemical into the solution tank for dissolution, after which the mixture is delivered to injection points via a metering pump. The dosing rate is freely adjustable to meet varying process requirements. It is widely used for chemical addition in tap water, wastewater, and sewage treatment processes, with applications in water supply, environmental protection, water plants, hotels, restaurants, swimming pools, and wastewater treatment plants.
Technical Parameters
| Item / Model | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 |
|---|---|---|---|---|---|
| Production Capacity (L/h) | 500 | 1000 | 1500 | 2000 | 3000 |
| Unit Size (L×W×H, mm) | 900×1500×1650 | 1000×1625×1750 | 1000×2440×1800 | 1220×2440×1800 | 1220×3200×2000 |
| Powder Dosing Power (kW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 |
| Agitator Blade Diameter (mm) | 250 | 250 | 250 | 250 | 250 |
| Agitator Speed (r/min) | 96 | 96 | 96 | 96 | 96 |
| Agitator Power (kW) | 0.55×2 | 0.55×2 | 0.55×2 | 0.55×2 | 0.55×2 |
| Dosing Pump Flow (m³/h) | 1 | 1 | 1.5–2.0 | 1.5–2.0 | 3.0–5.0 |
| Dosing Pump Lift (m) | 20 | 20 | 20 | 20 | 20 |
| Dosing Pump Power (kW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 |
| Inlet/Outlet Diameter (mm) | 20 | 20 | 25 | 25 | 32 |

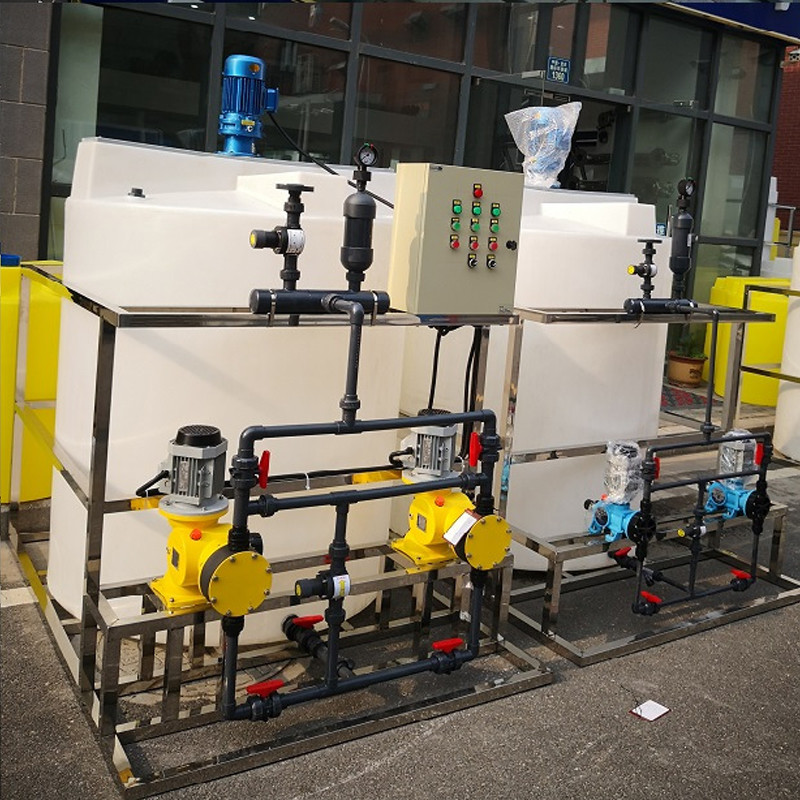

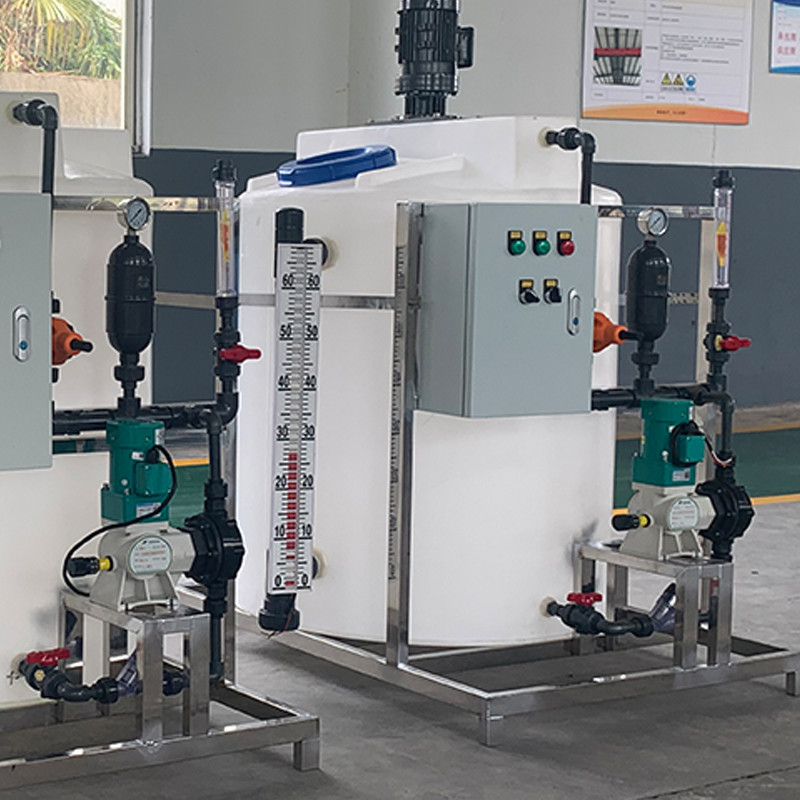

System Structure
The system is a skid-mounted unit integrating the following components:
Solution tank
Mixer
Metering pump (or screw pump)
Y-type filter
Safety valve, back-pressure valve, check valve
Pulse damper
Level and pressure gauges
Control cabinet and mounting platform
Designed for plug-and-play operation, the system requires only connection to chemical suction lines and power supply to begin operation. It automatically detects fluid pH and adjusts chemical dosing accordingly. This integrated design minimizes engineering and field installation work, enables largely unattended operation, and ensures overall system quality and operational safety.
Key Features
Three-Tank Continuous Preparation: Integrated design allows continuous operation with easy access for operation and maintenance.
Dual Feeding Capability: Supports both dry powder and liquid polymer input for flexible operation.
Full Automation: PLC-controlled system reduces manual intervention and enhances operational reliability.
Precise Dosing Options: Equipped with either a screw pump or metering pump (standard) for accurate, adjustable chemical injection.
Compact and Integrated Design: Base-free, skid-mounted structure offers a compact footprint, aesthetic appearance, and ease of maintenance.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
