Suspended Center Drive Scrader | 304 Stainless Steel Construction

304 Stainless Steel Center Drive Scraper for Circular Wastewater Treatment

This centrally-driven sludge scraper is specifically designed for radial flow (circular) sedimentation tanks with diameters up to 18 meters in water treatment plants and municipal sewage facilities. The system efficiently collects and removes settled sludge through a robust减速 drive mechanism and suspended scraper assembly. Sludge is guided toward a central collection hopper and discharged via hydrostatic pressure or pumping systems. Featuring a central inlet and sludge discharge with peripheral overflow weirs, the tank ensures uniform flow distribution and optimal settling conditions. The system includes an integrated skimmer for surface scum removal and is equipped with overload protection for reliable, automated operation.

Key Features:

• Constructed with corrosion-resistant 304 stainless steel for extended service life

• Central drive design with precision reduction gearing for consistent torque output

• Central feed and sludge discharge with peripheral water collection for balanced hydraulic flow

• Automated skimming system for efficient surface scum removal

• Integrated overload protection prevents damage during operation

• Suitable for tanks up to 18 meters in diameter

Typical Applications:

• Municipal wastewater treatment plants

• Drinking water treatment sedimentation basins

• Industrial wastewater circular clarifiers

• Water reuse and recycling facilities

Working Principle:
The scraper system rotates continuously, moving settled solids toward the central hopper while surface skimmers remove floating materials. The balanced hydraulic design maintains ideal settling conditions while the robust drive system ensures reliable operation with minimal maintenance requirements.

Parameters

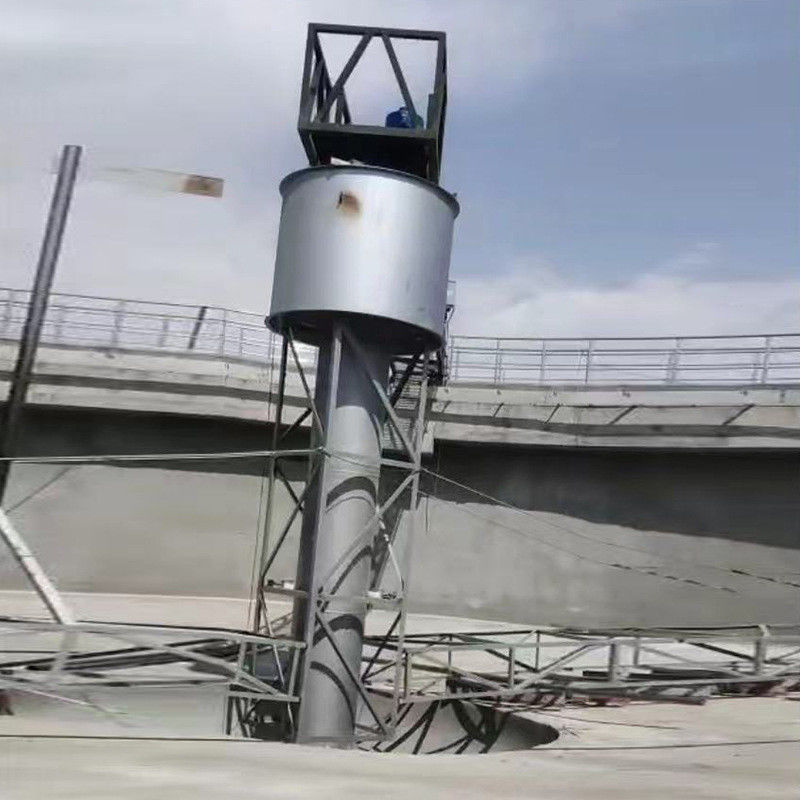

Real picture

Company Profile

Jiangsu Longdai Environmental Protection Group Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."

The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.

The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.

The company has passed ISO9001-2008 international standard quality system certification.

We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?

A: CE/ISO/SGS

Q: Do you offer after-sales service?

A: Yes. Engineers available.

Q: How long is your warranty?

A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.

Q: What about your delivery Time?

A: Normally within 45 days against down payment.

Q: What about the package of your export product?

A: We use anticorrosion wooden case with foam inside.

Q: What kind of payment do you accept?

A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM.
