Bridge-Type Desanding Equipment: 4m Sand Suction & Skimming System
Located in Yixing, Jiangsu Province, China, Longdai Co., Ltd is a specialized supplier of petrochemical and environmental processing equipment. We integrate independent R&D, design, general contracting, manufacturing, and material supply to deliver tailored solutions for industrial water and wastewater treatment.
| Model | QXS-3 | QXS-4 | QXS-6 | QXS-8 | QXS-10 | QXS-12 |
|---|---|---|---|---|---|---|
| Pool Width (m) | 3 | 4 | 6 | 8 | 10 | 12 |
| Gauge (m) | B+0.4 | |||||
| Pool Depth (m) | 3.0–7.0 (Customizable) | |||||
| Pool Length (m) | Customizable | |||||
| Wheel-Base (mm) | 1500 | 1800 | 2000 | |||
| Running Speed (m/min) | 1.5–2.0 | |||||
| Walking Motor Power (kW) | 0.37 | 2×0.25 | 2×0.37 | |||
| Submersible Pump Capacity (m³/h) | 20 | 30 | ||||
| Pump Head (m) | 2.0 | |||||
| Pump Power (kW) | 0.75 | 1.10 | ||||
| Number of Pumps | 1 | 2 | ||||
| Steel Wheel Diameter (mm) | 250 | |||||
| Rail Specification (kg/m) | 15 (GB/T11246-1989) | |||||
| Wheel Pressure (kN) | 10 | 14 |
Efficient Reciprocating Operation: Combines sand suction and slag skimming in a simple, high-efficiency structure.
Vortex Submersible Pump: No water diversion required; resistant to clogging and wear for safe, reliable performance.
Unidirectional Skimming: Ensures thorough cleaning of pool surfaces.
Aerated Grit Circulation: Removes organic matter from sand, eliminating odor in discharged grit.
Dual Control Modes: Local or remote operation for user convenience.
Primarily used for sand-water treatment in aeration grit tanks at urban sewage treatment plants or water plants. It extracts settled sand, cinder, and other large particles from the tank bottom and discharges them into a sand collection tank. Optional oil/slag skimming attachments are available for customized needs.

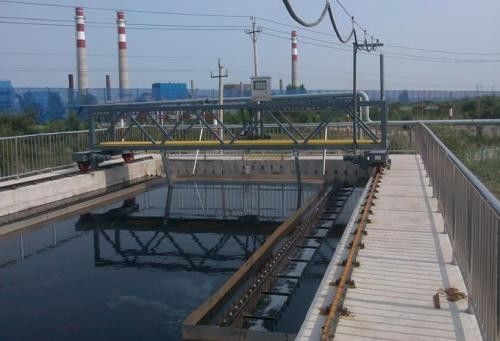

The equipment features a mobile bridge design with a pump suction system. Key operational steps:
Sand Suction: At rest, the machine stations at the water inlet. Upon activation, it traverses the tank while a submersible pump extracts sand and grit via a suction pipe.
Skimming: A scraper blade skims surface scum into a skimmer tank at the pool end.
Reciprocating Motion: Reverse movement lifts the skimmer rake to prevent backflow, ensuring continuous sand discharge and skimming.
Grit Processing: Extracted grit flows to a sand-water separator for further treatment.
Customizable Design: Adapts to pool dimensions (width, depth, length) and user requirements.
Durable Construction: Corrosion-resistant materials and robust mechanical components.
Low Maintenance: Wear-resistant pumps and automated controls reduce operational costs.
Turnkey Solutions: From design to material supply, we provide end-to-end support.
Contact Us
For customized solutions tailored to your project’s parameters (flow rates, pool size, grit composition), reach out within 12 hours for a detailed proposal. Let our expertise in environmental equipment drive your operations toward efficiency and reliability.
Main Parameters and Installation Size Chart
Outline and Installation Chart
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
