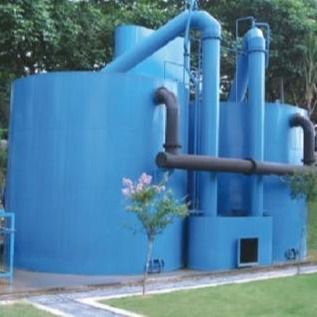

China Circulating Water Side-Stream Filtration: Valveless Gravity Filter Tank
Company Overview
Longdai Co., Ltd is a leading supplier of environmental processing equipment for the petrochemical industry, based in Yixing, Jiangsu Province, China. We specialize in integrated solutions encompassing independent R&D, design, engineering, general contracting, manufacturing of environmental protection equipment, and supply of related materials.
Applications
Our valveless gravity filters are ideal for a wide range of water treatment applications, including:
Surface water purification
Groundwater iron and erbium removal
Circulating water side-stream filtration
Suspended solids removal in industrial wastewater
Post-filtration of biologically treated organic wastewater and secondary sedimentation effluent
Indoor swimming pool water filtration
Technical Parameters
| Model | Water Yield (T/h) | Inlet Pipe (Dg1/mm) | Inlet Height (H1/mm) | Outlet Pipe (Dg2/mm) | Outlet Height (H2/mm) | Drain Pipe (Dg3/mm) | Drain Height (H3/mm) | Φ1 (mm) | Φ2 (mm) | C (mm) | e (mm) | f (mm) | g (mm) | Weight (T) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DLB 20-11 | 20 | 100 | 4710 | 100 | 400 | 300 | 300 | 1400 | 900 | 1134 | 755 | 655 | 215 | 21.9 |
| DLB 40-11 | 40 | 150 | 4810 | 150 | 450 | 300 | 360 | 1800 | 1000 | 1350 | 950 | 780 | 250 | 35.7 |
| DLB 60-11 | 60 | 200 | 4810 | 150 | 500 | 400 | 460 | 2240 | 1000 | 1540 | 1125 | 890 | 325 | 50.6 |
| DLB 80-11 | 80 | 200 | 4810 | 200 | 500 | 400 | 460 | 2460 | 1000 | 1636 | 1225 | 945 | 355 | 65.7 |
Product Features
Easy Installation: Users only need to prepare the equipment foundation and connect inlet/outlet pipes to begin operation.
Hygienic Design: Equipped with a sealed top cover for enhanced sanitary protection.
Versatile Siting: Suitable for outdoor installation thanks to robust construction.
Lightweight & Flexible: Compared to reinforced concrete filters, it features a lighter structure and uses an asphalt-sand flexible foundation.
Working Principle
During filtration, water enters through the inlet distribution tank and flows via the U-shaped inlet pipe into the siphon riser. Under the umbrella-shaped top cover, a baffle plate evenly distributes water across the filter media layer. The water then percolates downward through the supporting layer and low-resistance water distribution system into the clear water zone at the bottom.
Filtered water rises through the connecting channel into the backwash water tank. Once the water level reaches the overflow weir of the outlet canal, it discharges into the clear water tank. The entire process ensures efficient filtration without the need for valves, leveraging gravity and hydraulic balance for automatic operation.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
Why Choose Us?
1. Longdai has more than 10 years of experience in wastewater and sludge treatment.
2. We introduce German technology, thus our product is much better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
