China Drum-Type Rotary Filter for Sewage Treatment Plants: High-Performance Suspended Solids Removal
Business Overview
We specialize in the development and supply of advanced treatment systems for a broad spectrum of applications, including:
Petrochemical industry wastewater treatment
Municipal water management
Urban and industrial sewage treatment
Domestic sewage purification
Pure water and reverse osmosis systems
Water supply purification
Waste gas and pollution treatment
Technical Parameters
Main Dimensions & Connections
| Type | Inlet Pipe | Outlet Pipe | Cleaning Pipe | Overflow Pipe | A | C | D | E | F | G | K | L | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZL350X600 | DN100 | DN150 | DN15 | DN80 | 1195 | 600 | 880 | 1100 | 620 | 600 | 540 | 760 | 735 |
| ZL610X610 | DN150 | DN200 | DN15 | DN80 | 1290 | 610 | 1385 | 1395 | 750 | 1000 | 630 | 885 | 748 |
| ZL610X1220 | DN200 | DN250 | DN20 | DN150 | 1940 | 1220 | 1385 | 1595 | 950 | 1000 | 830 | 1085 | 1360 |
| ZL610X1830 | DN250 | DN300 | DN25 | DN150 | 2425 | 1830 | 1385 | 1745 | 1100 | 1000 | 980 | 1235 | 2025 |
| ZL800X1830 | DN300 | DN350 | DN25 | DN150 | 2425 | 1830 | 1450 | 1935 | 1200 | 1190 | 980 | 1330 | 2025 |
Performance Specifications
| Bar Gap (mm) | 0.25 | 0.5 | 0.75 | 1 | Drum Dia (mm) | Drum Length (mm) | Power (kw) |
|---|---|---|---|---|---|---|---|
| Type | Handling Capacity (m³/h) | ||||||
| ZL350X600 | 8 | 15 | 20 | 25 | 350 | 600 | 0.25 |
| ZL610X610 | 33 | 60 | 81 | 100 | 610 | 610 | 0.55 |
| ZL610X1220 | 65 | 120 | 162 | 200 | 610 | 1220 | 0.75 |
| ZL610X1830 | 100 | 180 | 243 | 306 | 610 | 1830 | 0.75 |
| ZL800X1830 | 175 | 315 | 436 | 535 | 800 | 1830 | 1.1 |

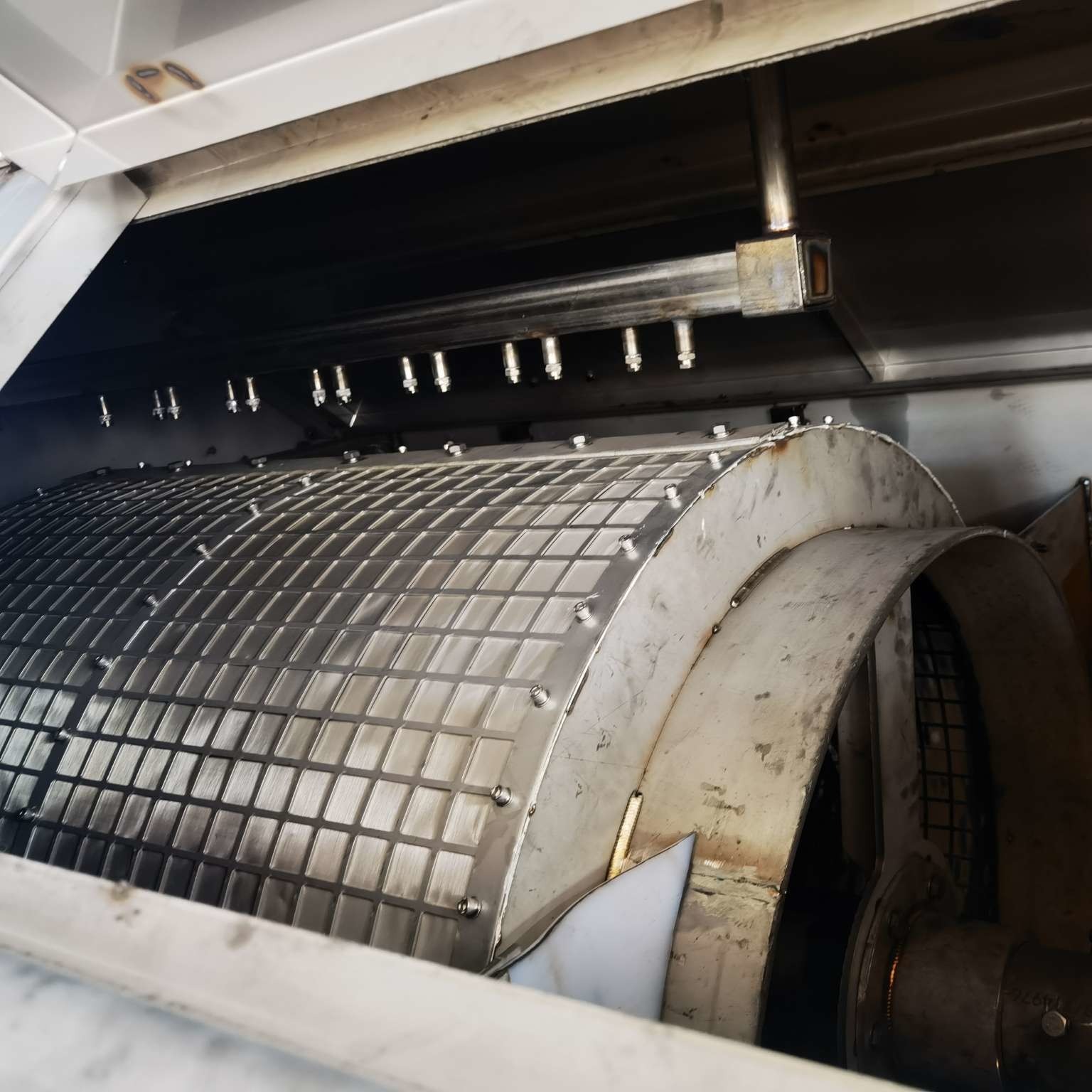

Product Introduction
The drum-type rotary filter is a mechanical filtration system that utilizes gravity or pressure differentials to pass suspended solids through a porous medium, effectively intercepting solid particles and achieving precise solid-liquid separation.
Filter Media:
Constructed from custom-woven stainless steel wire with a pore size of 15–20 microns, the filter media ensures:
High Porosity: Enables low-resistance liquid passage with optimized pore size.
Chemical Stability: Excellent corrosion and heat resistance.
Mechanical Strength: Withstands high pressure and impact, ensuring durability and reliability.
The DSTR series precision filters are widely used in:
Advanced treatment and upgrading of municipal sewage (e.g., Class B to Class A standards)
Pretreatment in municipal and industrial wastewater treatment
Pretreatment for tap water systems
Applications
Sewage Treatment Plants: Upgrade effluent quality from Class B to Class A standards.
Reclaimed Water Reuse: Remove insoluble suspended particles to enable water recycling.
Industrial Wastewater Treatment: Filter process water to meet specific usage or environmental discharge requirements.
Key Features
Superior Filter Media:
Stainless steel construction ensures uniform pore size, high tensile strength, fast filtration, and long service life.
Resists clogging and corrosion, outperforming traditional fiber cloth or polyester materials.
Easy Maintenance:
Individual mesh modules can be replaced independently without disrupting adjacent filters.
High Impact Resistance:
Operates effectively with inlet SS concentrations up to 40 mg/L.
Continuous Operation:
Simultaneous backwashing and filtration ensure uninterrupted performance.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting
