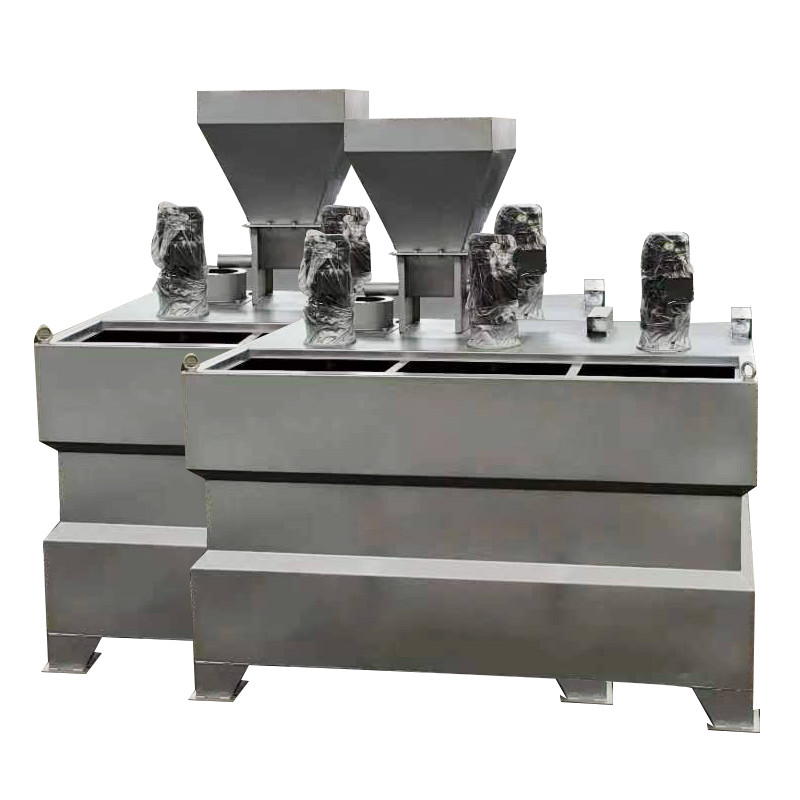

High-Quality Automatic PAM Polymer Dosing System for Sewage Treatment Coagulant
The Automatic Polymer Dosing System is designed to accurately prepare and feed polymer solutions by dissolving or diluting powder or liquid flocculants. It is widely used in sewage treatment plants for continuous and efficient mixing, ensuring highly reactive and consistent chemical solutions for optimal coagulation and flocculation.
Key Advantages:
User-Friendly Operation & Labor-Saving: Fully automated process reduces manual intervention and operator workload.
Adjustable Polymer Concentration: Flexible solution strength adjustment to meet varying treatment demands.
Robust & Compact Frame: Carefully engineered structure for durability and space-efficient installation.
Reliable & Consistent Performance: Trusted operations with minimal downtime, ensuring continuous treatment processes.
Superior Treatment Outcomes: Enhanced flocculation efficiency leads to better water clarity and reduced sludge.
Environmental Benefits: Optimized chemical usage minimizes waste and promotes sustainable sewage treatment.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |
