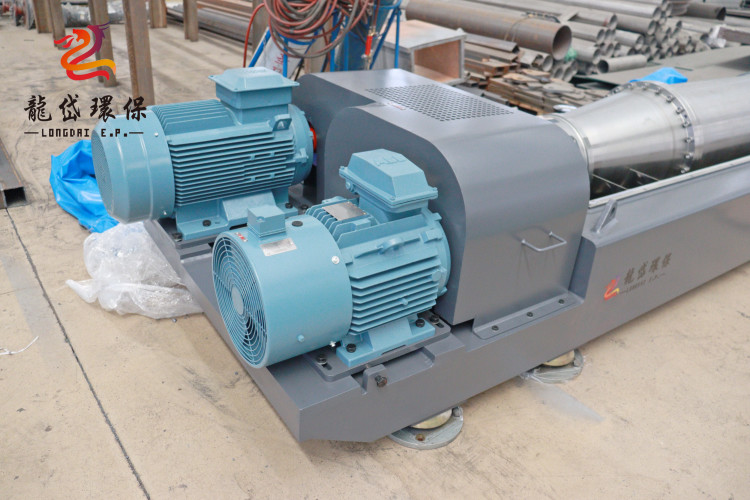

Efficient Stainless Steel Decanter Centrifuge For Oil Seperate
Efficient Separation Technology: Our 3 Phase Separator Price Olive Oil Horizontal Tricanter Decanter Centrifuge Machine is designed for continuous operation, ensuring efficient separation of liquids in the food, chemical, and industrial sectors. This machine can process a wide capacity range of 1-120 m3/h, making it suitable for various industrial applications.
Working principle
Drum and screw are working with higher speed at a certain differential rotation. Material is transported into spiral tube continuously , accelerated after the rotary drum, in under the action of centrifugal force field, the heavier solid deposit formed in the drum wall sediment layer.The feeding screw continuously pushes the solid phase of the deposit to the drum cone, and then out of the drain.The lighter liquid phase forms the inner liquid ring, which is continuously overflowed by the large end of the drum, and is discharged through the drain outlet.The machine operates at full speed, continuously feeding, separating, washing and discharging.It has the characteristics of compact structure, continuous operation, stable operation, strong adaptability, large production capacity and convenient maintenance.It is suitable for the suspension with solid phase particle size greater than 0.005mm and concentration range of 2-40%.Widely used in chemical industry, light industry, pharmaceutical, food, environmental
| Model | Drum diameter(mm) | Processing capacity(m³/h) | Weight(kg) | Dimension(max)(mm) |
| LW250 | 250 | 1~4 | 1300 | 2750*720*900 |
| LW350 | 350 | 5~18 | 2200 | 3412*1090*950 |
| LW450 | 450 | 5~28 | 3000 | 4380*1080*1360 |
| LW520 | 520 | 10~35 | 5000 | 4840*1160*1465 |
| LW550 | 550 | 10~45 | 6500 | 5038*1388*1578 |
| LW580 | 580 | 15~20 | 7000 | 4800*1580*1280 |
| LW620 | 620 | 18~30 | 10000 | 5450*1770*1300 |
| LW650 | 650 | 20~60 | 8500 | 5100*1800*1560 |
| LW760 | 760 | 50~100 | 16000 | 5800*2200*1650 |
