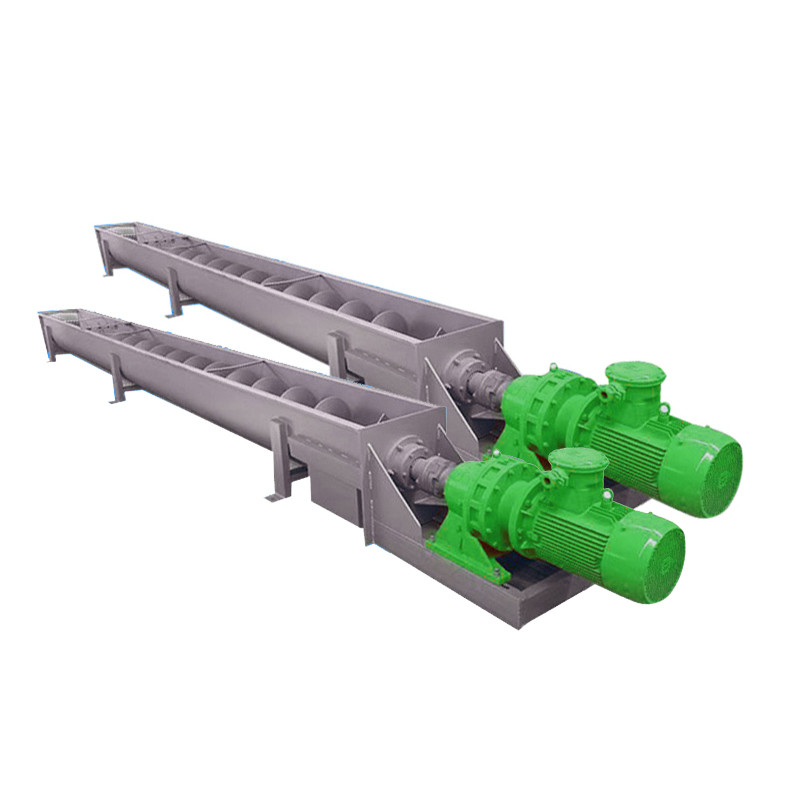

2023 Hot Sale inclined Cement Spiral Conveyor Stainless Steel Screw Conveyors for Powder
Spiral conveyors are the main material conveying equipment for grains, silos, and other materials. The LSW series screw conveyor uses spiral blade rotation to promote the completion of the conveying process of bulk materials. It can be horizontal or inclined (with an inclination angle of less than 20 °) to transport powder, particles, or small pieces of materials. It can be customized for animal feed steel silos to form flexible grain screw conveyors to transport large corrosive materials, which are fragile or easy to adhere to fiber material blocks.
Advantages
1. Having environmental characteristics. Due to the completely enclosed design of the conveyor, it is difficult for materials to be contaminated during transportation.
2. Compared with axial screw conveyors, the conveying capacity is 1.5 times that of axial conveyors with the same diameter.
3. Blockage rarely occurs during work.
4. The transmission distance can reach 60-70m.
5. The appearance is elegant, while saving space, easy to operate, and the price is reasonable.
Parameters
| Type | diameter of screw(mm) | Helix istance(mm) | speed(r/min) | conveying capacity(m3/h) | length of screw(mm) |
| LS-200 | 200 | 200 | 100 | 6.2-12.4 | customized |
| LS-250 | 250 | 250 | 90 | 10.9-21.8 | customized |
| LS-300 | 300 | 300 | 80 | 13.4-38.8 | customized |
| LS-400 | 400 | 355 | 71 | 37.7-62.5 | customized |
| LS-500 | 500 | 400 | 63 | 49.6-97.7 | customized |

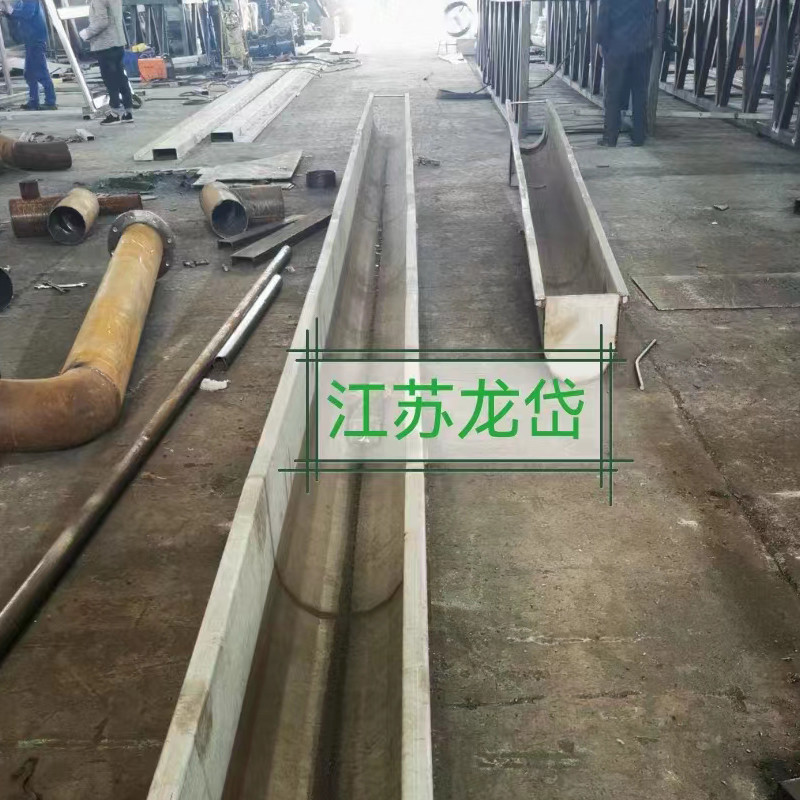

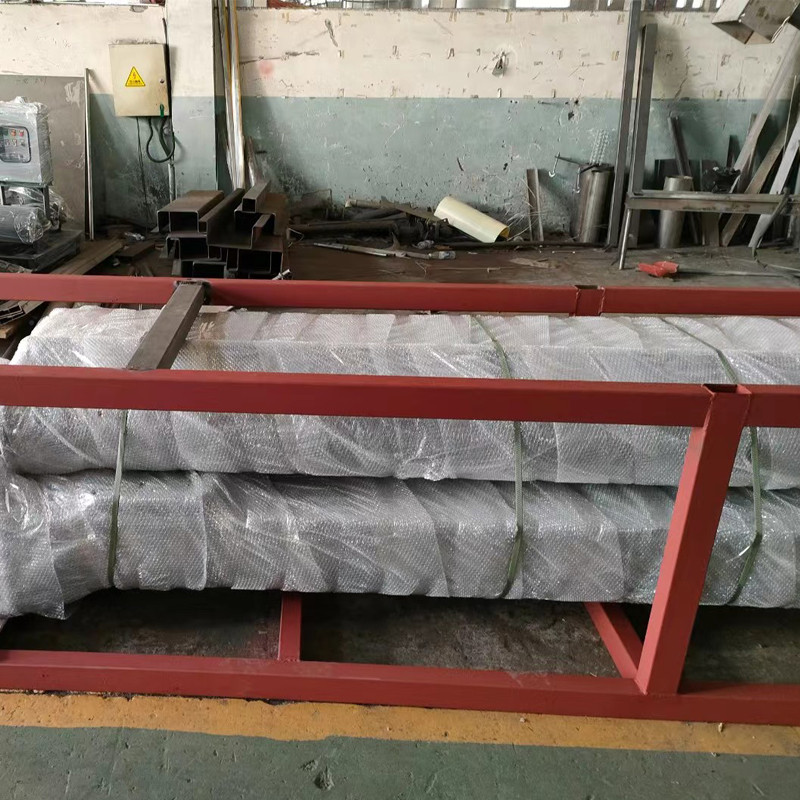

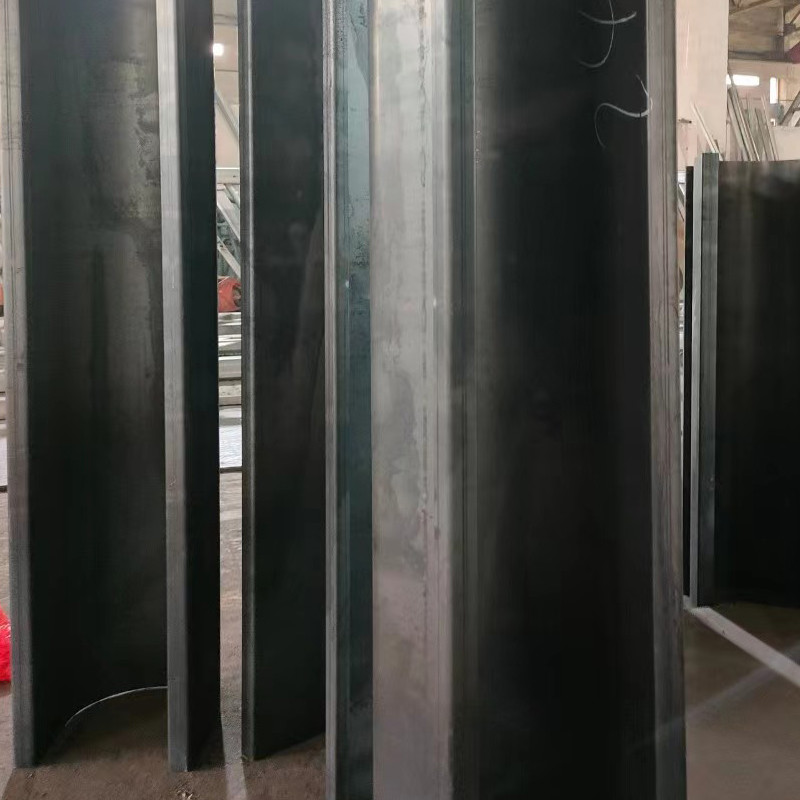

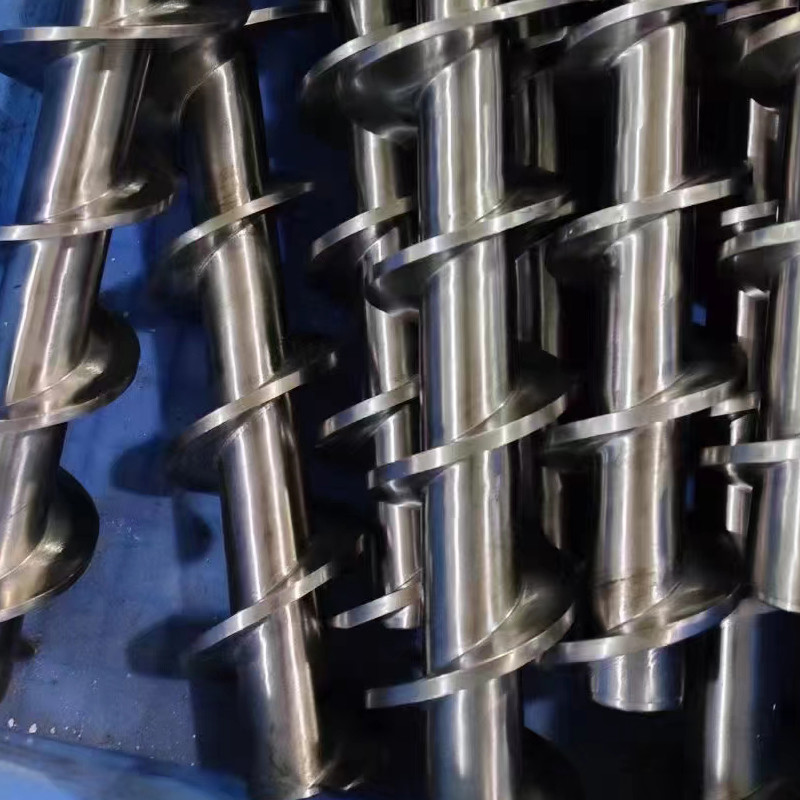

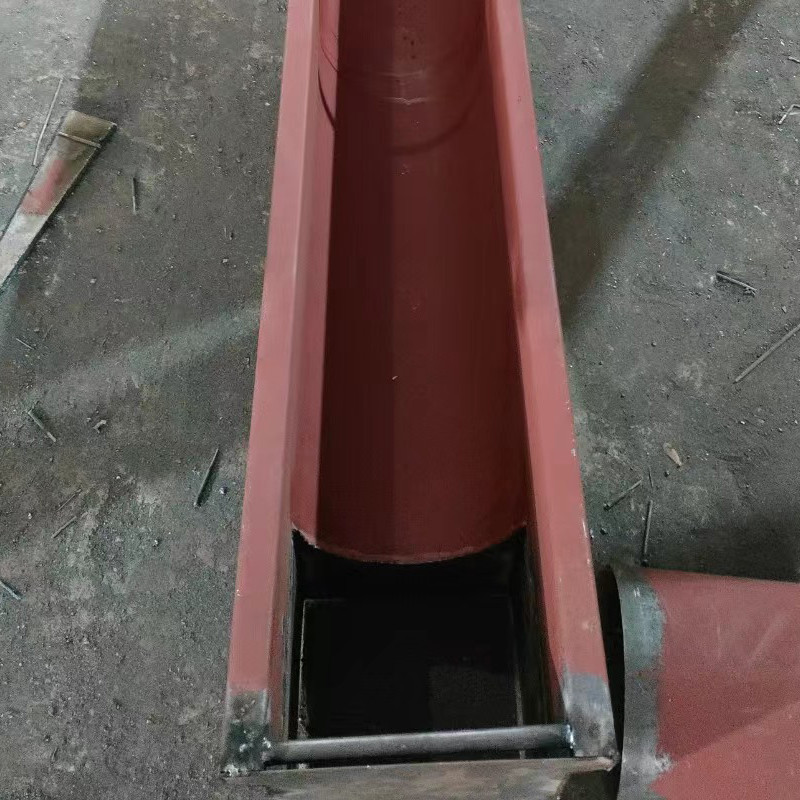

Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
