| Place of Origin: | Jiangsu China |
| Brand Name: | longdai |
| Certification: | ISO9001 |
| Model Number: | LSW-280 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per Years |
| Name: | Screw Conveyer | Belt Material: | Stainless Steel 304 316 314 |
|---|---|---|---|
| Frame Material: | Frame Material | Conveyor Type: | Spiral Conveyor Belt |
| Size: | Customised Size | Motor: | SEW |
| Length: | 3-30m | Thickness: | 1mm-10mm/customized |
| After-sales Service: | Video Techinical Support | ||
| Highlight: | 304 stainless screw conveyor,cement stainless screw conveyor,304 stainless steel screw conveyor |
||

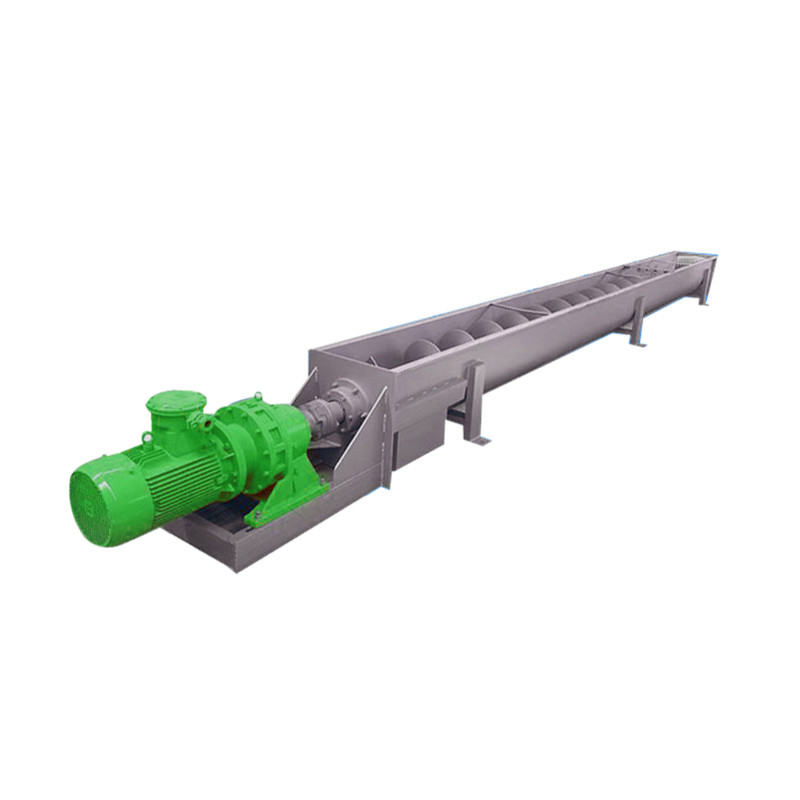

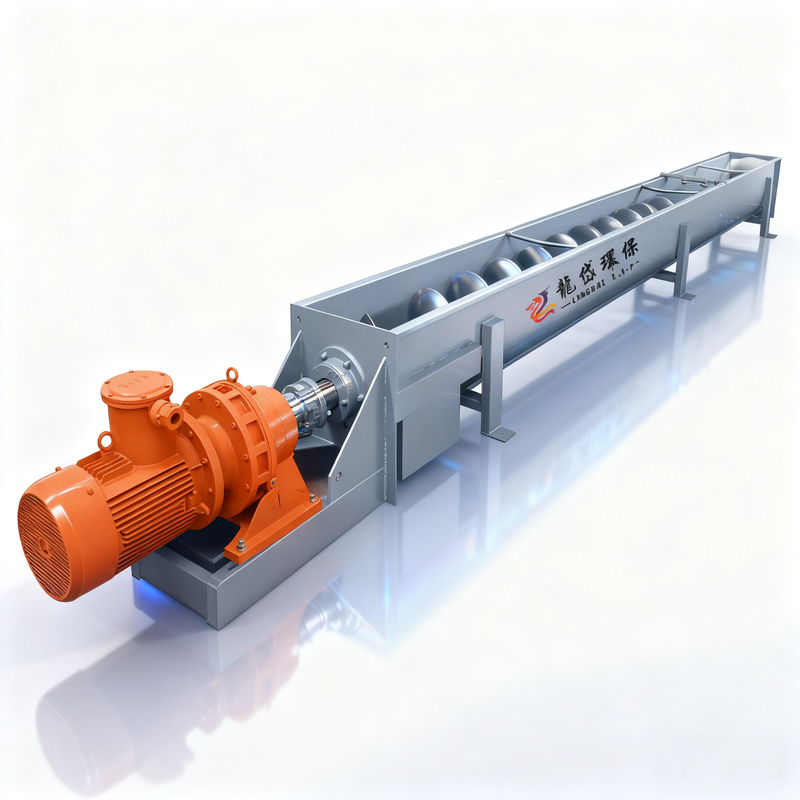

High quality slag carbon steel sprial conveyor 304 stainless steel screw conveyor for cement
The LSW series screw conveyor mainly uses spiral blade rotation to promote the completion of the conveying process of bulk materials. It can be horizontal or inclined (with an inclination angle less than 20 °) to transport powder, particles, or small pieces of materials.
Advantage
1. Simple structure, small cross-section, good sealing performance, and reliable operation.
2. Low manufacturing cost, easy intermediate packaging materials and unloading, transportation direction can be reversed, or both directions can be transported simultaneously.
3. During the transportation process, the materials also need to be stirred, stirred, heated, and cooled.
4. The material flow can be adjusted by loading and unloading.
Parameter
| Type | diameter of screw(mm) | Helix istance(mm) | speed(r/min) | conveying capacity(m3/h) | length of screw(mm) |
| LS-200 | 200 | 200 | 100 | 6.2-12.4 | customized |
| LS-250 | 250 | 250 | 90 | 10.9-21.8 | customized |
| LS-300 | 300 | 300 | 80 | 13.4-38.8 | customized |
| LS-400 | 400 | 355 | 71 | 37.7-62.5 | customized |
| LS-500 | 500 | 400 | 63 | 49.6-97.7 | customized |

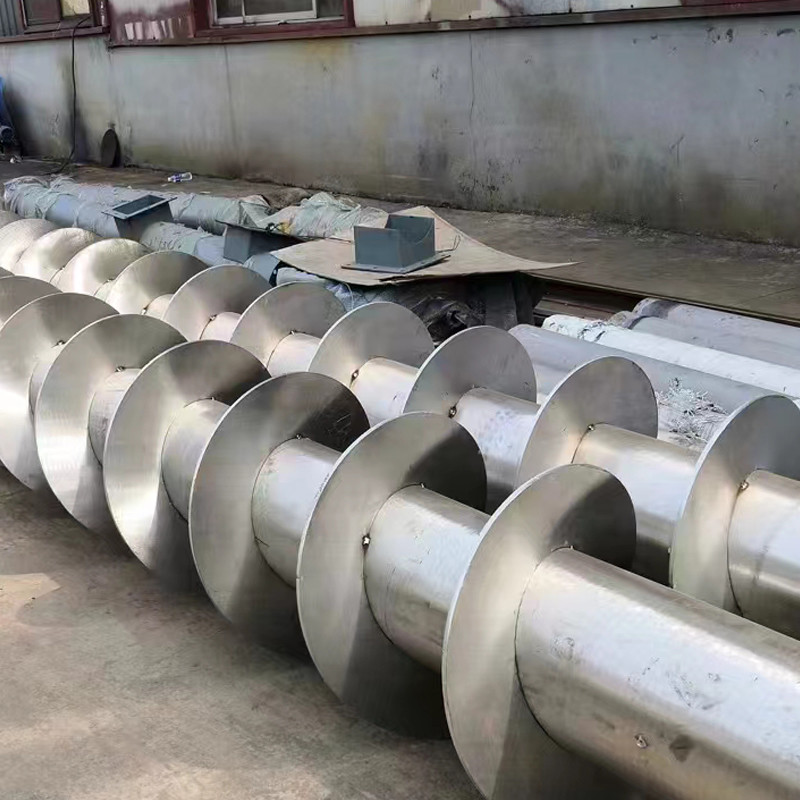

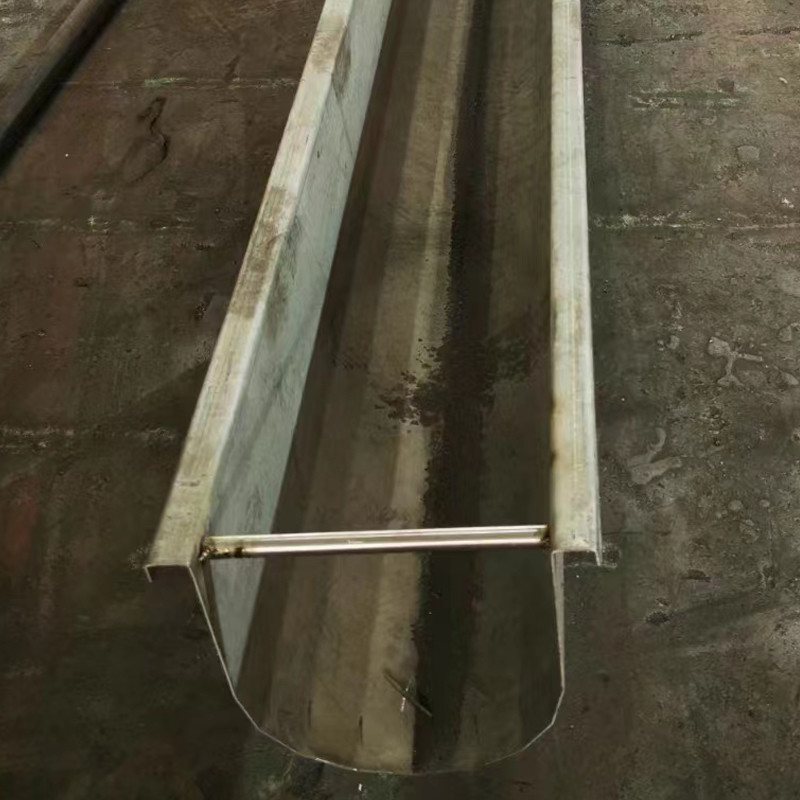

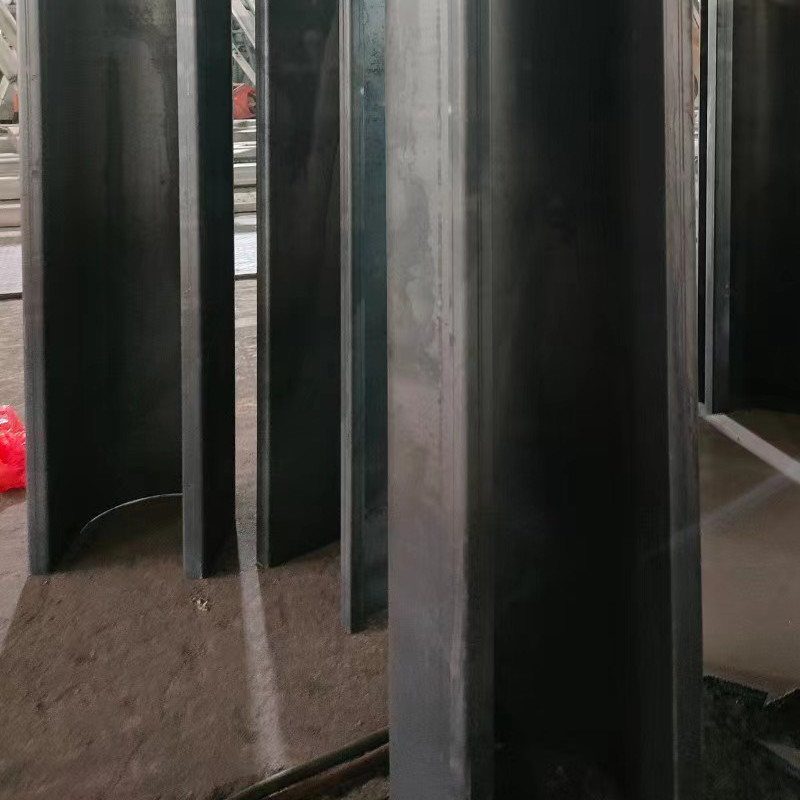

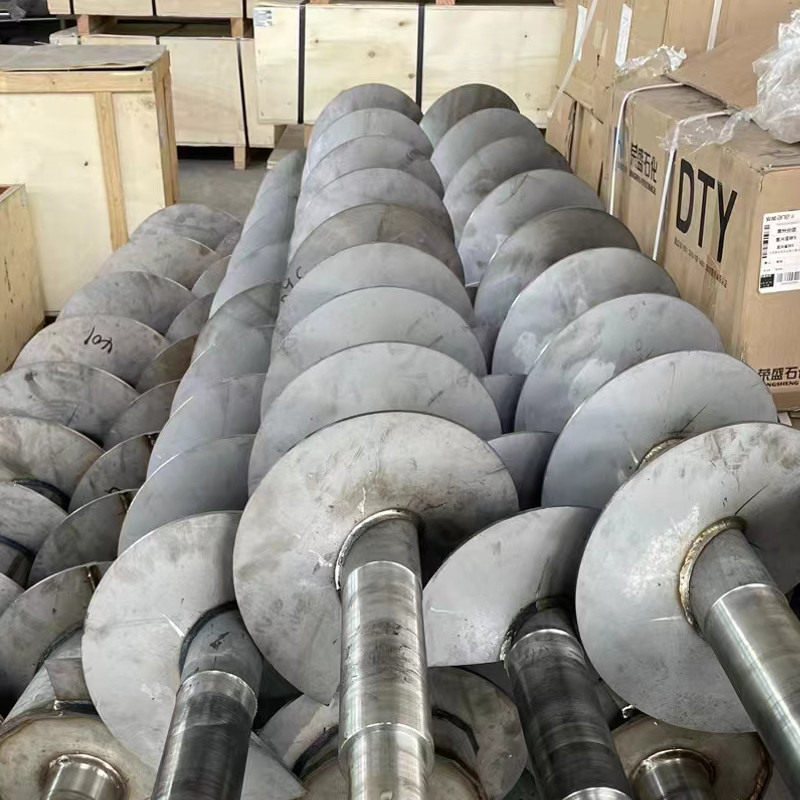

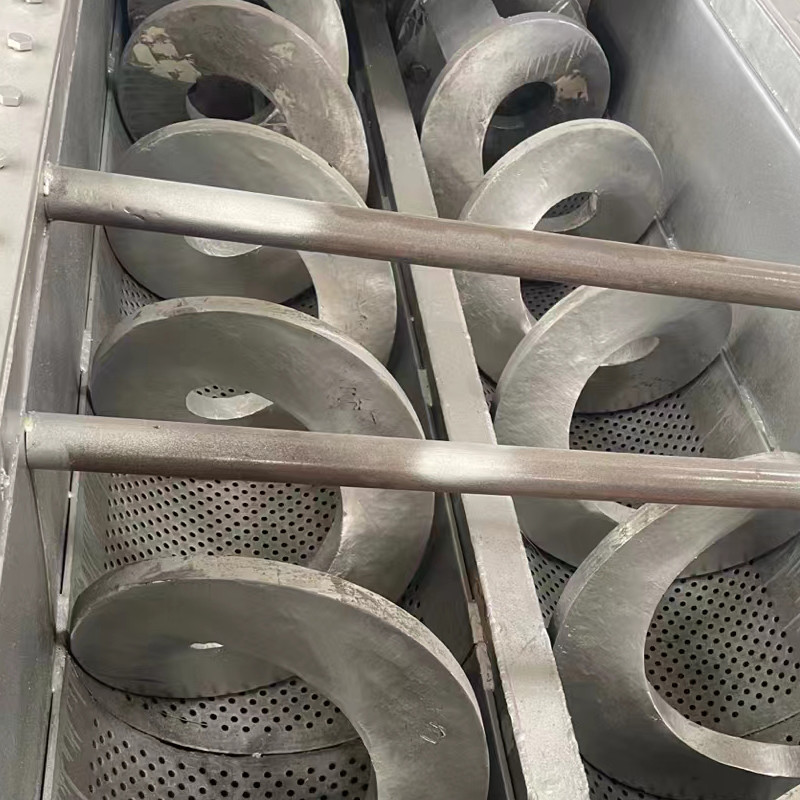

Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
