| Place of Origin: | Jiangsu China |
| Brand Name: | longdai |
| Certification: | ISO9001 |
| Model Number: | QJY-2500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 25 days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2000 sets per Years |
| Name: | Dosing System | Material: | Stainless Steel 304&316&PP |
|---|---|---|---|
| Size: | Custom Made | Capacity: | 500L-1000L |
| Voltage: | 380V /Customized | Flow Rate: | 1-300 M3/h |
| Control: | Electric Auto Control (PLC Siemens) | Feature: | Energy Saving |
| Advantage: | High-quality | Package: | Wooden Pacakge |
| Highlight: | PAM automatic dosing system,Polymer Chemical Powder automatic dosing system,Sewage Treatment Coagulant auto dosing system |
||

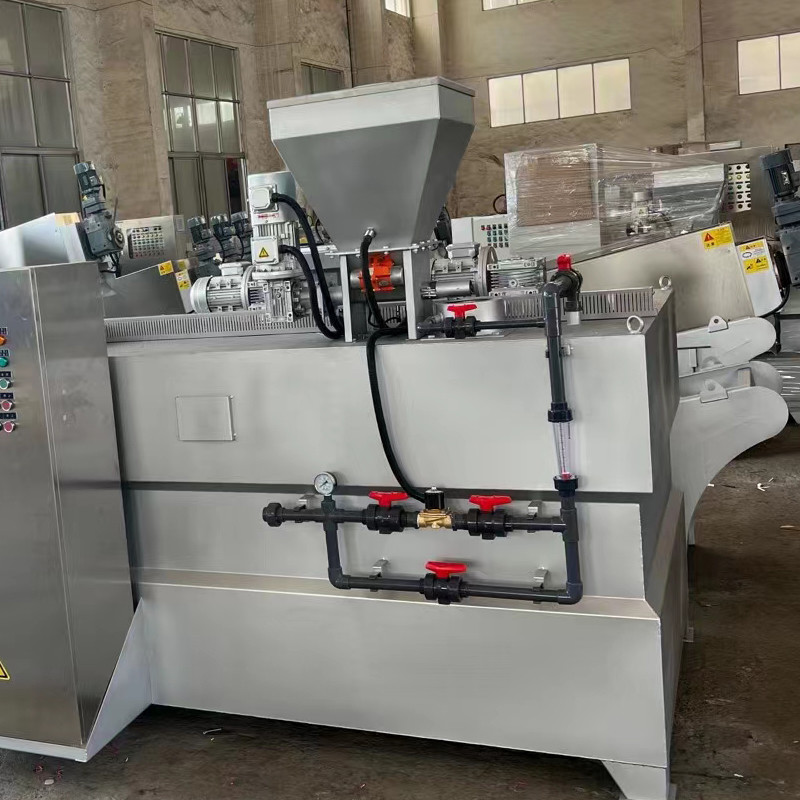

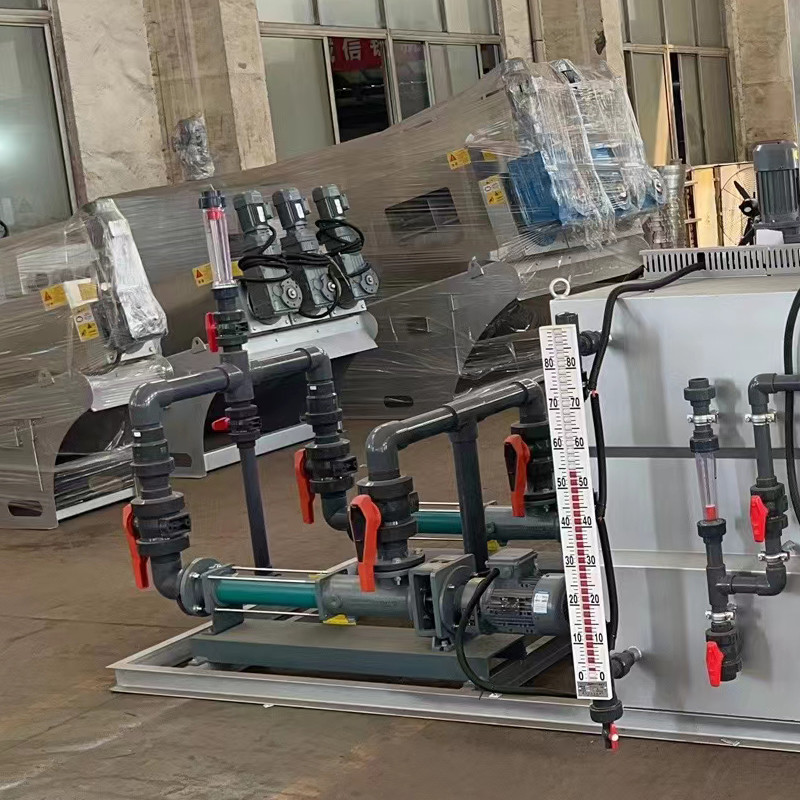

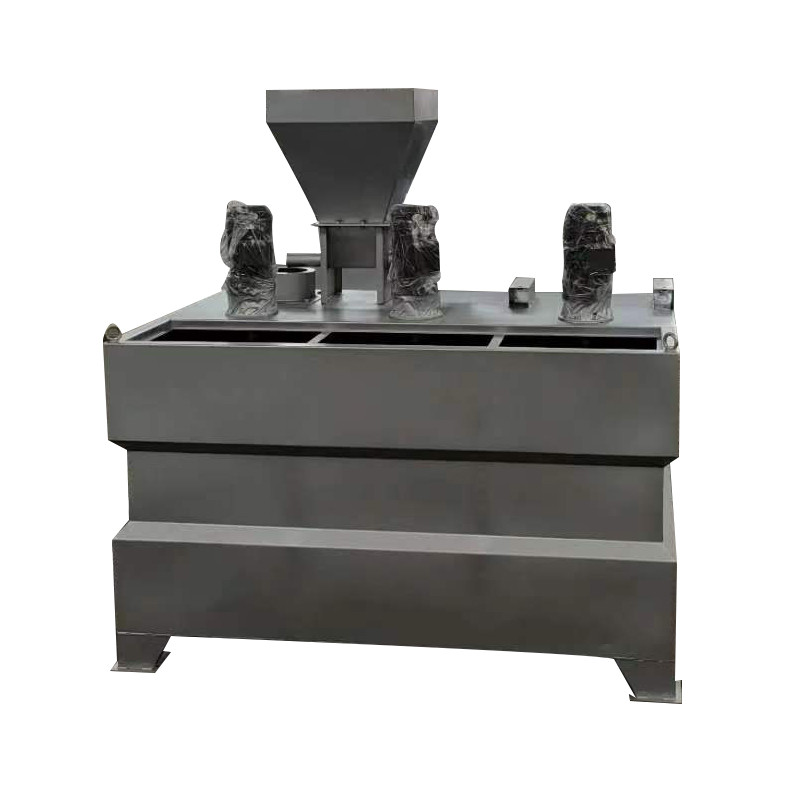

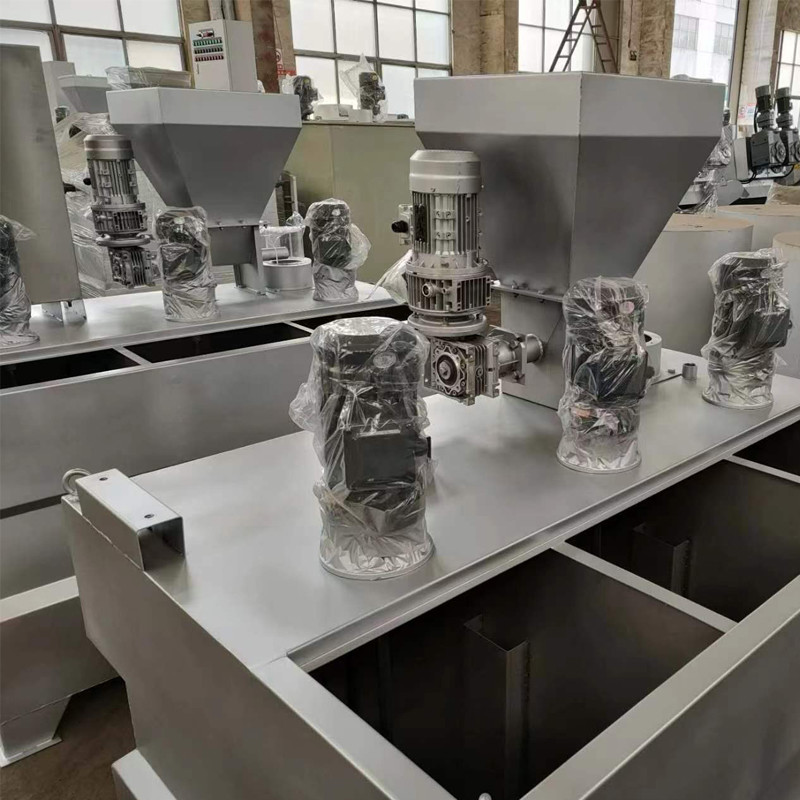

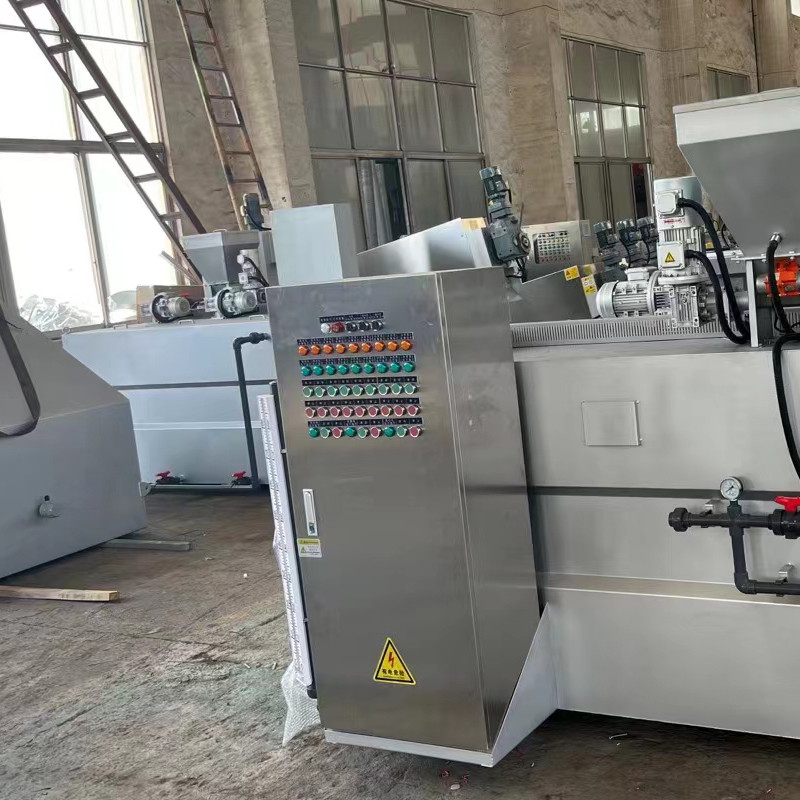

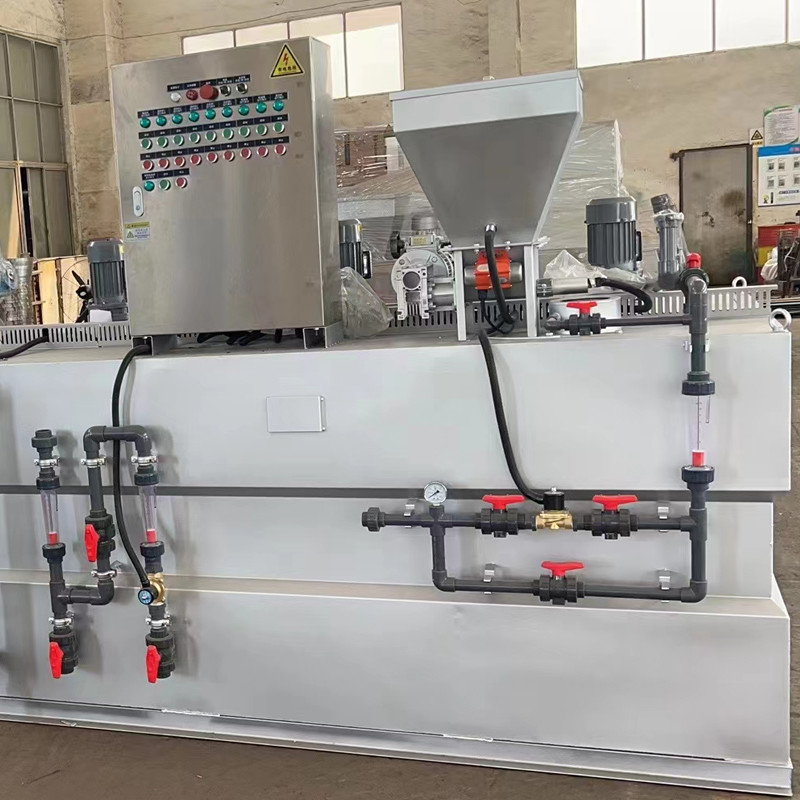

High quality Automatic PAM Polymer Chemical Powder Dosing System for Sewage Treatment Coagulant
The function of a polymer dosing machine is to dissolve or dilute powder or liquid flocculants into a flocculant solution.
Automatic dosing machines are widely used in sewage treatment. It can continuously and effectively mix compounds, resulting in reactive polymer solutions.
The main components of the machine include: polymer feeder (including hopper), dry powder infiltration device, storage tank, liquid level controller, agitator, dosing inlet pipe, and electric control panel.
Advantage
1. Simple operation and labor saving
2. Polymer concentration adjustable
3. Carefully designed rack
4. Trusted Operations
5. Better performance, better environment
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |
