| Place of Origin: | Jiangsu China |
| Brand Name: | longdai |
| Certification: | ISO9001 |
| Model Number: | QJY-5500L |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2500 sets per Years |
| Product Name: | Dosing System | Type: | Customized |
|---|---|---|---|
| Application: | Chemical | Capacity: | 250L-10000L |
| Flow Rate: | 7.5~33 L/min | Raw Material: | 304/316 Stainless Steel |
| Voltage: | 380V /Customized | After Warranty Service: | Online Video Technical Support |
| Packing: | Standard Exportation Package | ||
| Highlight: | Customizable Polymer Dosing System,Customizable Polymer Preparation Unit,Polymer Preparation Unit 250L |
||
Customized hot products Automatic Polymer Dosing System Dry Chemical Power Polymer Preparation Unit Automatic Dosing System
The function of polymer dosing machine is to make the flocculants of powder or liquid dissolve or dilute into flocculants solution.
The automatic dosing machine is widely used in the waste water treatment. It can mix the compounds continuously and effectively, so the reactive polymer solution appears.
These main components of the machine: Polymer feed machine (including material hopper), Dry powder infiltration device, Tank, Level controller, Mixer, Dosage water inlet pipe, Electric control panel.
Advantage
1. Easy to operate, labor saving
2. Polymer concentration is adjustable
3. Well designed machine frame
4. Trustworthy operation
5. Better performance, better environment
Parameter
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |

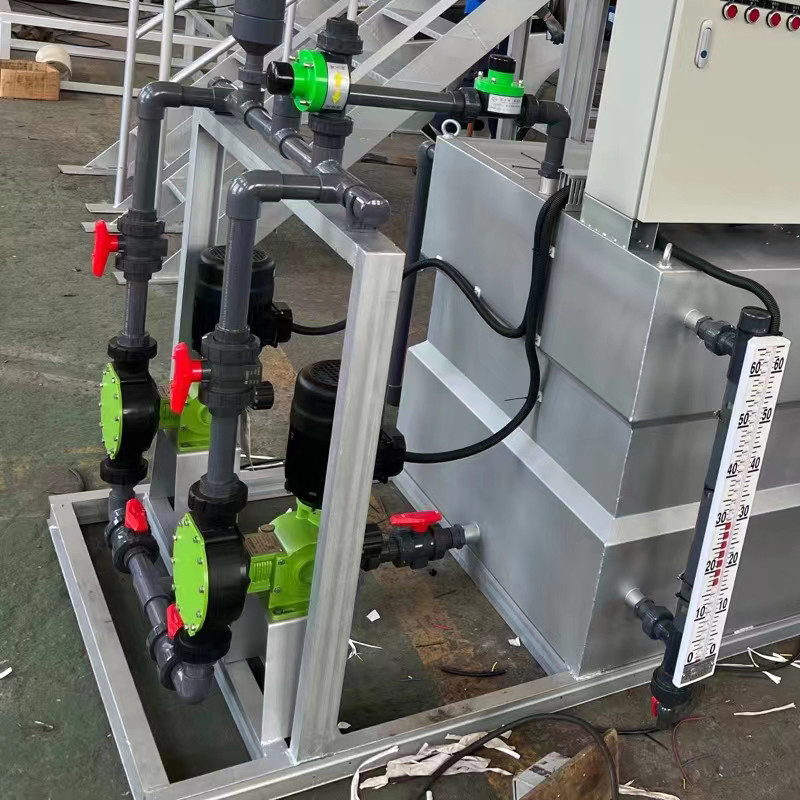

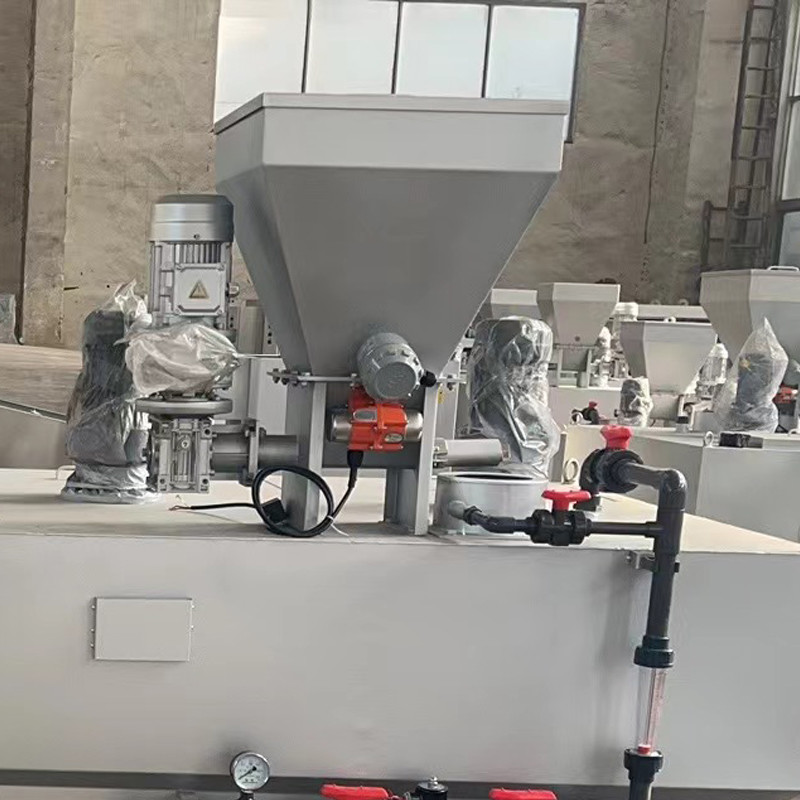

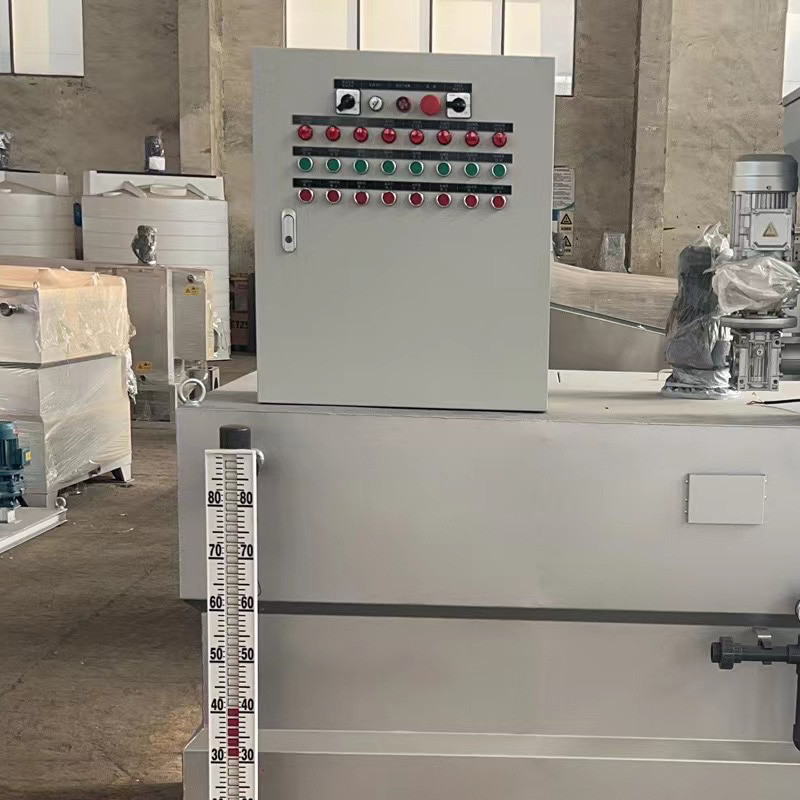

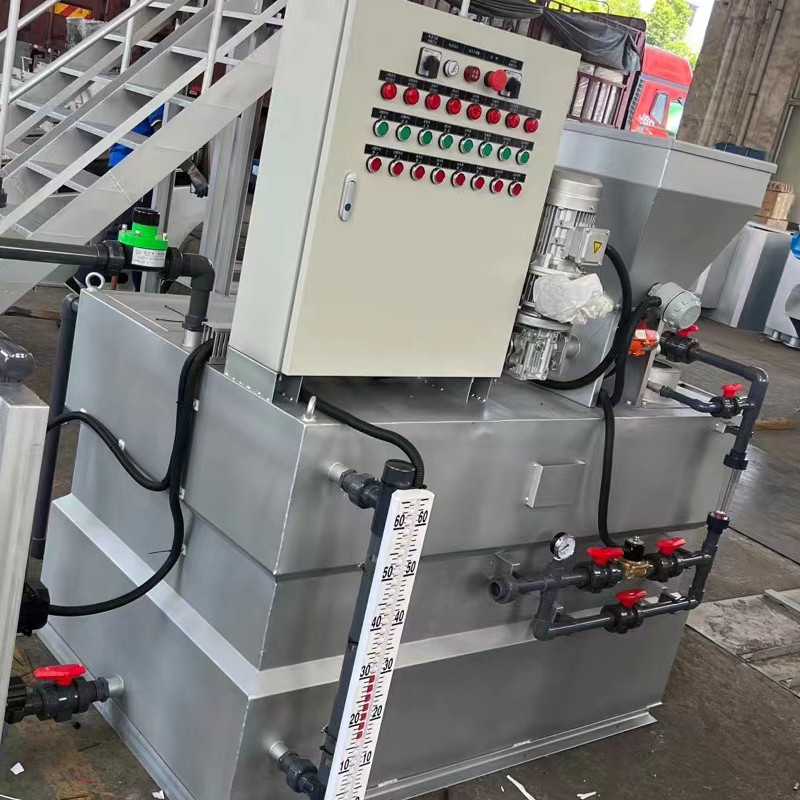

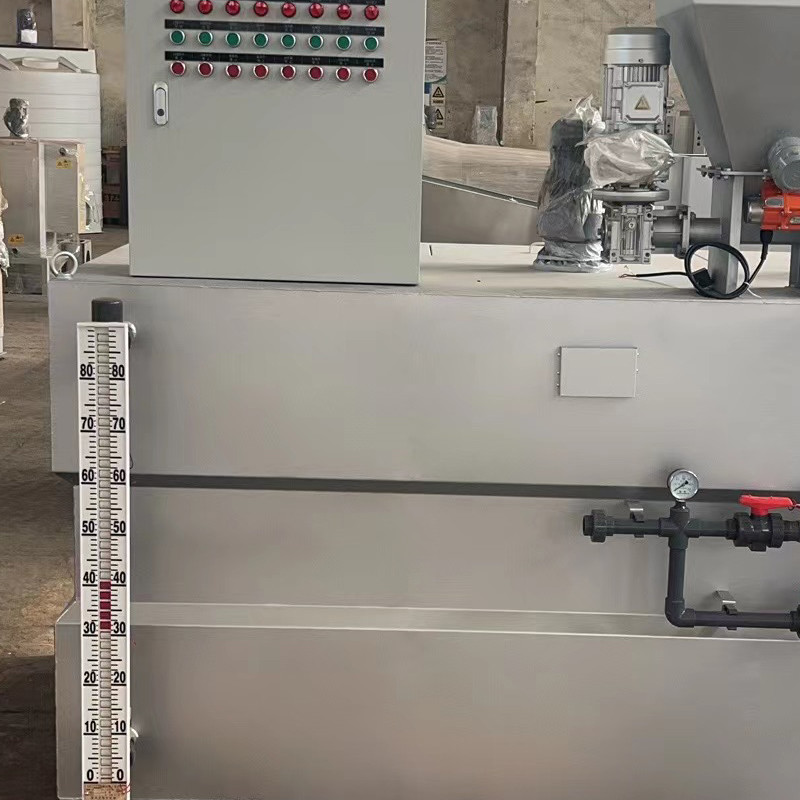

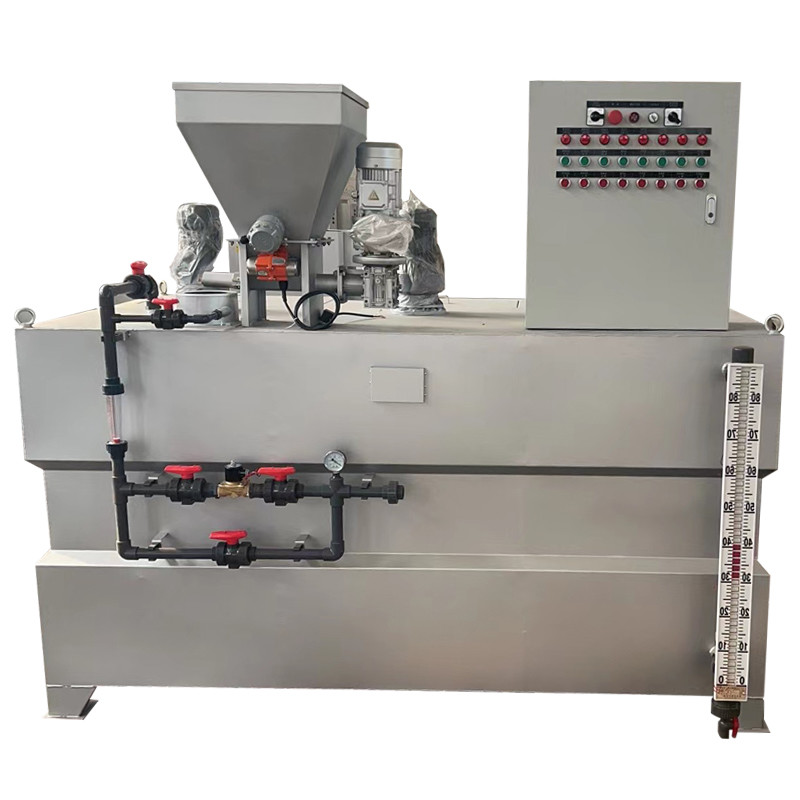

Real picture
