1. If the length of U-shaped screw conveyor is less than 35m, it is a single-axis driving screw.
2. If the length of U-shaped screw conveyor is greater than 35m, it is a two-axis driving screw.
According to the screw conveyor middle hanger bearing type
1. M1- is a rolling bearing, adopts type 80000 sealed bearing, and the shaft cap has a dust-proof sealing structure. It is commonly used in areas where it is difficult to refuel, no refueling, or oil contaminates the material. The sealing effect is good, and the hanging shaft has a long service life. Temperature of conveying material ≤ 80°C.
2. M2- is a sliding bearing, equipped with a dustproof sealing device, a cast copper tile, an alloy wear-resistant cast iron tile, and a copper-based graphite less oil-lubricated tile. Commonly used in the transmission of material temperature is relatively high (t ≥ 80 °C) or transport water containing larger materials.
According to screw conveyor material classification
1. Ordinary carbon steel U-shaped screw conveyors - Mainly used in industries where cement, coal, stone, etc. wear out, and there are no special requirements for materials.
2, stainless steel U-shaped screw conveyor - mainly applicable to food, chemical, food and other industries that have requirements for the delivery environment, cleanliness, and will not produce pollution on the material, the use of a long time, but the relatively high cost.
Product Advantage
1, with environmental characteristics. Because the conveyor is a totally enclosed design, it is difficult for the material to receive contamination during the transport process.
2. Compared to the shaft screw conveyor, the delivery volume is 1.5 times that of the shaft conveyor with the same diameter.
3. Blockages rarely occur during work.
4, the transmission distance up to 60 ~ 70m.
5, generous appearance, while saving space, easy to operate, reasonable price.
Parameters
| Type |
diameter of screw(mm) |
Helix istance(mm) |
speed(r/min) |
conveying capacity(m3/h) |
length of screw(mm) |
| LS-200 |
200 |
200 |
100 |
6.2-12.4 |
customized |
| LS-250 |
250 |
250 |
90 |
10.9-21.8 |
customized |
| LS-300 |
300 |
300 |
80 |
13.4-38.8 |
customized |
| LS-400 |
400 |
355 |
71 |
37.7-62.5 |
customized |
| LS-500 |
500 |
400 |
63 |
49.6-97.7 |
customized |

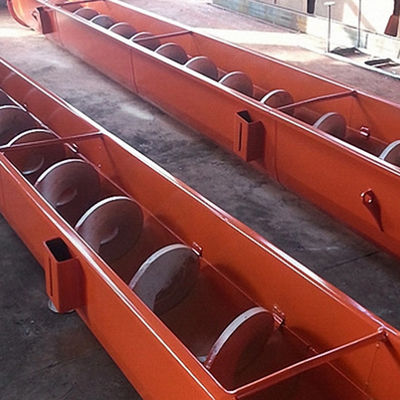

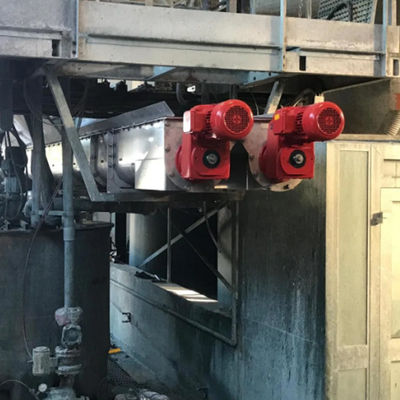

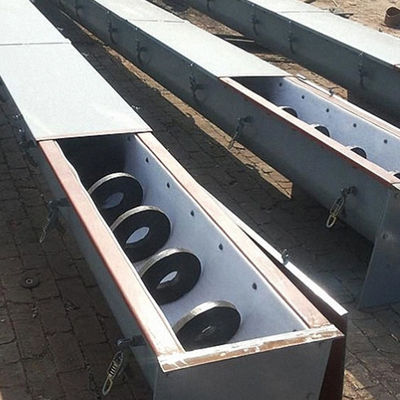

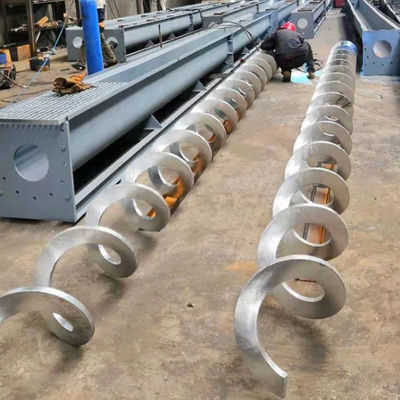

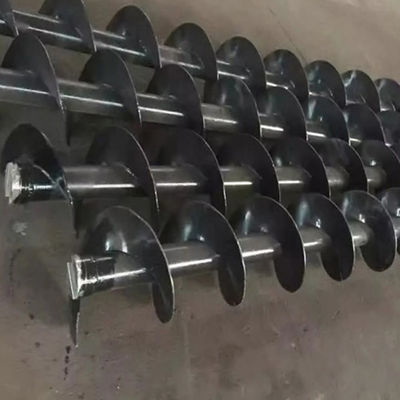

Real Pictures
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
FAQs
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A:T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
