| Place of Origin: | Jiangsu,China |
| Brand Name: | longdai |
| Certification: | CE/ISO |
| Model Number: | JY-3500 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 25days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000sets |
| Product Name: | High-efficiency Dosing Machine | Function: | Producing Fresh Water |
|---|---|---|---|
| After-sales Service Provided: | Technical Support | Usage: | Drinking Water Treatment |
| After Warranty Service: | Online Video Technical Support | Voltage: | 380V /Customized |
| Flow Rate: | Cuatomized | Production Capacity: | 50L/H-2000L/H |
| Color: | White | Feature: | Environment Friendly |
| Highlight: | 380Volt Chemical Dosing Equipment,304SS Automatic Dosing System,Chemical Dosing Equipment 304SS |
||

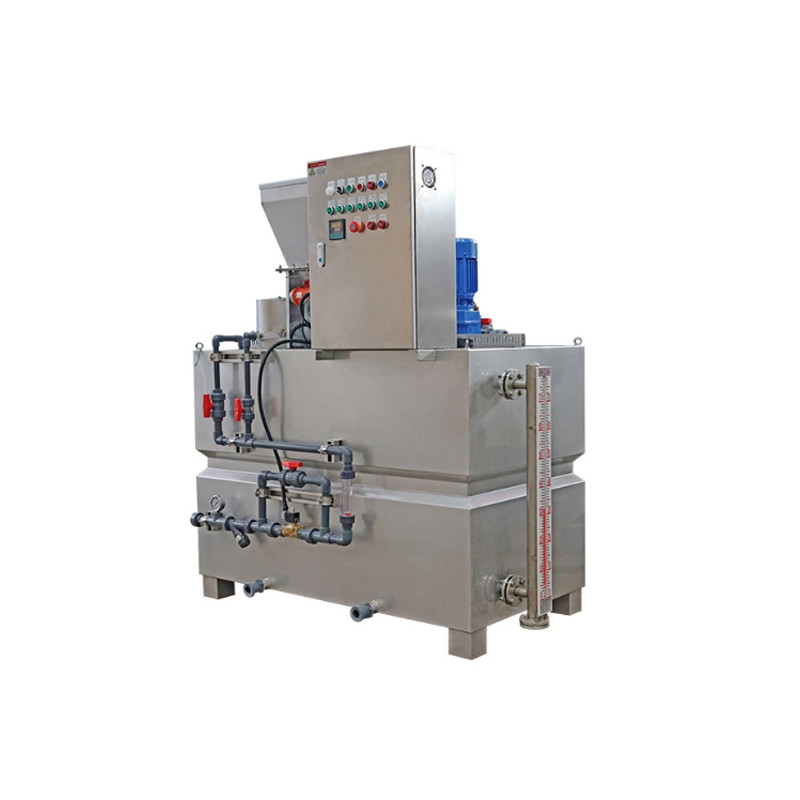

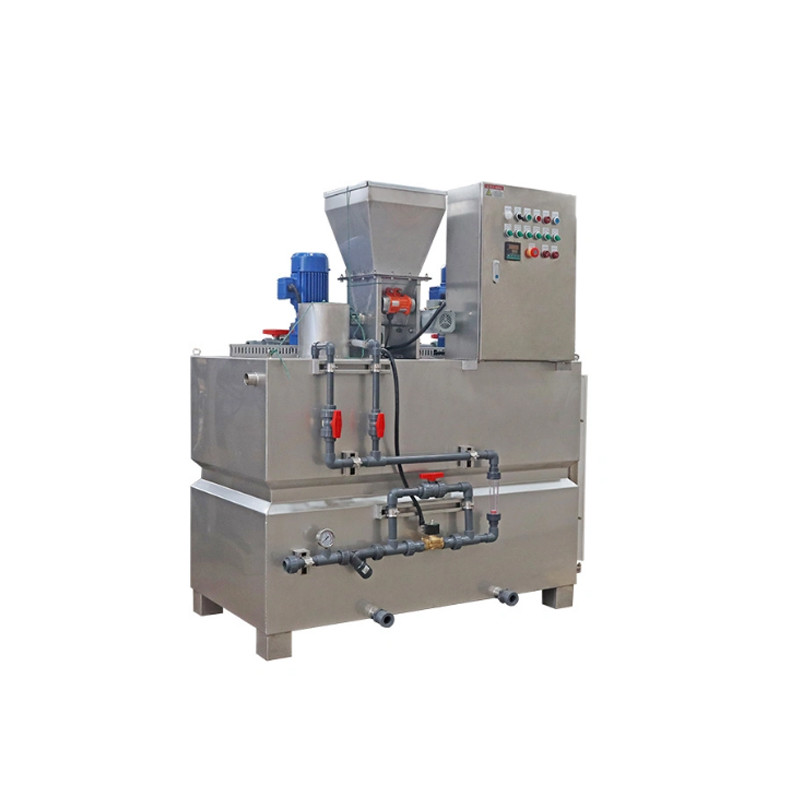

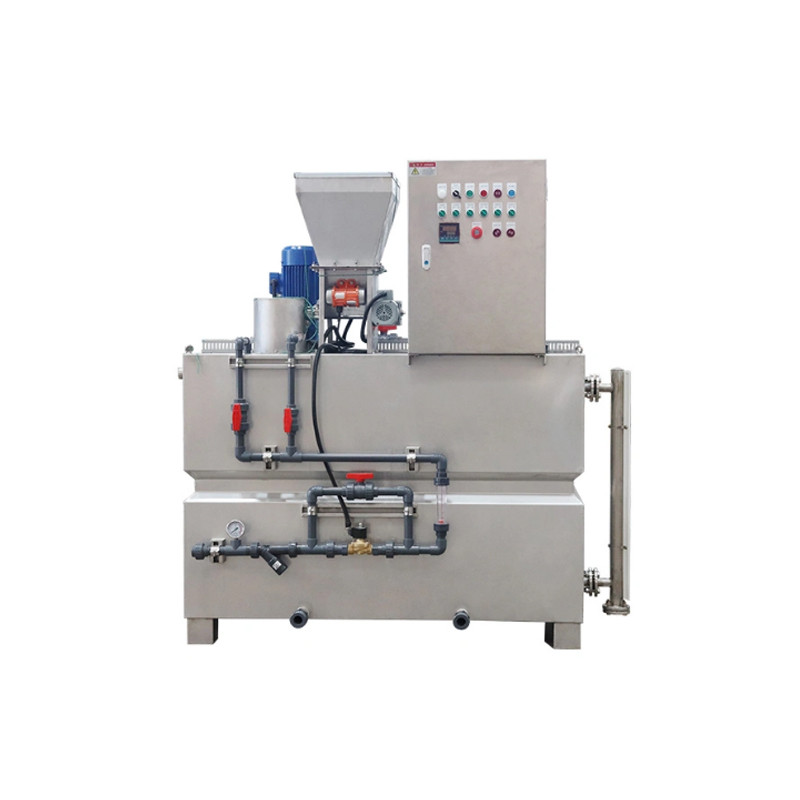

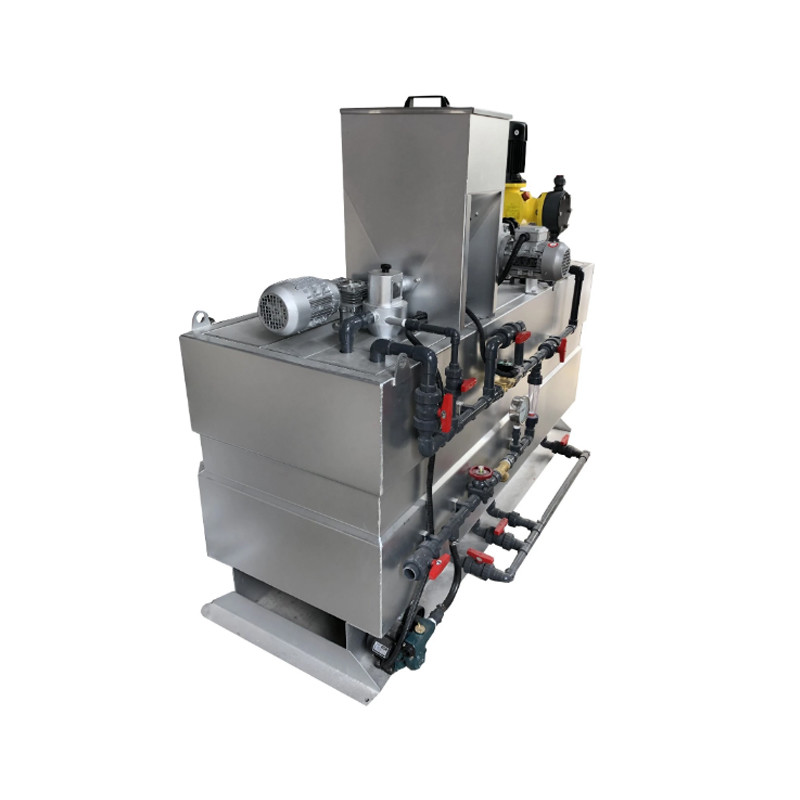

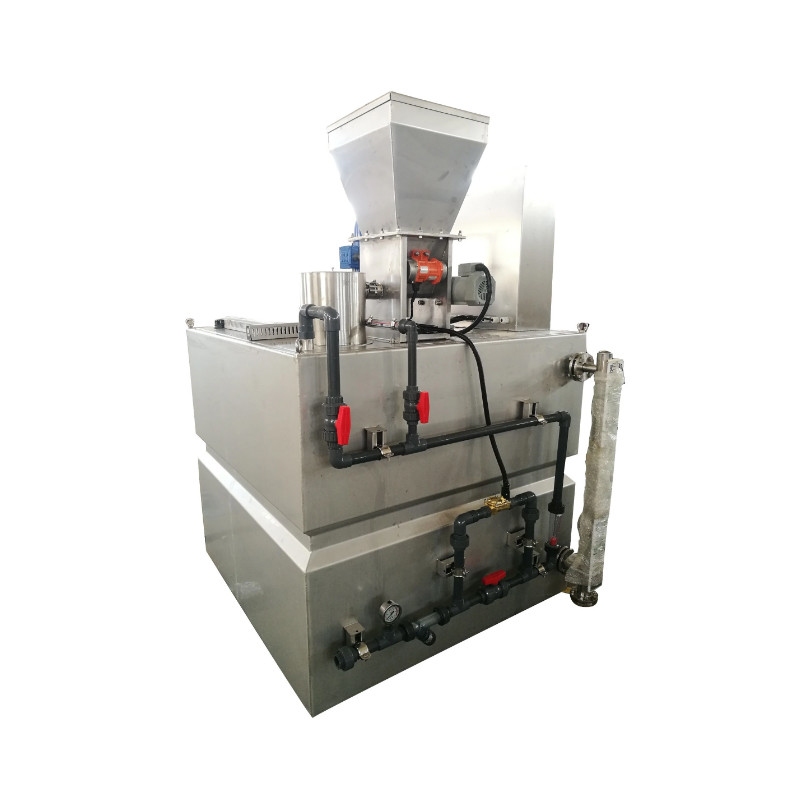

Automatic Chemical Dosing Equipment 304 stainless steel Dosing System for Water Purification
Polymer dosing unit uses polymer powder for preparing and dosing chemicals continuously. From powder to prepared solution, the whole process can reach to fully-automatic, safe and continuously running. When the solution reaches to the low liquid level in the storage tank, the level switch will output the signals and start for re-preparing for the polymer solution. When the solution goes into the high-liquid level in the storage tank, the level switch will send out signals to stop for preparing the solution.
Product features
1) High-automation degress, the whole system is controlled by PLC. Easy operation and stable system. Once occurs defaults, the machine will stop for running.

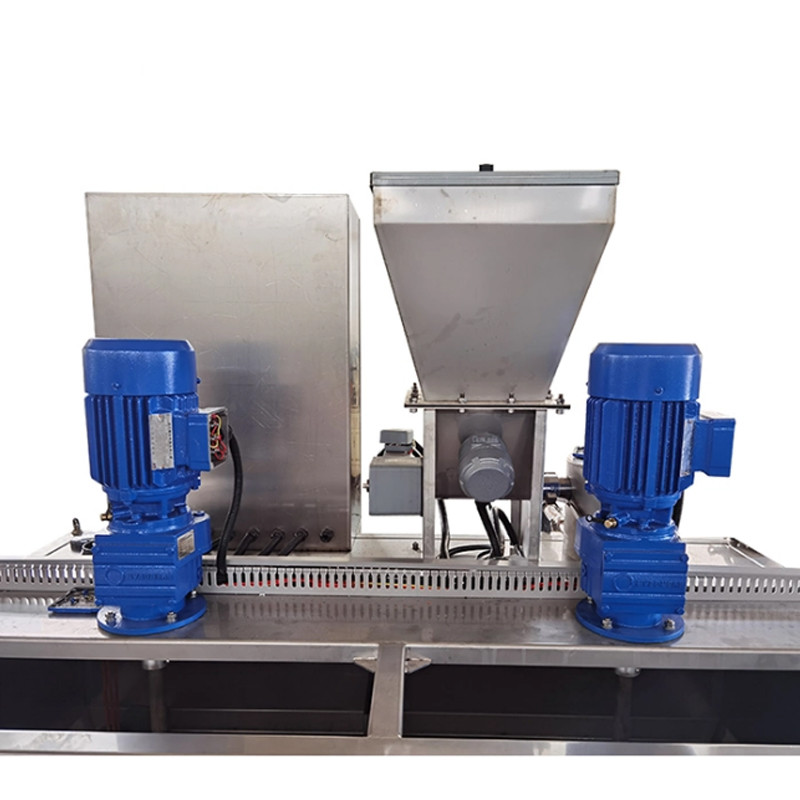

2) With screw feeder inside of the hopper, it can guarantee of dispersed and balanced dosage volume.
3) Rated maturing time under the specified producing capacity and continuous dosing condition.Its preparation concentration is around 0.05%-2%.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |
