SS316 Screw Conveyor U Trough Stainless Steel Industrial Spiral Conveyor Manufacturer Powder Auger Conveyor
A screw conveyor or auger conveyor is a mechanism that uses a rotating helical screw blade, called a "flighting", usually within a tube, to move liquid or granular materials. They are used in many bulk handling industries. Screw conveyors in modern industry are often used horizontally or at a slight incline as an efficient way to move semi-solid materials, including food waste, wood chips, aggregates, cereal grains, animal feed, boiler ash, meat and bone meal, municipal solid waste,Sludge & Water treatment.
Product Type
Screw conveyor can be divided into axial screw conveyor and shaftless screw conveyor in terms of conveying form, and can be divided into U-shaped screw conveyor and tubular screw conveyor in terms of appearance. The Axial screw conveyor is suitable for cohesionless dry powder materials and small particle materials (such as cement, fly ash, lime, grain, etc.); Shaftless screw conveyor is suitable for conveying viscous and easily entangled materials (such as sludge, biomass, garbage, etc.). The spiral blades welded on the rotating shaft of the screw conveyor have solid surface, belt surface, blade surface, etc. according to the different materials conveyed.
Equipment Features
U-shaped screw conveyor is a kind of screw conveyor, which is suitable for small-scale operation, stable transmission, and can play a good role in the limited conditions of the transmission site. The sealing performance is good, and it has great advantages for occasions where the dust is large and where there are requirements for the environment, which can prevent the generation of dust in the conveying process. However, the U-shaped screw conveyor is not suitable for long-distance transportation. The manufacturing cost is larger than that of the belt conveyor, and it is easy for the fragile materials to be destructed.
Parameters
| arameters | spiral Nominal diameter (mm) spiral dia (mm) |
Type | LS-200W | LS-250W | LS-300W | LS-350W | LS-400W |
| 200 | 250 | 300 | 350 | 400 | |||
| 185 | 235 | 285 | 320 | 385 | |||
| Capacity | installation angle | 0° | 1.5 | 3.6 | 6 | 8.4 | 11.7 |
| 5° | 1.35 | 3.24 | 5.4 | 7.56 | 10.53 | ||
| 15° | 1.05 | 2.52 | 4.2 | 5.88 | 8.19 | ||
| 25° | 0.9 | 2.16 | 3.6 | 5.04 | 7.02 | ||
| Spiral speed n(r/min) | 12 to 16 | ||||||
| Motor N(KW) | 0.75-5.5 (according to L and angle) | ||||||
| installation size(mm) | A | 0+40 | |||||
| B | 0 + 110 | ||||||
| Bi | Matching with corresponding equipment | ||||||
| L | According to user requirements | ||||||
| Li | Matching with corresponding equipment | ||||||
| l_2 | (L-1000)/2-(L-71000)/3 | ||||||
| L3 | 250 | 250 | 300 | 350 | 400 | ||
| H | Matching with corresponding equipment | ||||||
| Hi | 140 | 165 | 188 | 210 | 240 | ||
| H2 | H-150 | ||||||
| H3 | Matching with corresponding equipment | ||||||

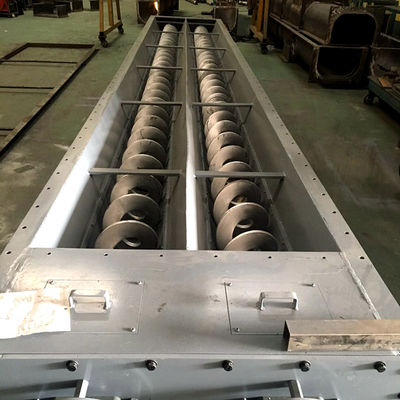

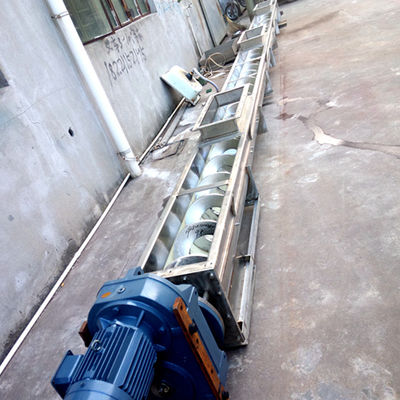

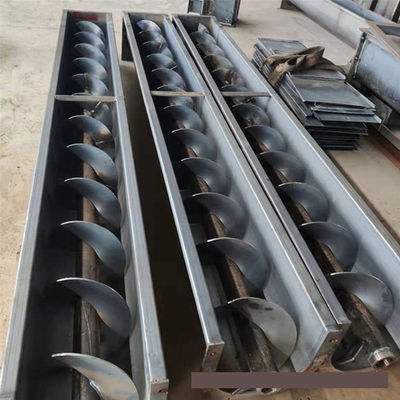

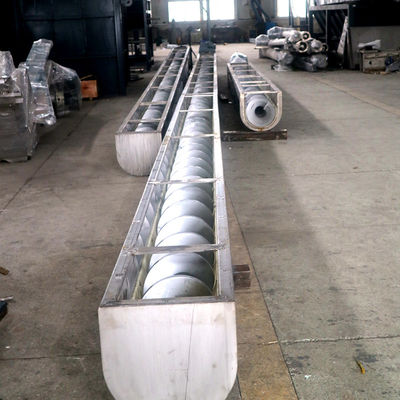

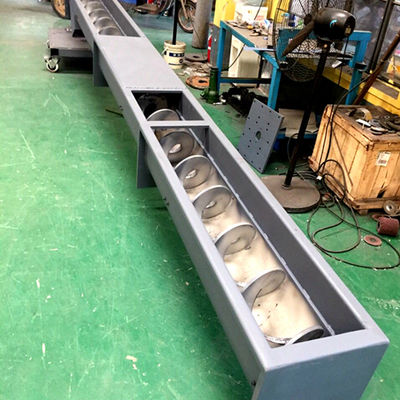

Real picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
