Printing Sewage Treatment Plant Central Drive Sludge Scraper for Industrial and Domestic Wastewater Treatment

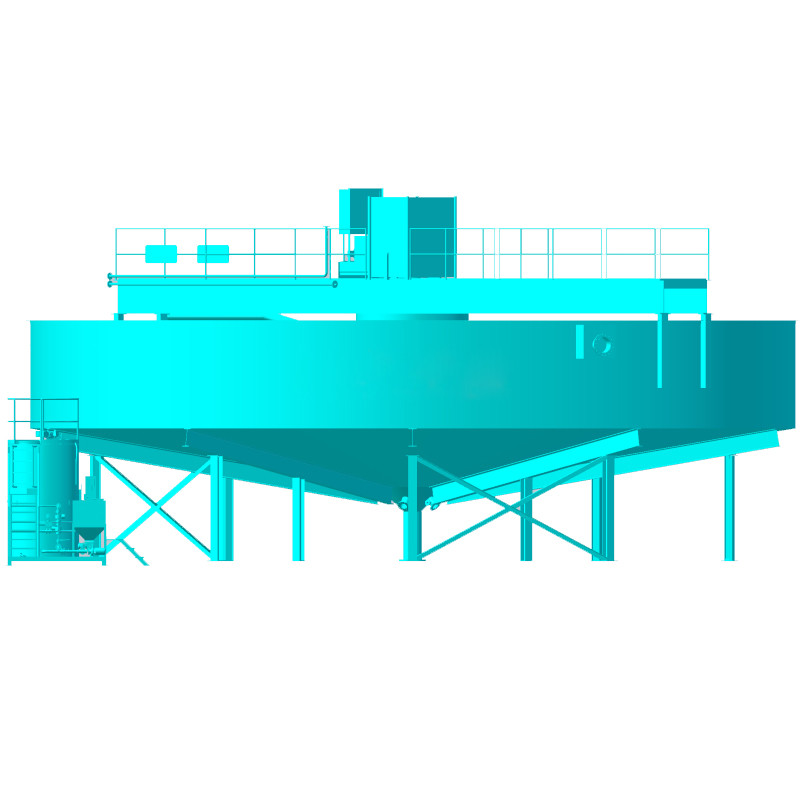

It is used for the scraping and elimination of sludge in the first sedimentation tank and secondary sedimentation tank of urban water plants and sewage treatment plants. The products ranges from DN18 to DN50 and can be used in sedimentation tanks with different sedimentation rates. Mainly consists: working bridge, central rotating support, scraper, guide tube, drive mechanism, slag discharge device.
Main Features
1. Working bridge can be used half or full bridge, its material can be carbon steel, stainless steel, etc.
2. The scraper adopts rubber combination structure, scraping mud thoroughly. The scraper collects mud with spiral trajectory, which has good continuity and high efficiency of mud collection.
3. System control cabinet adopts outdoor type, safe and reliable, can be controlled randomly.
4. Smooth operation, safe and reliable work.
5. Simple structure, energy saving, convenient maintenance and management.
6. The size, material and other configuration of the equipment can be determined according to user requirements.
Parameters
| Model |
Power |
Dismeter |
Number of wiper arms |
Torque |
Weight |
| ZXG-4 |
0.37-15kw |
4 |
2 |
4128 |
660 |
| ZXG-5 |
5 |
4815 |
750 |
| ZXG-6 |
6 |
5758 |
900 |
| ZXG-7 |
7 |
6409 |
1000 |
| ZXG-8 |
8 |
7565 |
1150 |
| ZXG-9 |
9 |
8320 |
1500 |
| ZXG-10 |
10 |
9715 |
1650 |

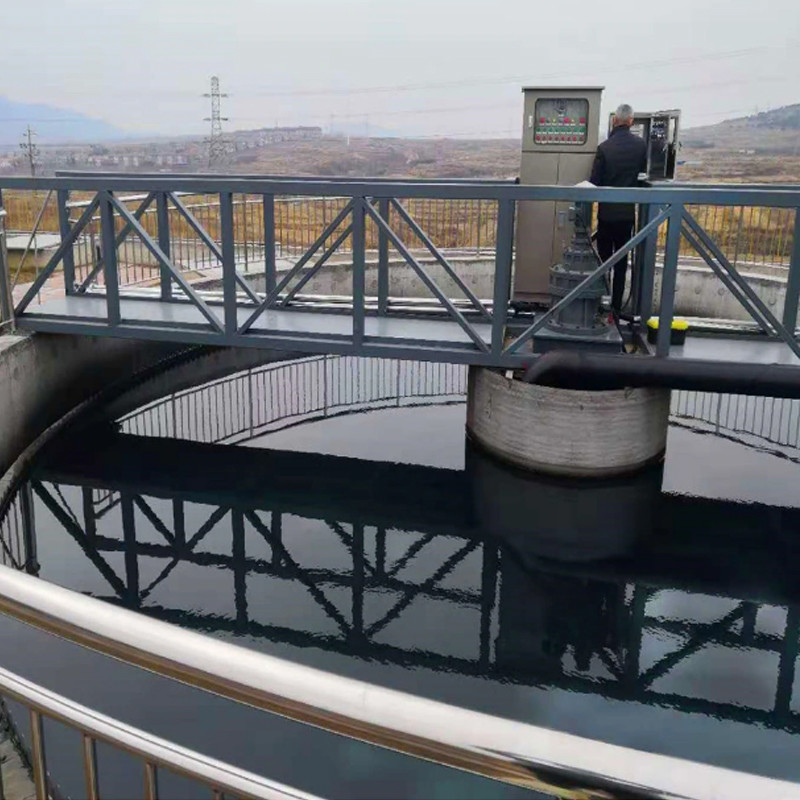

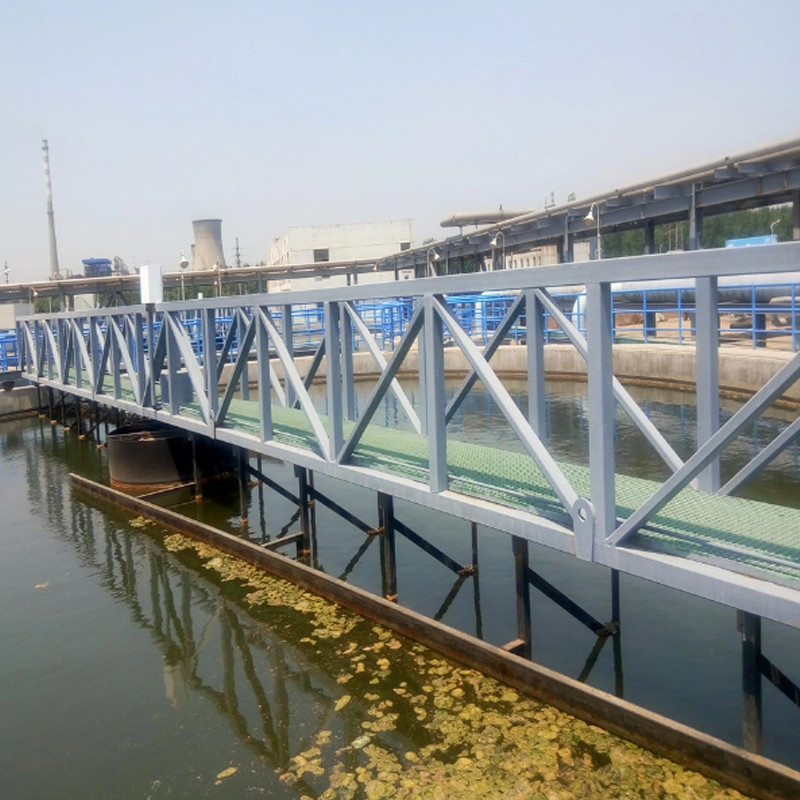

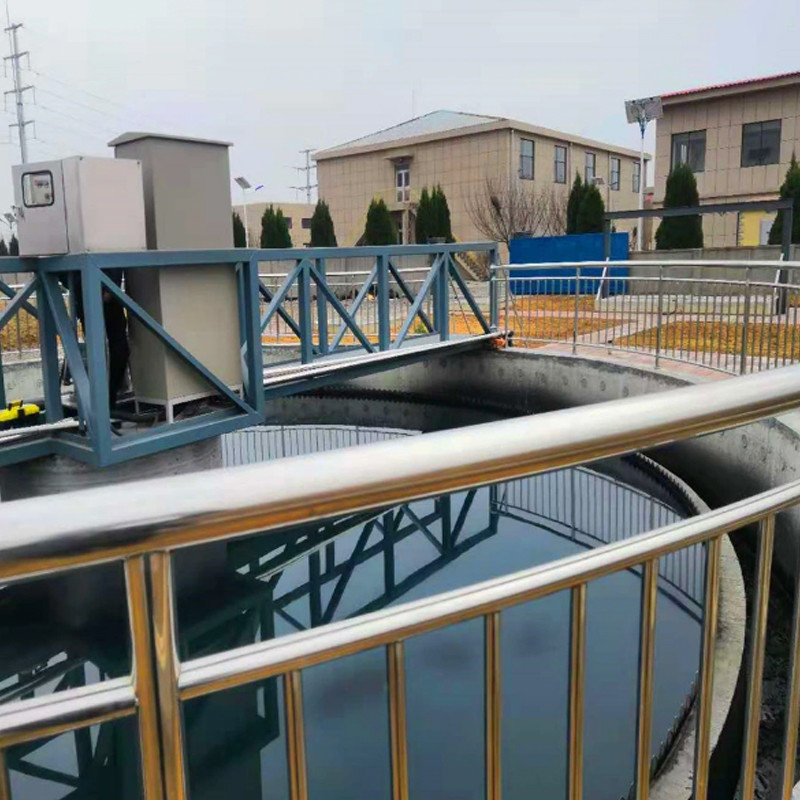

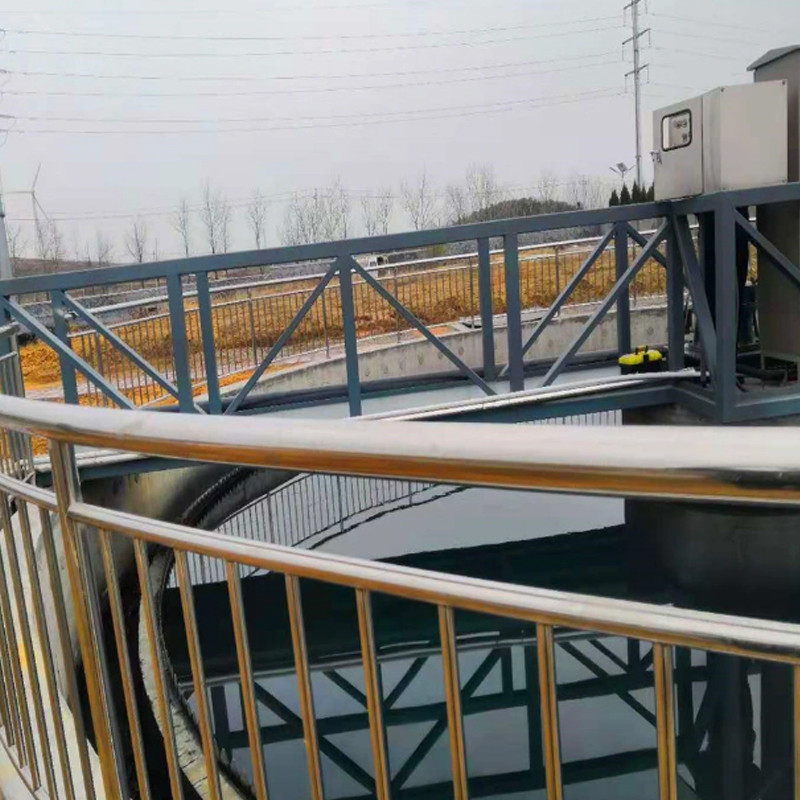

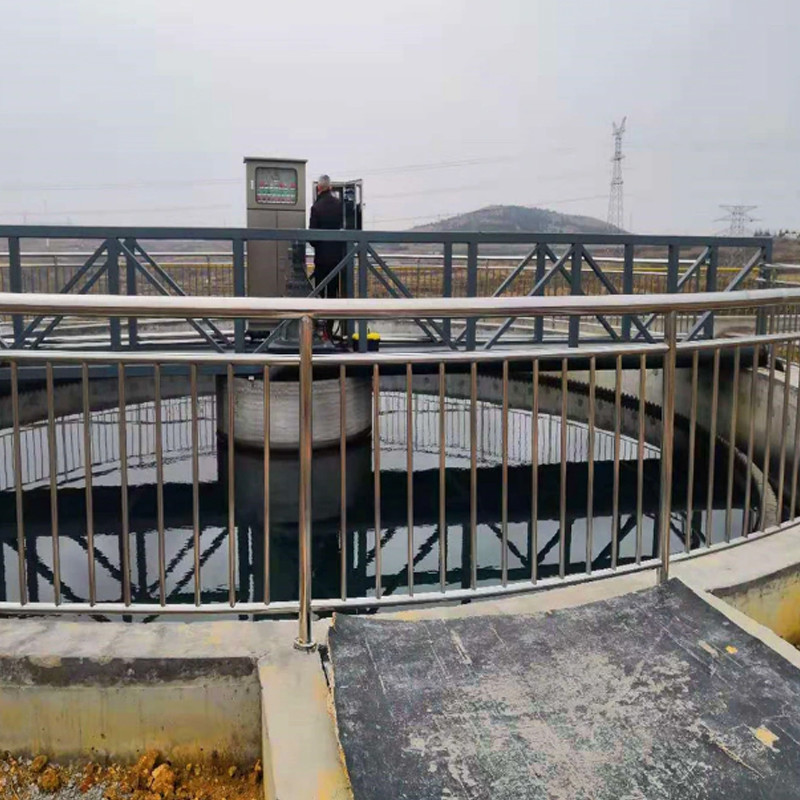

Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
FAQs
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
