PAM PAC Automatic Powder Liquid Polymer Chemical Dosing System powder dosing machine
Auto-Dosing Device for wastewater is installed before Spiral Type Sludge Dewatering Equipment. It is used in PAM (polyacrylamide) dosing dissolving mixing and solution dosing. It consists of triple cavity case, dry powder addition system, liquid mixing system, control system, liquid injection system.
Working Principle

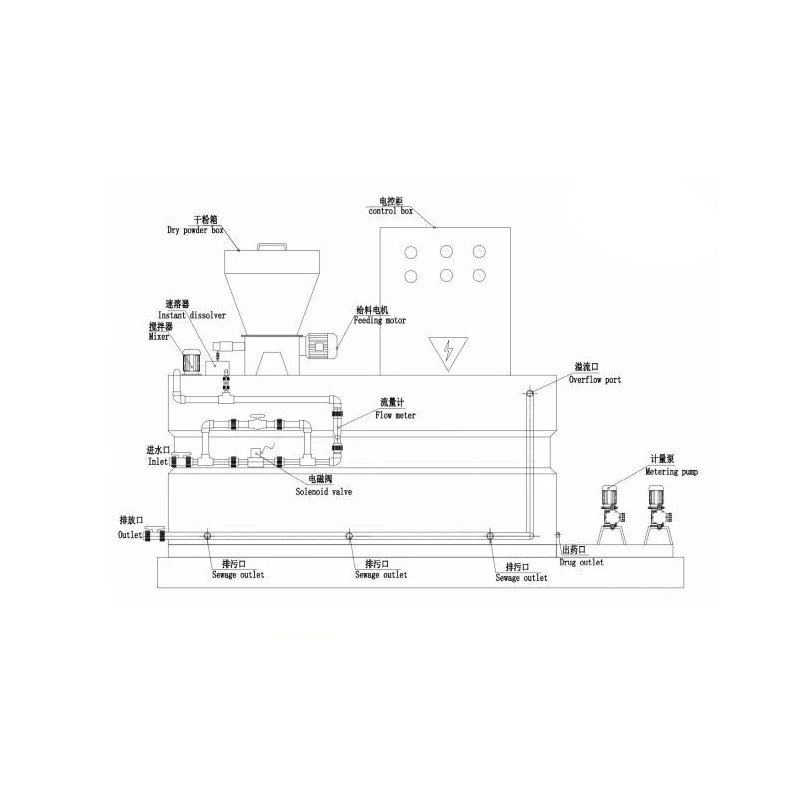

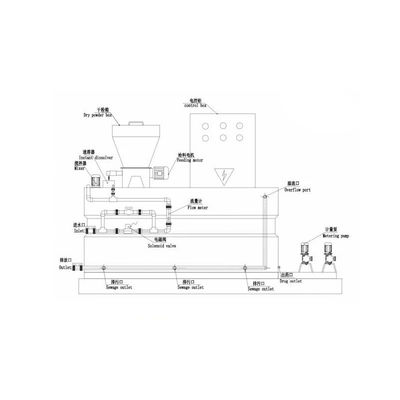

Dosing device is flocculating agent automatic continuous preparation and addition system. Dry powder flocculating agent from spiral propeller to instant device premix with clean water, the wet agentia goes into mixing tank for mixing and diluting,prepare it with the concentration requirement; if it is a liquid flocculant, it is directly injected into the preparation tank by the screw pump. If it is a liquid flocculant agent, it is directly injected into the preparation tank by the screw pump. In the preparation process,The water inflow must be relatively stable under the observation of the flowmeter, to ensure that the concentration is no change in whole working process.
Product Features
1.Automatic batching, dissolving, with one integration design, fully automatic running. 2.Quantitative medicine dispensing device measured accurately,with stepless transmission drive,It is convenient to adjust the feeding amount,The concentration range of the dispensing medicine is large. 3.With the functions of liquid level detection, flow control, auxiliary vibration feeding and so on,high level automation.
Parameters
| Type | Unit | JY-400 | JY-1000 | JY-2000 | JY-4000 | JY-8000 |
| Preparation capacity | L/H | 400 | 1000 | 2000 | 4000 | 8000 |
| Dilution water consumption | L/H | 1500 | 1500 | 3000 | 6000 | 12000 |
| Dilution water pressure | Bar | 1.3-29 | 1.3-29 | 1.3-29 | 6-132 | 12-264 |
| long | mm | 1770 | 2410 | 2070 | 3181 | 4434 |
| wide | mm | 915 | 950 | 1090 | 1521 | 1910 |
| high | mm | 1250 | 1605 | 1775 | 2263 | 2350 |
| Connection size of water inlet pipe | DN | 1'' | 1'' | 1'' | 2'' | 2'' |
| Connection size of discharge pipe | DN | 25 | 25 | 32 | 40 | 50 |
| Power | kw | 1.5 | 2.6 | 3.2 | 5.0 | 9.5 |

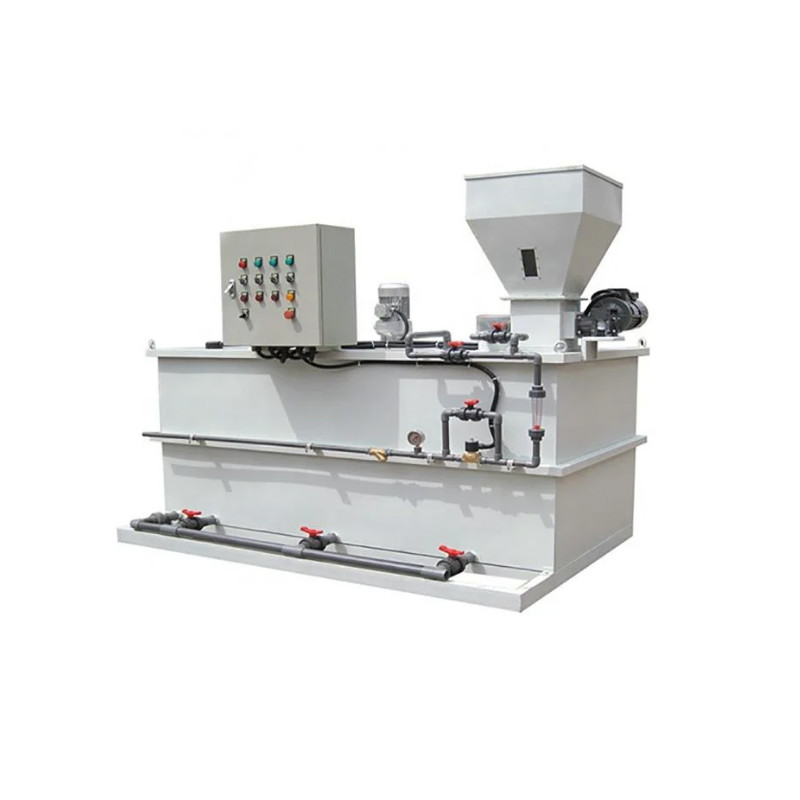

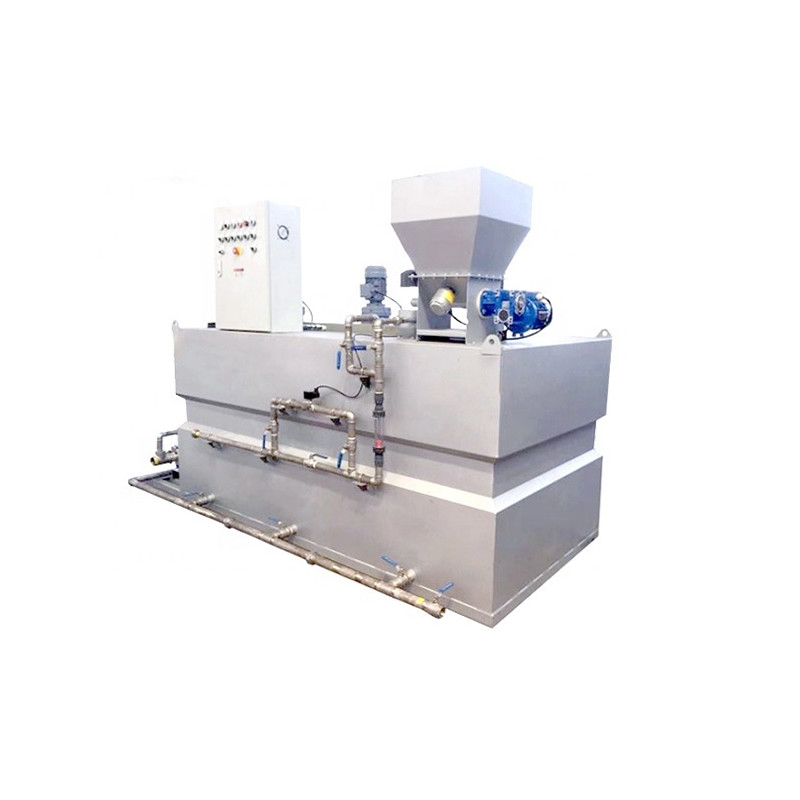

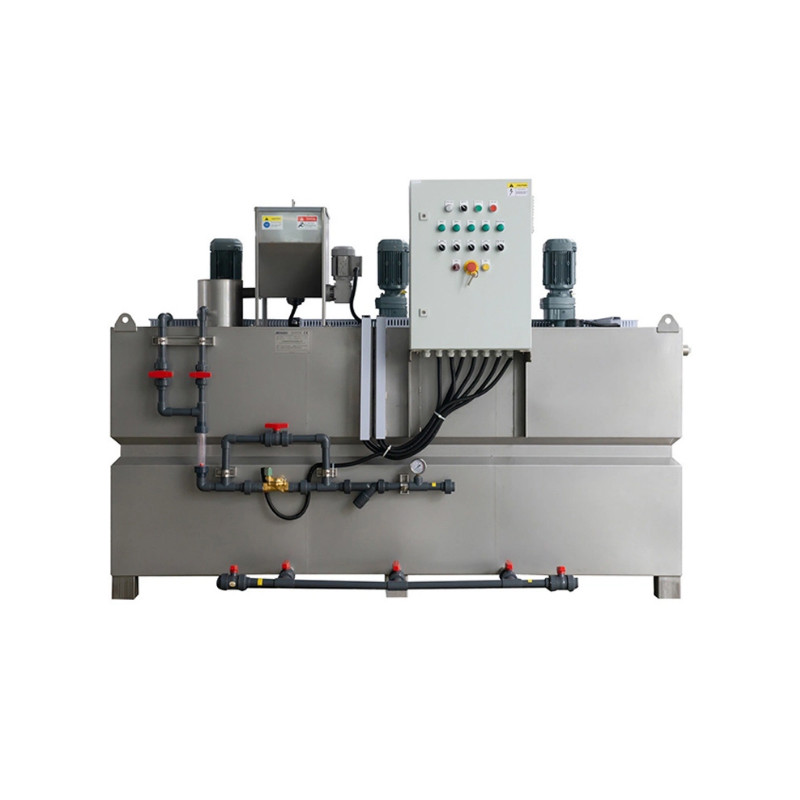

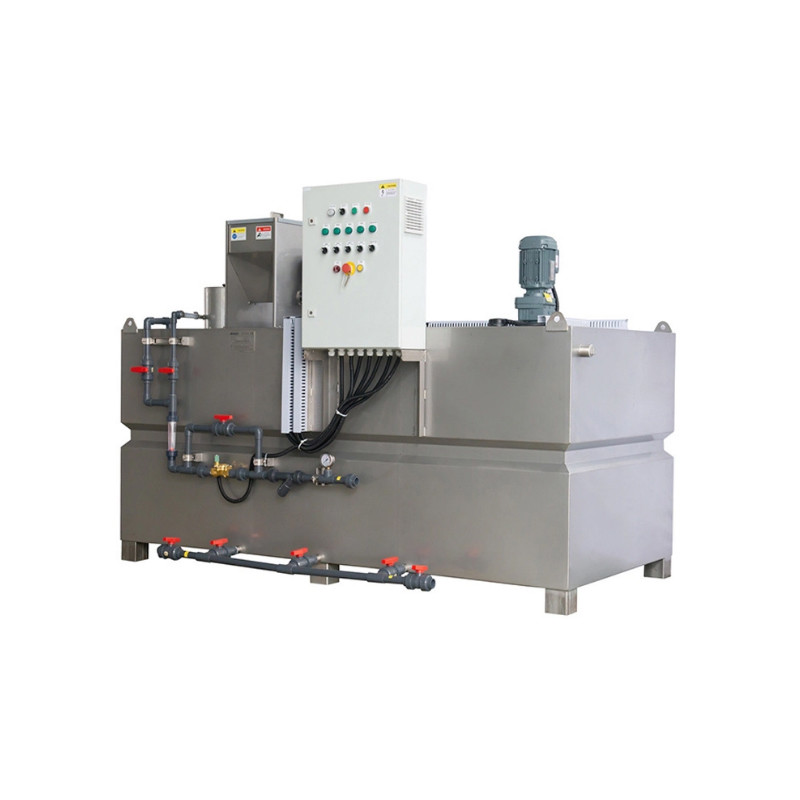

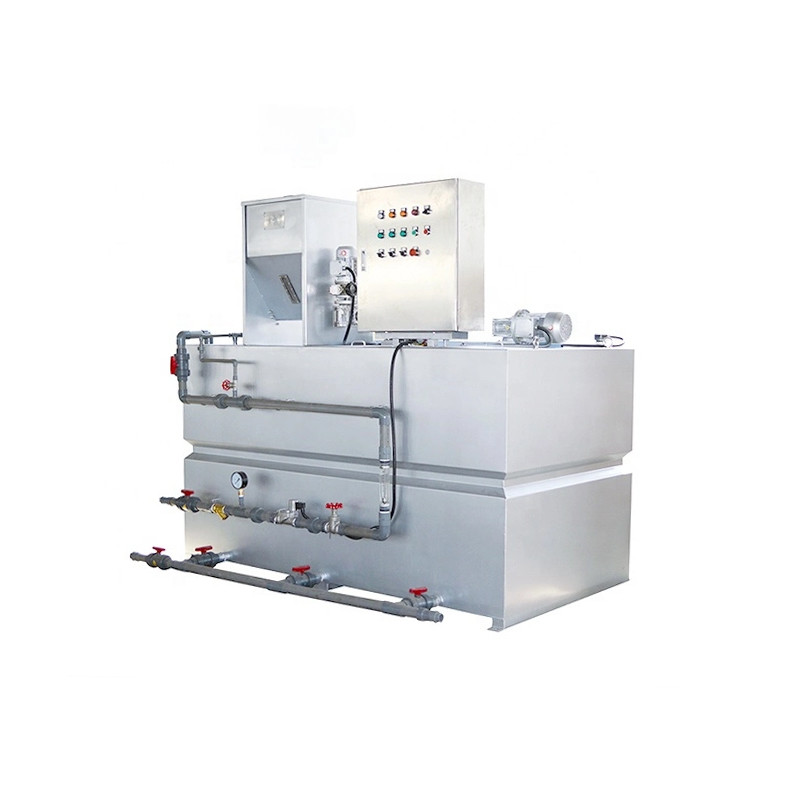

Real Picture
