380V 50HZ Central Drive Sludge Scraper Wastewater Treatment For Aquaculture

1 set
MOQ
Negotiatable
Price
380V 50HZ Central Drive Sludge Scraper Wastewater Treatment For Aquaculture
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Mud Scraper
Material: SS304
Length: 1-18m
Voltage: 380V 50HZ
Function: Solid Liquid Separator
Application: Aquaculture
Advantage: Low Cost
After-sales Service Provided: Video Technical Support\Online Support
After Warranty Service: Online Video Technical Support
Highlight:

50HZ Scraper Wastewater Treatment

,

Scraper Wastewater Treatment For Aquaculture

,

Sludge Scraper For Aquaculture

Basic Infomation
Place of Origin: Jiangsu China
Brand Name: longdai
Certification: ISO9001 CE
Model Number: ZBG-18
Payment & Shipping Terms
Packaging Details: Export polywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per Years
Product Description

Sewage Treatment Plant Central Drive Sludge Scraper for Scraping and Skimming Mud in The Circular Sedimentation Tank



sludge scraper has Full bridge, Half bridge.
Full/half bridge sludge scraper is suitable for the collection and discharge of sludge in circular radial sedimentation tank. It is mainly composed of working bridge, center rotating support, scraper scraper, diversion cylinder, driving mechanism, slag retaining and slag discharging device, etc., which can meet the requirements of DN5-DN50 kinds of specifications and different water quantity of sedimentation tank.
The driving-type sludge scraper is suitable for collecting and discharging sludge from rectangular flat-flow sedimentation tank. It is mainly composed of working bridge, transmission device, scraper, sludge lifting pump and so on.



Working Principle



Sludge scraper, sewage by central piers by diverting tube diffusion, mixture of massive particles by precipitation in the bottom sludge layer, the proportion of light floating in the liquid level, driving gear drives the work mud scraper bridge and set the sludge from pool week step by step toward the center of silt orifice discharge pool, sludge scraper along the guide tube will be floating scum on the liquid surface into the pool within weeks of discharge hopper, discharge outside the pool.



Parameter



Model Number / Parameters ZBG-16 ZBG-20 ZBG-25 ZBG-30 ZBG-35 ZBG-40 ZBG-45 ZBG-50 ZBG-55
Pool diameter Φ(m) 16 20 25 30 35 40 45 50 55
Deep pool depth H(m) 3.5~4.5(According to the user's requirements)
Pool side water depth H2(m) 3.0~4.0(According to the user's requirements)
Around the line speed v(m/min) 2.0~3.0
Walking wheel dimensions (mm) Φ400x120 Φ120x450
power of motor N(KW) 0.37 0.55 0.75
installation size (mm) Φ1 1100 1100 1200 1200 1500 1500 1800 1800 1800
Φ2 2500 2500 2500 3500 4000 4500 5000 5500 6000
Φ3 2600 3000 3800 4500 4500 5000 5000 6000 6000
Φ4 2100 2300 3500 4000 4000 4000 4500 4500 4500
H2 500 500 600 760 760 760 760 760 760
B According to the user's requirements
H3 According to the user's requirements
L According to the user's requirements
Around the wheel pressure P1(KN) 9.0 11.5 15 19 22 25 28 30 32
Vertical load of the central platform P2(KN) 17 23 30 37 82 100 112 122 175
Center load of center load P3(KN) 9.5 13 17 22 28 28 30 32 40

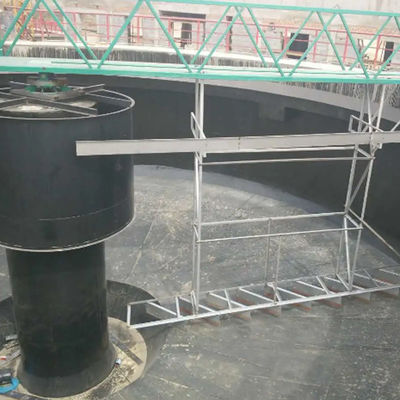

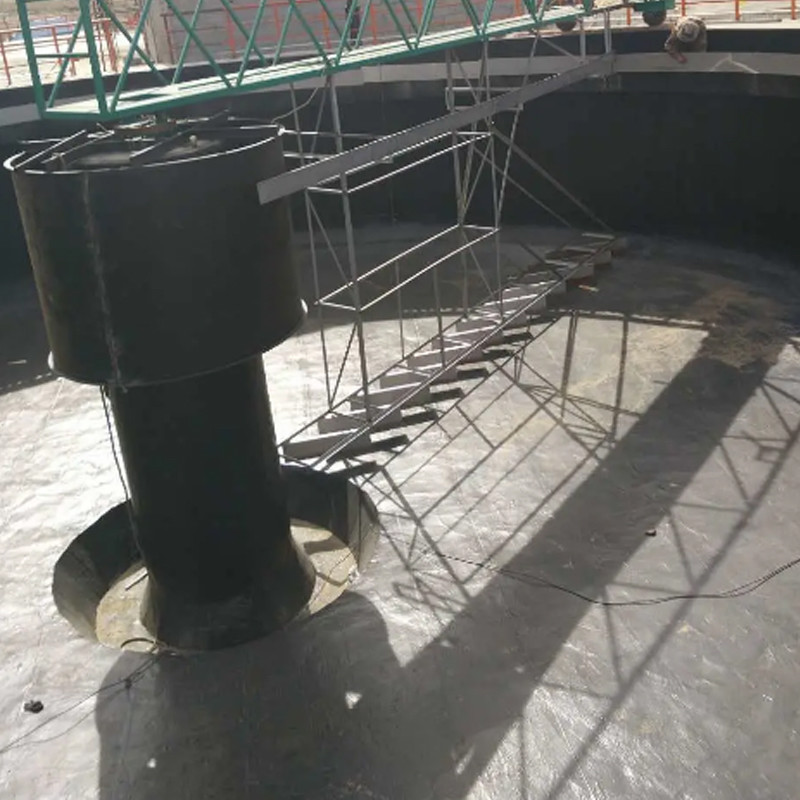

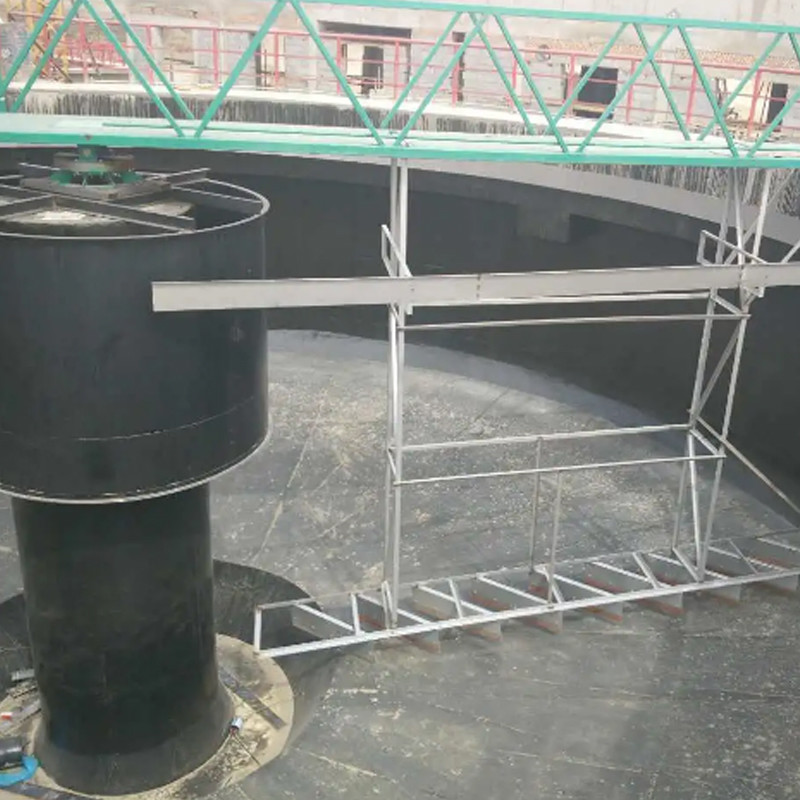

Real Picture

380V 50HZ Central Drive Sludge Scraper Wastewater Treatment For Aquaculture 0
380V 50HZ Central Drive Sludge Scraper Wastewater Treatment For Aquaculture 1
