High Efficiency Anti-Corrosion Automatic Chemical Dosing System
The dosing device is configured in the mixing tank according to the required reagent concentration, and is put into the solution tank after being stirred evenly by the agitator, and the prepared solution is delivered to the dosing point or the system by the metering pump. The complete set of dosing device has the characteristics of compact structure, simple safety and easy operation. The dosing device can also carry out targeted design, configure necessary components and realize automatic remote control and other functions according to the requirements of different process flows of users.
Classification
Dosing device is also called dosing system and dosing equipment.
The dosing device is a complete set of devices that inject chemical solution into various systems according to the process flow. The device can be divided into three categories according to the application situation.
1. Oilfield dosing device. It is mainly used to inject flocculants, scale inhibitors, corrosion inhibitors, demulsifiers and other chemicals into the wellhead and other systems on the platform during oil production.
2. Boiler dosing device. It can be used for adding ammonia and hydrazine to boiler feed water, condensate water, shutdown protection, and phosphate to steam boiler, mainly for power plants and power stations.
3. Water treatment dosing device. In the process of water treatment, add chemicals to tap water, waste water and sewage. It is mainly used for water supply and drainage treatment, environmental protection and other technological processes. Such as waterworks, hotels, restaurants, swimming pools, sewage treatment plants, etc.
Main Features
A. Centralized design, small floor area, simple structure and stable performance;
B. Accurate measurement, convenient adjustment, good economy, easy installation and maintenance;
C. The pump is installed by suction, which is not easy to block, has a long trouble-free operation time and low operating cost;
D. Excellent corrosion resistance and long service life.
E. Solution tank material: PE, GRP, carbon steel rubber lining, 304 stainless steel, 316 stainless steel;
F. Mixer material; 304 stainless steel, 316 stainless steel;
G. Material of overflow part of metering pump: PP, PVC, PVDE, SS316;
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |

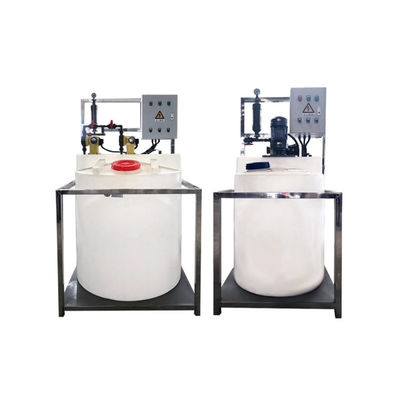

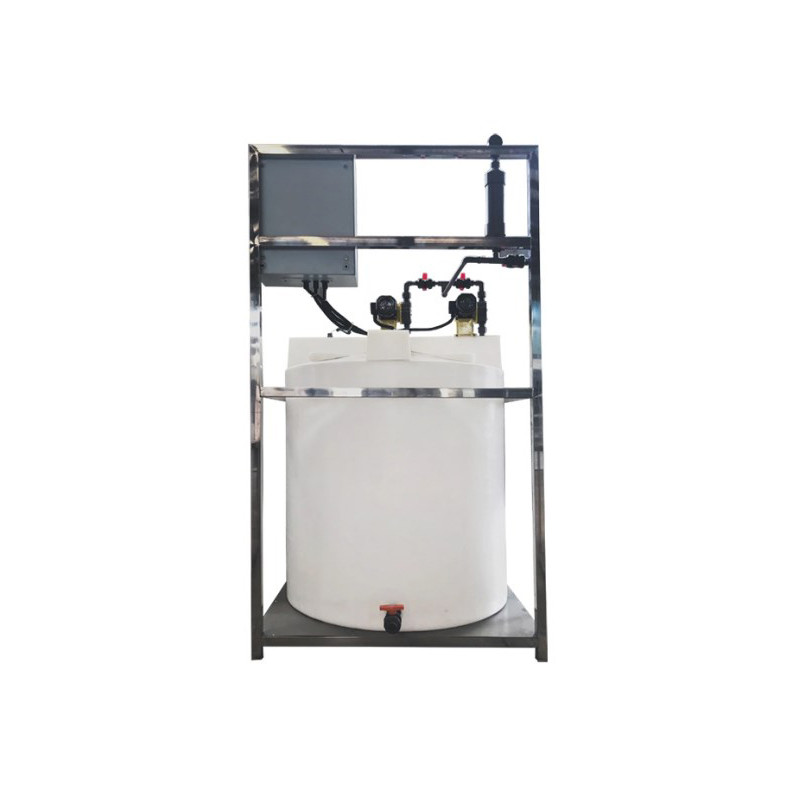

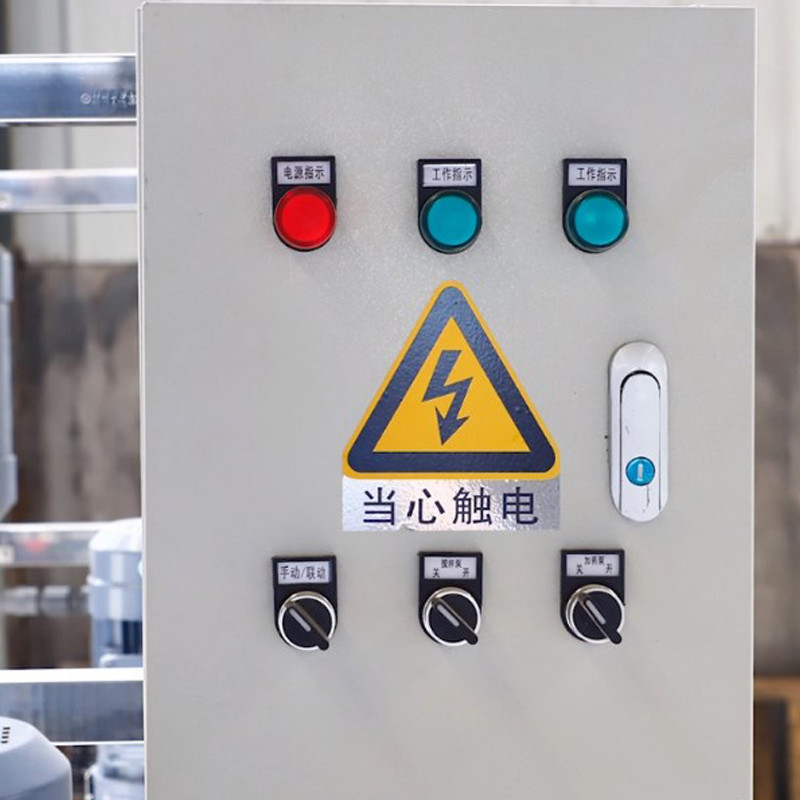

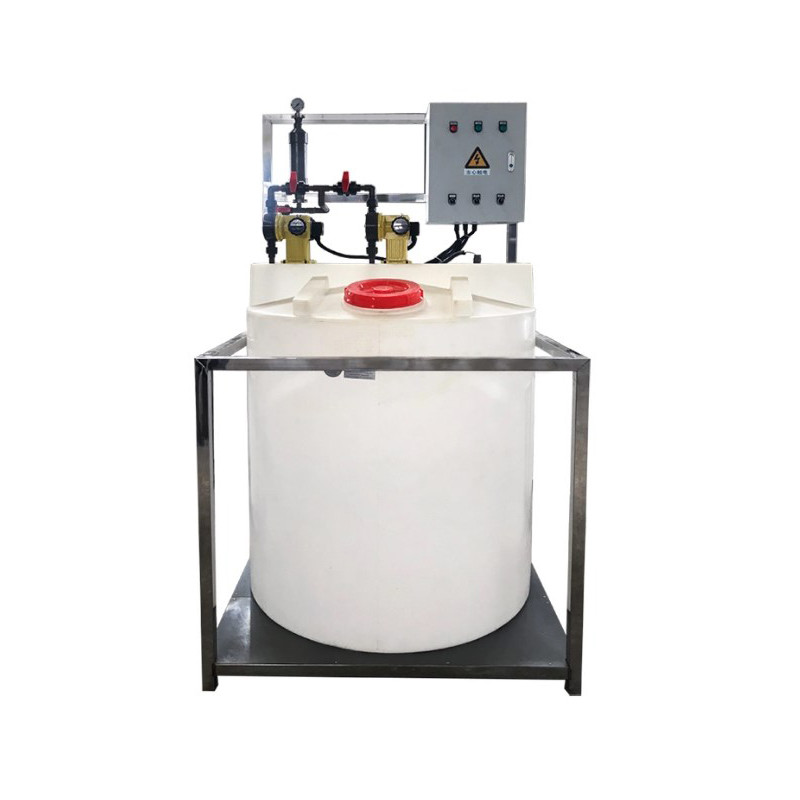

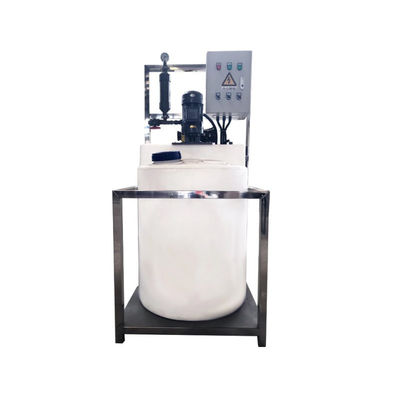

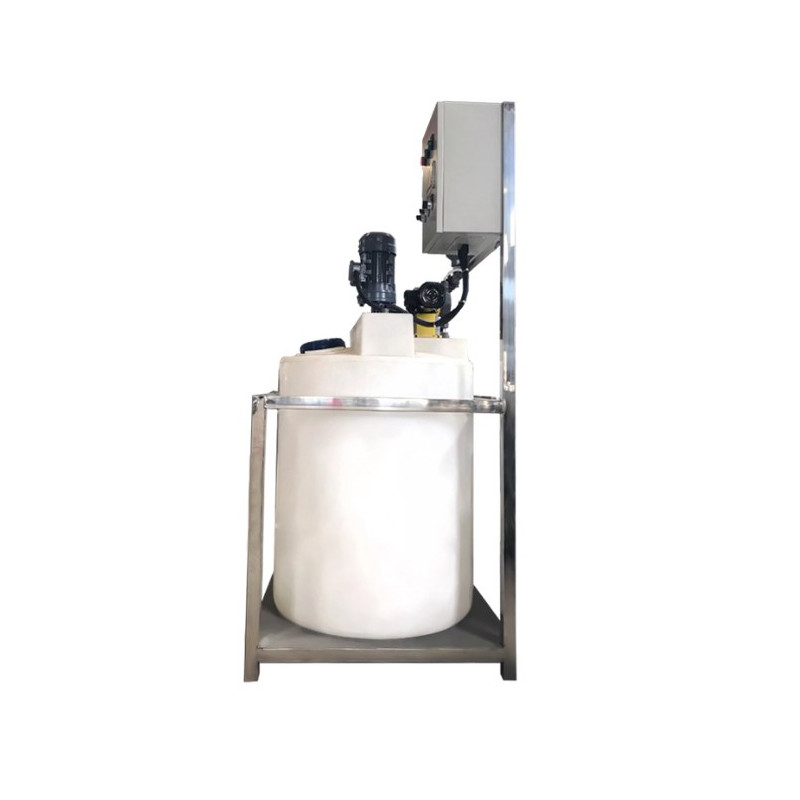

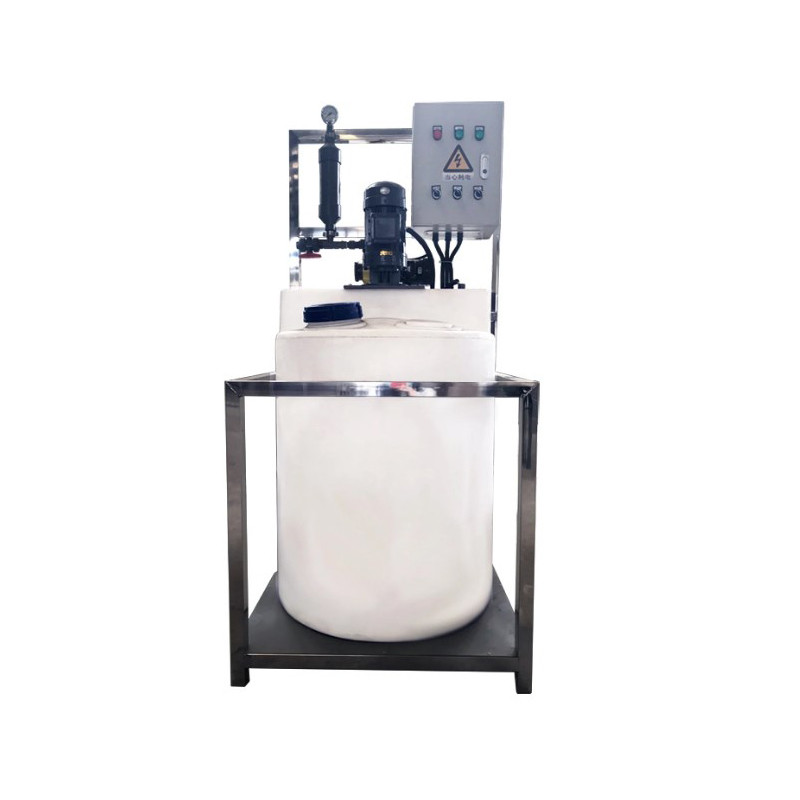

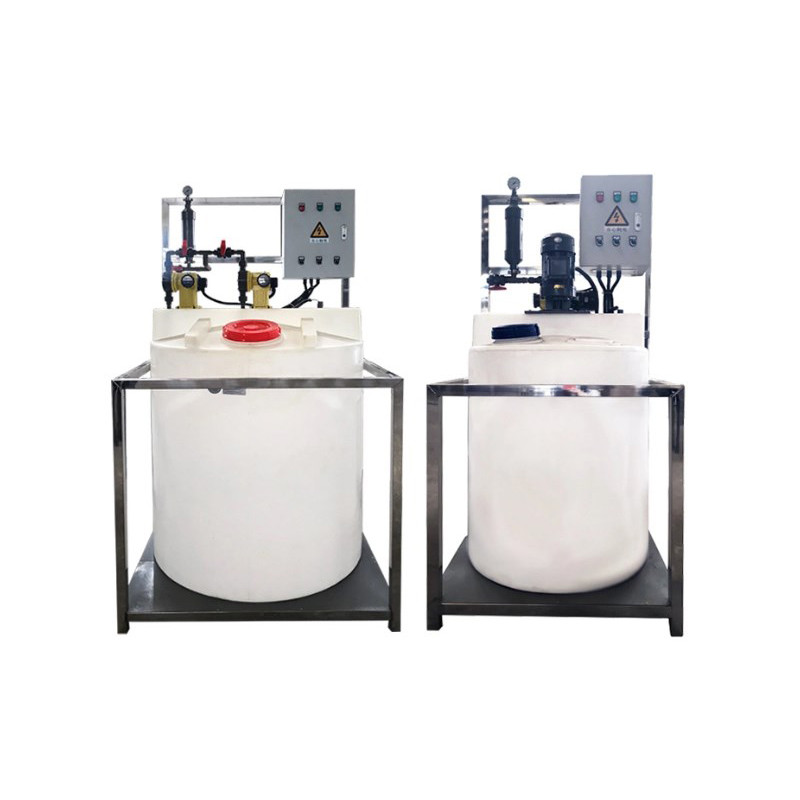

Real Picture
