Stainless steel center drive mud scraper sedimentation tank Peripheral drive sludge scraper

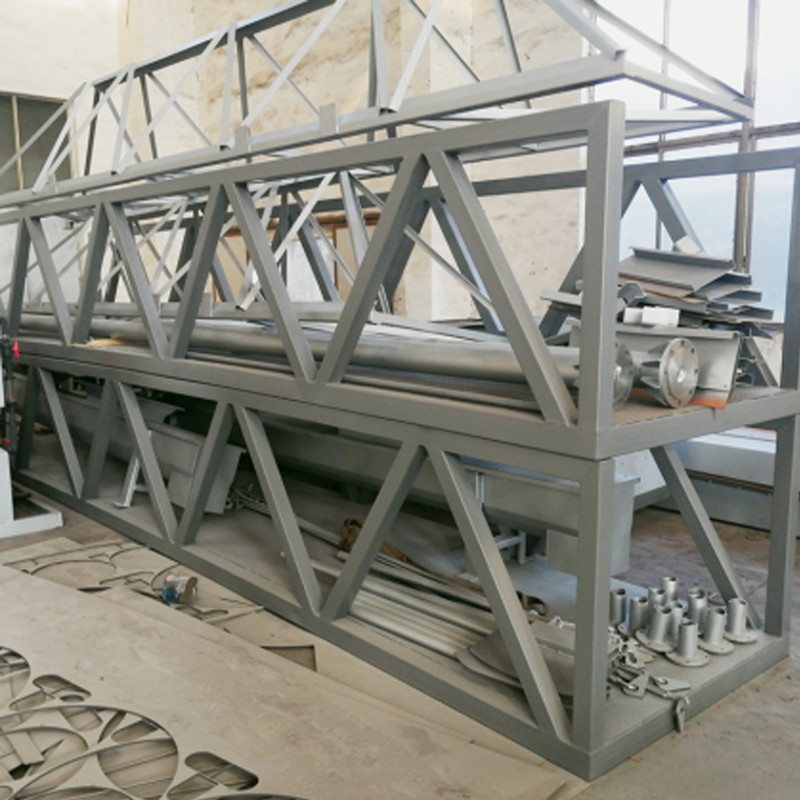

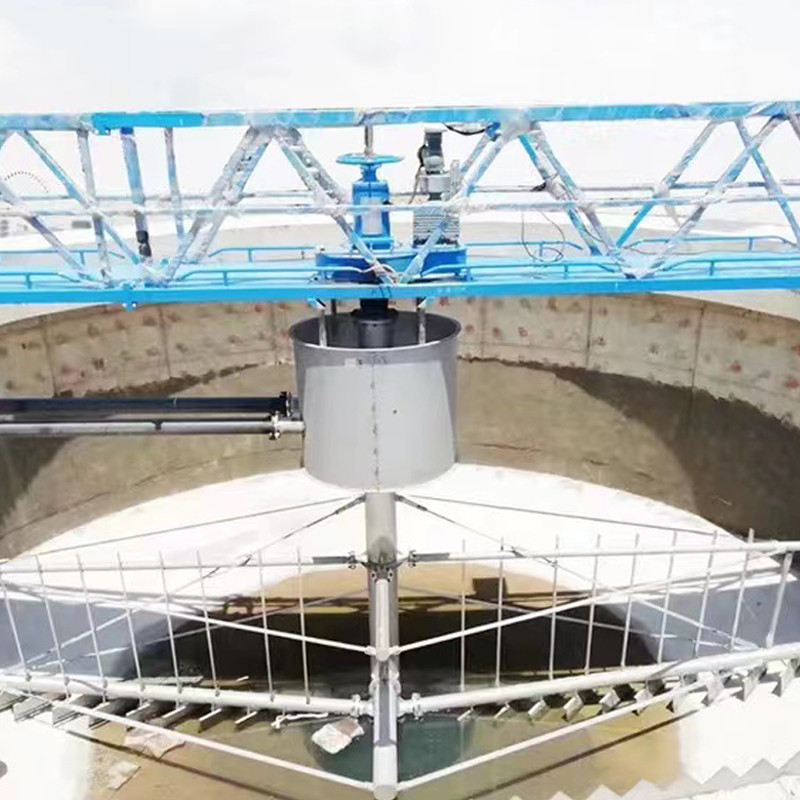

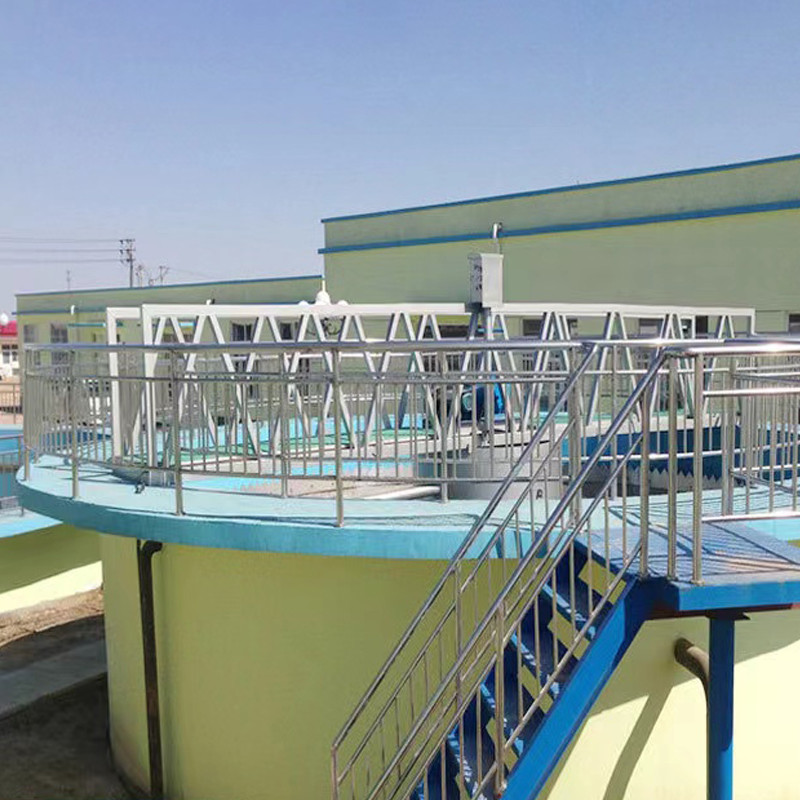

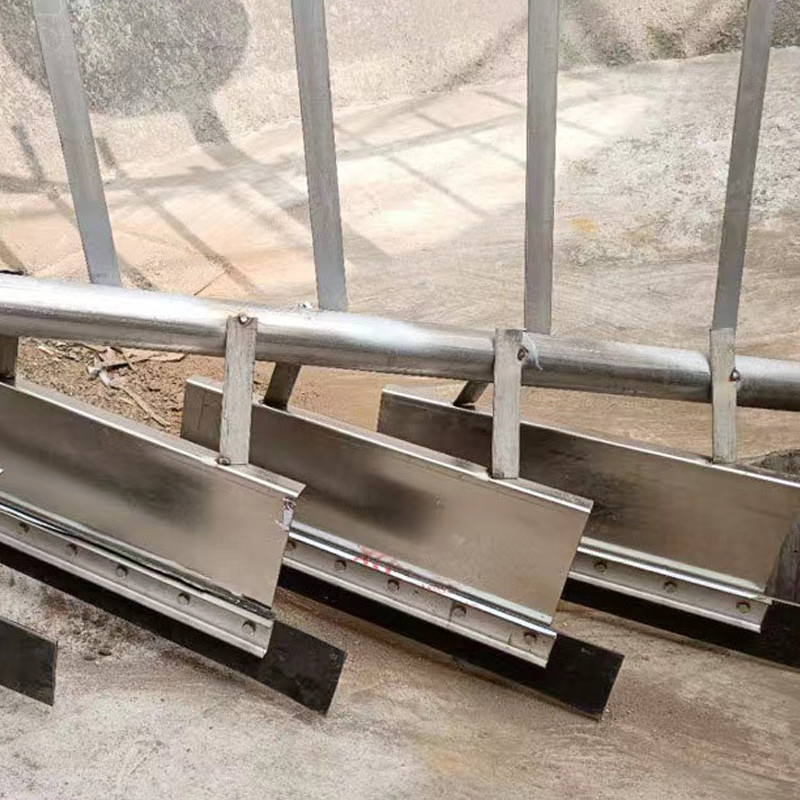

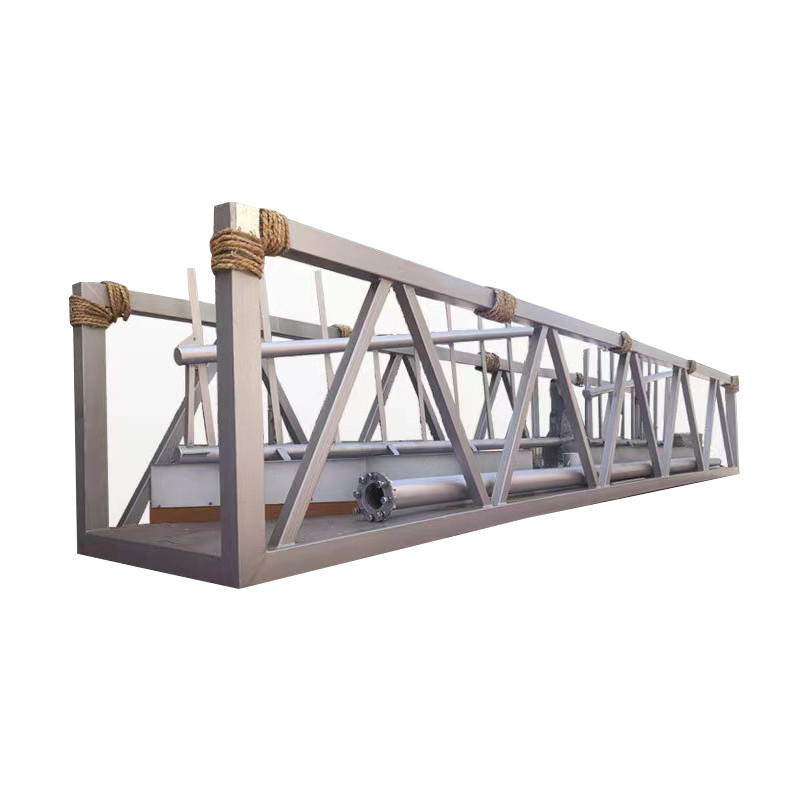

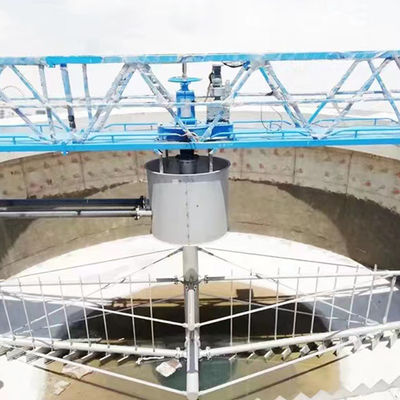

The load of the central drive mud scraper acts on the center of the working bridge. The central drive mechanism drives the scraping and collecting device to rotate. The directional scraper scrapes the sludge at the bottom of the sedimentation tank into the central mud collecting tank and discharges it from the sludge tank by hydrostatic pressure. This machine is used for the amplitude flow sedimentation tank with small diameter.
Working Principle
The raw water flows radially to the overflow tank around the pool after being distributed by the central water distribution cylinder. With the decrease of the flow rate, the suspended solids in the water body are separated and settled at the bottom of the pool. The sludge is scraped to the central sludge collection tank by the scraper through the deceleration drive and the transmission of the suspended components, and discharged out of the pool by the hydrostatic force or pump.
Product Features
1. Simple structure, convenient maintenance and management;
2. Stable operation, safe and reliable operation;
3. The sludge collection effect is good, and the water content of discharged sludge is low.
Product Parameters
|
Parameter / model Pool widthΦ(m) |
ZBGX-16 | ZBGX-20 | ZBGX-25 | ZBGX-30 | ZBGX-35 | ZBGX-40 | ZBGX-45 | ZBGX-50 | ZBGX-55 | |
| 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | ||
| Deep pool depth H(m) | 3.5～4.5(According to the user's requirements) | |||||||||
| Pool side water depth H2(m) | 3.0～4.0(According to the user's requirements) | |||||||||
| Around the line speed V(m／min) | 1.8~2.2 | |||||||||
| Walking wheel dimensions (mm) | 400x120 | 420x150 | ||||||||
| Power of motor N(KW) | 0.37 | 0.55 | 0.75 | |||||||

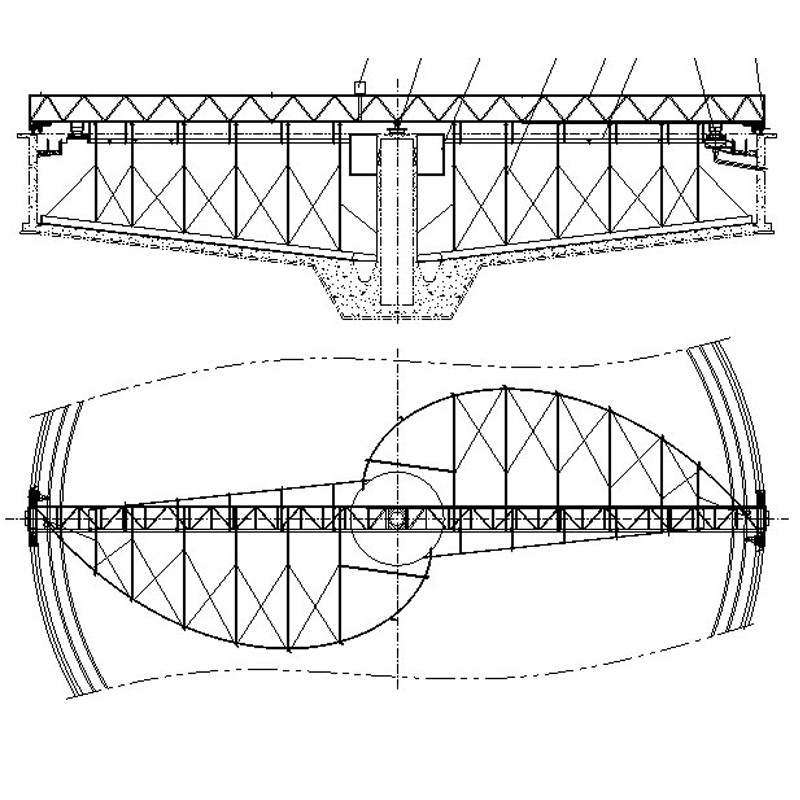

| Installation size (mm) | Φ1 | 1100 | 1100 | 1200 | 1200 | 1500 | 1500 | 1800 | 1800 | 1800 |
| 2 | 2500 | 2500 | 2500 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 | |
| Φ3 | 2600 | 3000 | 3800 | 4500 | 4500 | 4500 | 5000 | 6000 | 6000 | |
| Φ4 | 2100 | 2300 | 3500 | 4000 | 4000 | 4000 | 4500 | 4500 | 4500 | |
| H2 | 500 | 500 | 009 | 760 | 760 | 760 | 760 | 760 | 760 | |
| B | According to the user's requirements | |||||||||
| H3 | According to the user's requirements | |||||||||
| L | According to the user's requirements | |||||||||
| Around the wheel pressure P1(KN) | 9.0 | 11.5 | 15 | 19 | 22 | 25 | 28 | 30 | 32 | |
| Vertical load of the central platform P2(KN) | 17 | 23 | 30 | 37 | 82 | 100 | 112 | 122 | 175 | |
| Center load of center load P3(KN) | 9.5 | 13 | 17 | 22 | 28 | 28 | 30 | 32 | 40 | |
