304 stainless steel U-shaped shaftless screw conveyor customized Cement grain sludge loader
U-shaped screw conveyor is communicated by U-shaped shell, screw spindle, reducer, cover plate and other accessories, and is widely used in various industrial sectors, such as building materials, electric power, chemical industry, metallurgy, coal, aluminum magnesium, machinery, light industry, grain and food industry; It is suitable for conveying powdery, granular and small materials, such as cement, pulverized coal, grain, fertilizer, ash, sand, etc., with a horizontal or less than 20 ° inclination, and the material temperature is below 200 ℃.
The screw machine is not suitable for conveying materials that are easy to deteriorate, sticky and caking, because these materials will stick to the screw during transportation, and will rotate without moving forward or form material accumulation at the lifting bearing, which makes the screw machine unable to work normally.
Product Features
1. Simple structure, no bearing in the material trough, smooth material delivery, easy maintenance;
2. Except for the open inlet and outlet, other parts can be covered and closed, so that materials will not overflow and reduce air pollution;
Parameter
| arameters | spiral Nominal diameter (mm) spiral dia (mm) |
Type | LS-200W | LS-250W | LS-300W | LS-350W | LS-400W |
| 200 | 250 | 300 | 350 | 400 | |||
| 185 | 235 | 285 | 320 | 385 | |||
| Capacity | installation angle | 0° | 1.5 | 3.6 | 6 | 8.4 | 11.7 |
| 5° | 1.35 | 3.24 | 5.4 | 7.56 | 10.53 | ||
| 15° | 1.05 | 2.52 | 4.2 | 5.88 | 8.19 | ||
| 25° | 0.9 | 2.16 | 3.6 | 5.04 | 7.02 | ||
| Spiral speed n(r/min) | 12 to 16 | ||||||
| Motor N(KW) | 0.75-5.5 (according to L and angle) | ||||||
| installation size(mm) | A | 0+40 | |||||
| B | 0 + 110 | ||||||
| Bi | Matching with corresponding equipment | ||||||
| L | According to user requirements | ||||||
| Li | Matching with corresponding equipment | ||||||
| l_2 | (L-1000)/2-(L-71000)/3 | ||||||
| L3 | 250 | 250 | 300 | 350 | 400 | ||
| H | Matching with corresponding equipment | ||||||
| Hi | 140 | 165 | 188 | 210 | 240 | ||
| H2 | H-150 | ||||||
| H3 | Matching with corresponding equipment | ||||||

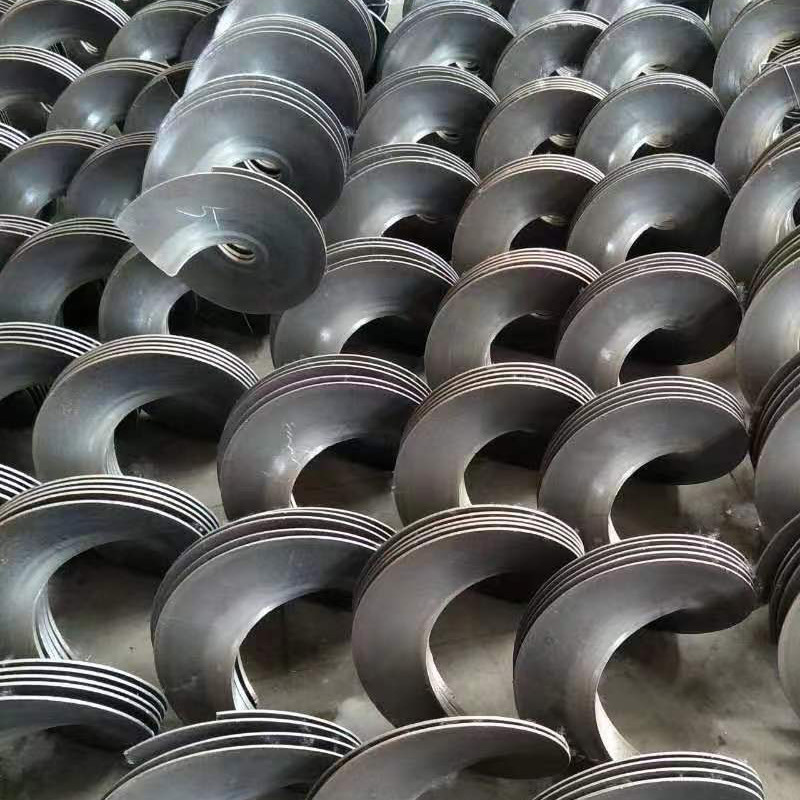

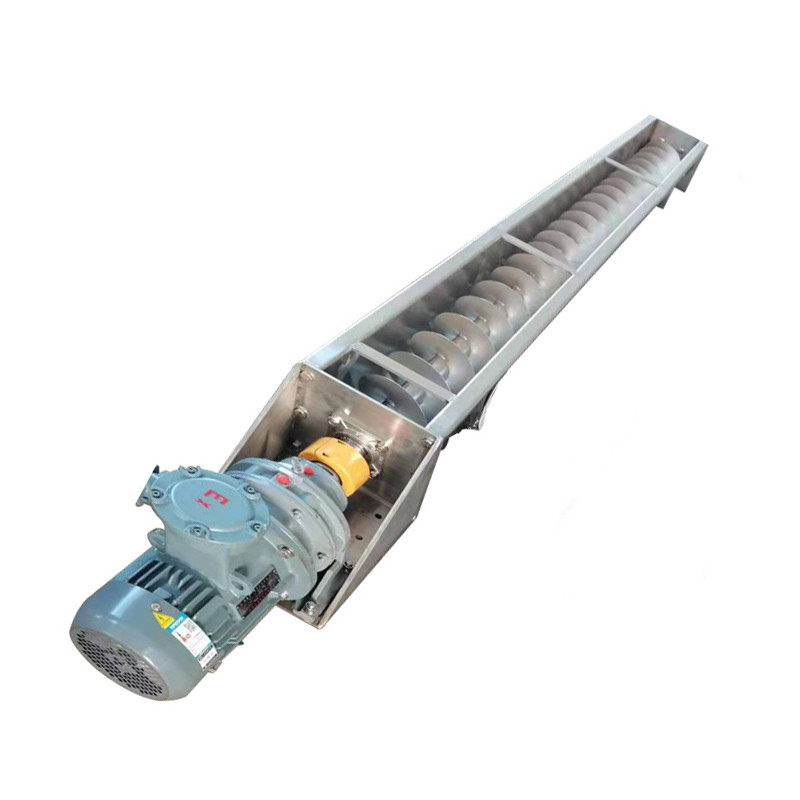

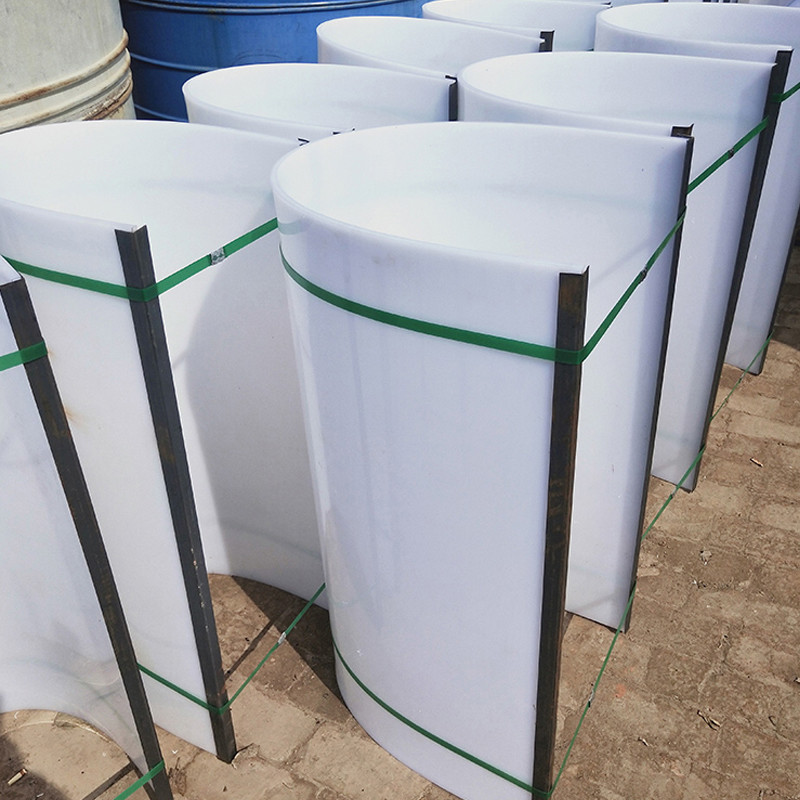

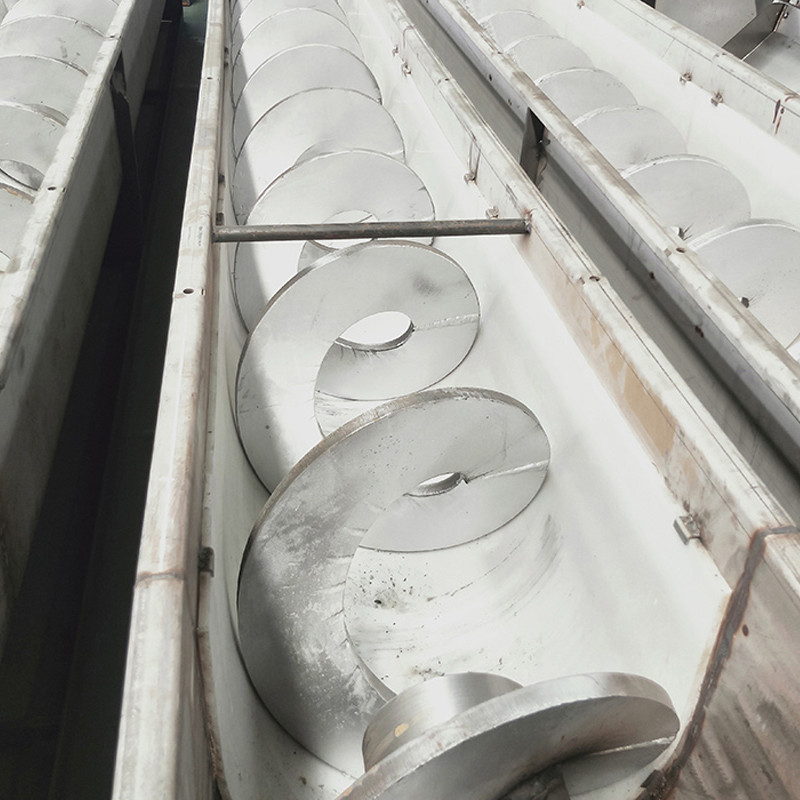

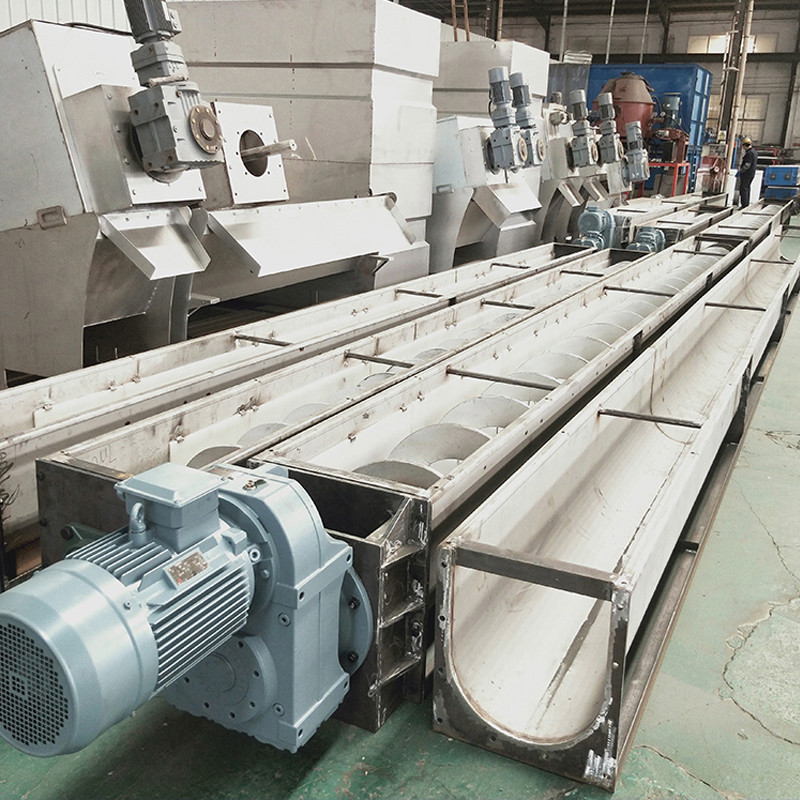

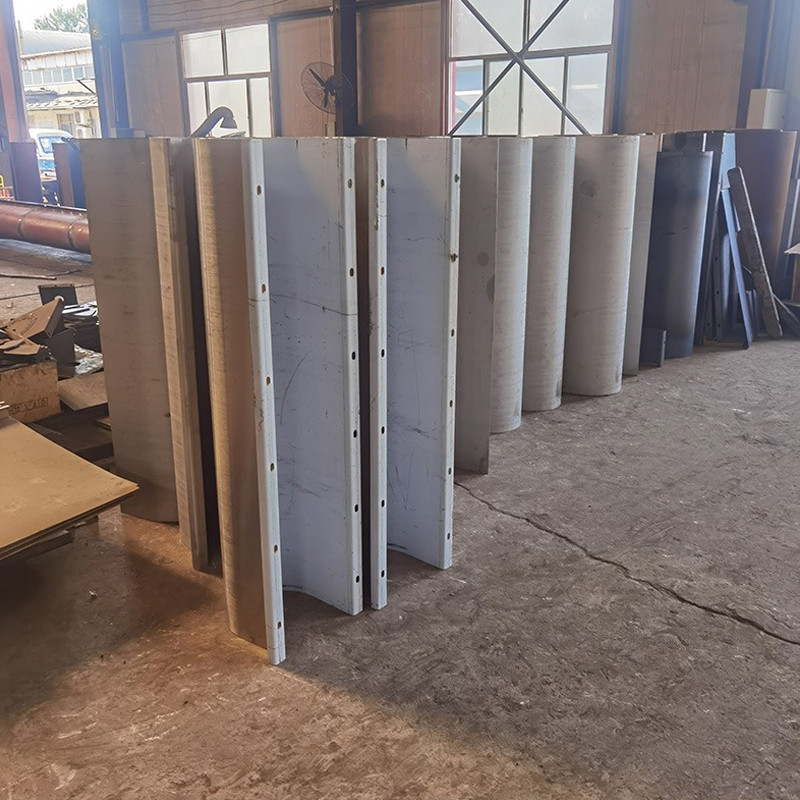

Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
