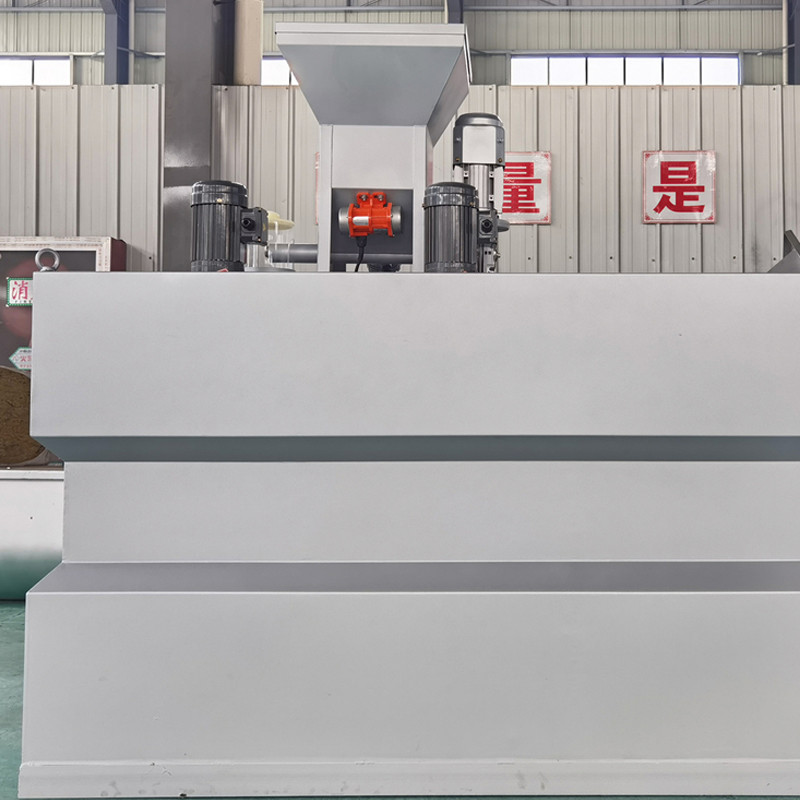

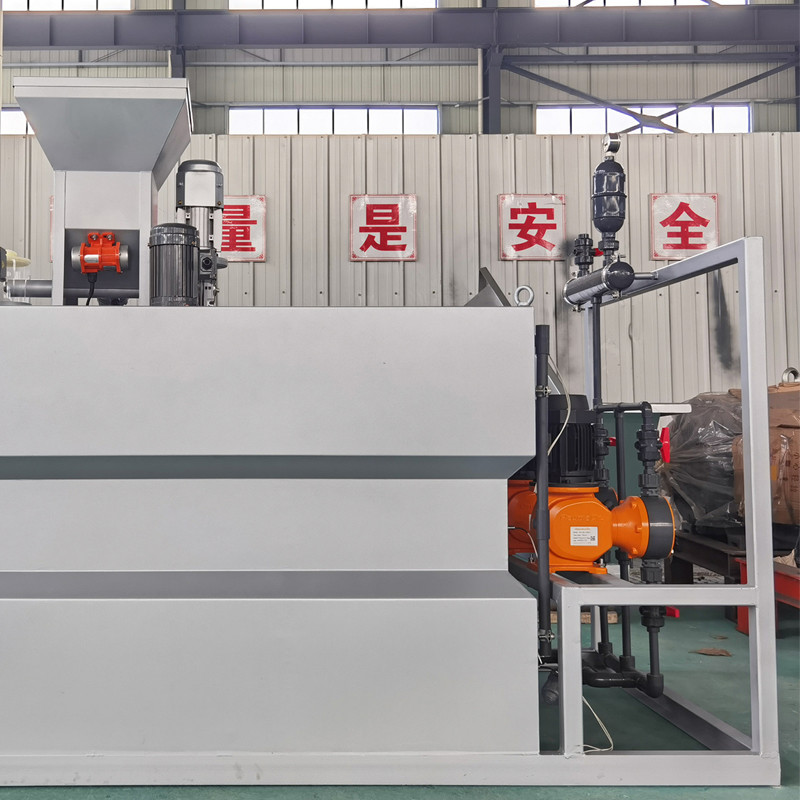

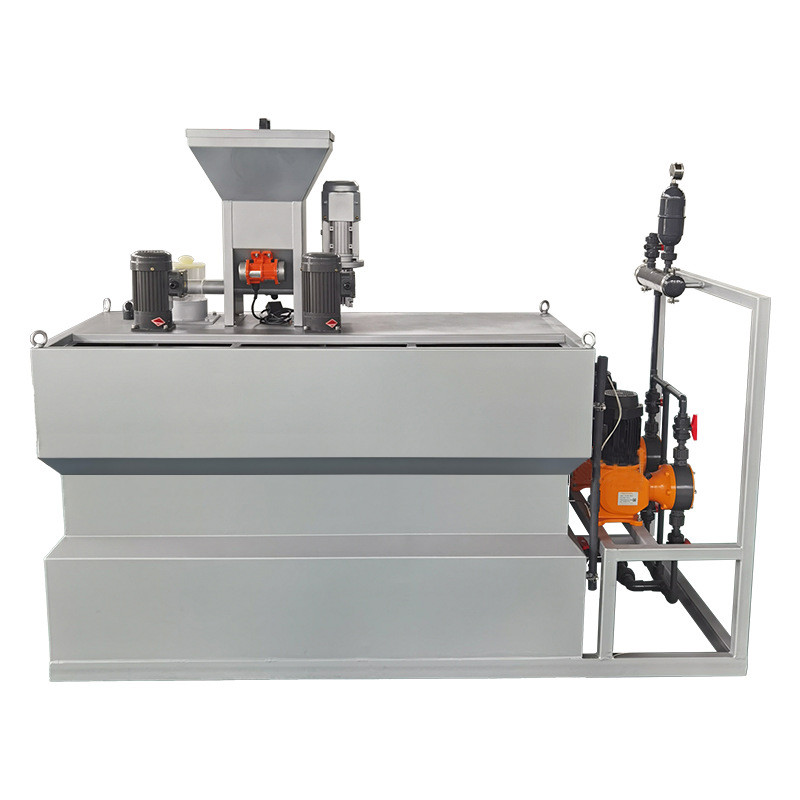

Integrated automatic stainless steel dosing device PAM/PAC dry powder three-chamber dissolution dosing equipment
The three-chamber dosing device is a fully automatic, continuous and integrated dry powder dissolving and dosing device, mainly composed of water supply system, dry powder dosing system, dissolving and maturing system and automatic control system.
Working Principle

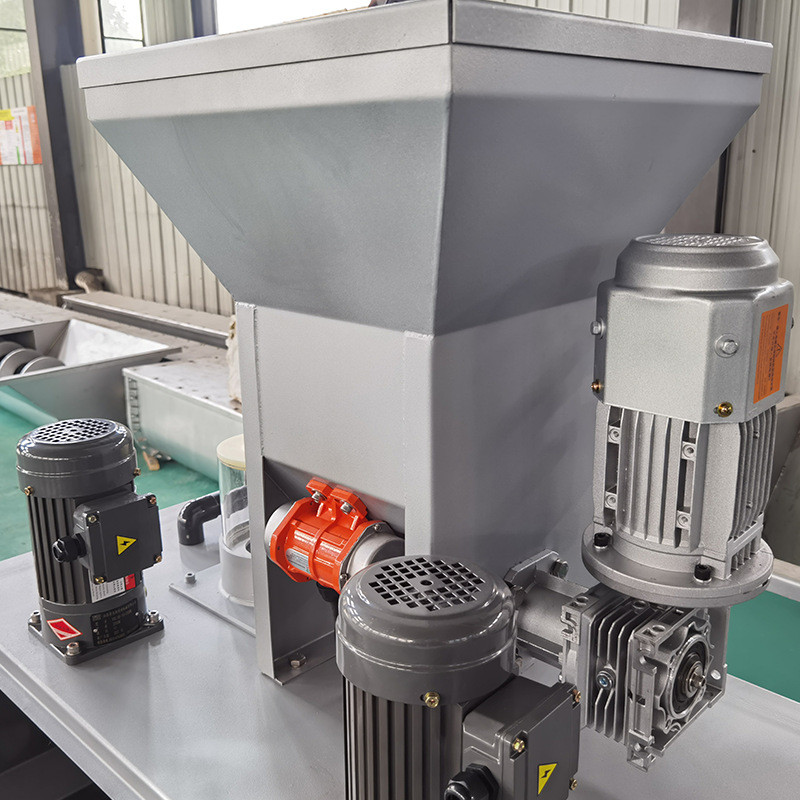

The dry powder agent enters the premixer from the screw propeller at the lower part of the hopper and is premixed with clean water. The wetted material enters the configuration tank for dilution and mixing, and is configured according to the concentration required by the user.
Product Features
1. Fully automatic operation
It integrates automatic batching, dissolution and dosing, and is fully automatic
2. Accurate measurement;
The quantitative dosing device has accurate measurement, adopts stepless variable speed drive, which can easily adjust the feed volume, and has a wide range of configured reagent concentration;
3. Automation
It has the functions of liquid level control, material detection, vibration-assisted blanking, etc., with a high degree of automation;
4. Wide range
Applicable to chemical plants, industrial water treatment, domestic sewage treatment, wastewater treatment, etc;
5. Simple operation
The equipment has high dry powder configuration and dosing device, accurate dosage, high degree of automation control, simple and convenient operation.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |

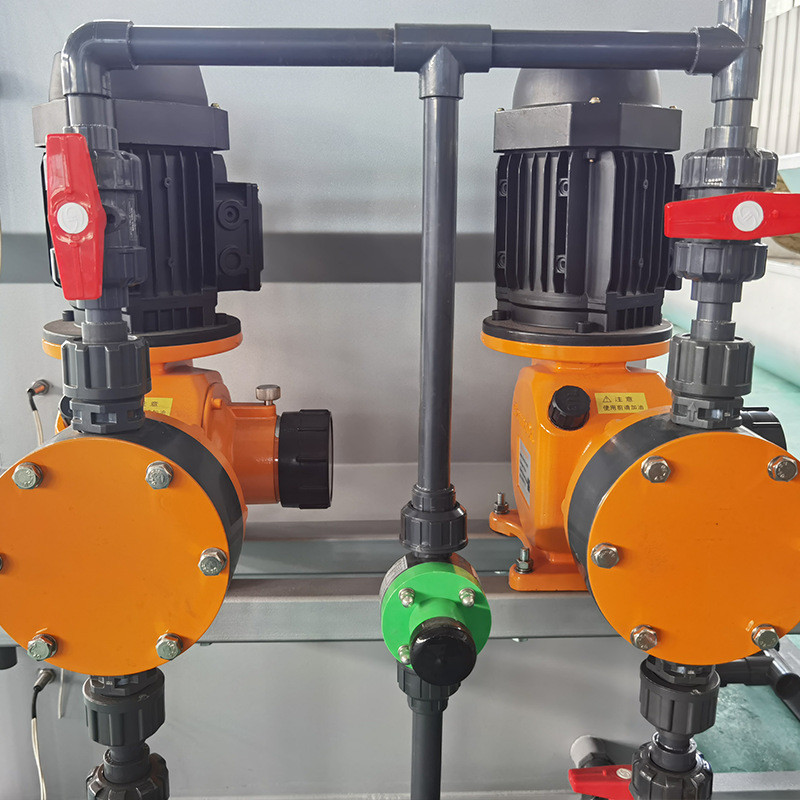

| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |
