| Place of Origin: | Jiangsu China |
| Brand Name: | longdai |
| Certification: | ISO9001 |
| Model Number: | JY-3500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 sets per Years |
| Product Name: | Dosing System,Dosing Device,Dosing Equipment | Material: | Stainless Steel, PP, SUS304/316, Stainless Steel 304 & 316 |
|---|---|---|---|
| Power: | 0.75-5.5KW | Capacity: | 3500L/H |
| Warranty: | 1 Year Global | Weight: | 600kg |
| Dimension(l*w*h): | 1000mm*600mm*2000mm, Customized | Voltage: | 3P AC208-415V 50/60HZ |
| Automatic Grade: | Automatic | After-sales Service Provided: | Video Technical Support, Online Support |
| Key Selling Points: | Easy To Operate, Automatic, Easy Operation, Advanced Technology, Low Maintennace Cost | ||
| Highlight: | Powder Dosing Machine 3500L/H,Automatic Dosing System 3500L/H,PAM Powder Dosing Machine |
||
PAM automatic dosing system manufacturer integrated stainless steel dosing equipment dry powder dosing device
The dosing device is mainly used for treatment of boiler feed water, circulating water, hydrazine, phosphate, etc. of the power plant, and can also be used in petroleum, chemical, environmental protection, water supply system and other industries. The unit combined dosing device is mainly composed of a solution tank, a metering pump, a filter, a safety valve, a check valve, a pressure gauge, a buffer tank, etc. It is installed on a base in an integrated way. Users only need to install the dosing device at a designated location, and connect the water inlet and the drug outlet to the power supply to start the operation.
Working Principle
The user shall put a certain amount of reagent into the mixing solution tank for mixing and dissolution as required. After dissolution, it shall be delivered to the dosing point through the metering pump. The dosage can be adjusted freely to meet the requirements of different dosage sites.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |

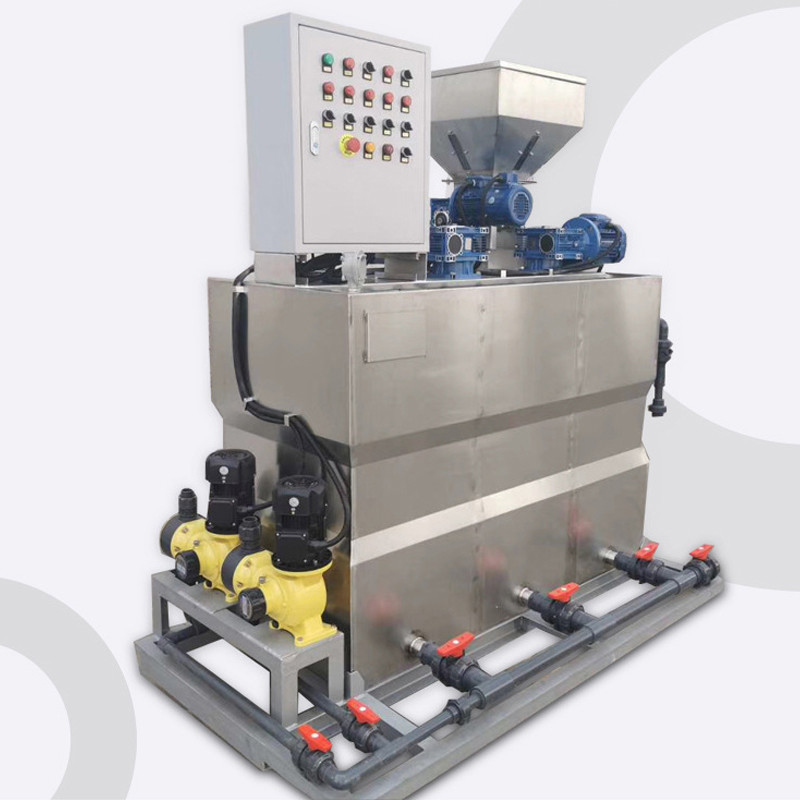

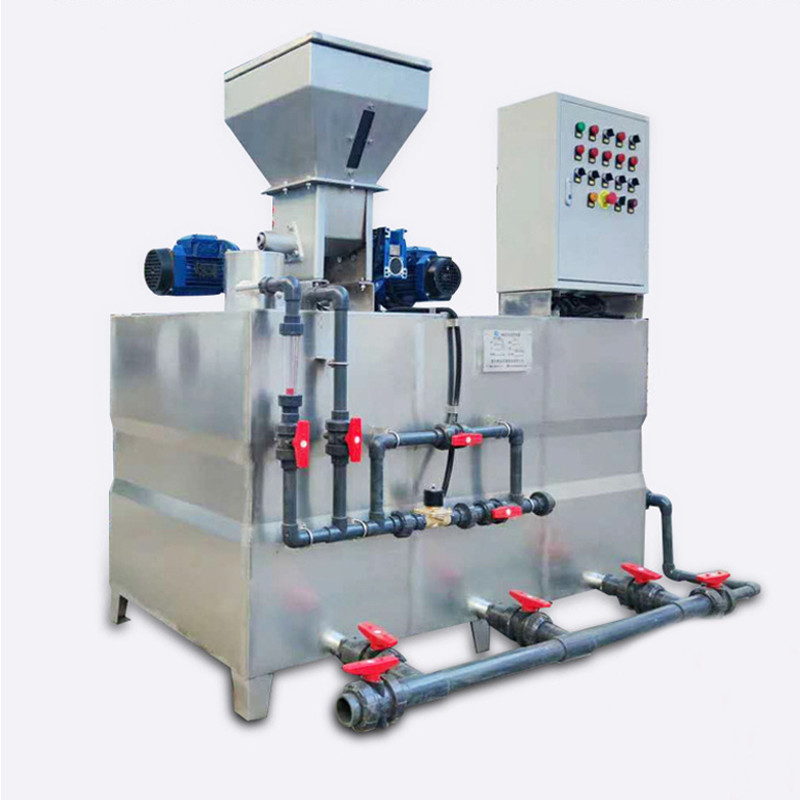

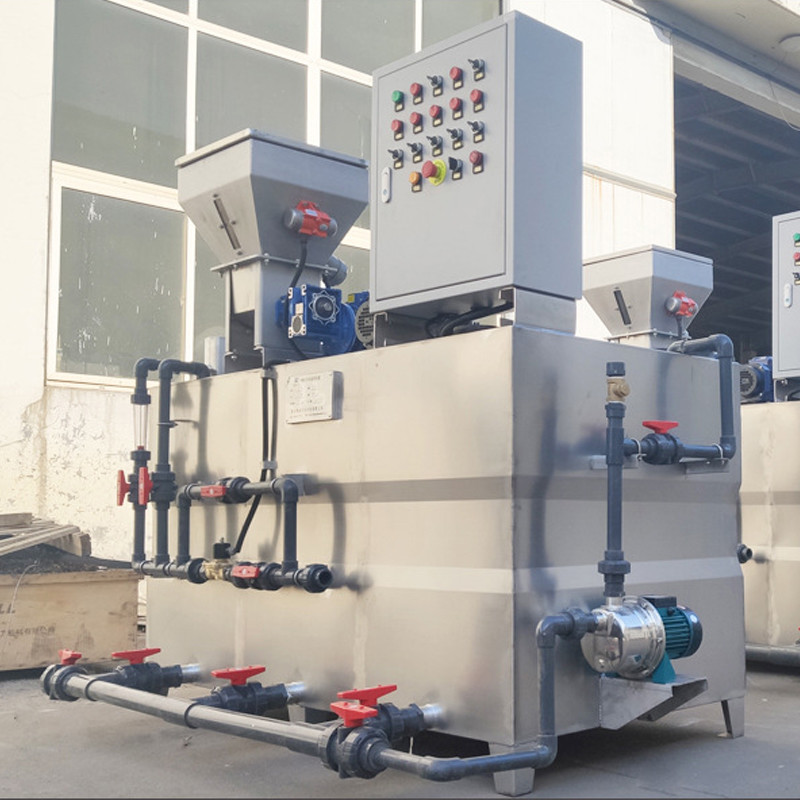

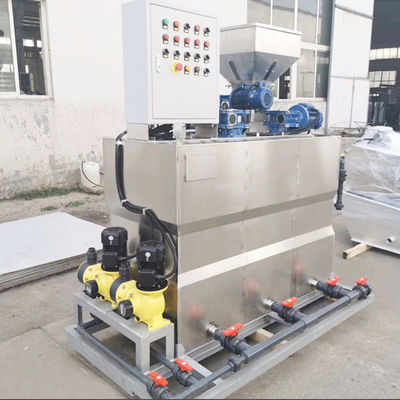

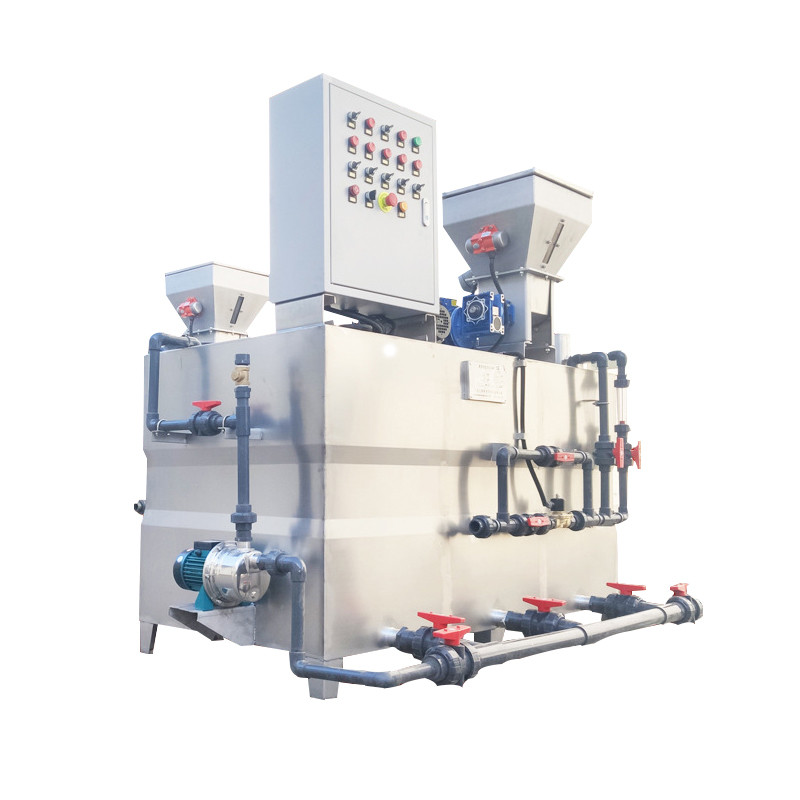

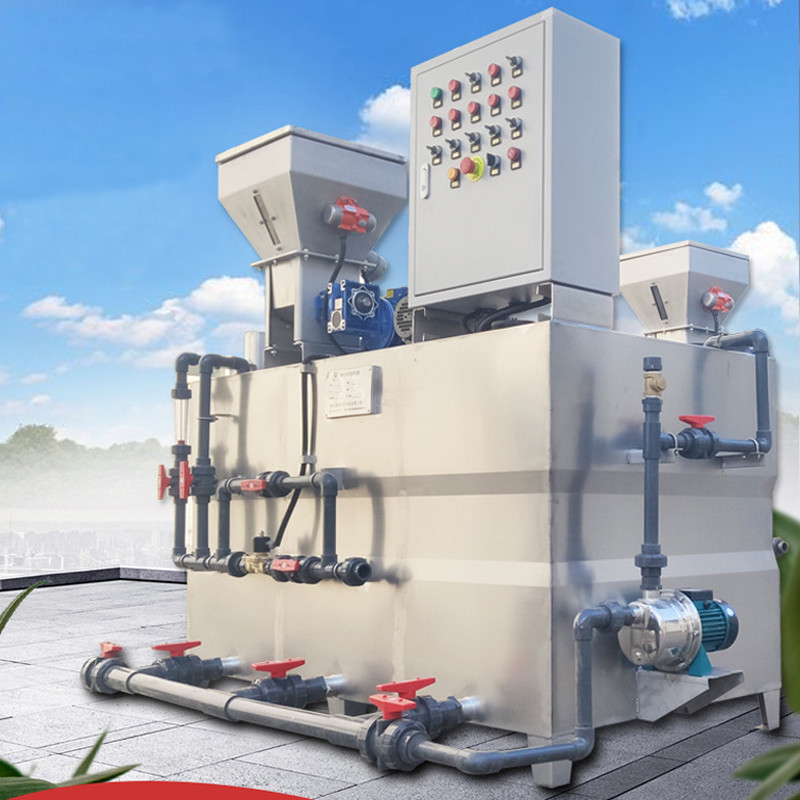

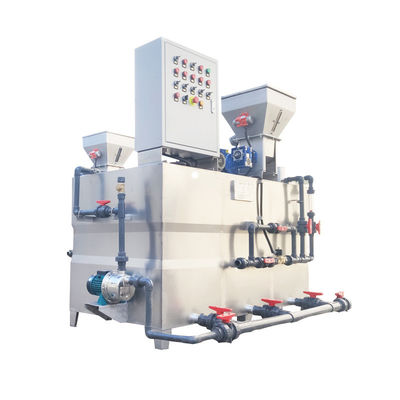

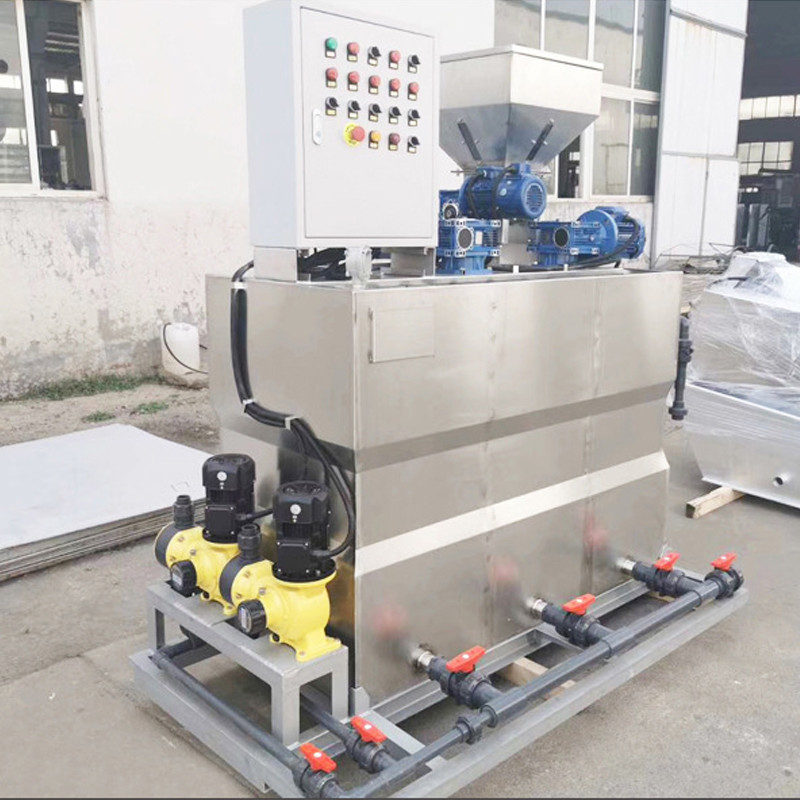

Real picture
