| Place of Origin: | Jiangsu China |
| Brand Name: | longdai |
| Certification: | ISO9001 CE |
| Model Number: | ZBG-6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per Years |
| Product Name: | Slag Scraper,sludge Scraper,mud Scraper | Material: | Stainless Steel, Carbon Steel |
|---|---|---|---|
| Power: | 1.5-30kw | Voltage: | 380V /Customized |
| Length: | Orders Requirement | Control: | Electric Auto Control (PLC Siemens) |
| After-sales Service Provided: | Video Technical Support\Online Support | After Warranty Service: | Video Technical Support Field Maintenance |
| Highlight: | 30kw Sludge Scraper System,30kw automatic slurry scrapers,automatic slurry scrapers Half Bridge |
||

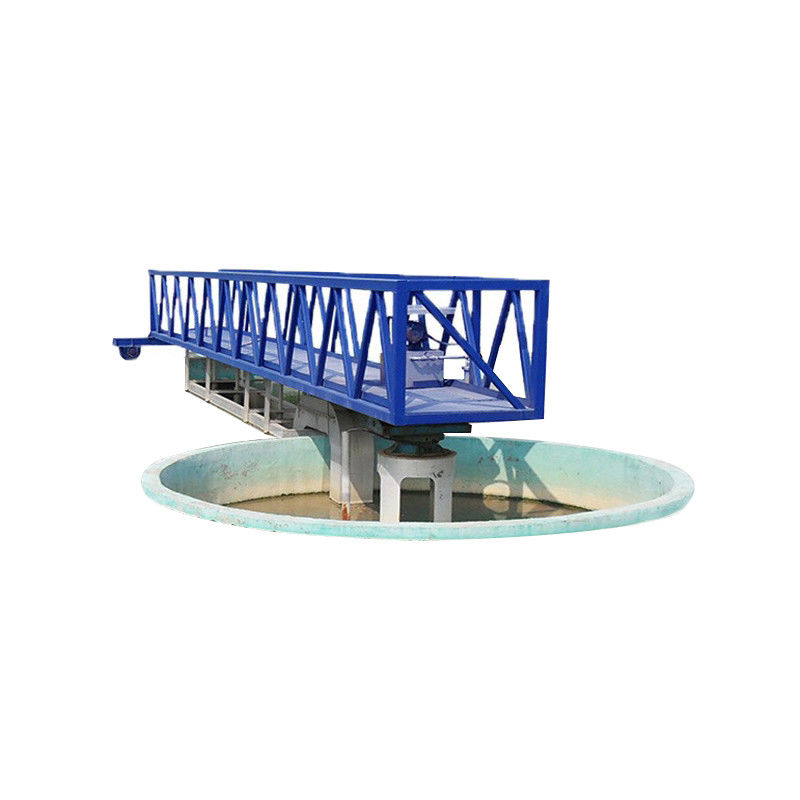

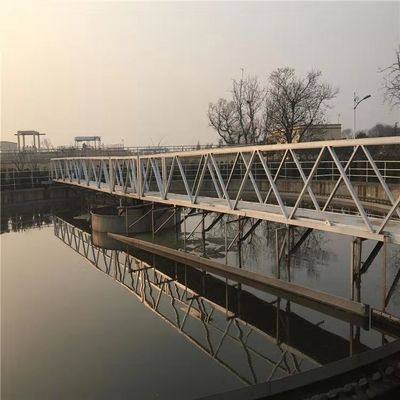

sedimentation tank of sewage treatment plant central drive mud scraper full bridge and half bridge sludge scraper

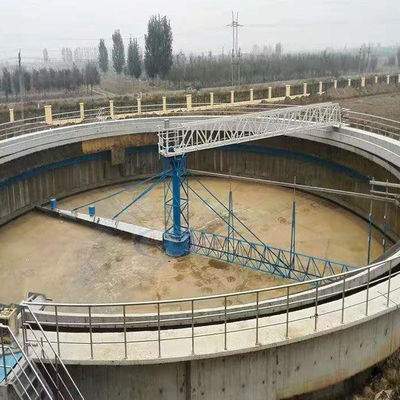

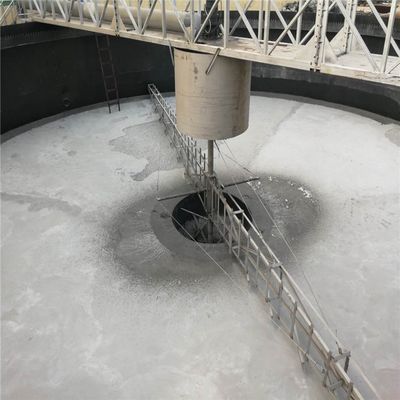

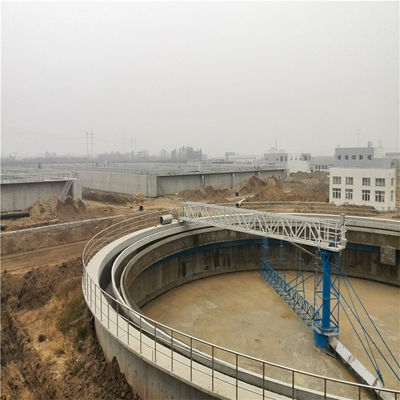

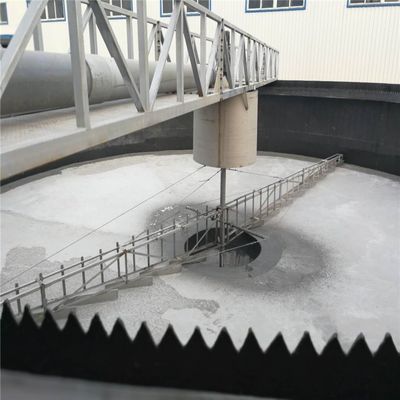

The central drive mud scraper is applicable to the sludge scraping and discharging of the radial flow (circular) sedimentation tank with a diameter generally not greater than 18m in the water plant or sewage treatment plant in the water supply and drainage project. The sludge is scraped to the central sludge collecting tank by the scraper through the deceleration drive and the transmission of the suspension component, and discharged out of the tank by the hydrostatic pressure or pump.
Working Principle
The raw water of the central drive mud scraper flows to the overflow tank around the pool after being distributed through the central water distribution drum. With the decrease of the flow rate, the suspended solids in the water body are separated and settled at the bottom of the pool. The supernatant is discharged from the overflow tank through the overflow weir plate.
Equipment Characteristics
1. The transmission part adopts electrical and mechanical double overload protection, which makes the operation more safe and reliable.
2. The underwater part is made of stainless steel, which has a long corrosion resistance service life.
3. The effect of sludge scraping is good, and the moisture content of discharged sludge is low.
Product Parameters
|
Parameter / model Pool widthΦ(m) |
ZBGX-16 | ZBGX-20 | ZBGX-25 | ZBGX-30 | ZBGX-35 | ZBGX-40 | ZBGX-45 | ZBGX-50 | ZBGX-55 | |
| 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | ||
| Deep pool depth H(m) | 3.5～4.5(According to the user's requirements) | |||||||||
| Pool side water depth H2(m) | 3.0～4.0(According to the user's requirements) | |||||||||
| Around the line speed V(m／min) | 1.8~2.2 | |||||||||
| Walking wheel dimensions (mm) | 400x120 | 420x150 | ||||||||
| Power of motor N(KW) | 0.37 | 0.55 | 0.75 | |||||||
| Installation size (mm) | Φ1 | 1100 | 1100 | 1200 | 1200 | 1500 | 1500 | 1800 | 1800 | 1800 |
| 2 | 2500 | 2500 | 2500 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 | |
| Φ3 | 2600 | 3000 | 3800 | 4500 | 4500 | 4500 | 5000 | 6000 | 6000 | |
| Φ4 | 2100 | 2300 | 3500 | 4000 | 4000 | 4000 | 4500 | 4500 | 4500 | |
| H2 | 500 | 500 | 009 | 760 | 760 | 760 | 760 | 760 | 760 | |
| B | According to the user's requirements | |||||||||
| H3 | According to the user's requirements | |||||||||
| L | According to the user's requirements | |||||||||
| Around the wheel pressure P1(KN) | 9.0 | 11.5 | 15 | 19 | 22 | 25 | 28 | 30 | 32 | |
| Vertical load of the central platform P2(KN) | 17 | 23 | 30 | 37 | 82 | 100 | 112 | 122 | 175 | |
| Center load of center load P3(KN) | 9.5 | 13 | 17 | 22 | 28 | 28 | 30 | 32 | 40 | |
