Shaftless U-shaped stainless steel cement screw conveyor Animal feed pulverized coal lime conveying equipment
The shaftless screw conveyor consists of shaftless screw, U-shaped groove, lining plate, cover plate, inlet and outlet and driving device.
screw conveyor is mainly used for the screen residue of the fine screen trash remover in the sewage treatment plant and the sludge cake after sludge dewatering, as well as powdery, granular and small materials, such as pulverized coal, soda ash, recycled rubber powder, zinc oxide, calcium carbonate and small coal. The screw conveyor is not suitable for conveying materials that are easy to deteriorate, viscous and caking.
Material Description
1. Ordinary carbon steel U-shaped screw conveyor is mainly suitable for industries with large abrasion such as cement, coal,stone, etc. and no special requirements for materials.
2. Stainless steel U-shaped screw conveyor is mainly applicable to industries requiring conveying environment such as grain,chemical industry and food. It is clean, does not pollute materials, and has a long service life, but its cost is relatively high.
Product Features
1. Simple structure, no bearing in the material trough, smooth material delivery and simple maintenance
2 If necessary, we can use our unique universal joint coupling to eliminate the hidden danger of shaft breakage
3 Except that the material inlet and outlet are open, the rest can be covered and sealed, so that the materials will not spill,reducing air pollution.
Parameter
| arameters |
spiral Nominal diameter (mm)
spiral dia (mm) |
Type |
LS-200W |
LS-250W |
LS-300W |
LS-350W |
LS-400W |
| 200 |
250 |
300 |
350 |
400 |
| 185 |
235 |
285 |
320 |
385 |
| Capacity |
installation angle |
0° |
1.5 |
3.6 |
6 |
8.4 |
11.7 |
| 5° |
1.35 |
3.24 |
5.4 |
7.56 |
10.53 |
| 15° |
1.05 |
2.52 |
4.2 |
5.88 |
8.19 |
| 25° |
0.9 |
2.16 |
3.6 |
5.04 |
7.02 |
| Spiral speed n(r/min) |
|
12 to 16 |
| Motor N(KW) |
0.75-5.5 (according to L and angle) |
| installation size(mm) |
A |
0+40 |
| B |
0 + 110 |
| Bi |
Matching with corresponding equipment |
| L |
According to user requirements |
| Li |
Matching with corresponding equipment |
| l_2 |
(L-1000)/2-(L-71000)/3 |
| L3 |
250 |
250 |
300 |
350 |
400 |
| H |
Matching with corresponding equipment |
| Hi |
140 |
165 |
188 |
210 |
240 |
| H2 |
H-150 |
| H3 |
|
Matching with corresponding equipment |

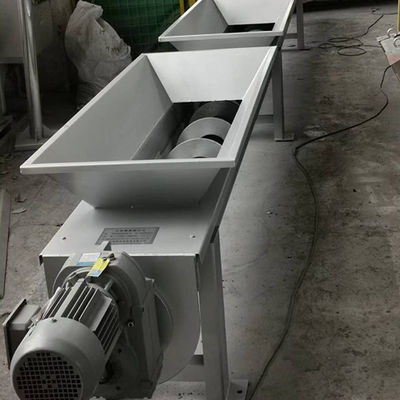

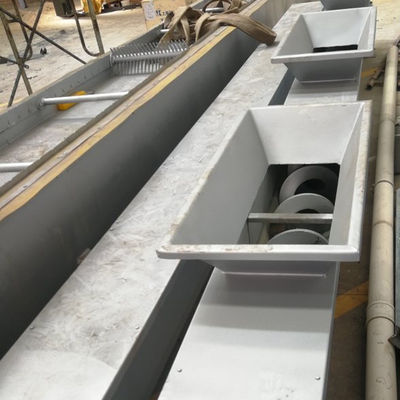

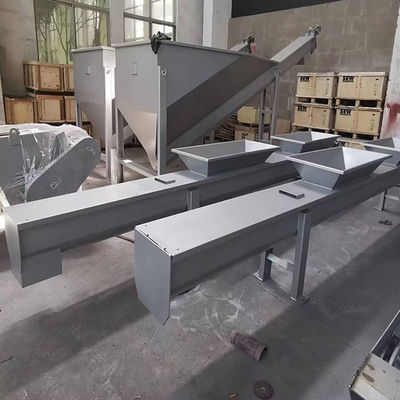

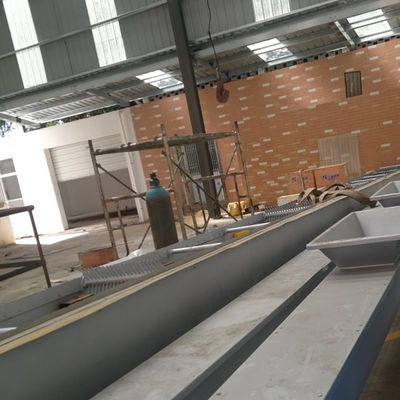

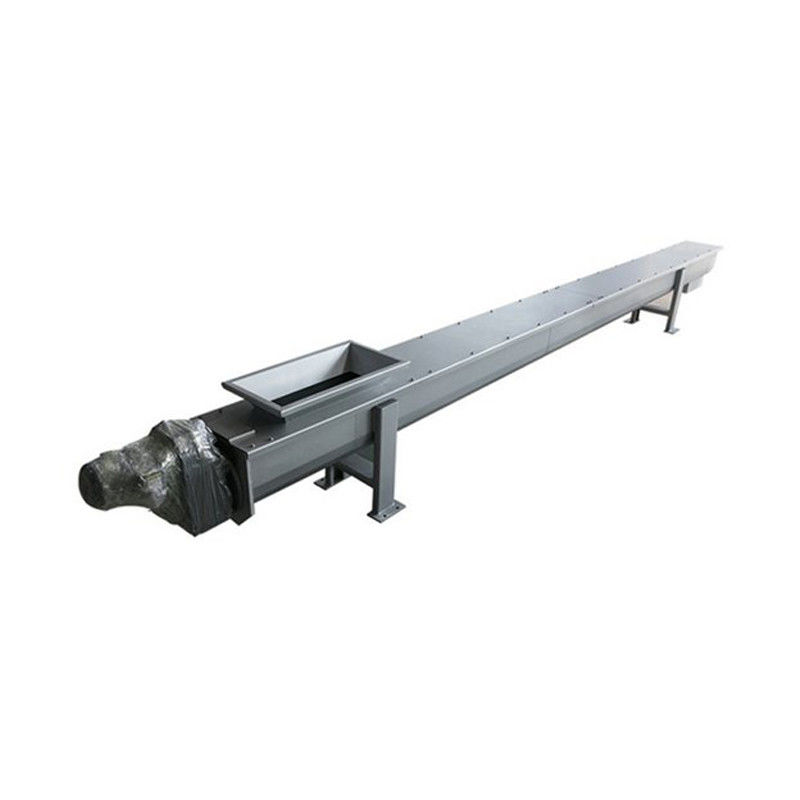

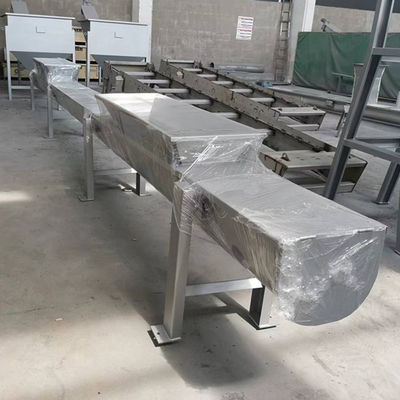

Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
FAQ
Q: What certificates do you have? A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
