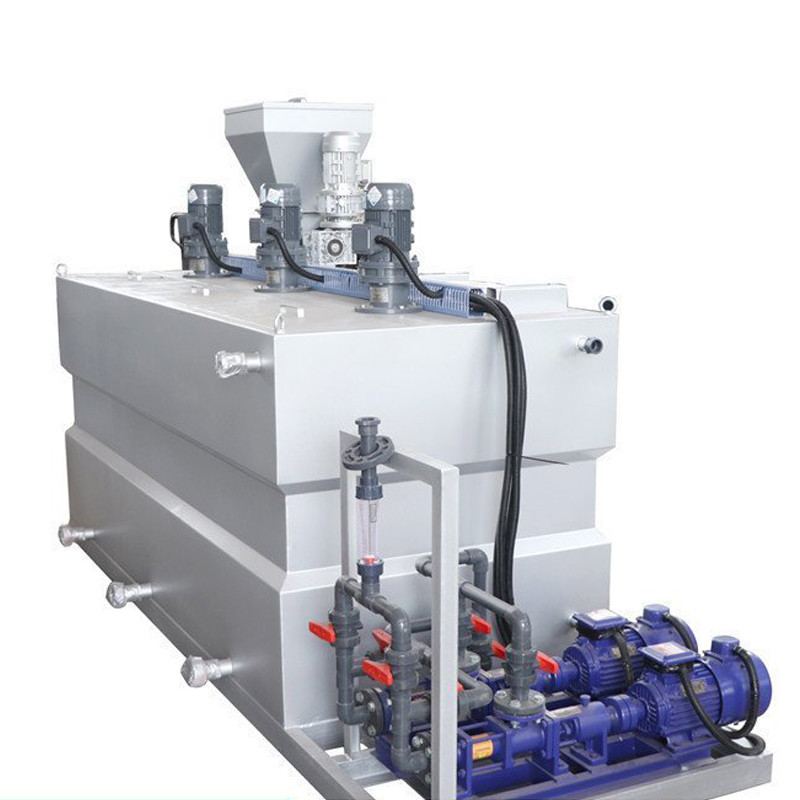

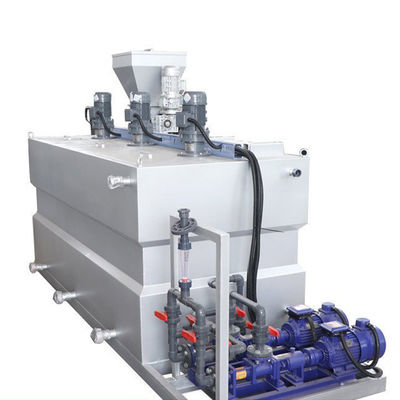

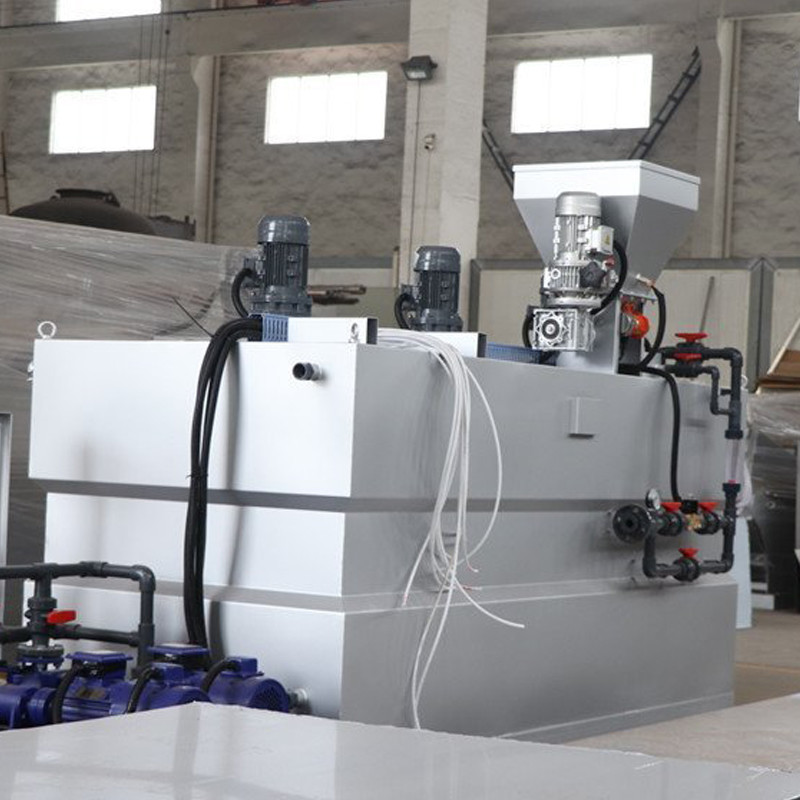

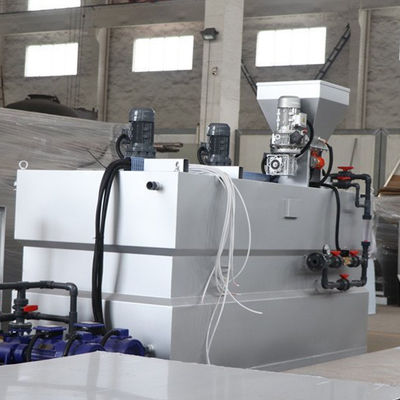

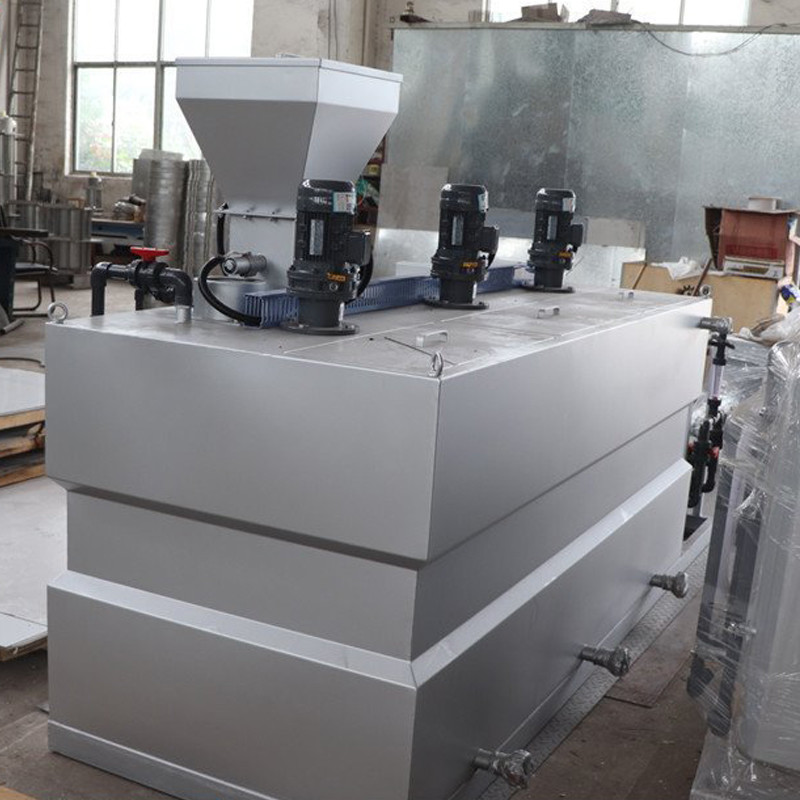

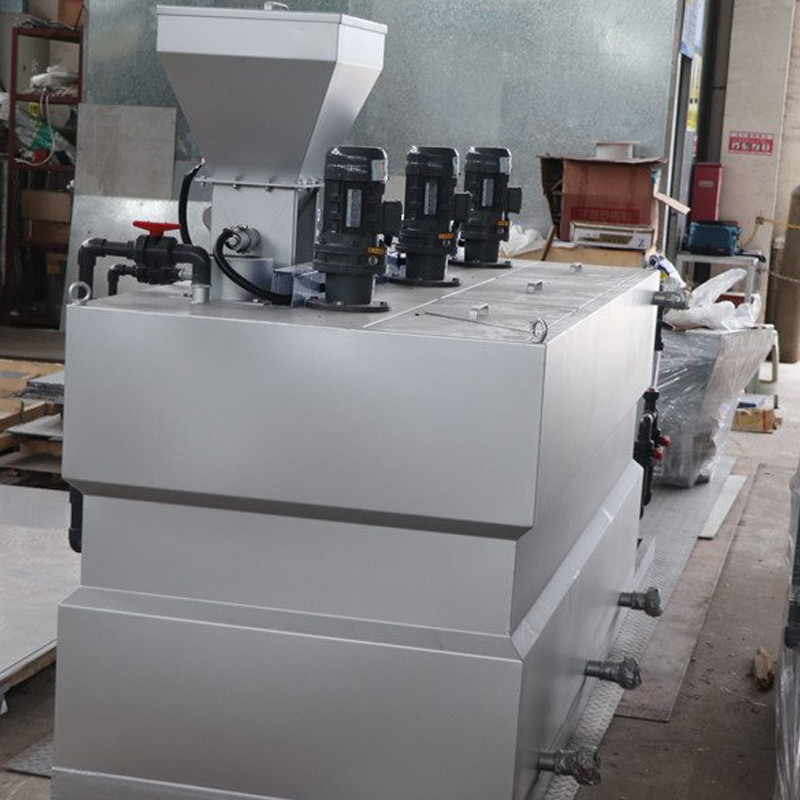

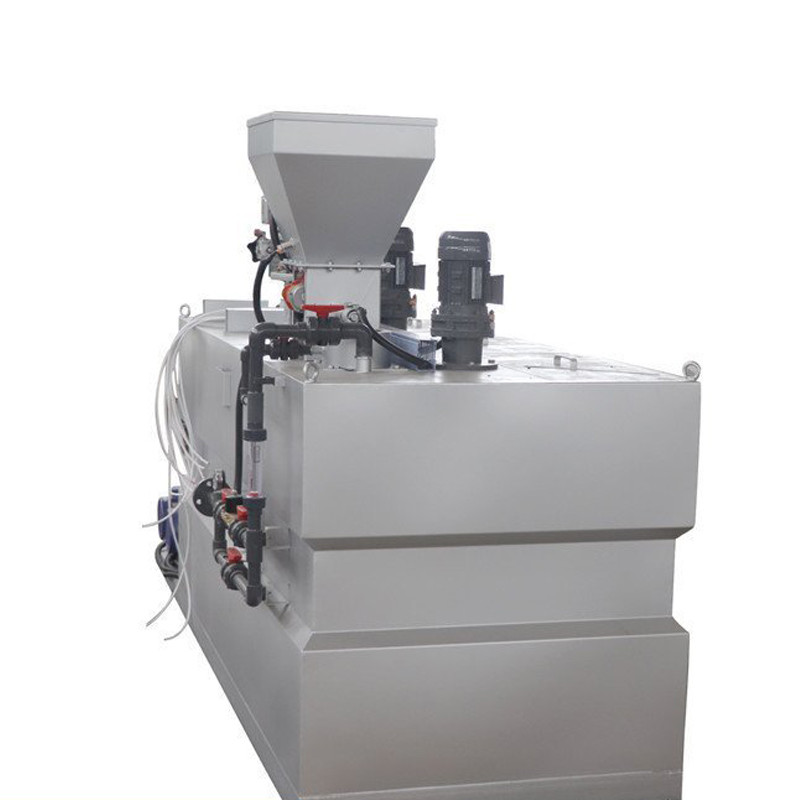

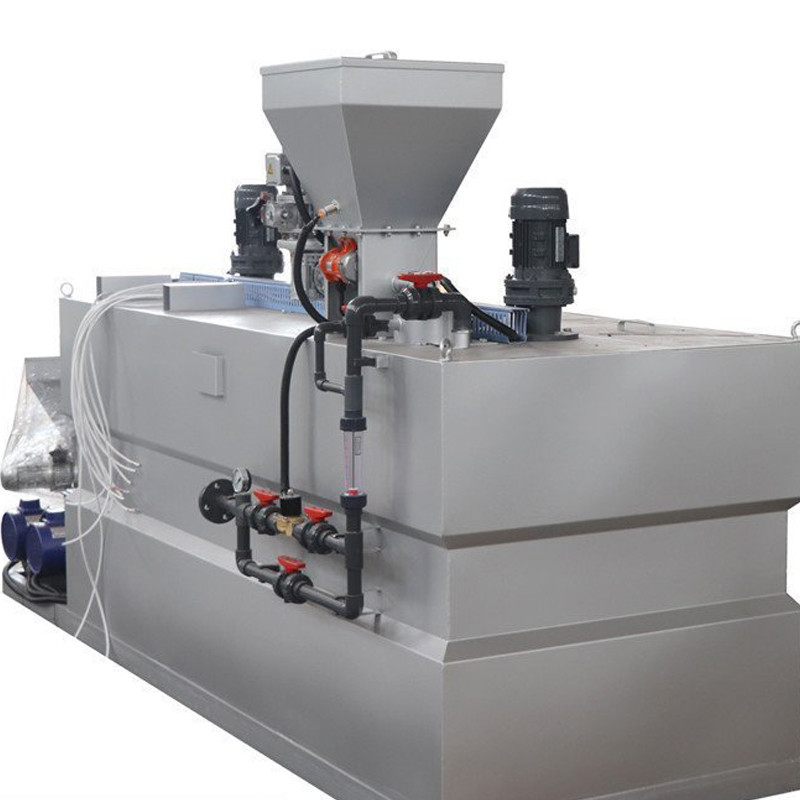

304 stainless steel automatic chemical dosing system chlorine powder dosing equipment
The dosing equipment is mainly used to realize the three tank continuous preparation of automatic dissolution and dosing process through liquid level controller and solenoid valve.
1. With dry polymer feeding function;
2. Automatic control of the whole dispensing process can make the prepared solution blend evenly.
3. The flow of dry powder, liquid polymer and dilution water can be adjusted, and the concentration of liquid medicine can be configured according to actual needs.
4. The ultra-low liquid level and dry powder level meter can give an alarm in time to notify the addition of dry powder.
5. The solution can be diluted online with the inlet water through the quantitative pump to the working concentration, and the uniform solution can be obtained through the static mixer.
Working principle
When the solution tanks are completed step by step, the solution tanks are separated from each other to ensure that the optimal dissolution time and constant concentration are achieved in each solution tank, and to avoid short flow between the prefabricated mixing tank and the solution storage tank.
The liquid level gauge sends a message according to the liquid level and is controlled by the electrical automatic power. Once the liquid level reaches the "low level", open the electronic water inlet valve and start the dry powder feeder at the same time. The dosage of dry medicine and the amount of water can be accurately adjusted to obtain accurate concentration. With the increase of inlet water, the dissolution cycle stops when the liquid level reaches "high level". The mixer is always in working condition.
Product advantages
1. Highly integrated integrated equipment;
2. The equipment is small in size, simple in operation and convenient in installation. The on-site installation is only the connection of water source and power supply;
3. Safe and reliable work, low maintenance workload;
4. The corrosion resistance is good, and the contact with the medium is made of engineering plastics;
5. The metering pump is suction type installation, which is not easy to block, has long trouble free operation time and low operation cost;
6. Monitor the water level indicators through the liquid level controller, control the real-time opening and closing of the metering pump according to the changes of the water level indicators, and control the liquid level of the water system between the set values to ensure the stable operation of the system.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |
FAQ
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
