Fully Auto 30m3 Carbon Steel Dissolved Air Flotation Machine Integrated

1 set
MOQ
Negotiatable
Price
Fully Auto 30m3 Carbon Steel Dissolved Air Flotation Machine Integrated
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Dissolved Air Flotation Machine
Capacity: 10-5000 M3/H
Material: Stainless Steel, Carbon Steel
Color: Black /Bule/Customized
Warranty: 1 Year
Weight: Depends On Model And Configuration
Size: Customized
Power: 4.5--8kw
Operation: Automatic Running
Origin: China
After-sales Service Provided: Online Support
Highlight:

Fully Automatic Dissolved Air Flotation Machine

,

30m3 Dissolved Air Flotation Machine

,

Carbon Steel Dissolved Air Flotation Machine

Basic Infomation
Place of Origin: jiangsu China
Brand Name: longdai
Certification: ISO9001 CE
Model Number: GFH-15
Payment & Shipping Terms
Packaging Details: Export polywood
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per Years
Product Description

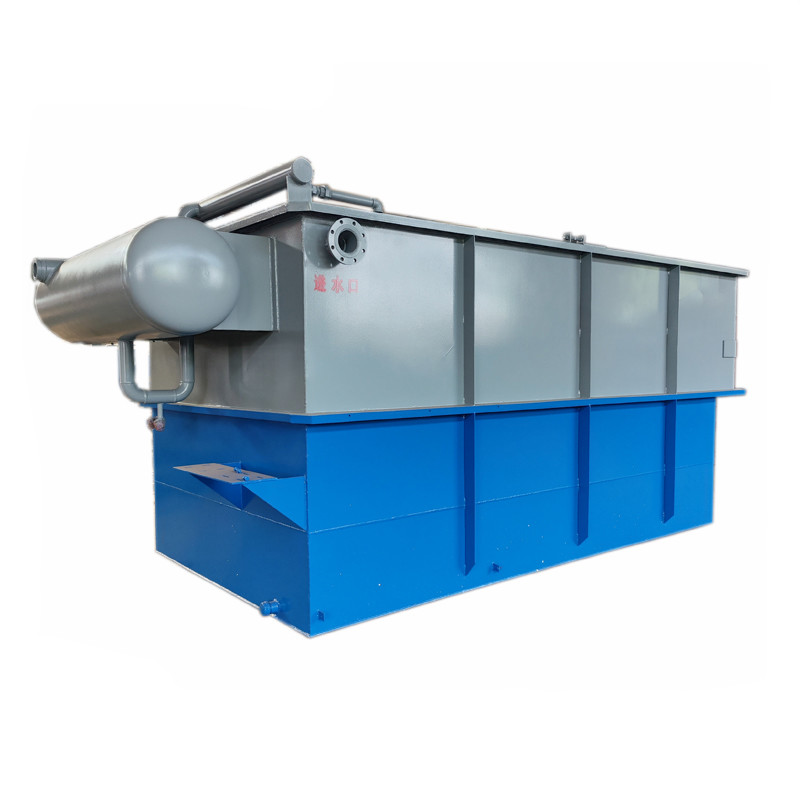

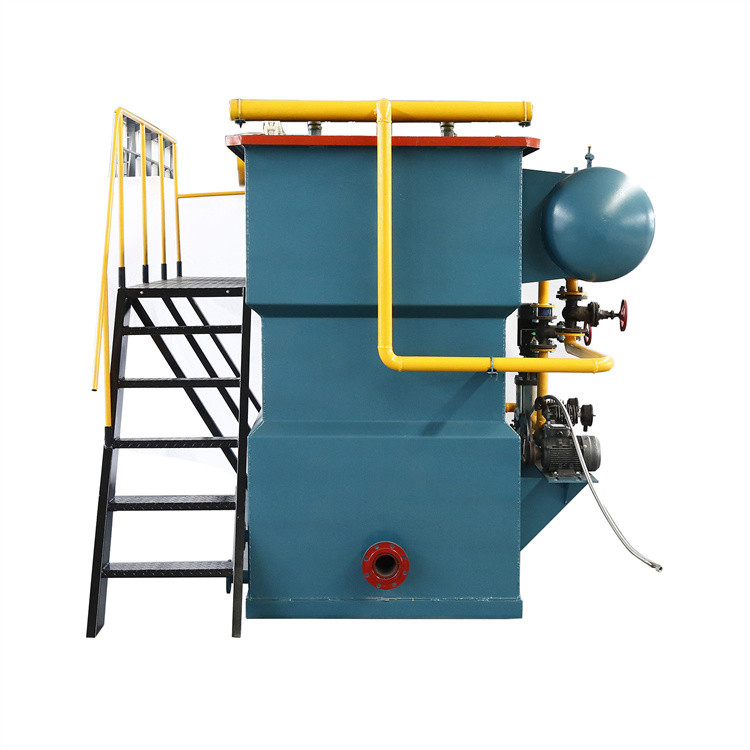

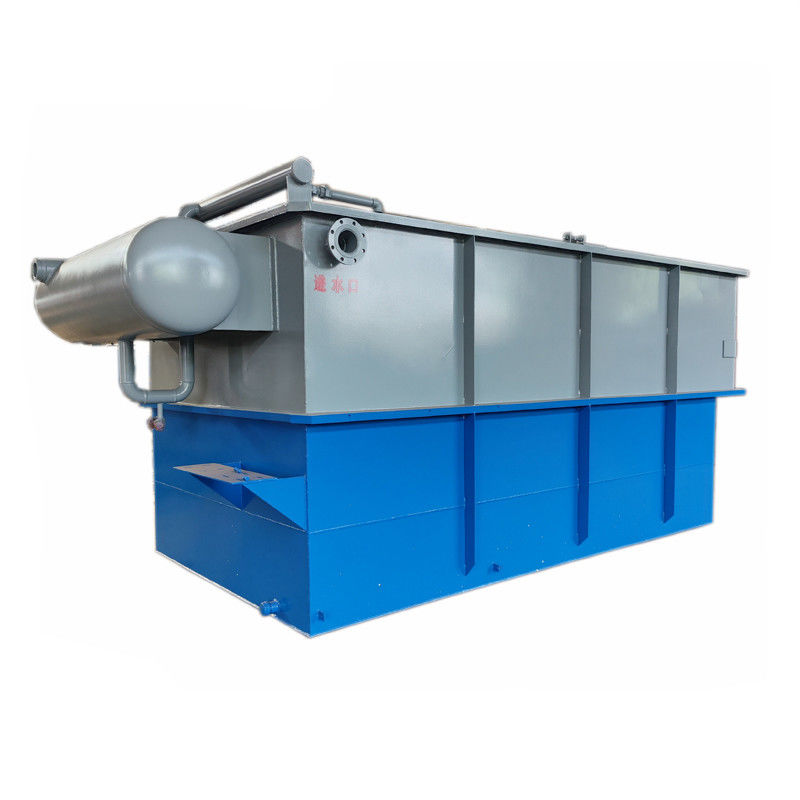

30m3 carbon steel fully automatic dissolved air flotation machine Integrated sewage treatment equipment

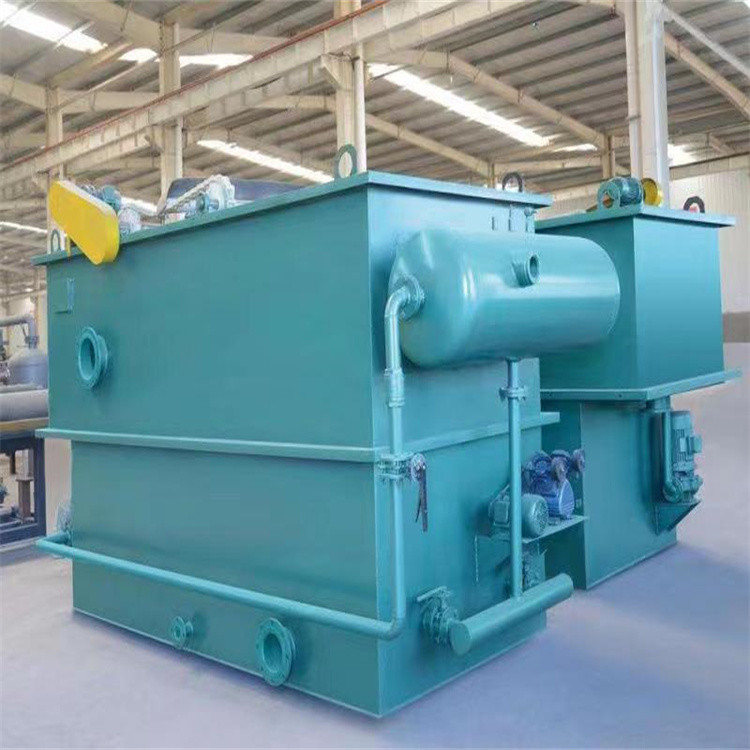

It is mainly composed of dissolved air pump, air water separator, flocculation chamber, air flotation contact chamber, separation chamber, sedimentation cone and collecting tank.

It is mainly used to remove suspended solids, grease and various colloidal substances in sewage. Factors are widely used in electroplating, chemical, paper making, oil refining and other industries.



Working principle



The dissolved air tank in the dissolved air flotation machine will produce dissolved air water, and then enter the sewage to be treated through the release pipe, so as to adhere to the impurity particles in the sewage, and make them form floating bodies, float on the water surface, and then form scum. Then remove the scum through the slag scraper. If the specific gravity is higher than that of water, it will be precipitated and discharged into the sludge tank to complete the sewage treatment.


Structural features


1. The requirements for flocculation are not very high, so the dosage of flocculant can be appropriately reduced.
2. The process and equipment structure are simple and easy to use and maintain;Its sewage purification effect is better than that of pressurized dissolved air flotation.
3. It is easy to adjust during operation, and the operation process is stable and reliable. It can avoid some common problems and save some trouble.
4. Aerate the water during air flotation, which has obvious effect on removing the surfactant and odor in the water. The colleague increases the dissolved oxygen in the water due to air limitation, providing favorable conditions for subsequent treatment;
5. It can eliminate sludge bulking.





Parameters



Type processing capacity(M³h) Size(m) dissolved air vessel Size(mm) Motor Power(Kw) Total Weight(Kg)
Length Width Height
MJQF-1 1 1.5 0.9 1.9 φ300 h1000 2.2 1200
MJQF-3 3 2.7 1.2 2.0 φ300 h1000 2000
MJQF-5 5 3.5 1.5 2.0 φ300 hl500 2800
MJQF-10 10 4.6 1.7 2.0 φ400 h3000 4.0 3600
MJQF-20 20 6.0 2.1 2.2 φ400 h3000 5400
MJQF-30 30 7.2 2.4 2.2 φ500 h3000 5.5 6300
MJQF-40 40 8.3 2.8 2.2 φ500 h3000 7500
MJQF-50 50 9.3 3.2 2.2 φ600 h3000 7.5 9100
MJQF-60 60 10.3 3.2 2.2 φ600 h3000 10000
MJQF-80 80 11.2 3.5 2.5 φ800 h3000 11 11500
MJQF-100 100 12.5 3.9 2.5 φ800 h3000 15 13000
