Flocculant PAM / PAC Automatic Dosing Device For Integrated Phosphate

flocculant PAM/PAC automatic dosing device Manufacturer Integrated phosphate dosing system

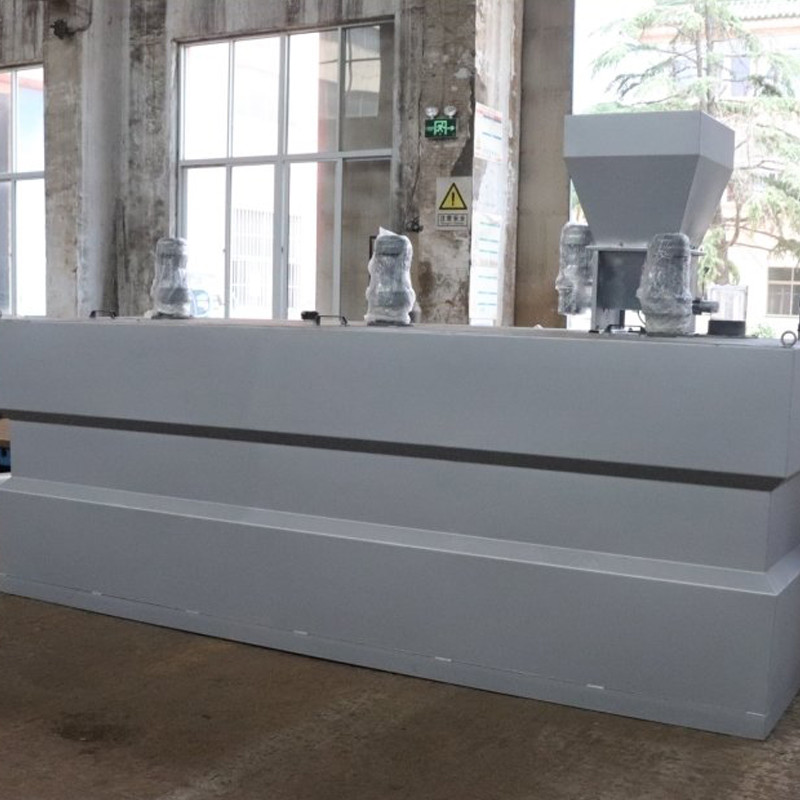

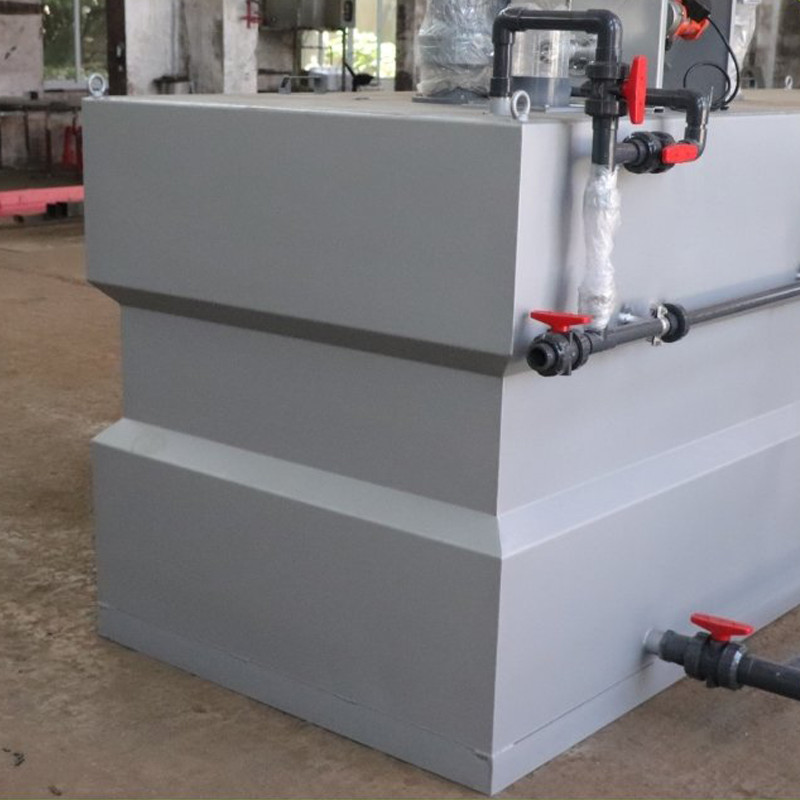

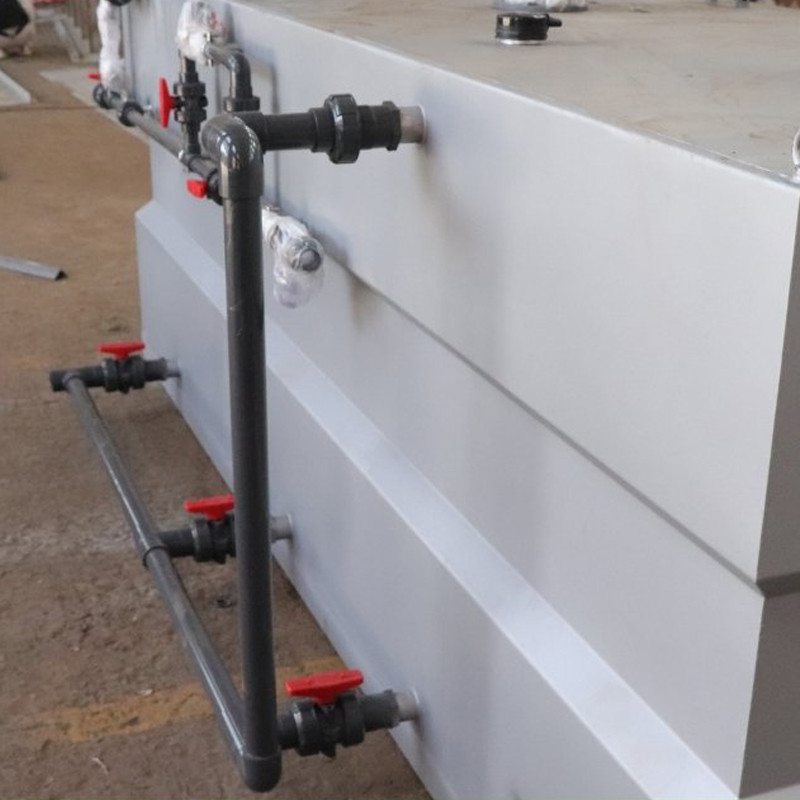

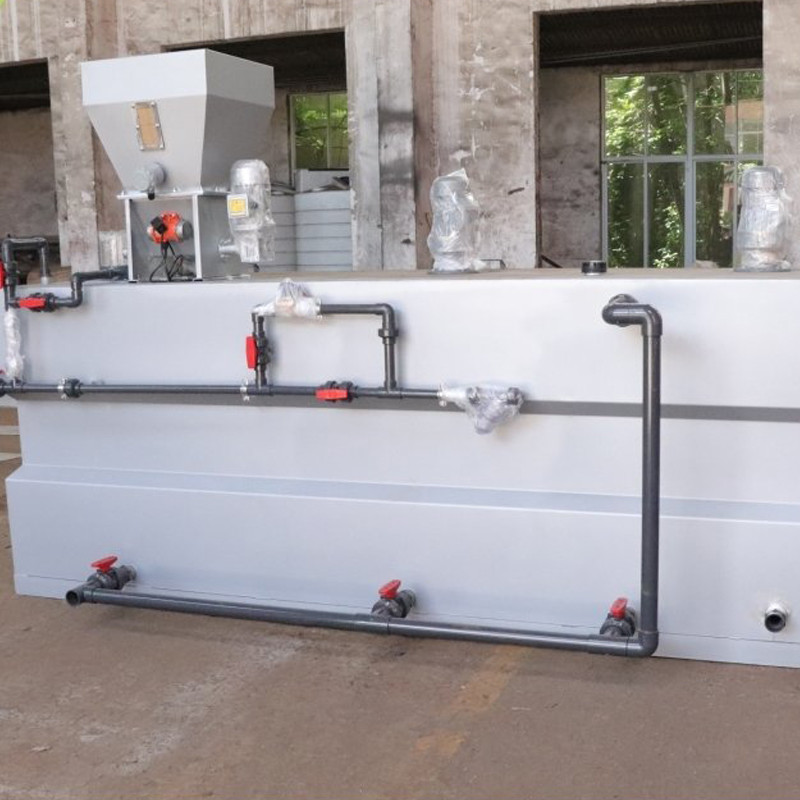

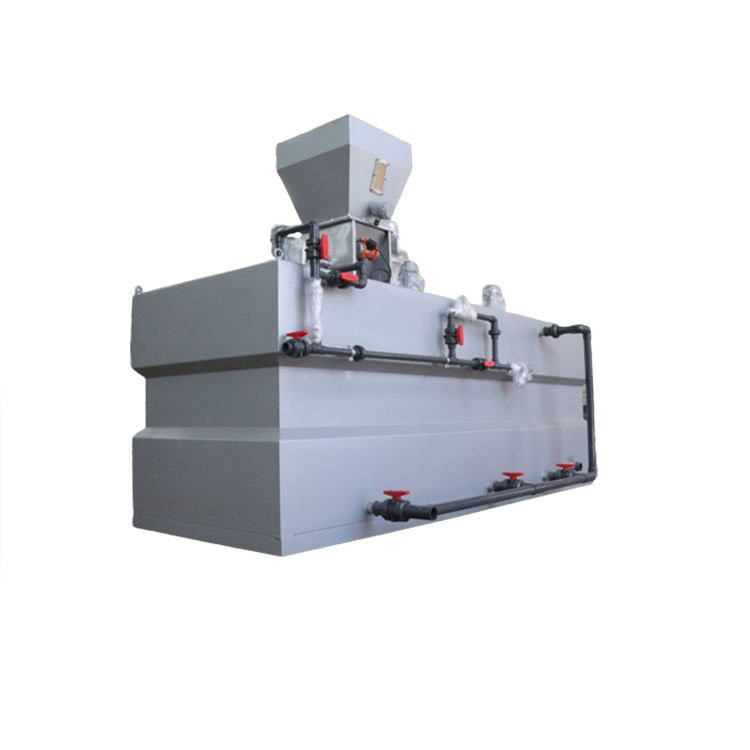

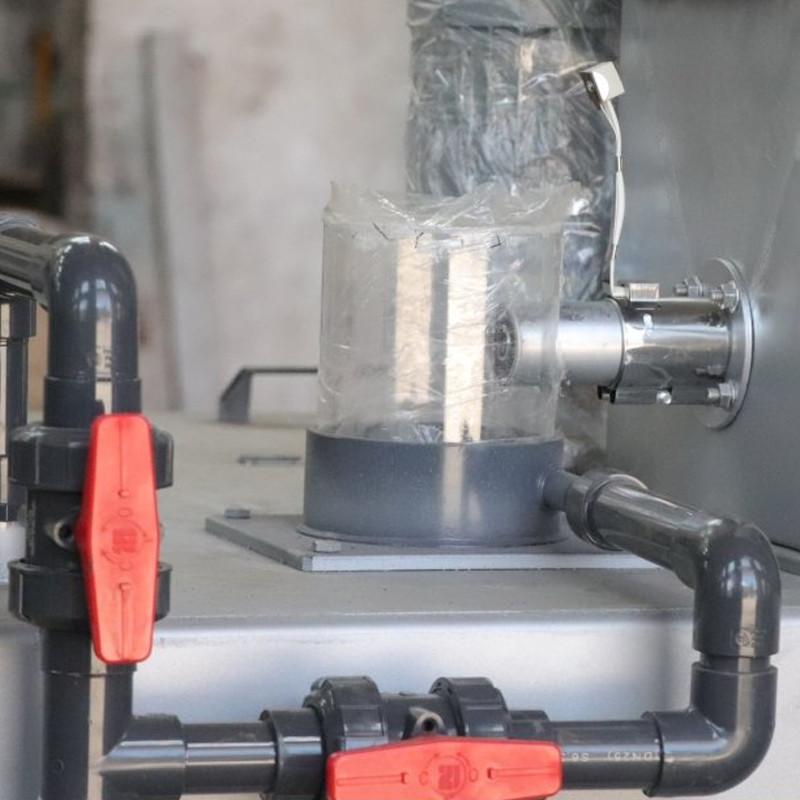

The dosing device integrates the solution tank (mixing device if necessary), metering dosing pump, Y-type filter, safety overflow valve, check valve, flow compensator, control instrument, pressure gauge, level gauge, control valve and pipeline, water collecting overflow device, etc. to form a fully automatic dosing device.
The fully automatic control system in the control box can compare and judge the set flow signal with the actual flow signal, calculate the flow value, and control the flow of the metering pump through the frequency conversion control system or the electric stroke control system.

Working principle

The dosing device delivers the powder agent or liquid agent to the solution tank in a fixed amount, and starts the mixing device to stir the solution in the solution tank at the same time, then opens the valve at the bottom of the solution tank to make the solution flow to the inlet of the metering pump automatically, and then the metering pump delivers the solution to the dosing point according to the set requirements. The dosage is controlled by the fully automatic control system through the frequency conversion control system or the electric stroke control system.

Product features

1. Taking system design as the main body, it overcomes the difficulty of poor systematicness of traditional products with single equipment or component as the main body;
2. Absorb the essence of domestic and foreign dosing technology, and optimize the process with a new design concept;
3. Modular design of product structure and integrated combination make it easy to expand capabilities and functions;
4. Flexible configuration scheme according to different water quality and different requirements of users;
5. Users can choose equipment and components of various brands, materials and grades at home and abroad;

Parameters
