| Place of Origin: | jiangsu China |
| Brand Name: | longdai |
| Certification: | ISO9001 CE |
| Model Number: | ZBG-3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per Years |
| Product Name: | Sludge Scraper,mud Scraper | Application: | Wastewater Treatment Plant |
|---|---|---|---|
| Length: | Orders Requirement | Raw Material: | Stainless Steel SUS 304 |
| Voltage: | 380V /Customized | Type: | Automatic |
| Usage: | LIQUID-SOLID SEPERATION | Function: | Solid Liquid Separator |
| Keywords: | Water Treatment System Device | ||
| Highlight: | Stainless Steel Mud Scraper,SUS 304 Mud Scraper,Stainless Steel Sludge Scraper System |
||

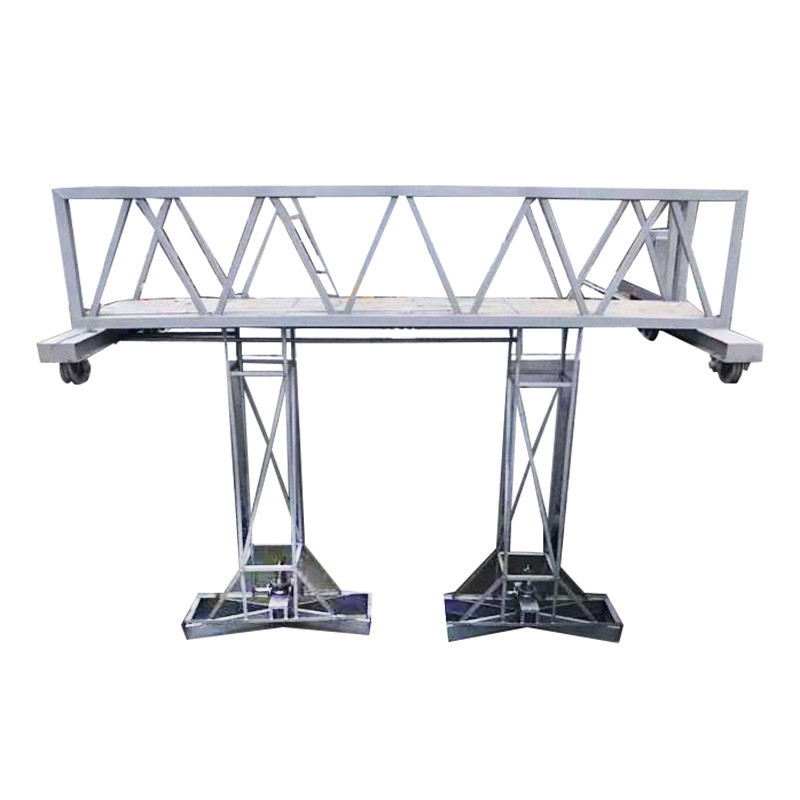

Stainless steel traveling mud scraper horizontal sedimentation tank sludge suction machine sewage treatment equipment
The traveling type mud pump is mainly used in the sewage treatment plant. The horizontal sedimentation of the waterworks will scrape the sludge at the bottom of the tank to the suction port of the pump. Through pumping, the sludge will be sucked while walking, and then the sludge will be discharged from the tank, so as to achieve the effect of removing the sludge at the bottom of the tank.
Product features

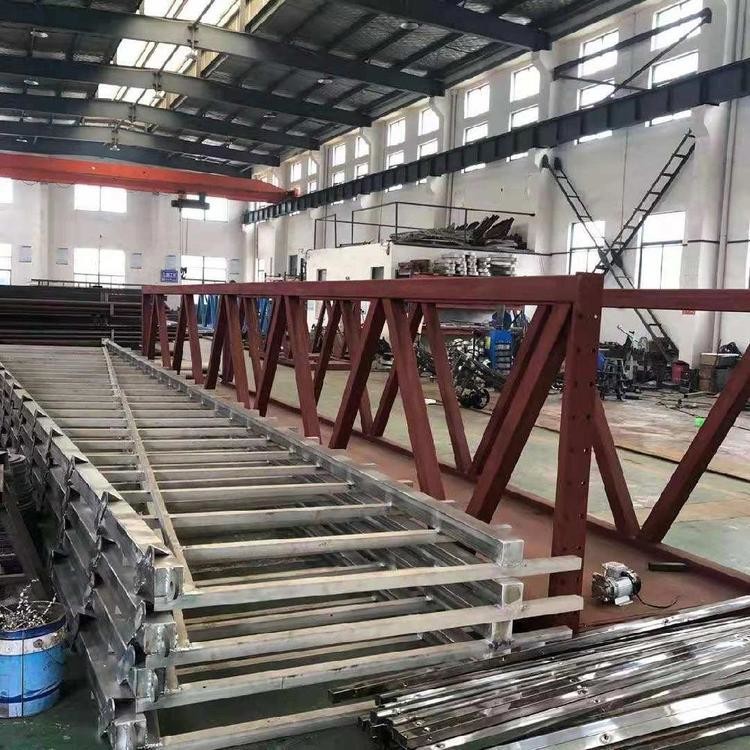

1. The truss structure is adopted, which is lighter than the traditional structure and has a longer service life. The walking wheel is a steel wheel, which has a longer service life;
2. Small maintenance, small coordination power, low operation cost, reasonable pump selection, stable and reliable operation;
3. The new transmission structure avoids the travel error at both ends.
Product mix
The travelling pump suction dredger is composed of working bridge, suction pipe, sludge discharge pipe, submerged suction pump, driving mechanism, electric cabinet, track, up sliding or sliding cable, etc.
Working principle

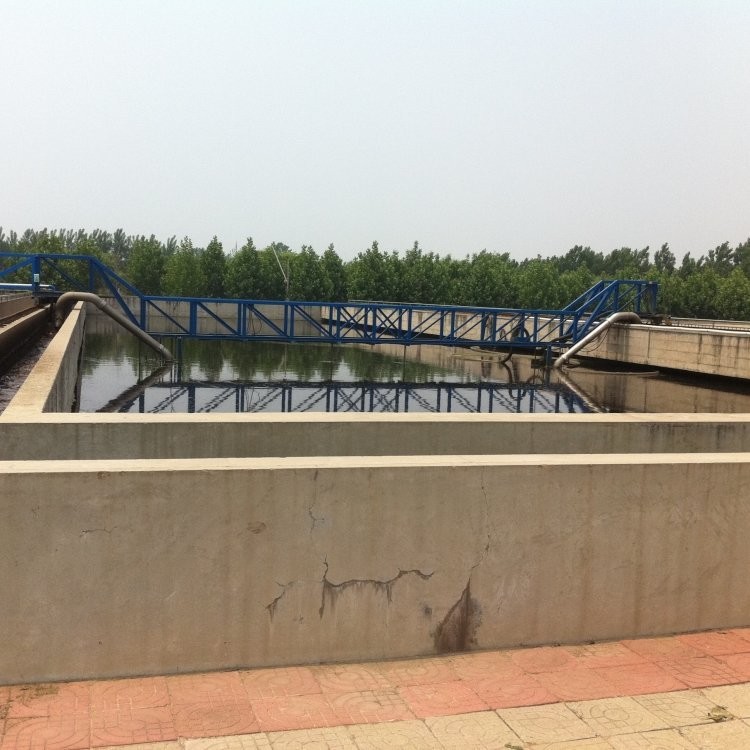

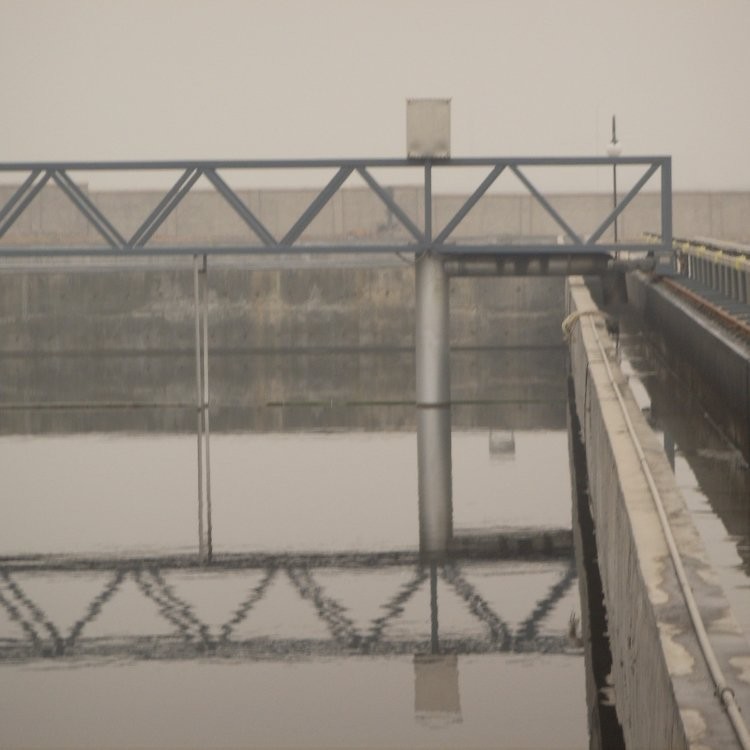

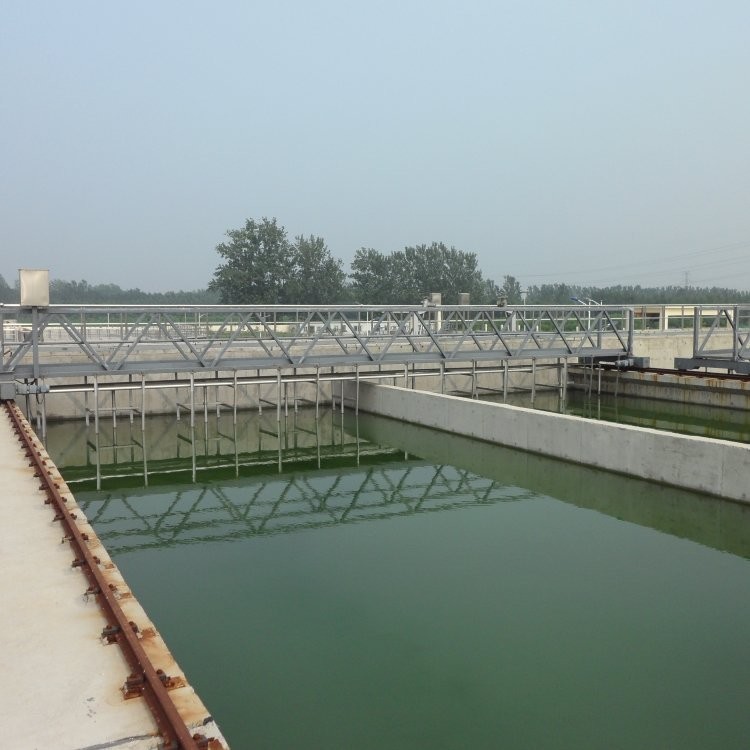

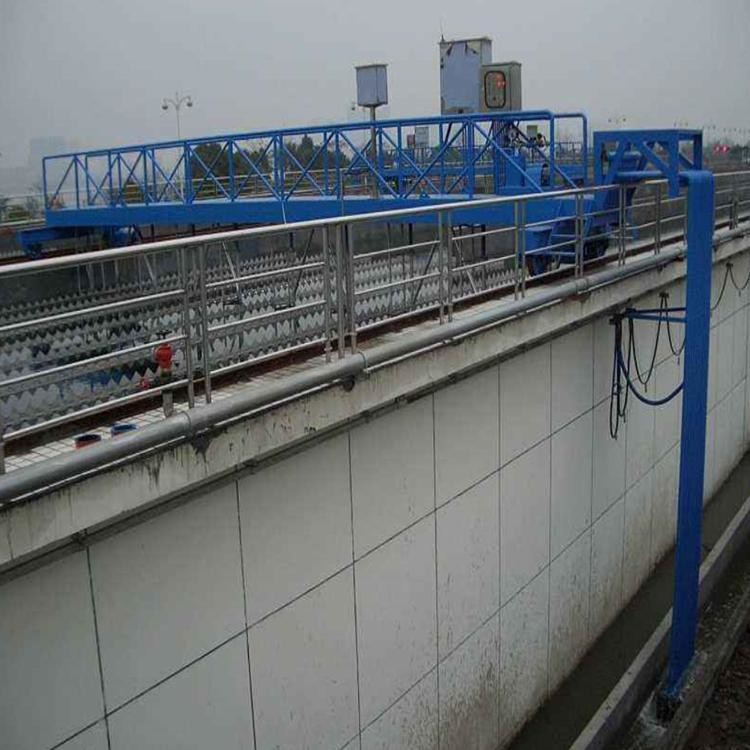

The equipment is supported by a four point walking beam across the horizontal sedimentation tank, which is driven bilaterally. Rails are laid on both sides of the tank. When running from one section of the tank to the other end of the tank, the equipment absorbs mud while walking, bumps into the stroke control, turns back to walk, and returns to absorb mud, completing a work cycle.
Parameters
| Model | NL 3xL | NL 4.5xL | NL 5xL | NL 6xL |
| Pool width B(m) | 3 | 4.5 | 5 | 6 |
| Recommended pool length L(m) | 8~16 | 8~16 | 8~16 | 8~16 |
| Recommended pool depth H(m) | 3.5 | 3.5 | 3.5 | 3.5 |
| Driving power(Kw) | 2.2 | 2.2 | 2.2 | 3 |
| Scraper moving speed (m/min) | 1 | 1 | 1 | 1 |
| Scrch spacing(m) | 2 | 2 | 2 | 2 |
| Incoming water turbidity(mg／L) | ≤500 | ≤500 | ≤500 | ≤500 |
