U Shaped Screw Belt Conveyor Shaftless for Mortar Grain Sludge Carbon Ash Concrete

Screw conveyor manufacturer U-shaped auger mortar grain sludge carbon ash concrete shaftless conveyor feeder

U-shaped screw conveyor is a kind of screw conveyor. It is manufactured according to DIN15261-1986 standard and designed in accordance with JB/T7679-2008 Screw Conveyor. It is suitable for small scale operation, stable transportation, and can play a good role in the case of limited transportation site. With good sealing performance, it has great advantages for occasions with large dust and requirements for the environment, and can avoid the generation of dust in the transportation process. However, U-shaped screw conveyor is not suitable for long-distance transportation, and its cost is higher than that of belt conveyor. It is easy to crush fragile materials.

Working Principle

A machine that uses a motor to drive the spiral rotation and move materials to achieve the purpose of conveying. When the spiral shaft rotates, due to the gravity of the material and the friction between the material and the tank wall, the material can only move forward along the bottom of the conveyor under the push of the blade.

Application

U-type screw conveyor is widely used in grain, chemical industry, building materials, metallurgy, mining, power and other departments, mainly used to transport small granular, powdery, small pieces of materials. It is not suitable for conveying materials that are easy to deteriorate, have high viscosity and caking, and have high water content.

arameters	spiral Nominal diameter (mm) spiral dia (mm)	Type	LS-200W	LS-250W	LS-300W	LS-350W	LS-400W
			200	250	300	350	400
			185	235	285	320	385
Capacity	installation angle	0°	1.5	3.6	6	8.4	11.7
		5°	1.35	3.24	5.4	7.56	10.53
		15°	1.05	2.52	4.2	5.88	8.19
		25°	0.9	2.16	3.6	5.04	7.02
Spiral speed n(r/min)			12 to 16
Motor N(KW)		0.75-5.5 (according to L and angle)
installation size(mm)	A		0+40
	B		0 + 110
	Bi		Matching with corresponding equipment
	L		According to user requirements
	Li		Matching with corresponding equipment
	l_2		(L-1000)/2-(L-71000)/3
	L3		250	250	300	350	400
	H		Matching with corresponding equipment
	Hi		140	165	188	210	240
	H2		H-150
	H3		Matching with corresponding equipment

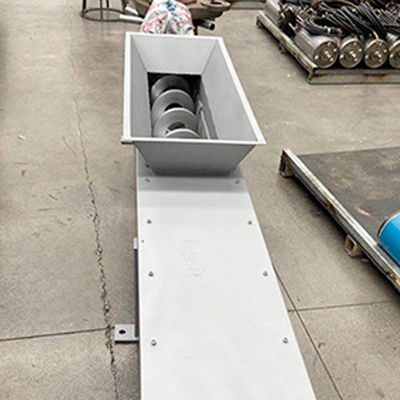

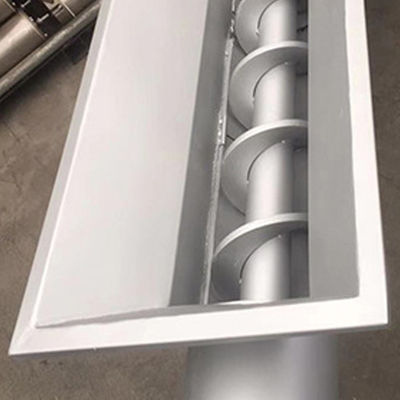

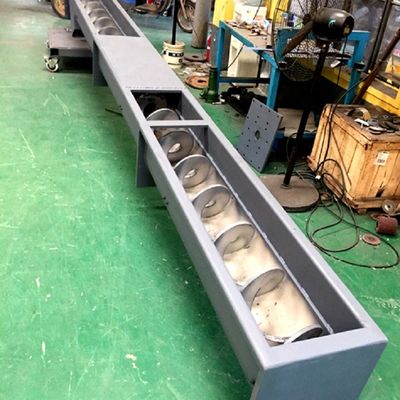

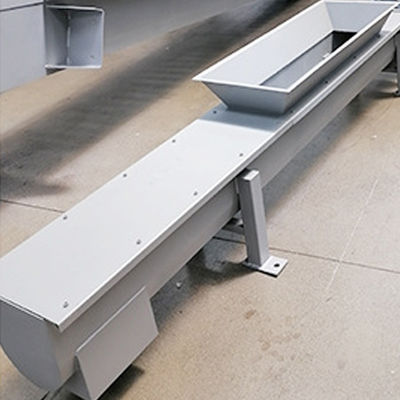

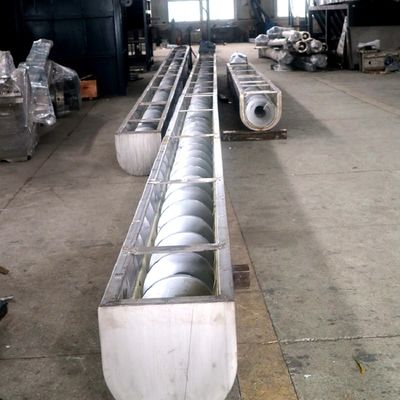

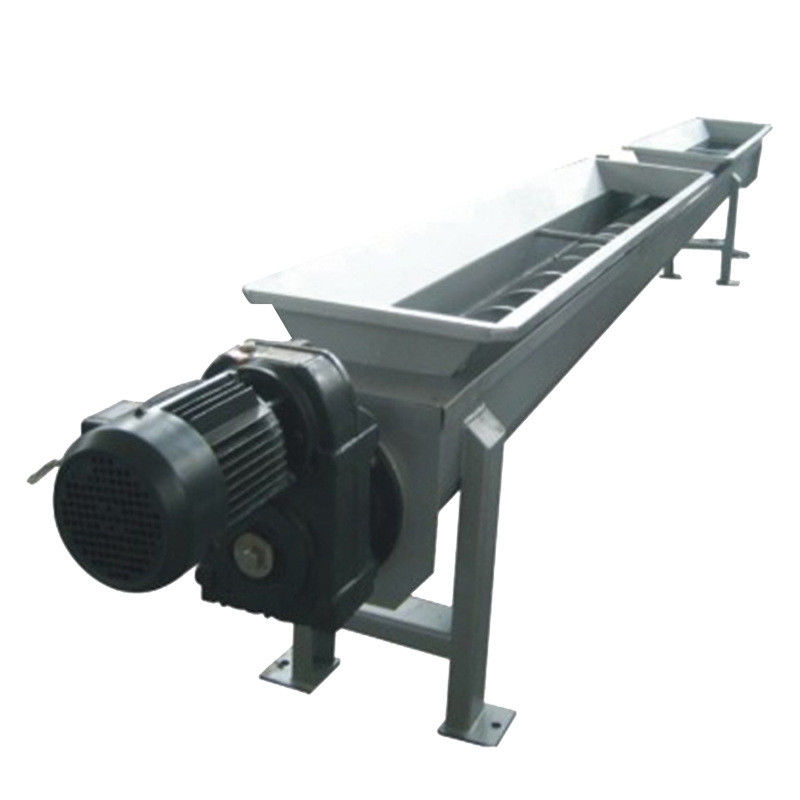

Real picture







Company Profile



Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."

The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.

The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.

The company has passed ISO9001-2008 international standard quality system certification.

We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.





FAQ



Q: What certificates do you have?

A: CE/ISO/SGS

Q: Do you offer after-sales service?

A: Yes. Engineers available.

Q: How long is your warranty?

A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.

Q: What about your delivery Time?

A: Normally within 45 days against down payment.

Q: What about the package of your export product?

A: We use anticorrosion wooden case with foam inside.

Q: What kind of payment do you accept?

A:T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
