Automatic Scale Inhibitor Chloride Dosing System Chemical Industry Sewage Treatment

Full Automatic Dosing Device Scale Inhibitor Chloride Dosing System Chemical Industry Sewage Treatment

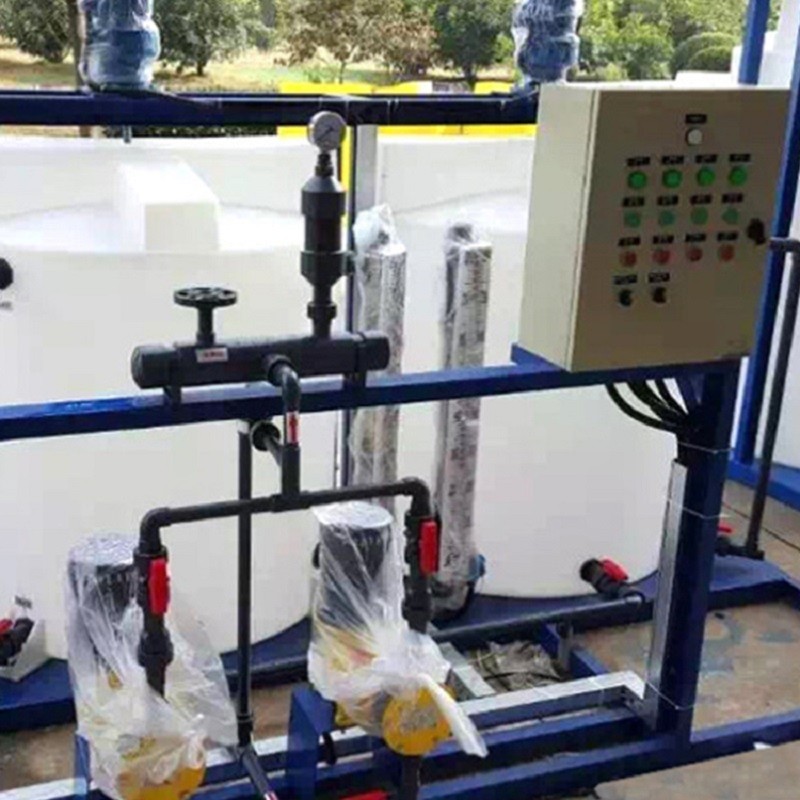

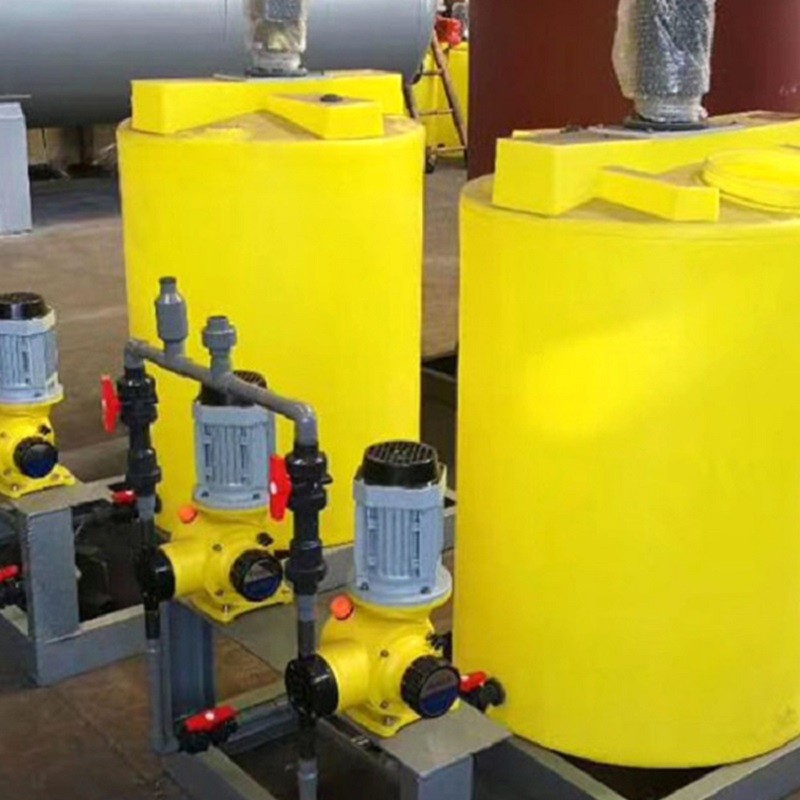

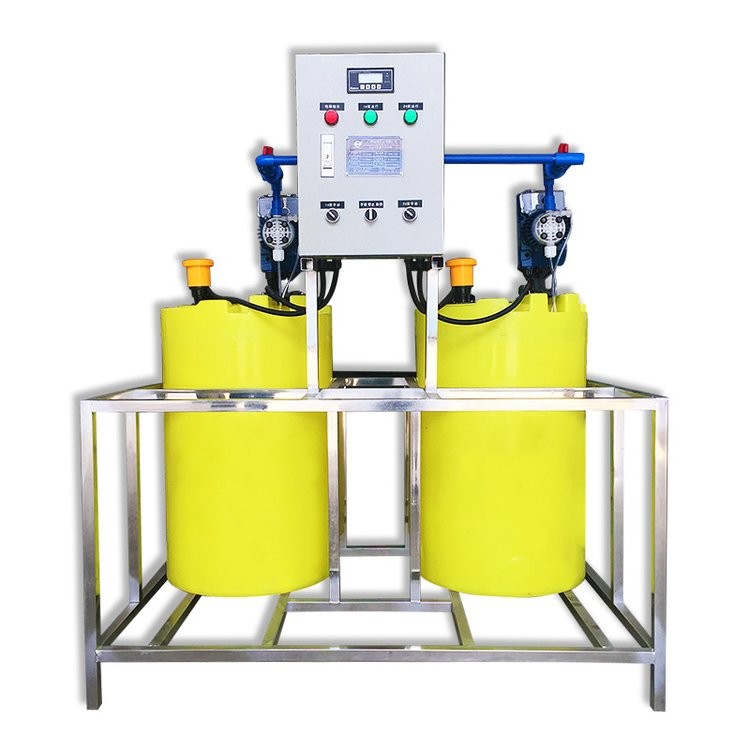

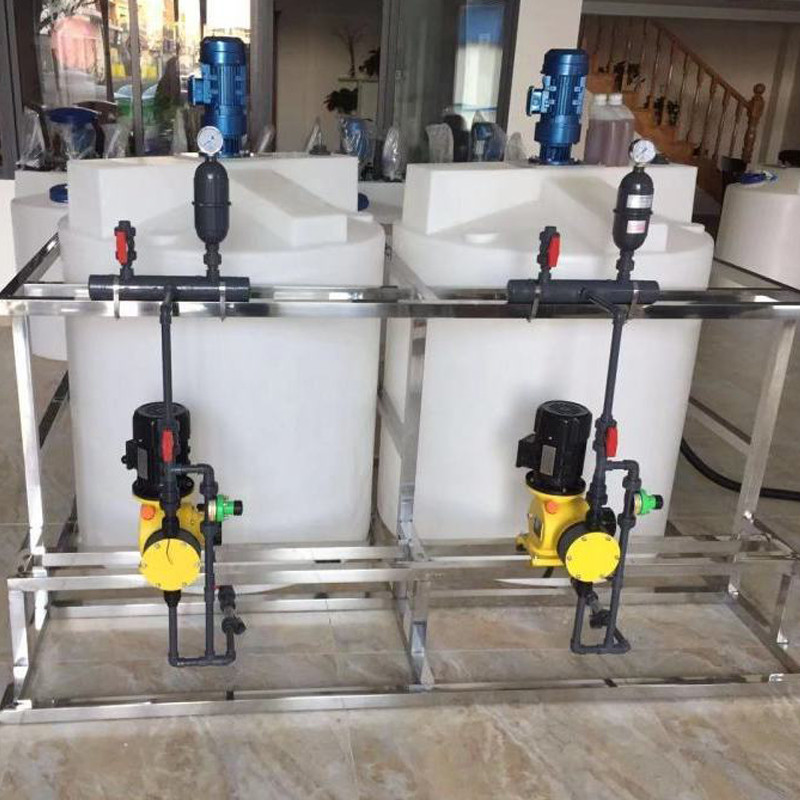

The equipment integrates the solution tank (mixing device if necessary), metering dosing pump, Y-type filter, safety overflow valve, check valve, flow compensator, control instrument, pressure gauge, level gauge, control valve and pipeline, water collecting overflow device, etc. to form a fully automatic reagent dosing device.

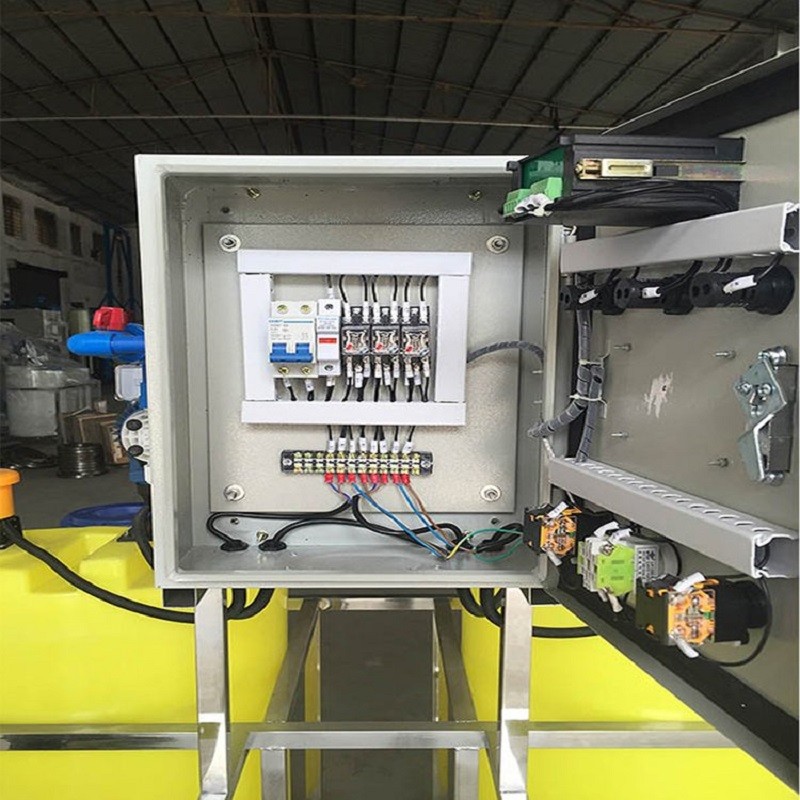

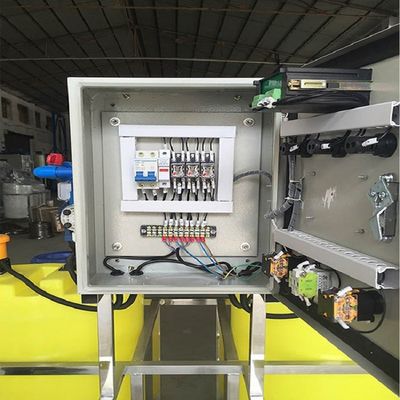

The fully automatic control system in the control box can compare and judge the set flow signal with the actual flow signal, calculate the flow value, and control the flow of the metering pump through the frequency conversion control system or the electric stroke control system.

working principle

The equipment is used to quantitatively deliver powdered or liquid agents to the solution tank, start the mixing device at the same time to stir the solution in the solution tank, and then open the valve at the bottom of the solution tank to make the solution flow automatically to the inlet of the metering pump, and then the metering pump will deliver the solution to the dosing point according to the set demand. The dosage is controlled by the fully automatic control system through the frequency conversion control system or the electric stroke control system. The outlet pipe junction of the metering pump is equipped with check valve, pressure gauge, flow compensator, safety overflow valve and other parts to ensure reliable dosing of the metering pump. The dosing device tracks the change of water quality through high-precision online water quality detection equipment, and controls the dosing pump to automatically and quantitatively add reagents in real time to make the effluent meet the water quality standard required by the process.

Product features

1. Taking system design as the main body, it overcomes the difficulty of poor systematicness of traditional products with single equipment or component as the main body;
2. Absorb the essence of domestic and foreign dosing technology, and optimize the process with a new design concept;
3. Modular design of product structure and integrated combination make it easy to expand capabilities and functions;
4. Flexible configuration scheme according to different water quality and different requirements of users;
5. Users can choose equipment and components of various brands, materials and grades at home and abroad;
6. Various control modes, such as manual and automatic, can be selected to achieve different control requirements.

Scope of application

It is applicable to domestic water treatment system, air-conditioning circulating water system, raw water of power plant, boiler make-up water, oilfield surface gathering and transportation dehydration treatment, various petrochemical dosing systems and wastewater treatment systems, such as adding coagulant, coagulant aid, etc. into the water treatment system; Dosing scale inhibitor into cooling tower; Chemical agents, acids and alkalis that are regularly and quantitatively added in chemical industry, printing and dyeing.

Customization Notice

1. The medium name and chemical property must be described;
2. The capacity, material and metering pump information (type, flow, pressure, brand requirements, etc.) of the dissolution tank must be provided;
3. Provide the control mode of the required products, as well as the requirements for pipe materials.
