| Place of Origin: | jiangsu China |
| Brand Name: | longdai |
| Certification: | ISO9001 CE |
| Model Number: | ZBG-5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500 sets per Years |
| Product Name: | Mud Scraper | Material: | SS304/SS316 |
|---|---|---|---|
| Application: | Wastewater Treatment Plant | Type: | All-in-one |
| Usage: | Sludge Treatment | Length: | Orders Requirement |
| Advantage: | 15 Years Experiences | Keywords: | Sludge Scraper |
| After Warranty Service: | Online Video Technical Support | ||
| Highlight: | Peripheral Drive Sludge Scraper,Half Bridge Peripheral Drive Sludge Scraper,Sedimentation Tank Sludge Scraper System |
||

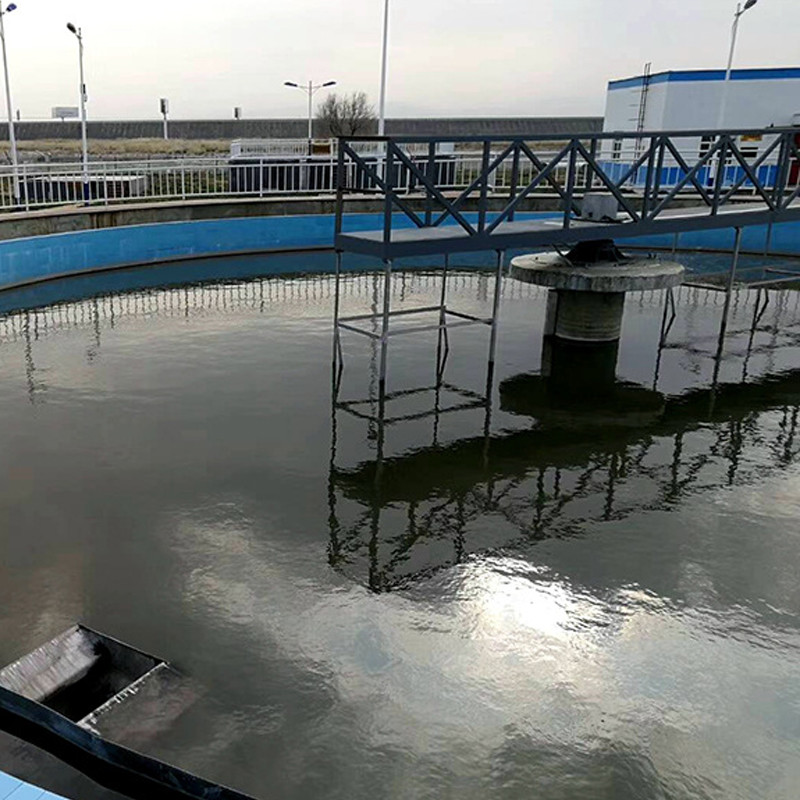

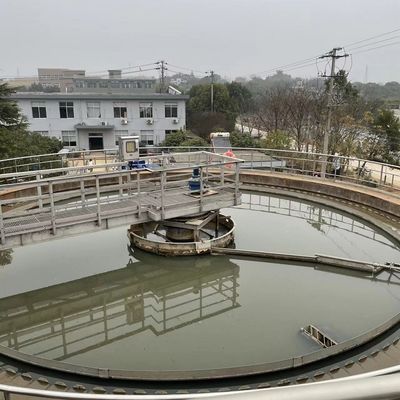

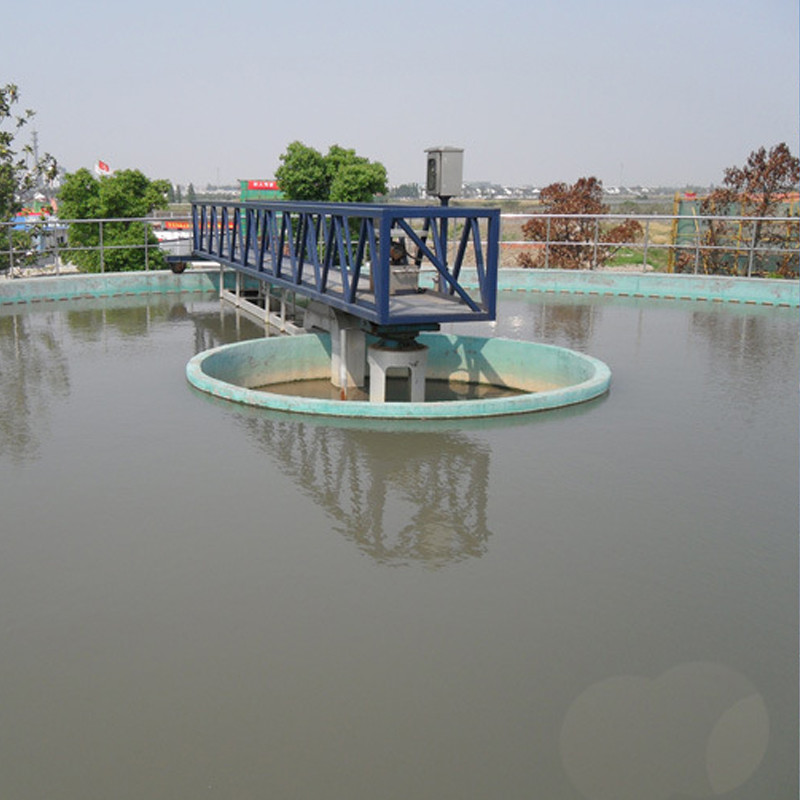

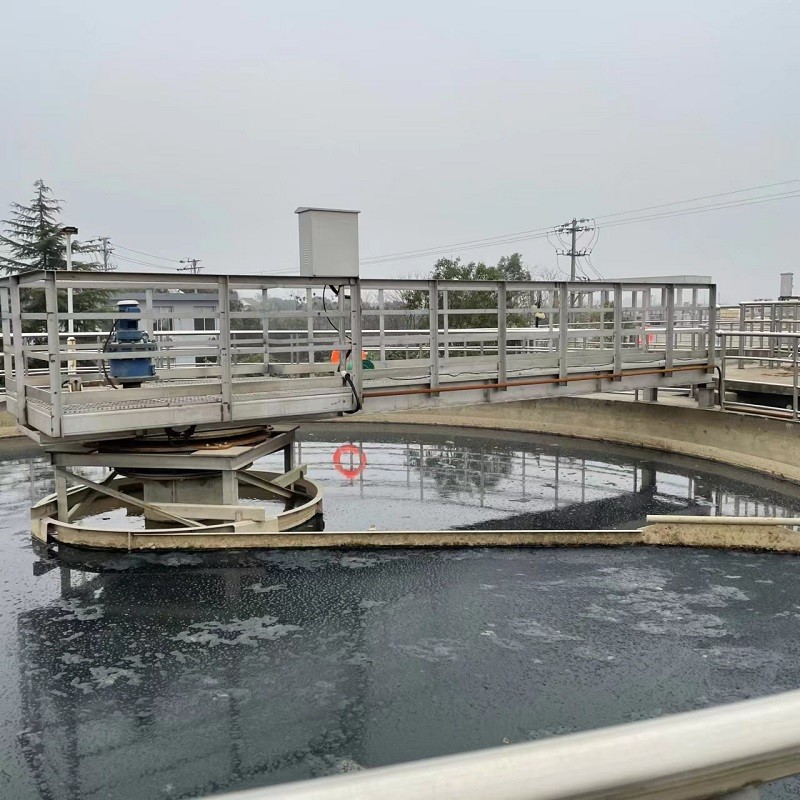

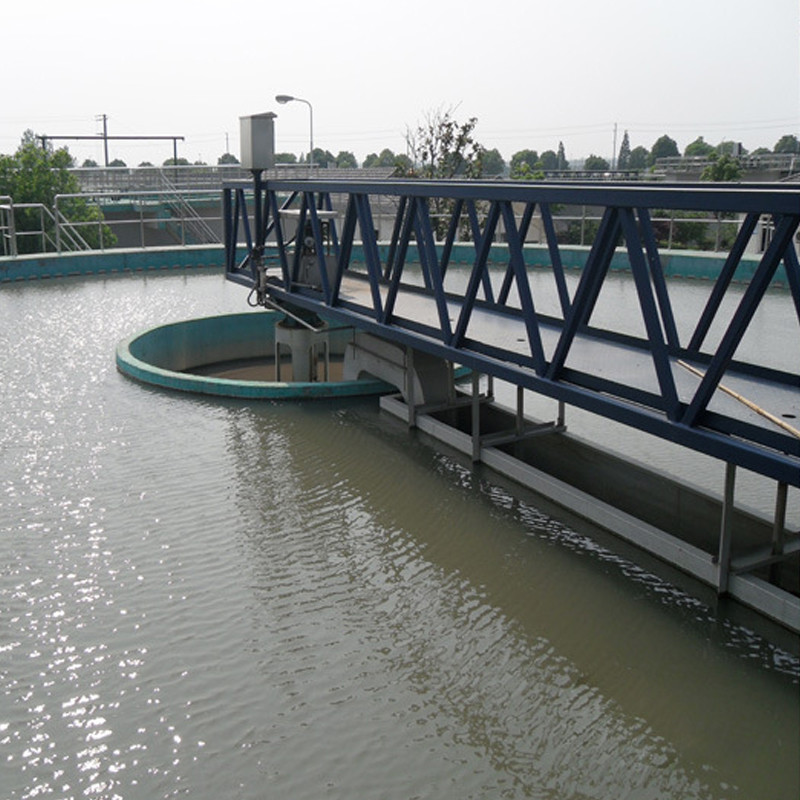

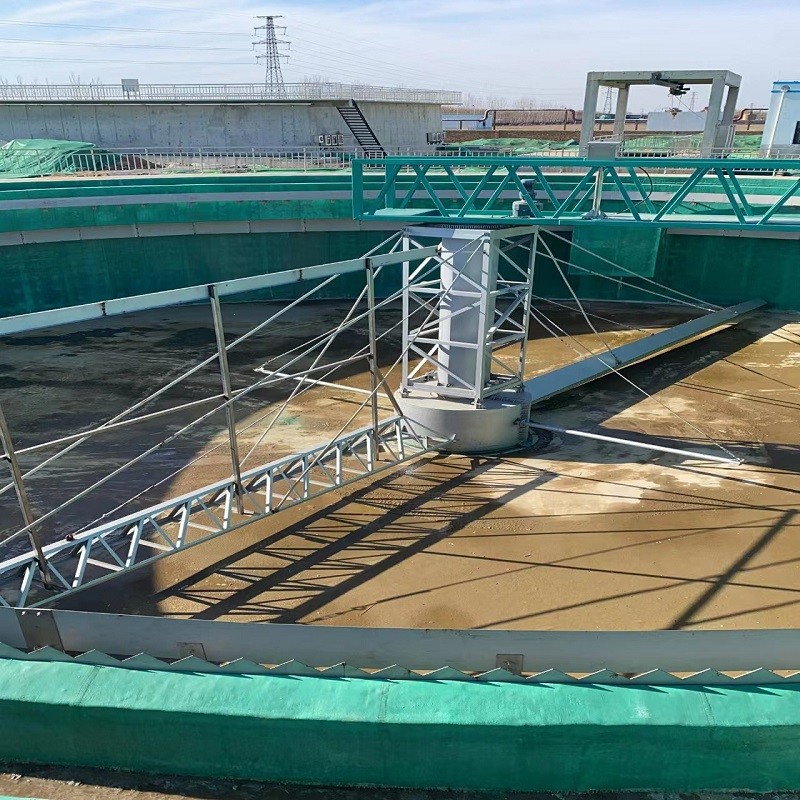

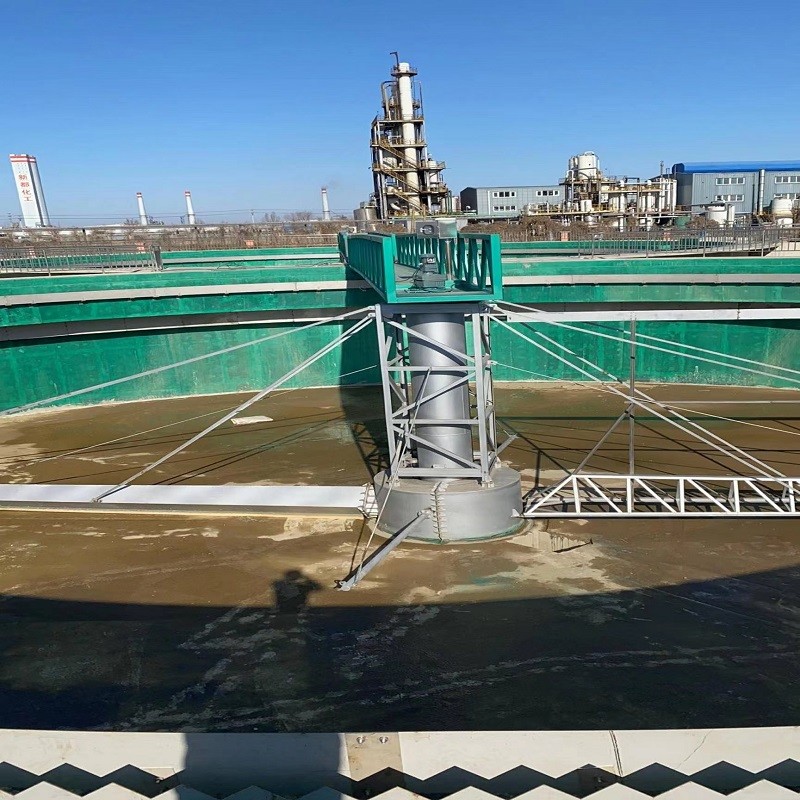

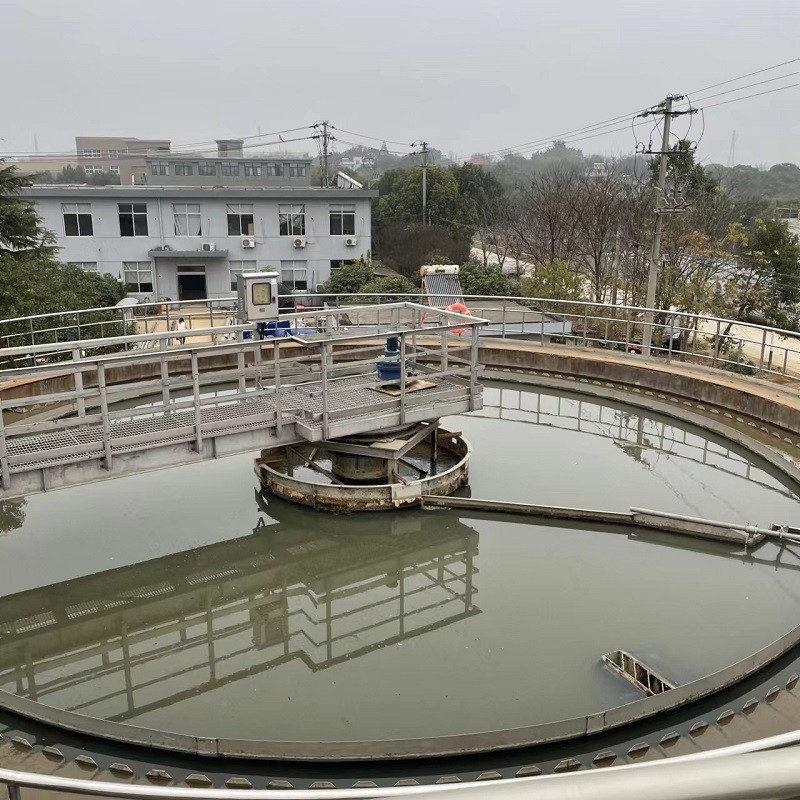

Stainless steel half bridge peripheral drive mud scraper manufacturer sedimentation tank sludge treatment equipment

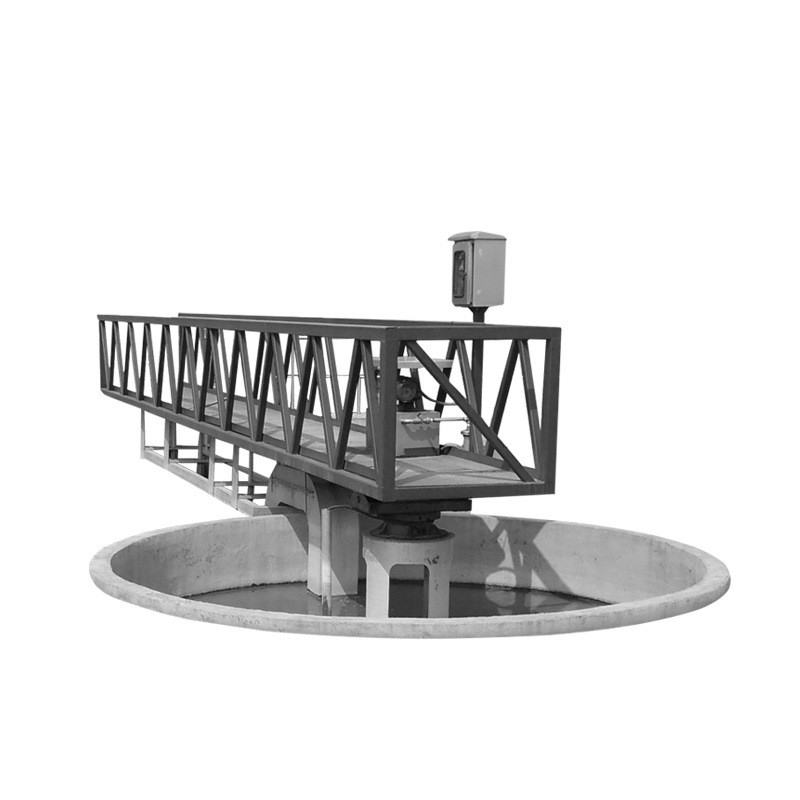

The whole machine is mainly composed of half (full) bridge, driving device, central rotary support, movable arm, mud scraper, skimming device, water weir and other steel structures. The equipment is widely used for scraping and removing sludge from large and medium-sized radial flow sedimentation tanks. The structure is central buttress, peripheral transmission, and scum removal device.
At the same time, the equipment is also an ideal sludge discharge equipment with remarkable energy-saving effect and convenient daily maintenance.
Working Principle
Half bridge peripheral drive mud scraper: sewage flows out evenly from the inlet pipe in the center of the pool to the periphery in a radial manner after diffusion through the diversion cylinder. Suspended sludge is deposited at the bottom of the pool after sedimentation. The supernatant is discharged from the tank through the overflow weir plate, and the sludge is scraped from the periphery of the pool to the central sludge sump through the scraper plate. The sludge is discharged from the pool through the sludge discharge pipe depending on the water pressure in the pool.
Product features
1. Large processing capacity can save floor space.
2. The equipment only needs one motor, which saves energy and electricity consumption.
3. The sludge concentration that can be scraped is high and the sludge discharge effect is good.
4. The scraper has simple structure, safe and reliable operation and convenient maintenance.
5. Good adaptability, easy to realize full automatic control.
Order description
1. Please indicate when skimming device, outlet weir plate, scum baffle and outlet tank are required;
2. Indicate equipment material, anti-corrosion, motor and reducer requirements;
3. When ordering, please provide the civil engineering process drawing of the pool and indicate the detailed dimensions.
Parameter
| Model Number / Parameters | ZBG-16 | ZBG-20 | ZBG-25 | ZBG-30 | ZBG-35 | ZBG-40 | ZBG-45 | ZBG-50 | ZBG-55 | |
| Pool diameter Φ(m) | 16 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | |
| Deep pool depth H(m) | 3.5～4.5(According to the user's requirements) | |||||||||
| Pool side water depth H2(m) | 3.0～4.0(According to the user's requirements) | |||||||||
| Around the line speed v(m／min) | 2.0~3.0 | |||||||||
| Walking wheel dimensions (mm) | Φ400x120 | Φ120x450 | ||||||||
| power of motor N(KW) | 0.37 | 0.55 | 0.75 | |||||||
| installation size (mm) | Φ1 | 1100 | 1100 | 1200 | 1200 | 1500 | 1500 | 1800 | 1800 | 1800 |
| Φ2 | 2500 | 2500 | 2500 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 | |
| Φ3 | 2600 | 3000 | 3800 | 4500 | 4500 | 5000 | 5000 | 6000 | 6000 | |
| Φ4 | 2100 | 2300 | 3500 | 4000 | 4000 | 4000 | 4500 | 4500 | 4500 | |
| H2 | 500 | 500 | 600 | 760 | 760 | 760 | 760 | 760 | 760 | |
| B | According to the user's requirements | |||||||||
| H3 | According to the user's requirements | |||||||||
| L | According to the user's requirements | |||||||||
| Around the wheel pressure P1(KN) | 9.0 | 11.5 | 15 | 19 | 22 | 25 | 28 | 30 | 32 | |
| Vertical load of the central platform P2(KN) | 17 | 23 | 30 | 37 | 82 | 100 | 112 | 122 | 175 | |
| Center load of center load P3(KN) | 9.5 | 13 | 17 | 22 | 28 | 28 | 30 | 32 | 40 |
|
