chemical liquid automatic dosing system dyeing plant wastewater treatment equipment
The dosing system is a complete set of equipment integrating dosing, mixing, liquid transportation and automatic control. It is widely used in the raw water, boiler feed water, oilfield surface gathering and transportation dehydration treatment systems of power plants, various petrochemical dosing systems and wastewater treatment systems. Such as adding coagulant, phosphate, ammonia,lime water, corrosion inhibitor, scale inhibitor, bactericidal and algal killing agent, etc.
Working Principle

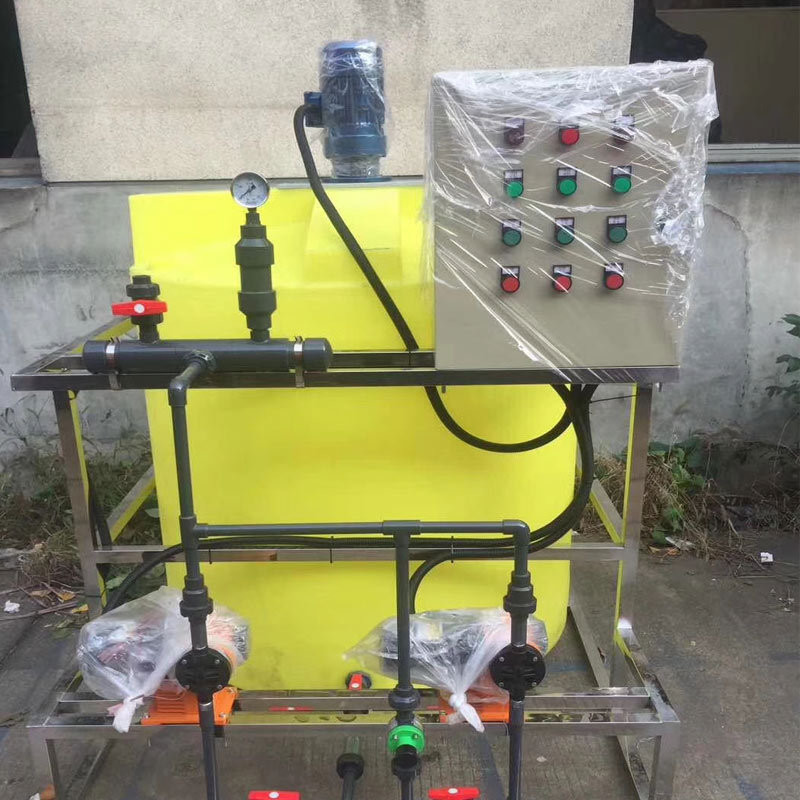

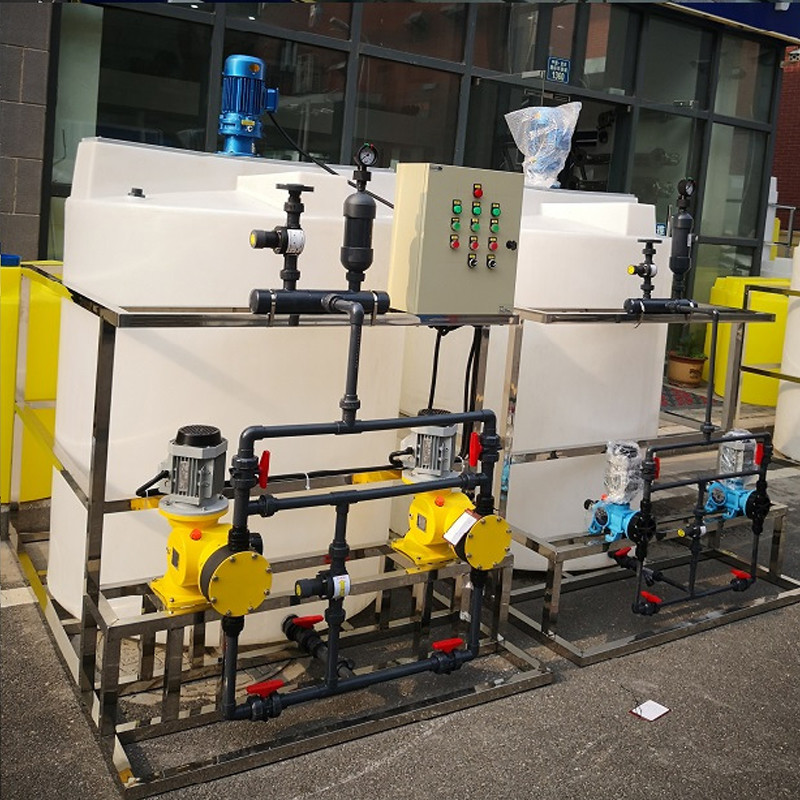

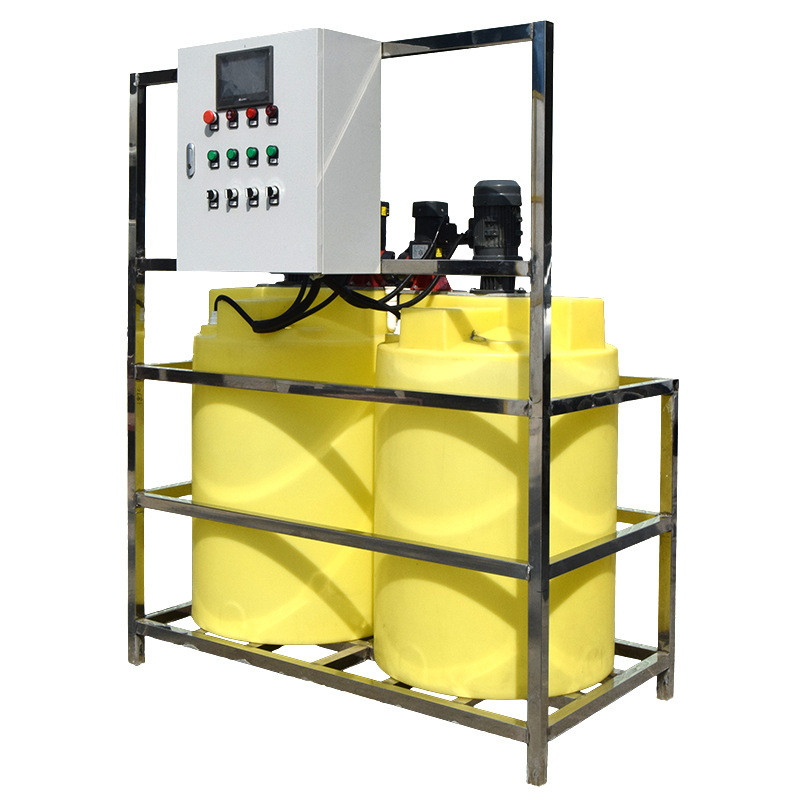

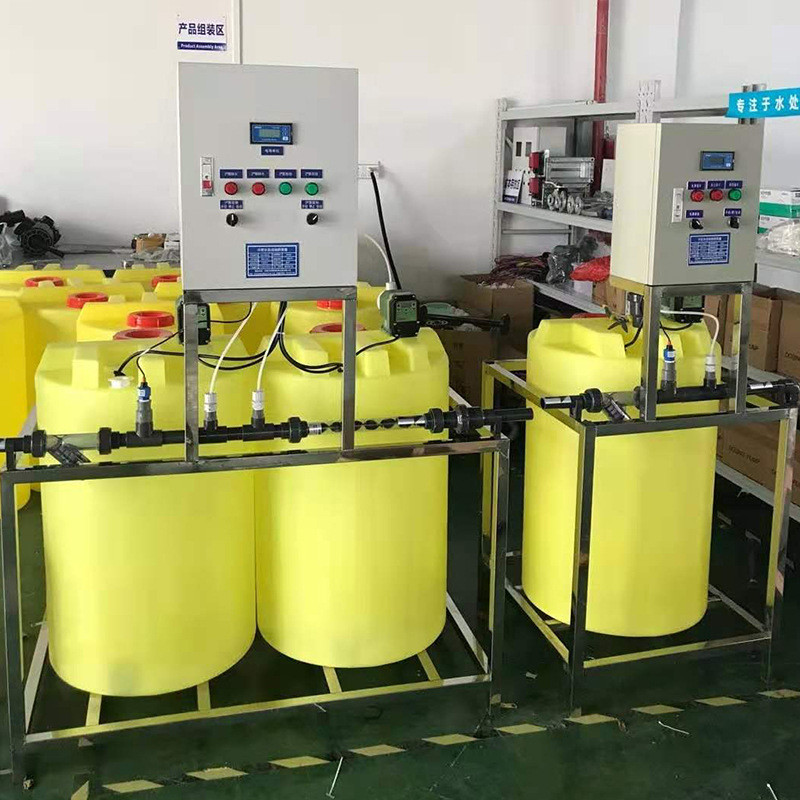

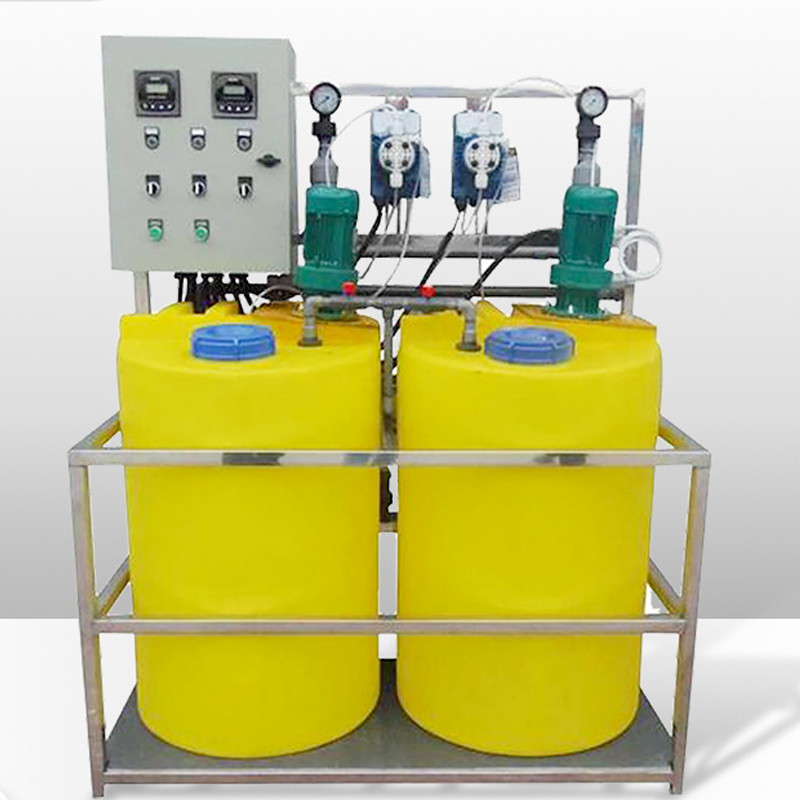

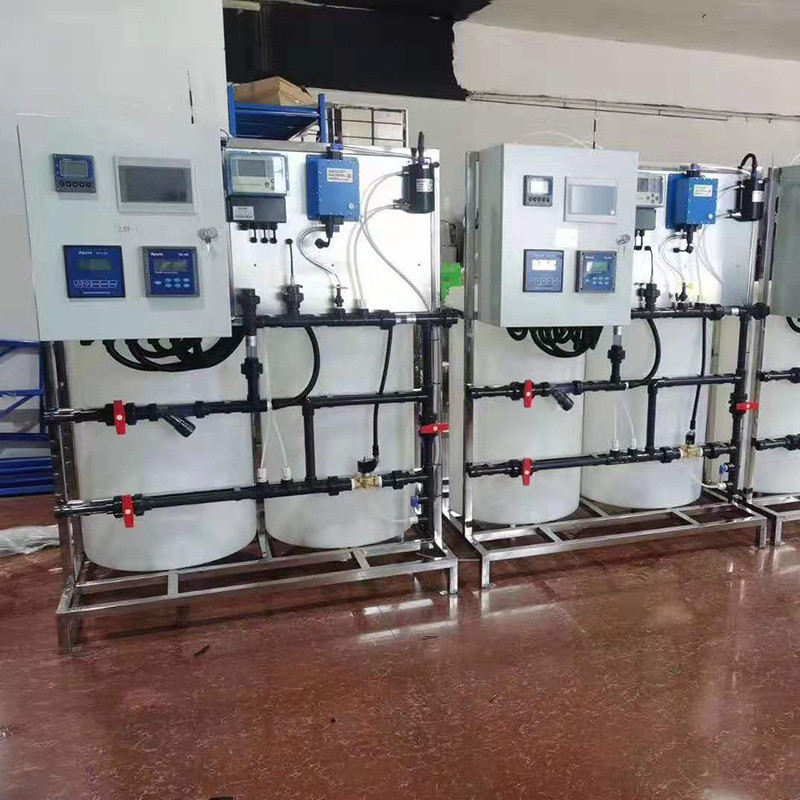

The dosing device is mainly composed of solution tank, agitator, metering pump, etc.The dosing device is configured in the mixing box according to the required reagent concentration. After being stirred evenly by the agitator, it is put into the solution tank, and the metering pump is used to transport the prepared solution to the dosing point or the designated system.The complete set of dosing device has the characteristics of compact structure, simple safety, simple operation, etc. The dosing device can also carry out targeted design, configure necessary components and realize automatic remote control and other functions according to different process requirements of users.
Application
1. It is used in thermal power plants, chemical industry, metallurgy, ships, central heating and other occasions where boilers are used.
2. It is used for pretreatment and dosing of tap water supply, mainly in urban waterworks, large-scale enterprises' own waterworks, textile printing and dyeing, steel, paper and other industries.
3. It is used for the dosing of wastewater and sewage treatment in environmental protection, mainly for the wastewater and sewage treatment in cities, industrial and mining enterprises, large hotels and restaurants.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |
FAQ
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
