Carbon steel sludge screw conveyor dry powder industrial spiral conveying equipment manufacturer
The screw conveyor is composed of three parts: the screw machine body, the material inlet and outlet and the drive device.
Screw machine body: composed of head bearing, tail bearing, suspension bearing, screw, casing, cover plate and base.
Driving device: composed of motor, reducer, coupling and base.
Working Principle
When the spiral shaft rotates, due to the gravity of the material and the friction between the material and the tank wall, the material can only be pushed along the conveyor.
The bottom of the groove moves forward. The movement of materials in the middle bearing depends on the thrust of materials moving forward behind. In order to keep the spiral shaft in a favorable tension state, the drive device and discharge port are generally placed at the same end of the conveyor, while the feed port is placed near the tail of the other end as far as possible.
Product Features
1. Simple structure and low cost.
2. Reliable work, simple maintenance and management.
3. Compact size, small section size and small floor area.
4. It can realize sealed transportation, which is conducive to the transportation of materials that are easy to fly, hot and have strong smell, reduce the pollution to the environment, and improve the working conditions of workers.
5. Convenient loading and unloading. The horizontal screw conveyor can be loaded and unloaded at any point on its conveying line.
Helical Blade Description
1. There are three types of spiral blades of screw conveyor: solid spiral, belt spiral and blade spiral. The solid spiral surface is called s method, and its spiral pitch GX is 0.8 times of the blade diameter. The LS type screw conveyor is suitable for conveying powdery and granular materials. The belt type spiral surface is also called the D method. Its spiral pitch is the same as the diameter of the spiral blade. It is suitable for conveying powdery and small pieces of materials. The blade type spiral surface is seldom used, and is mainly used to transport materials with high viscosity and compressibility. In the process of transportation, mixing and other processes are completed at the same time, and the spiral pitch is about 1.2 times of the diameter of the spiral blade.
2. The spiral blades of the screw conveyor have left and right rotation.
Model description
The types of screw conveyor include horizontal fixed screw conveyor and vertical screw conveyor. Horizontal fixed screw conveyor is the most commonly used type. The vertical screw conveyor is used to lift materials in a short distance. The conveying height is generally not more than 8m. The spiral blade is solid surface type. It must have horizontal screw feeding to ensure the necessary feeding pressure.
Parameter
| arameters | spiral Nominal diameter (mm) spiral dia (mm) |
Type | LS-200W | LS-250W | LS-300W | LS-350W | LS-400W |
| 200 | 250 | 300 | 350 | 400 | |||
| 185 | 235 | 285 | 320 | 385 | |||
| Capacity | installation angle | 0° | 1.5 | 3.6 | 6 | 8.4 | 11.7 |
| 5° | 1.35 | 3.24 | 5.4 | 7.56 | 10.53 | ||
| 15° | 1.05 | 2.52 | 4.2 | 5.88 | 8.19 | ||
| 25° | 0.9 | 2.16 | 3.6 | 5.04 | 7.02 | ||
| Spiral speed n(r/min) | 12 to 16 | ||||||
| Motor N(KW) | 0.75-5.5 (according to L and angle) | ||||||
| installation size(mm) | A | 0+40 | |||||
| B | 0 + 110 | ||||||
| Bi | Matching with corresponding equipment | ||||||
| L | According to user requirements | ||||||
| Li | Matching with corresponding equipment | ||||||
| l_2 | (L-1000)/2-(L-71000)/3 | ||||||
| L3 | 250 | 250 | 300 | 350 | 400 | ||
| H | Matching with corresponding equipment | ||||||
| Hi | 140 | 165 | 188 | 210 | 240 | ||
| H2 | H-150 | ||||||
| H3 | Matching with corresponding equipment | ||||||

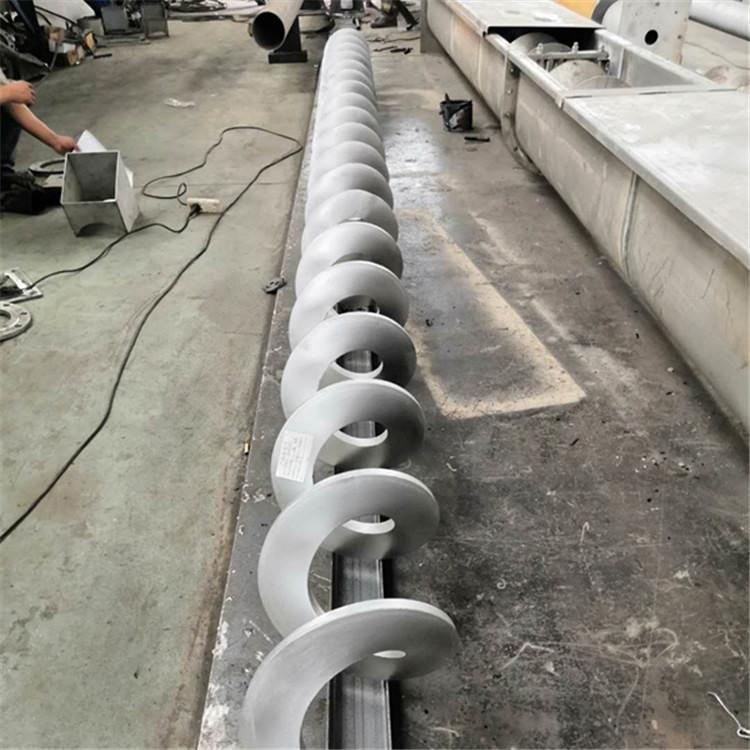

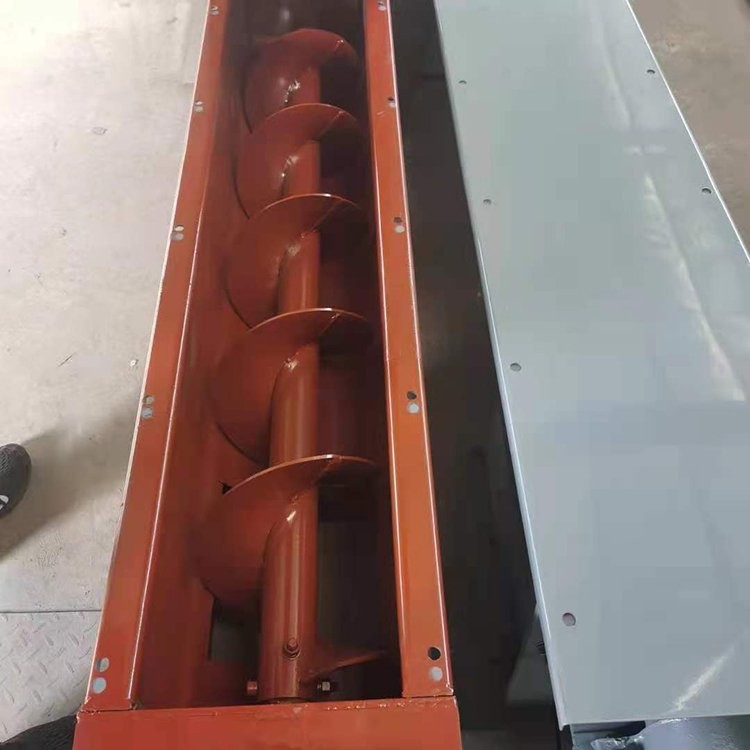

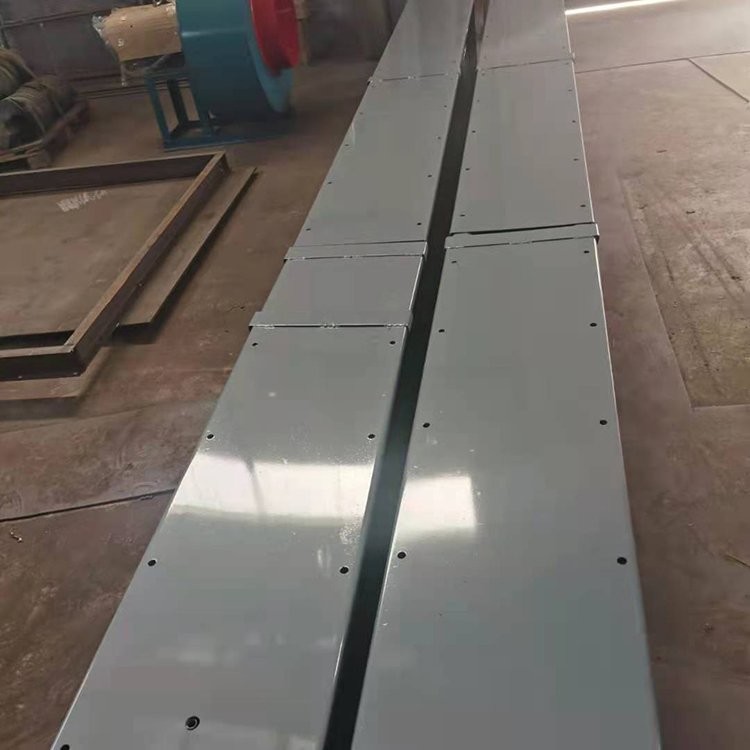

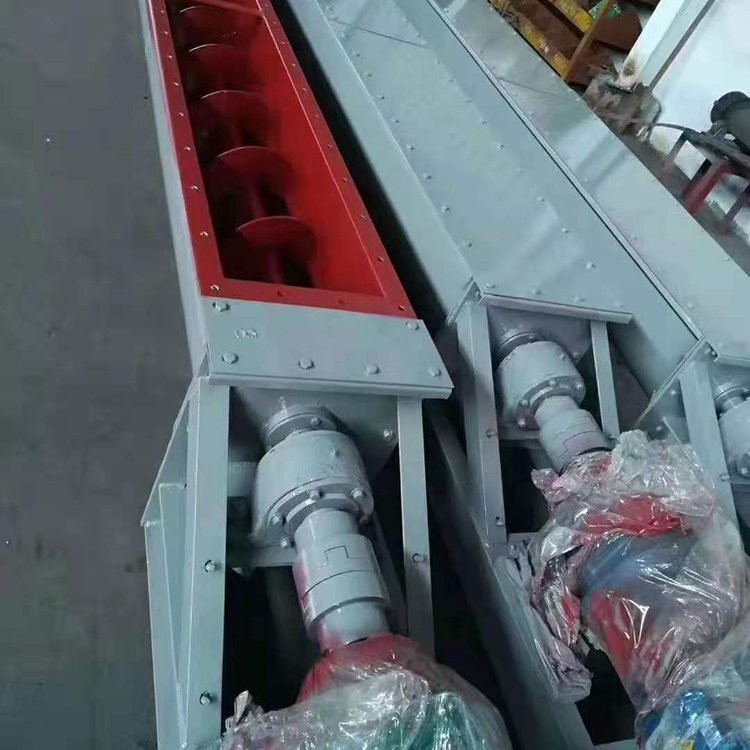

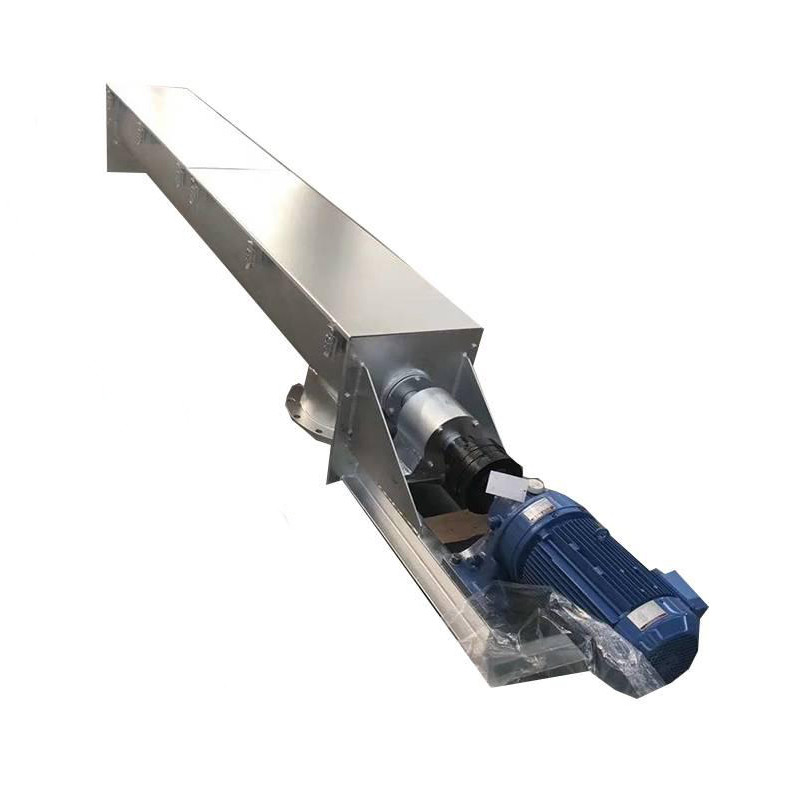

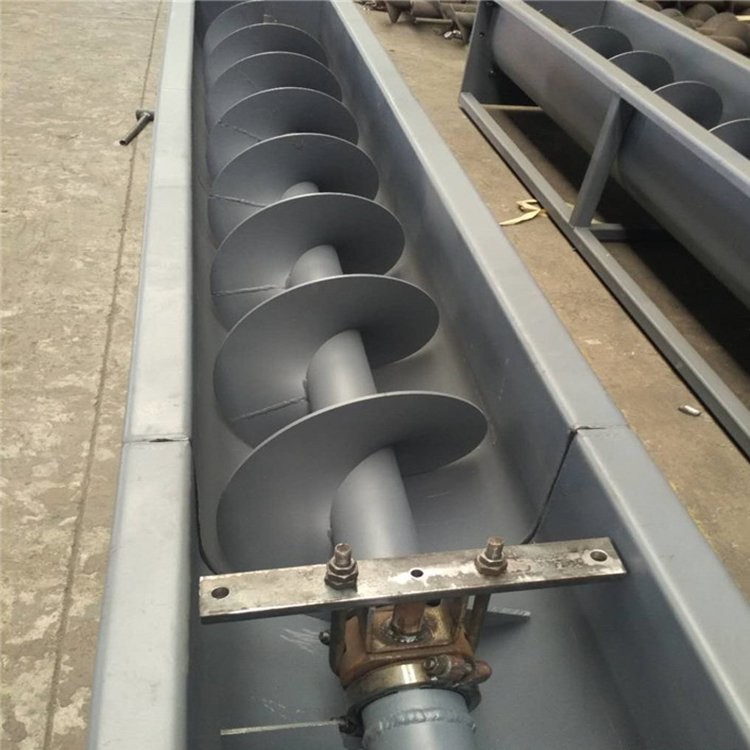

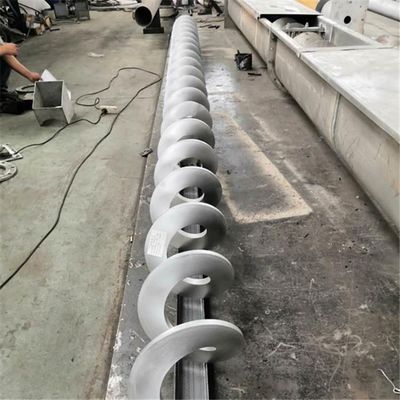

Real Picture
