Carbon Steel Activated Carbon SS304 Multimedia Filter Reclaimed Water Treatment

304 Stainless Steel Carbon Steel Automatic Quartz Sand Activated Carbon Multi-Media Filter Reclaimed Water Treatment

The full-automatic mechanical filter is applicable to industrial and mining enterprises and urban water supply treatment equipment that require that the turbidity of filtered water is generally within 5mg / L and can meet the drinking water quality standards. It has a good removal effect on suspended solids in industrial sewage. The suspended solids contained in the water condense into flakes, which can not be removed by the sedimentation method. The bonded colloidal particles can pass the water through the filter layer installed in the pressure filter to make the water transparent.
Mechanical filter, also known as pressure filter, is the pre-treatment of pure water preparation and an important part of waterpurification system. Its material is made of steel lined rubber or stainless steel. Due to different filling media of the filter,its purpose and function are different. Generally, there are quartz sand filter, activated carbon filter and manganese sand filter. It can be used alone or in combination according to the actual situation.

Process description

The mechanical filter is the pretreatment equipment of the water treatment system, which is applicable to the influent with turbidity of 1-10ntu; Objective to remove the suspended solids, particles and colloids in the water, reduce the turbidity and SDI value of the influent, and meet the influent requirements of the follow-up equipment of the demineralizer; The equipment can
recover its sewage interception capacity through periodic cleaning. It is widely used in reclaimed water reuse, tap water purification, sewage treatment, central heating, central air conditioning system, central heating system, heat exchange system,construction, electric power, metallurgy, rubber, papermaking and other industries.

The equipment is composed of body, water distribution device, water collecting device, external piping and instrument sampling device. The water inlet device is upper water inlet and baffle water distribution, and the water collecting device is perforated plate water filtering cap for water collection; The external piping of the equipment body is equipped with a valve and a pressure sampling interface, which is convenient for the user to install on site and realize the normal operation of the device.

The equipment is compact and easy to operate; The cleaning is simple, no bypass is required during cleaning, and the time is short; Large filtering area and high pollutant carrying capacity; The water temperature of the medium flowing through the equipment is not limited; Long service life, strong maintainability, easy installation and disassembly;
The backwashing of the equipment is gas-liquid mixed backwashing. The use of long handle filter head and the addition of compressed air during backwashing can improve the backwashing effect.

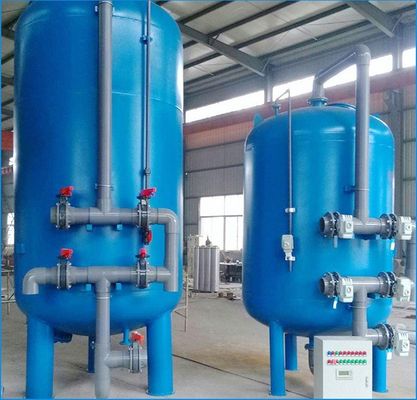

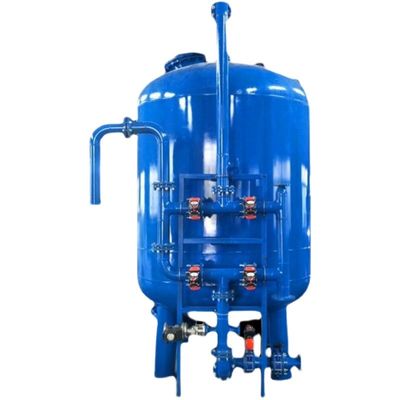

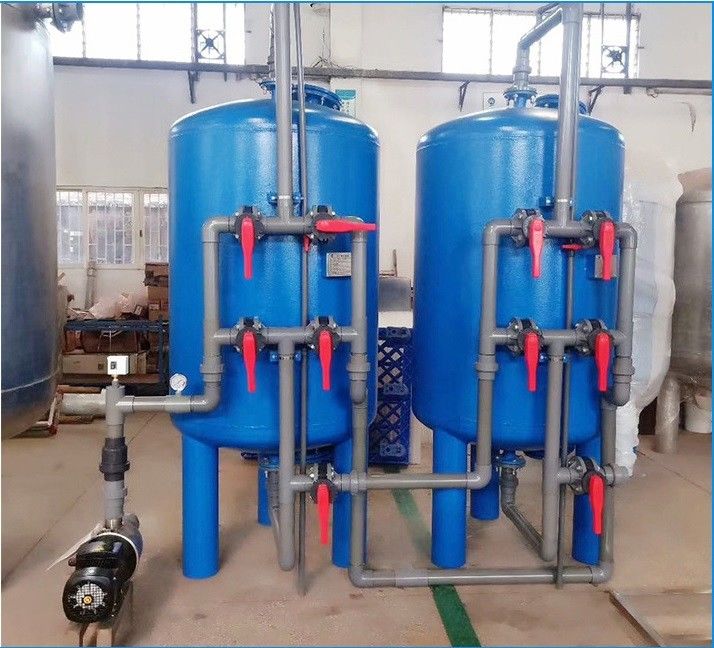

Real picture

Equipment installation

Before installation, check whether the civil foundation is constructed according to the design requirements.
The equipment shall be placed in place according to the design drawings, the outrigger sizing block shall be adjusted, and the levelness and verticality of the inlet and outlet flanges shall be checked.
Weld and fix the equipment and the embedded iron plate of the foundation, and verify the levelness and verticality of the inlet and outlet flanges again after fixing.
The piping of the equipment body shall be assembled according to the design drawing after being divided according to the number.The inner wall of each section of pipeline shall be cleaned with a clean cloth before assembly. After assembly, the piping axis shall be kept horizontal and vertical, and the valve orientation shall be reasonable (the handle of the manual valve shall face forward, and the starting head of the pneumatic valve shall face upward).
Check whether the body valve can be opened and closed flexibly, and rectify in time if there is a jam.
After the piping of the equipment body is completed, necessary support work shall be carried out for the valve group.
Install inlet and outlet water pressure gauges, sampling valves, etc. equipped on the equipment; If there is a flow probe seat on the water inlet and outlet pipe, it shall be blocked with a plug.
