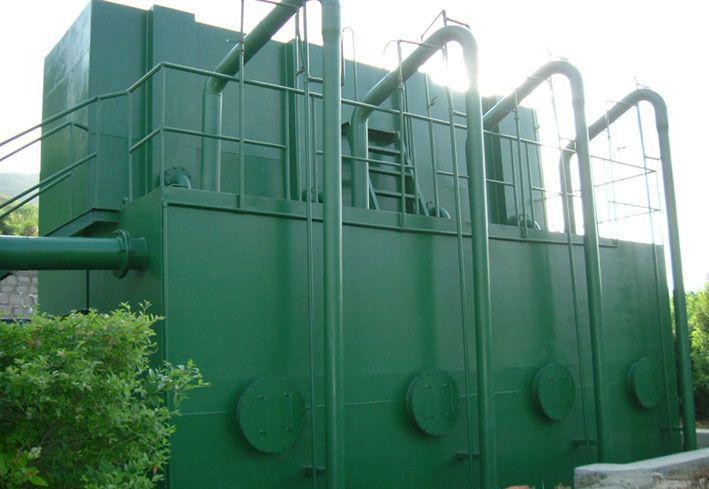

Subsequent Filtration of Organic Sewage Automatic Water Purification System
To customers:
All types of equipments can be customized according to your requirement. Please feel free to tell parameters, flow charts or other demands. Quick Reply will be delivered in 12 hours by email or online chat.
Parameters
| Specifications |
Water yield ( T / T) |
Pipe ping size (mm) | Equipment pipe orifice plane size (mm) |
Weight ( T. ) |
||||||||||
|
Ininlet pipe Diameter Dg1 |
Takeover Height H1 |
Outwater pipe Diameter Dg2 |
Takeover Height H2 |
Drainage pipe Diameter Dg3 |
Takeover Height H3 |
Φ1 | Φ2 | C | e | f | g | |||
| DLB 20-11 | 20 | 100 | 4710 | 100 | 400 | 300 | 300 | 1400 | 900 | 1134 | 755 | 655 | 215 | 21.9 |
| DLB 40-11 | 40 | 150 | 4810 | 150 | 450 | 300 | 360 | 1800 | 1000 | 1350 | 950 | 780 | 250 | 35.7 |
| DLB 60-11 | 60 | 200 | 4810 | 150 | 500 | 400 | 460 | 2240 | 1000 | 1540 | 1125 | 890 | 325 | 50.6 |
| DLB 80-11 | 08 | 200 | 4810 | 200 | 500 | 400 | 460 | 2460 | 1000 | 1636 | 1225 | 945 | 355 | 65.7 |
■ Presentation
Users only need to make the equipment foundation and connect the inlet and outlet water pipes as required to put it into operation. At the same time, the filter series products are equipped with a top cover, and the sanitary protection conditions are good. It can be set up in the open air, has a small weight compared with the reinforced concrete filter, and adopts a flexible foundation of asphalt sand.
■ Working Principal
When the filter tank is just put into operation, the filter material layer is relatively clean, but when it runs for a certain period of time, due to the gradual increase of solid particles in the filter material layer, the head loss also increases, and the water level slows down along the siphon riser. Slowly rise. When the head loss increases to a certain extent, the water level in the siphon riser rises to the nozzle of the siphon auxiliary pipe, and the water flows down rapidly from the auxiliary pipe, relying on the air entrainment and ejection of the water flow. The air in the siphon tube is continuously taken away through the suction tube, so that the siphon tube forms a vacuum, and the water in the siphon rising tube passes over the top of the tube in a large amount and falls along the siphon down tube. At this time, the backwashing process begins.
Application

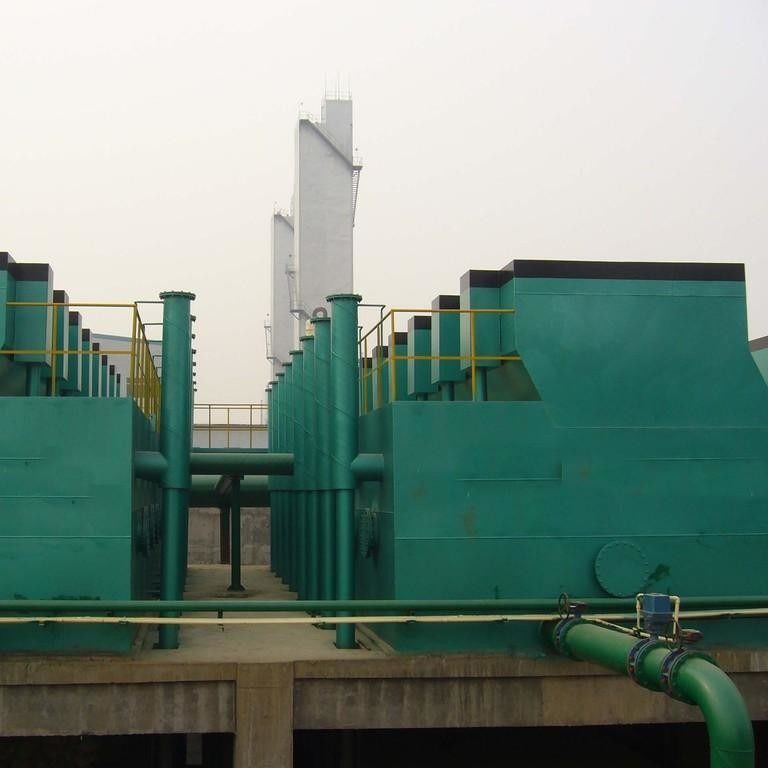

Gravity valveless filters are widely used in surface water purification, groundwater removal of iron and erbium, circulating water side-stream filtration, production wastewater removal of suspended impurities, subsequent filtration of organic sewage after biochemical treatment and secondary sedimentation tank treatment, and indoor swimming pool water The filtration is an ideal water treatment equipment.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
Why Choose Us?
1. Longdai has more than 10 years of experience in wastewater and sludge treatment.
2. We introduce German technology, thus our product is much better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
