China Circulating Water Side-Stream Filtration Valveless Filter Tank
Brief Introduction
Located in Yixing, an advanced and beautiful city of Jiangsu Province, China, Longdai Co., Ltd is a processing equipment supplier of petrochemical industry specialized in environmental processing &integrating independent research and development, design, general contracting, environmental protection equipment manufacturing, and relevant material supply.
Application
Gravity valveless filters are widely used in surface water purification, groundwater removal of iron and erbium, circulating water side-stream filtration, production wastewater removal of suspended impurities, subsequent filtration of organic sewage after biochemical treatment and secondary sedimentation tank treatment, and indoor swimming pool water The filtration is an ideal water treatment equipment.
Parameters
| Specifications |
Water yield ( T / T) |
Pipe ping size (mm) | Equipment pipe orifice plane size (mm) |
Weight ( T. ) |
||||||||||
|
Ininlet pipe Diameter Dg1 |
Takeover Height H1 |
Outwater pipe Diameter Dg2 |
Takeover Height H2 |
Drainage pipe Diameter Dg3 |
Takeover Height H3 |
Φ1 | Φ2 | C | e | f | g | |||
| DLB 20-11 | 20 | 100 | 4710 | 100 | 400 | 300 | 300 | 1400 | 900 | 1134 | 755 | 655 | 215 | 21.9 |
| DLB 40-11 | 40 | 150 | 4810 | 150 | 450 | 300 | 360 | 1800 | 1000 | 1350 | 950 | 780 | 250 | 35.7 |
| DLB 60-11 | 60 | 200 | 4810 | 150 | 500 | 400 | 460 | 2240 | 1000 | 1540 | 1125 | 890 | 325 | 50.6 |
| DLB 80-11 | 80 | 200 | 4810 | 200 | 500 | 400 | 460 | 2460 | 1000 | 1636 | 1225 | 945 | 355 | 65.7 |
■ Presentation

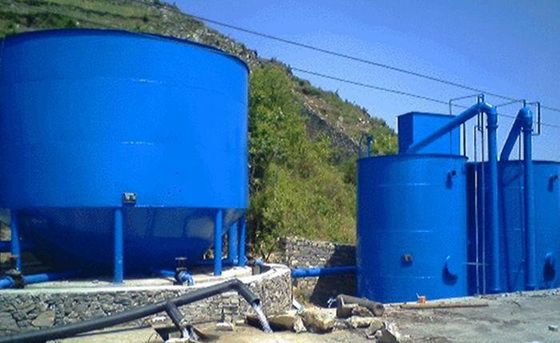

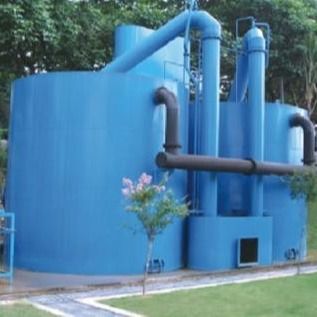

Users only need to make the equipment foundation and connect the inlet and outlet water pipes as required to put it into operation. At the same time, the filter series products are equipped with a top cover, and the sanitary protection conditions are good. It can be set up in the open air, has a small weight compared with the reinforced concrete filter, and adopts a flexible foundation of asphalt sand.
■ Working Principal
When filtering, the muddy water enters the siphon rising pipe through the water inlet distribution tank, the water inlet pipe, and after passing through the baffle under the umbrella-shaped top cover, it is evenly distributed on the filter material layer, and enters through the supporting layer and the small resistance water distribution system. Bottom water distribution area. The filtered water rises to the flushing water tank through the connecting channel. When the water tank level reaches the overflow weir at the outlet of the canal, it overflows into the canal and finally flows into the clear pool.
The process of filtration is: the clear water after precipitation or clarification enters the siphon rising pipe from the water distribution tank and the U-shaped water inlet pipe, and then distributes the water evenly in the filter material layer by the water distribution baffle in the top cover. Filtered through the filter layer from top to bottom, filtered water enters the catchment area from the low-resistance water distribution system, and then flows to the flushing water tank through the connecting channel. When the water level rises to the outlet pipe, the filtered water flows into the clean water tank.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
Why Choose Us?
1. Longdai has more than 10 years of experience in wastewater and sludge treatment.
2. We introduce German technology, thus our product is much better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
