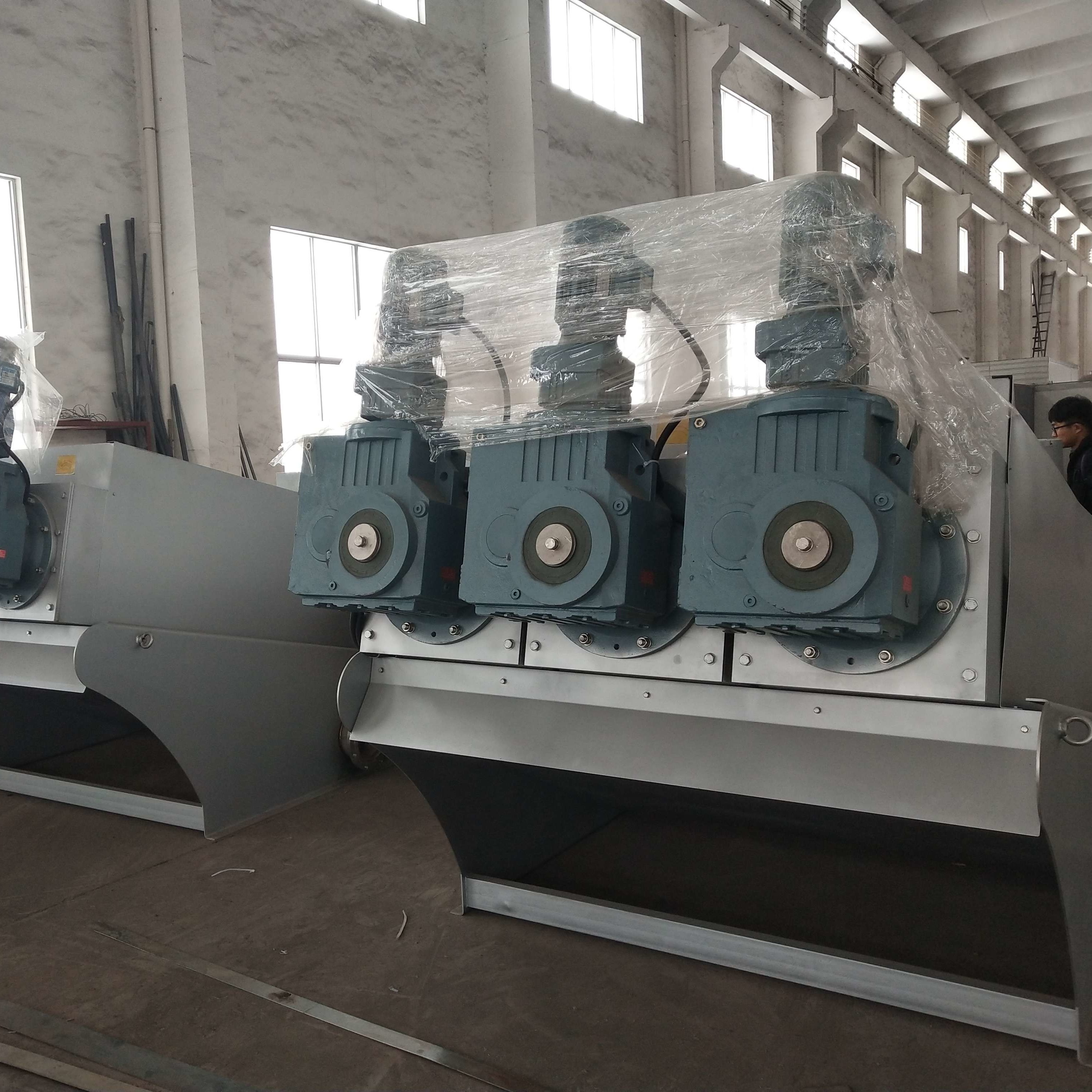

sludge dehydrator system Integrated Machine Sludge Dewatering Machine sludge dewatering equipment
Business Introduction
Our business involves petrochemical industry treatment equipment, municipal water affairs, urban sewage treatment equipment, industrial sewage treatment equipment, domestic sewage treatment equipment, pure water equipment, reverse osmosis equipment, water supply purification, waste gas pollution treatment areas.
Main Features
it's clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction. MDS using screw and the moving rings to clean itself as clog-free structure, and controlled by the PLC automatically, it's a new technology that can replace the traditional filter press like belt press and frame press, the screw speed is very low, so it cost low power and water consumption in contrast to the centrifuge, it is a cutting edge sludge dewatering machine.
Application
Suitable for sludge dewatering in various industries such as municipal sewage, food, chemical industry, leather, papermaking, printing and dyeing, petroleum, pharmaceuticals, slaughter, etc.
Parameters
| Specification and dimension Model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | |
|
Handling capacity (m3／h) |
Ind concentration S．S．0.2～0.5％) |
0.6~1.5 | 1.2~3.0 | 1.8~4.5 | 3.6~9.0 | 6.0~15 | 12~30 |
|
Ind concentration (S．S．0.5～2.0％) |
0.25~0.6 | 0.5~1.2 | 0.75~1.8 | 1.5~3.6 | 2.5~6.0 | 5.0~12 | |
|
Ind concentration (S．S．2.0～5.0％) |
0.1~0.25 | 0.2~0.5 | 0.3~0.75 | 0.6~1.5 | 1.0~2.5 | 2.0~5.0 | |
|
Exdry amount (kg／h) |
Ind concentration (S．S．0.2～0.5％) |
0~3.0 | 2.4~6.0 | 3.6~9.0 | 7.2~18 | 12~30 | 24~60 |
|
Ind concentration (S．S．0.5～2.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | |
|
Ind concentration (S．S．2.0～5.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | |
| Water content of mud cake (％) | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | |
| Spirical Didiameter (mm)x Quantity (root) | 100x1 | 100x2 | 200x1 | 200x2 | 300x1 | 300x2 | |
| Power power(KW) | 0.2 | 0.3 | 0.6 | 0.8 | 0.8 | 1.2 | |
|
contour size of the unit(s) (ww) |
L | 1816 | 1816 | 2500 | 2500 | 3255 | 3455 |
| W | 756 | 910 | 850 | 935 | 985 | 1295 | |
| H | 1040 | 1040 | 1270 | 1270 | 1600 | 1600 | |
| Reference Weight(kg) | 190 | 275 | 360 | 470 | 820 | 1350 | |
Structure and Working Principle
The core part of the screw sludge dewatering machine is one or several groups of filter units composed of a screw drive shaft, multiple fixed laminations and multiple floating laminations. Each filter unit is divided into two parts: concentration section and dehydration section. From the sewage inlet of the concentration section to the mud cake outlet of the dewatering section, the pitch of the screw shaft gradually decreases, and the gap between the fixed ring and the moving ring gradually changes. small. There is a back pressure plate at the sludge outlet to adjust the pressure in the spiral cavity. The spiral sludge dewatering machine completes the thickening and squeezing and dewatering of the sludge in one cylinder, replacing the traditional filter cloth and centrifugal filtration method with a unique and subtle filter body mode.
Working Principle
1. Thickening: When the screw drive shaft rotates, the multiple solid and active laminations arranged on the periphery of the drive shaft move relative to each other. Under the action of gravity, water is filtered out of the relatively moving lamination gap to achieve rapid concentration.
2. Dewatering: The concentrated sludge moves forward with the rotation of the screw shaft; along the direction of the mud cake outlet, the pitch of the screw shaft gradually decreases, and the gap between the rings gradually decreases, and the volume of the spiral cavity Constantly shrinking; under the action of the back pressure plate at the outlet, the internal pressure gradually increases. Under the continuous continuous operation of the screw drive shaft, the water in the sludge is squeezed and discharged, and the solid content of the filter cake continues to increase, finally achieving sludge Continuous dehydration.
3. Self-cleaning: The rotation of the screw shaft pushes the moving ring to continuously rotate. The equipment relies on the movement between the fixed ring and the moving ring to achieve a continuous self-cleaning process, thereby cleverly avoiding the common blocking problem of traditional dehydrators.
Packing and Delivery

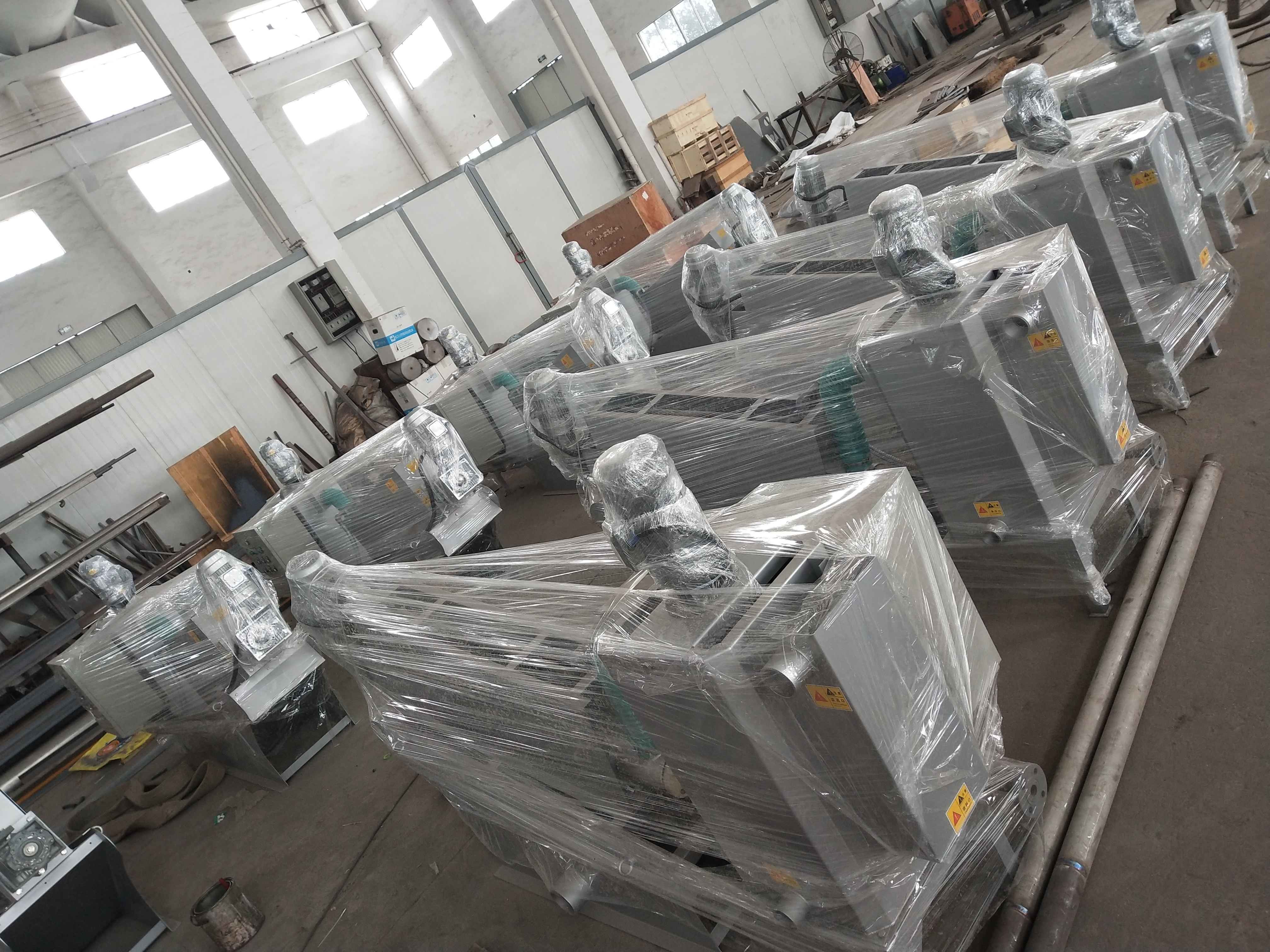

1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time? What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
