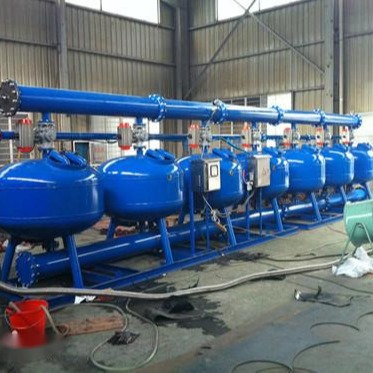

Industrial Wastewater Treatment Absorbing Sand Filter Dirt Interception Cleaning
To Our Customers:
We are not professional in the picture beautifying, but we are engaged in manufacturing almost all kinds of wastewater treatment equipments. Any question, please feel free to contact us. Thanks.
Application
1. Filtration of industrial water---There are certain system requirements for water quality. Such as: oxygen lance water in steel mills, boilers, heat exchanger water supply filtration, etc., can filter out impurities in the water and avoid the blockage of several nozzles in the pipeline.
2. Filtration system for industrial circulating water.
3. Raw water treatment --- can filter surface river water, lake water, sea water, reservoir water, well water and urban tap water as the water source of urban subdivision quality water supply, etc., to remove sand, suspended matter, algae, organic matter, etc. in the water.
4. Agricultural irrigation---especially suitable for water sources with high flow and good impurity content, such as irrigation of farmland water conservancy, irrigation of lawns in parks and golf courses, etc.

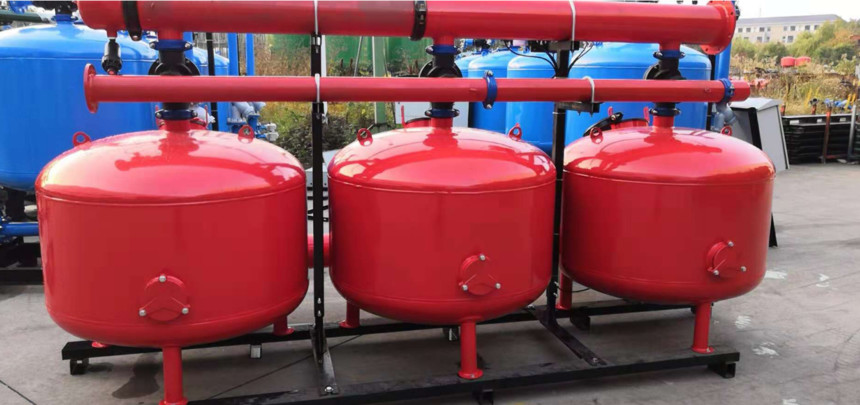

Structure and Working Principle
The filter material should be used for dirt interception cleaning. When the filter material retains excessive mechanical impurities and affects its normal operation, the filter is equipped with a backwash mechanism and the filter material is backwashed. Use reverse water inflow to loosen the sand filter layer in the filter, so that the retentate adhering to the surface of the filler can be peeled off and taken away by the backwash water flow, which is beneficial to remove the sediment and suspended matter in the filter layer and prevent the filter material hardening makes it fully recover the dirt interception ability, so as to achieve the purpose of cleaning.
Parameters
| specifications and models |
imports and exports DN/mm |
Backwash import and export DN/mm |
Drain outlet DN/mm |
Straight straight H/mm |
overall height H/mm |
Direct cylinder section H1/mm |
Rate of flow m3/h |
| KY-QCS-800 | 50 | 50 | 50 | 800 | 1630 | 009 | 20 |
| KY-QCS-1000 | 08 | 08 | 50 | 1000 | 1790 | 009 | 30 |
| KY-QCS-1200 | 100 | 100 | 65 | 1200 | 1970 | 009 | 44 |
| KY-QCS-1400 | 125 | 125 | 65 | 1400 | 2240 | 009 | 60 |
| KY-QCS-1600 | 125 | 125 | 08 | 1600 | 2340 | 009 | 80 |
| KY-QCS-1800 | 150 | 150 | 08 | 1800 | 2500 | 600 | 100 |
| KY-QCS-2000 | 150 | 150 | 100 | 2000 | 2650 | 600 | 120 |
| KY-QCS-2200 | 150 | 150 | 100 | 2200 | 2750 | 600 | 156 |
| KY-QCS-2400 | 150 | 150 | 100 | 2400 | 2880 | 009 | 180 |
| KY-QCS-2600 | 150 | 150 | 125 | 2600 | 2950 | 600 | 220 |
| KY-QCS-2800 | 150 | 150 | 125 | 2800 | 3120 | 009 | 250 |
| KY-QCS-3000 | 200 | 200 | 150 | 3000 | 3230 | 600 | 300 |
| KY-QCS-3200 | 250 | 250 | 150 | 3200 | 3650 | 009 | 400 |
Main Features
1. Water Quality Parameters:
Inflow turbidity＜50NTU, Outflow turbidity＜10NTU,
2. Work Condition Parameters:
(1)Working Temperature: 5-60℃(Temperature is customized)
(2)Working Pressure: ≤0.6MPa
(3)Differential Pressure(In and Out): 0.05Mpa
3. Operating Parameter:
(1)Working Type: Pressure Type
(2)Operating Type: water flows from top to bottom
(3)Filter Speed: 40m/h (Max to 60m/h)
(4)Backwashing water consumption: ＜1%
(5)Backwashing Time: 2-3min.
4. Body Material: Stainless Steel, Carbon Steel Rubber Liner or Epoxy Coated
5. Operating Method: Manual, Electric, Pneumatic
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
