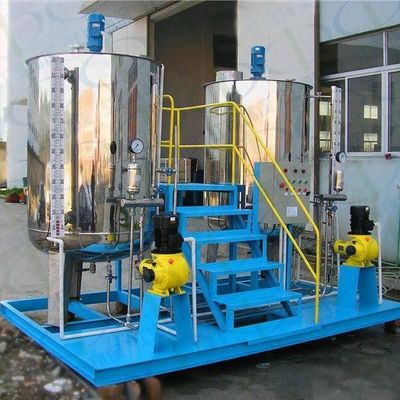

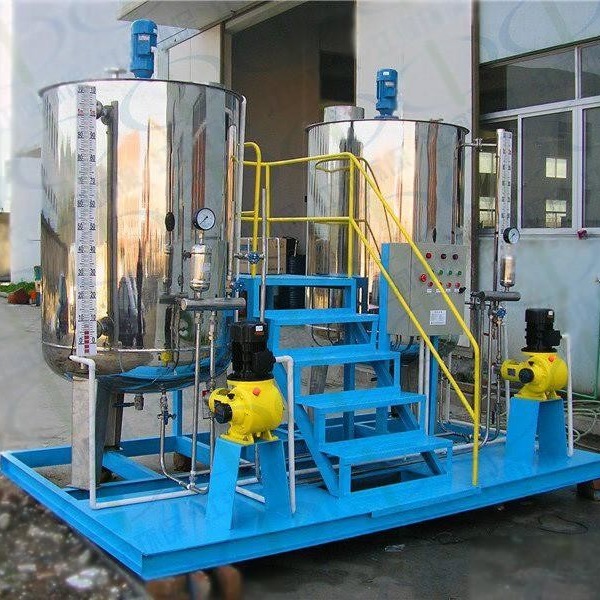

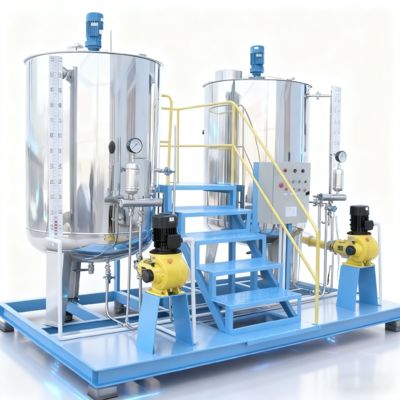

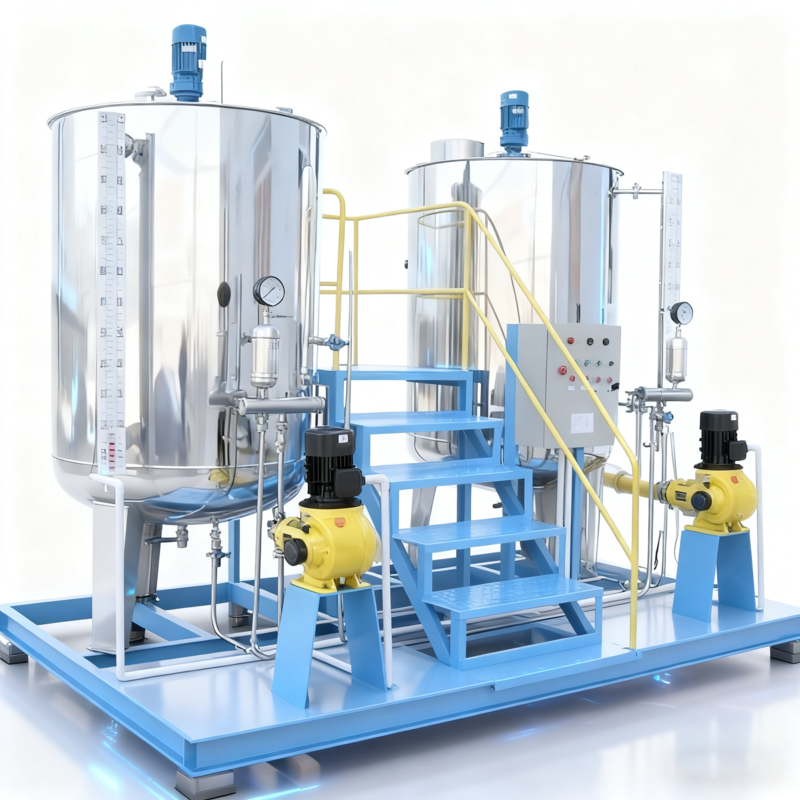

Municipal 500L/h Automatic Dosing Machine Stainless Steel
Brief Introduction
Located in Yixing, an advanced and beautiful city of Jiangsu Province, China, Longdai Co., Ltd is a processing equipment supplier of petrochemical industry specialized in environmental processing &integrating independent research and development, design, general contracting, environmental protection equipment manufacturing, and relevant material supply.
■ Application
QJY type automatic dosing machine is widely used as auxiliary equipment for municipal water treatment and sewage sludge treatment. It can continuously and efficiently complete the compounding and mixing of polymers to obtain a homogeneous active polymer solution.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | QJY-4000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | 1450x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | 0.55 x 2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 | 3.0-5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 | 1450 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | 1350 | |
Structure and Working Principle
The device adopts a jet mixer to disperse the medicine or powder with high-speed water power to increase the fineness, increase the contact between the medicine or the powder and water, and reduce the dissolution time. The equipment is prepared by a three-tank overflow combination, Maturation and dosing, use gravity and solubility to produce the difference in the specific gravity of the solution, automatically separate the dissolved and undissolved ones, and then stir them with a low-speed stirrer to improve the uniformity of the solution.
■ Main Features
1. Three-tank integrated continuous preparation, easy to operate and maintain.
2. Dry powder or liquid polymer can be double fed to meet different needs.
3. The PLC runs fully automatically, saving labor.
4. A screw pump or a metering pump can be used for the pharmaceutical dosing (the former is conventionally used), and the measurement is accurate and adjustable.
5. The equipment has no base and fixed, exquisite appearance and easy maintenance.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
