China PD Screw Belt Type Conveyor Dewatering Machine Large Conveying Capacity Satinless Steel Used For Water Treatment
To Our Customers:
All types of equipments can be customized according your requirement. Please feel free to tell your parameters, flow charts or other demands. Quick Reply will be delivered in 12 hours by email or online chat.
Application
The characteristics of the belt conveyor equipment: the belt conveyor conveys smoothly, the material and the conveyor belt have no relative movement, which can avoid the damage to the conveyed material. Low noise, suitable for occasions where the working environment requires relatively quiet. The structure is simple and easy to maintain. Low energy consumption and low use cost.
Parameters
| Model | PD-500 | PD-650 | PD-800 | PD-1000 | ||
| 500 | 650 | 800 | 1000 | |||
| Transmission bandwidth B(mm) | ||||||
|
Delivery value Q (m3/h) |
Installation angle α(°) |
0.0 | 25.0 | 32.0 | 50.0 | 75.0 |
| 10.0 | 22.5 | 28.8 | 45.0 | 67.5 | ||
| 15.0 | 18.75 | 24.0 | 37.5 | 56.25 | ||
| 20.0 | 15.0 | 19.2 | 30.0 | 45.0 | ||
| Tape speed V(m／s) | 0.6~1.0 | |||||
| Power of motor N(KW) | 0.75～22.0(Depending on the L, the) | |||||
| Electric drum diameter D(mm) | 220,240,315,400,500(Depending on the L, the) | |||||
| Installation size (mm) | B1 | B+250 | ||||
| L | According to the user's requirements | |||||
| 工 | According to the user's requirements | |||||
| H1 | H+80+(D/2) | |||||
Structure and Working Principle
The equipment adopts a continuous trough belt type. The material falls on the conveyor belt from the bar or the discharge port of the dewatering machine. Driven by the electric drum, the material moves from one end to the other, and the end is connected with the trash can to deal with.
Main Features
1. The equipment is reliable in operation, with large conveying capacity, long conveying distance, multi-point loading materials and continuous conveying, etc.
2. The driving device adopts oil-cooled electric drum, with protection grade IP55, compact structure, small floor space and easy maintenance.
3. The equipment adopts spiral tensioning device to ensure the safe, reliable and effective operation of the conveyor belt.
4. Conveyor belt material is butyl rubber, and adopts vulcanization connection method, which is convenient for cleaning, corrosion resistance and long life.
5. There are slag baffles on both sides of the upper trough-shaped supporting rod, so that the slag sewage does not flow and overflow, and the environment is clean.
6. Easy operation, no blockage, convenient maintenance, can be arranged horizontally, and can be conveyed at an inclined angle. It is an ideal equipment for conveying grille slag.

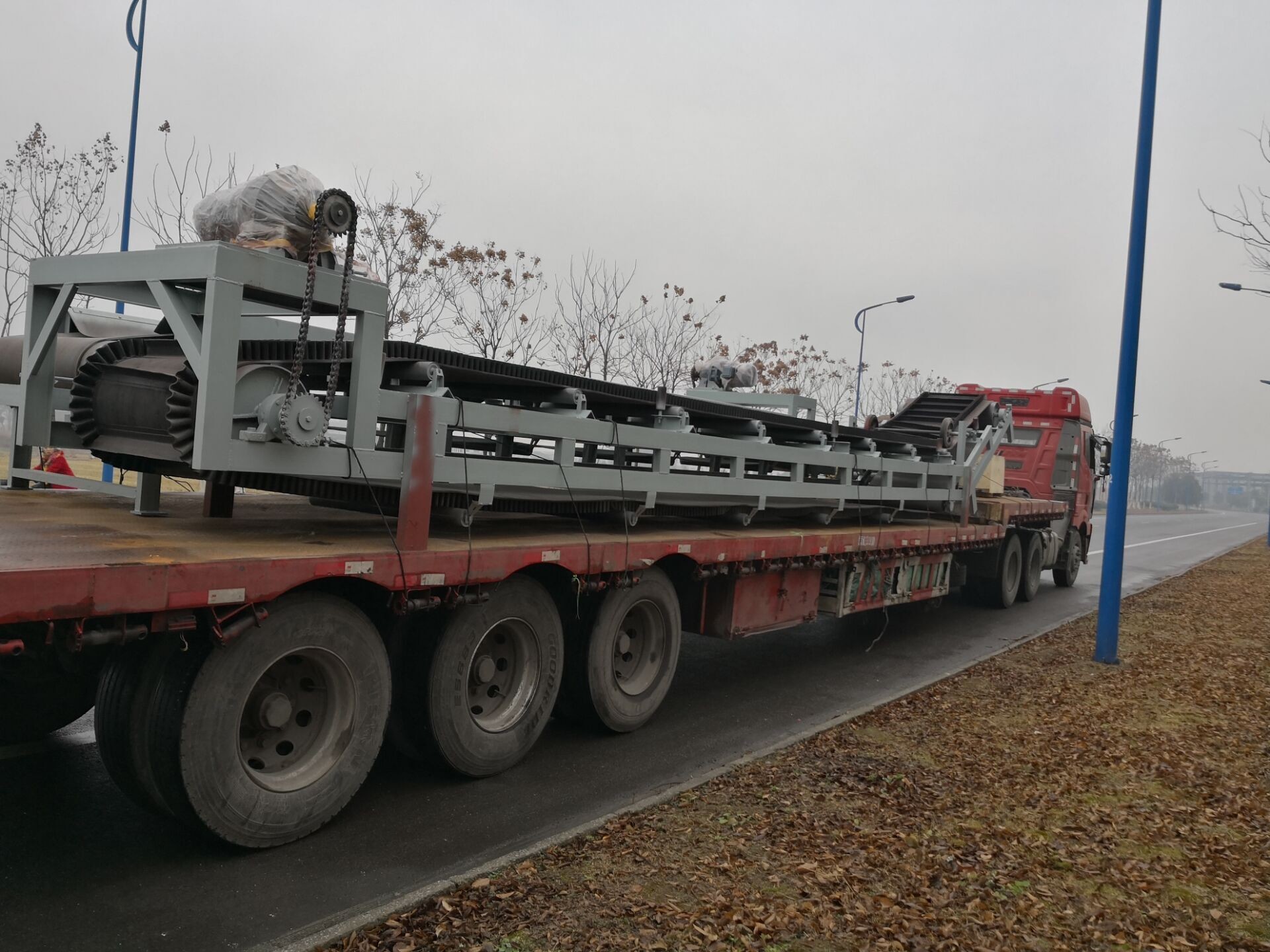

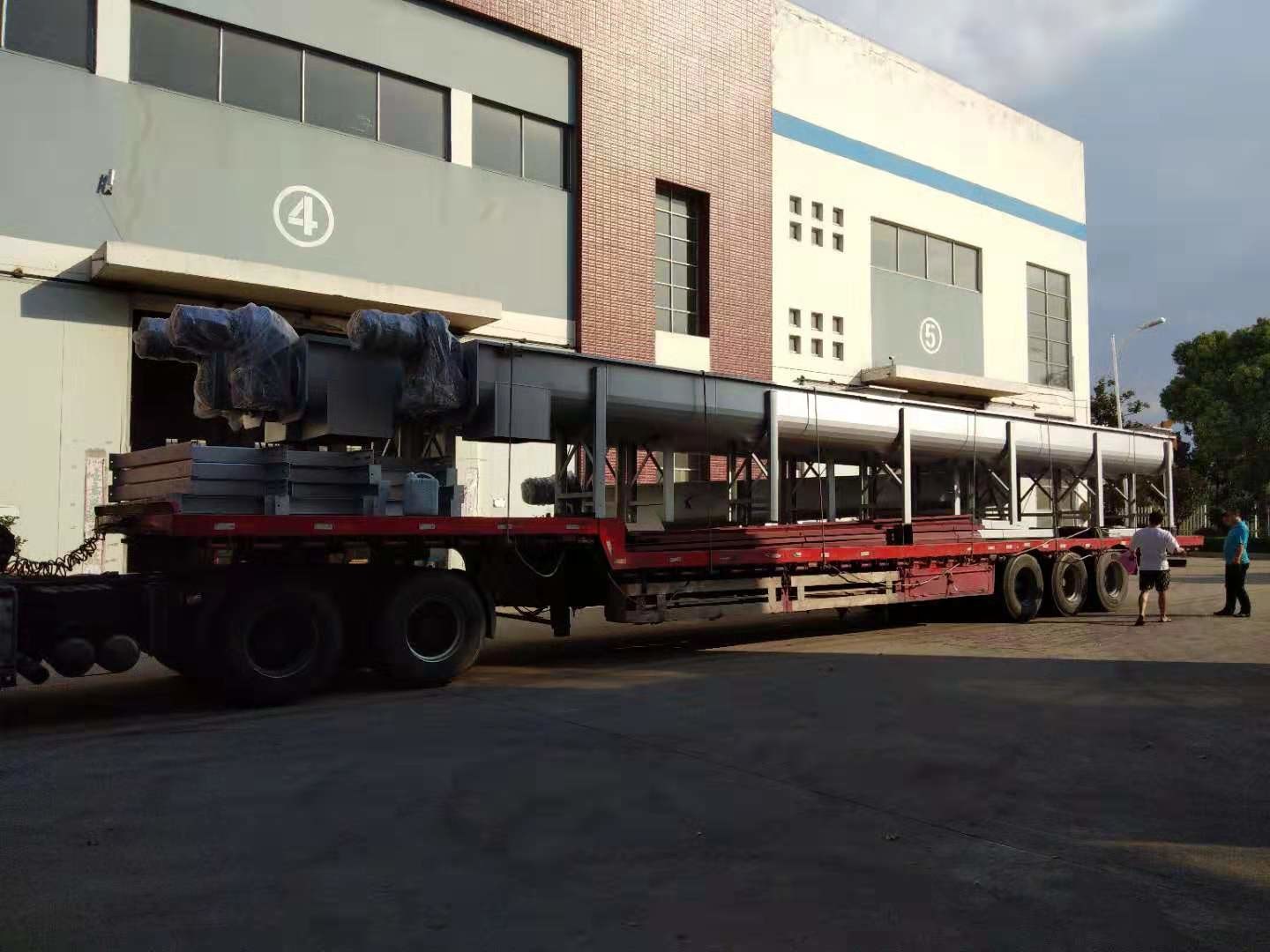

Packing and Delivery
Why Choose Us?
1. Longdai has more than 10 years of experience in wastewater and sludge treatment.
2. We introduce German technology, thus our product is much better than other Chinese manufacturers.
3. We only use the best parts from best supplier.
4. We have our own R&D center and complete manufacture system.
FAQ:
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
