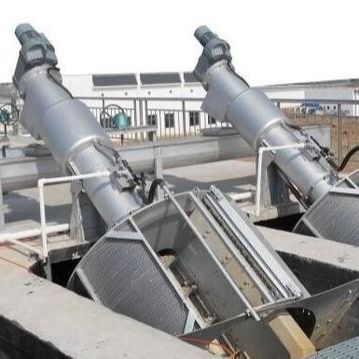

China ZG High-Efficiency Rotary Drum Screen for Wastewater Treatment
To Our Valued Customers:
We prioritize authenticity over artificial enhancement. All product images are captured in real-world settings—either at project sites or within our manufacturing workshop. Our expertise lies in producing a comprehensive range of wastewater treatment equipment. Should you have any inquiries, please do not hesitate to contact us. Thank you.
Applications
The ZG series represents an innovative integration of three key functions: fine screening, residue lifting, and compaction. Suitable for installation in channels or containers, this unit is designed for municipal and industrial wastewater treatment plants to effectively intercept and manage solid waste.
Key Parameters and Installation Dimensions
| Model | ZG600 | ZG780 | ZG1000 | ZG1400 | ZG2200 | ZG2600 | ZG3000 |
|---|---|---|---|---|---|---|---|
| Gap = 6mm | 53 | 130 | 200 | 419 | — | — | — |
| Gap = 10mm | 91 | 600 | 241 | 482 | 1315 | 2150 | 2750 |
| Drum Ø (mm) | 600 | 780 | 1000 | 1400 | 2200 | 2600 | 3000 |
| Channel Width (mm) | 620 | 820 | 1020 | 1440 | 2440 | 2640 | 3040 |
Additional Dimensions & Specifications
*(Note: Dimensions such as L, A, h, k, W, a–A, b, c, MaxP1, Load P2, and Motor Power are model-specific. Please consult our technical team for detailed configuration support.)*
Structure & Working Principle
The drum screen basket, constructed with precisely spaced bars, is engineered to optimize filtration. Wastewater enters from the front of the drum, passes through the screen, and exits through the outlet. Solid waste is retained on the inner surface of the screen.
When the differential water level reaches a preset threshold, a motor-driven rotary rake mechanism activates. The rake cleans the screened material and lifts it to the top of the drum. Most debris discharges by gravity into a collection hopper; adhered residues are removed by an automatic wiper blade. A integrated screw conveyor then lifts, compacts, and dewaters the waste before final discharge.
Key Features
High Capture Efficiency: The 35° screen inclination and curved design create a self-baffling effect, trapping even fine particulates smaller than the bar spacing.
Self-Cleaning Function: Equipped with integrated spray wash, anti-jamming rakes, and an automatic cleaning blade for continuous operation.
Optimized Hydraulics: The cylindrical structure increases effective screening area, reduces head loss, and minimizes upstream solids buildup.
Corrosion-Resistant Construction: All wetted parts are manufactured from acid-passivated stainless steel, ensuring longevity in harsh sewage and industrial effluent environments.
Space-Saving Integration: Combining screening, conveying, and dewatering into one compact system reduces footprint and downstream handling costs.
Low Maintenance Design: Sealed rotational components require minimal lubrication, and the drive unit operates with extended service intervals.
Outline and Installation Chart
Technical Requirements
1. The channel width and channel depth should be flat, and the dimensional tolerance should be≤ 10mm.
2. The equipment is fixed with expansion bolts on site.
