| Place of Origin: | jiangsu China |
| Brand Name: | longdai |
| Certification: | ISO9001 |
| Model Number: | LD-401 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 25 days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2600 sets per Years |
| Product Name: | Sludge Dewatering Screw Press Machine | Application: | Wastewater Treatment Plant |
|---|---|---|---|
| Type: | Screw Press | Usage: | Sludge Treatment |
| Keywords: | Snail Dehydrator | Capacity: | 250L~10000L |
| Material: | Stainless Steel SUS 304 | Voltage: | 220v 380V 50HZ 60HZ(Or Customized |
| Name: | Screw Filter Press | ||
| Highlight: | automatic sludge dewatering system,screw press sludge machine,volute design sludge press |
||
Automatic Integrated Volute Sludge Dewatering Machine for Farm Sludge Treatment
This system is specifically designed for efficient sludge dewatering, capable of reducing the moisture content of treated sludge to 75%–85%. The integrated stacked screw dehydrator incorporates a fully automatic control cabinet, flocculation conditioning tank, sludge thickening and dewatering unit, and filtrate collection tank. It achieves highly efficient flocculation under full automation and continuously completes sludge thickening and mechanical dewatering. The collected filtrate can be safely discharged or returned for further treatment.
Working Principle
During operation, sludge is fed into the filtration cylinder through the inlet and is conveyed forward by rotating spiral blades. As the pitch of the spiral shaft gradually decreases, mechanical pressure on the sludge increases, progressively squeezing out moisture. The separated water is discharged through gaps between the fixed and moving rings. Meanwhile, the self-cleaning function between these rings prevents clogging and ensures smooth operation. Finally, the dewatered sludge cake is expelled through the discharge outlet.
Parameters
| Specification and dimension Model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-303 | |
|
Handling capacity (m3／h) |
Ind concentration S．S．0.2～0.5％) |
0.6~1.5 | 1.2~3.0 | 1.8~4.5 | 3.6~9.0 | 6.0~15 | 12~30 | 18~45 |
|
Ind concentration (S．S．0.5～2.0％) |
0.25~0.6 | 0.5~1.2 | 0.75~1.8 | 1.5~3.6 | 2.5~6.0 | 5.0~12 | 7.5~18 | |
|
Ind concentration (S．S．2.0～5.0％) |
0.1~0.25 | 0.2~0.5 | 0.3~0.75 | 0.6~1.5 | 1.0~2.5 | 2.0~5.0 | 3.0~7.5 | |
|
Exdry amount (kg／h) |
Ind concentration (S．S．0.2～0.5％) |
0~3.0 | 2.4~6.0 | 3.6~9.0 | 7.2~18 | 12~30 | 24~60 | 36~90 |
|
Ind concentration (S．S．0.5～2.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 | |
|
Ind concentration (S．S．2.0～5.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 | |
| Water content of mud cake (％) | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | |
| Spirical Didiameter (mm)x Quantity (root) | 100x1 | 100x2 | 200x1 | 200x2 | 300x1 | 300x2 | 300x3 | |
| Power (KW) | 0.2 | 0.3 | 0.6 | 0.8 | 0.8 | 1.2 | 1.95 | |
|
contour size of the unit(s) (ww) |
L | 1816 | 1816 | 2500 | 2500 | 3255 | 3455 | 3605 |
| W | 756 | 910 | 850 | 935 | 985 | 1295 | 1690 | |
| H | 1040 | 1040 | 1270 | 1270 | 1600 | 1600 | 1600 | |
| Reference Weight(kg) | 190 | 275 | 360 | 470 | 820 | 1350 | 1820 | |

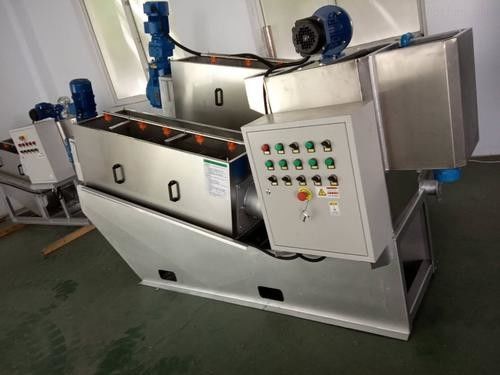

Real picture
Company Profile
Jiangsu Longdai Environmental Protection Group Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
