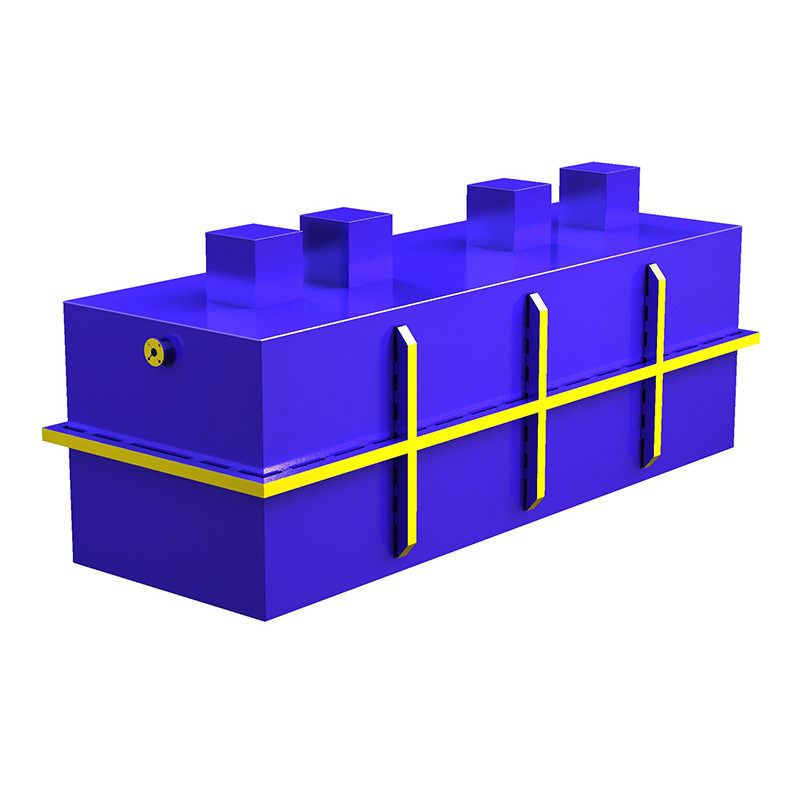

Optimized 100 m³/D Integrated MBBR & MBR Sewage Treatment Plant (SS304 Construction)
Overview
This advanced, pre-fabricated sewage treatment plant is designed for efficient processing of both industrial and domestic wastewater, with a capacity of 100 cubic meters per day. Constructed from durable SS304 stainless steel, it utilizes a combination of Moving Bed Biofilm Reactor (MBBR) and Membrane Bioreactor (MBR) technologies. Based on proven biological treatment processes and extensive scientific research, the system efficiently removes BOD₅, COD, and NH₃-N. It is characterized by stable performance, high treatment efficiency, cost-effectiveness, and minimal space requirements. The unit can be installed underground with the surface restored to green space or parking, or placed above ground per client specifications.
Key Features & Advantages
Advanced Integrated Process: Combines MBBR and MBR technologies for superior biological treatment, ensuring high removal rates of organic pollutants (BOD₅, COD) and ammonia (NH₃-N) in a single, efficient system.
Flexible Installation: Designed for underground burial, preserving valuable surface area for green spaces, parking, or other uses. No permanent structures, heating, or insulation are required. Above-ground installation is also available.
Efficient Biological Process: Employs a plug-flow biological contact oxidation method, which offers superior treatment performance compared to completely mixed tank systems.
Process Stability: Features a robust activated sludge system with strong resistance to shock loads and organic variations, ensuring consistent effluent quality without issues of sludge bulking.
High-Efficiency Biofilm Carrier: Utilizes a novel elastic suspended biofilm media (MBBR carriers) with an extensive surface area for enhanced microbial growth and oxygen transfer, leading to higher treatment efficiency.
Low Sludge Production: The biological process operates in an extended oxidation phase, significantly reducing sludge yield. Excess sludge typically only requires removal every 90 days or more.
Effective Odor Control: Equipped with a dual odor management system, including high-altitude exhaust and integrated soil deodorization filters.
Fully Automated Operation: Features a comprehensive automatic control system with fault alarm capabilities, enabling safe, reliable, unattended operation. Only periodic maintenance is needed.
Parameters
| Model | Handling capacity | size |
| GFH-5 | 5m³/D | 2500*1500*1500mm |
| GFH-10 | 10m³/D | 4000*1500*1500mm |
| GFH-15 | 15m³/D | 4000*1500*2000mm |
| GFH-20 | 20m³/D | 5000*1500*2000mm |
| GFH-30 | 30m³/D | 6000*2000*2000mm |
Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
FAQs
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
